AK-Motion BMW E90 E92 Data Display for BMW 3 Series E9x 320i 330i 335i
Unlock real-time performance data in your BMW 3 Series E9x with the AK-Motion Data Display. Designed to mount neatly in the centre air vent, this touchscreen digital gauge puts critical engine information at eye level. Perfect for BMW E90, E91, E92 and E93 owners who want a stealth OEM-style vent gauge with powerful OBD2 monitoring, the AK-Motion display delivers live metrics like boost pressure, oil temperature, coolant temperature, IAT, fuel pressure, rail pressure, G-Force, lap timing, and much more. Ideal for 320i, 330i and 335i drivers, daily and track-day alike.
We have fitted these at Nforcd and customer feedback has been excellent. A clean, factory-look install with serious data visibility. If you want a BMW E90 E92 digital gauge, BMW E9x vent gauge, BMW 335i boost gauge, or a comprehensive BMW performance monitor, this is the go-to solution in the UK.
Why choose the AK-Motion E9x data display
- Purpose-made for BMW 3 Series E90 E91 E92 E93 with a discreet centre-vent mount
- Touchscreen digital display with customisable dashboards and colours
- Shows real-time boost, oil temp, coolant temp, IAT, lambda, fuel and rail pressure, G-Force and more
- Built-in performance timers for 0-100, 100-200, 1/8, 1/4 and 1/2 mile runs
- Adjustable shift light and optional cluster flash for precise gear changes
- Reads and clears engine fault codes and stores max values
- Plug-in solution with updatable firmware via USB
Please include your VIN when ordering so we can ensure the correct configuration for your vehicle.
Key features and live data
- Activation and deactivation of Active Sound Design F-series
- Activation and deactivation of DSC and DTC while starting the vehicle E-series
- Activation of relays: control up to four relays with the unit
- Activation of the speedometer needle when ignition on
- Adjustable shift light on display and optional flash in instrument cluster
- Air flow
- Automatic and manual brightness control
- Battery voltage
- Boost pressure actual value
- Boost pressure target value
- Charge air temperature IAT
- Compensation of scaled maps for N54 boost pressure greater than 1.5 bar
- Dashboard with eight freely selectable values
- Delete – R F-series without cat code
- DPF differential pressure
- Driven distance since successful regeneration of DPF
- Enable burble F-series
- Enable diagnostic OBD2 by Data Display
- Exhaust temperature calculated
- Firing angle
- Flap control
- Freely selectable boot screen and colour scales oil temperature red, yellow, green
- Freely selectable speed and timing measurement
- Display values as numbers or bar graphs up to three
- Fuel pressure and rail pressure
- Full graphical touch display 65,536 colours
- Gearbox temperature automatic and DKG E-series and F-series
- G-Force meter
- Ignition time
- Lambda value AFR support
- Lap time with distance and time
- OBD2 blocker function unlock with code
- Oil pressure F-series and E-series with external sensor
- Oil temperature
- Support for external sensors oil temperature, oil pressure, exhaust temperature
- Power and torque readouts
- Pressure before DPF and soot mass DPF
- Read and delete engine error codes
- Save and reset max values plus last four timing measurements
- Multi-language and unit selection English, German, Italian, French, Dutch, Bar-PSI, PS-KW, Lambda-AFR, °C-°F
- Speed with GPS match option
- Timing 0-100, 100-200, 1/8 mile, 1/4 mile, 1/2 mile
- Torque compensation value for vehicles with tuning boxes or remaps
- Unit is updatable
- Up to four freely selectable parameters in a flow diagram
- Wastegate position
- Water temperature
Note: Functions vary by engine and platform. F-series specific items are included for completeness. G-series vehicles are not supported.
Diesel models and oil temperature sensor
Some E-series diesels can display oil temperature without a sensor. For E9x diesel engines, an external oil temperature sensor is required on all engines except N57. We recommend checking your exact engine requirements and adding the optional sensor if needed. For advice, email sales@nforcd.com.

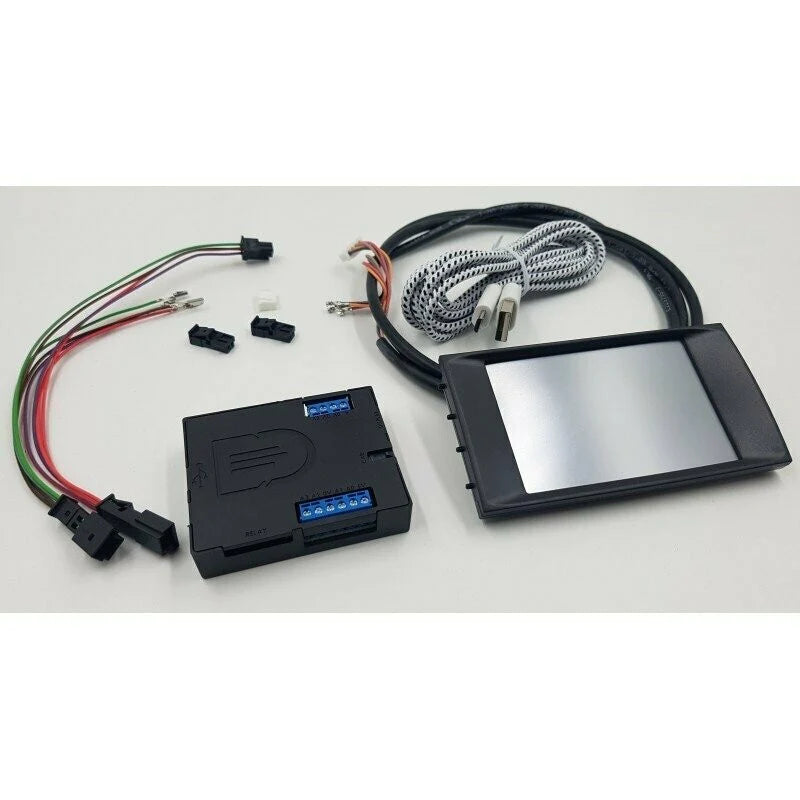

What is included
- Control Unit
- 3.2 inch display with frame for centre vent
- Vehicle connection cable set
- Display cable
- USB cable for updates
- Matte anti-reflection film
- 2x socket housings for any required rewiring
Compatibility
- BMW 3 Series E90 E91 E92 E93 all models including 320i, 330i, 335i
Important: LHD vehicles only. The supplied vent frame does not fit RHD cars.
Installation
This is a neat centre-vent fit with a plug-in harness and touchscreen control. For professional fitting, we recommend booking installation with Nforcd in Warwickshire. Request a fitting quote at Sales@nforcd.com.
Ordering notes
- Please provide your VIN at checkout so we can verify vehicle specifics
- Feature availability depends on engine and platform
Part number
AKME9X1000
Brand
AK-Motion
Looking for a BMW E90 E92 data display UK, BMW E9x digital gauge, BMW 335i boost gauge, BMW vent gauge, or BMW performance monitor that integrates like OEM and reads OBD2 in real time? The AK-Motion BMW E90 E92 Data Display is the premium, plug-in solution trusted by enthusiasts and our workshop alike.
