Description

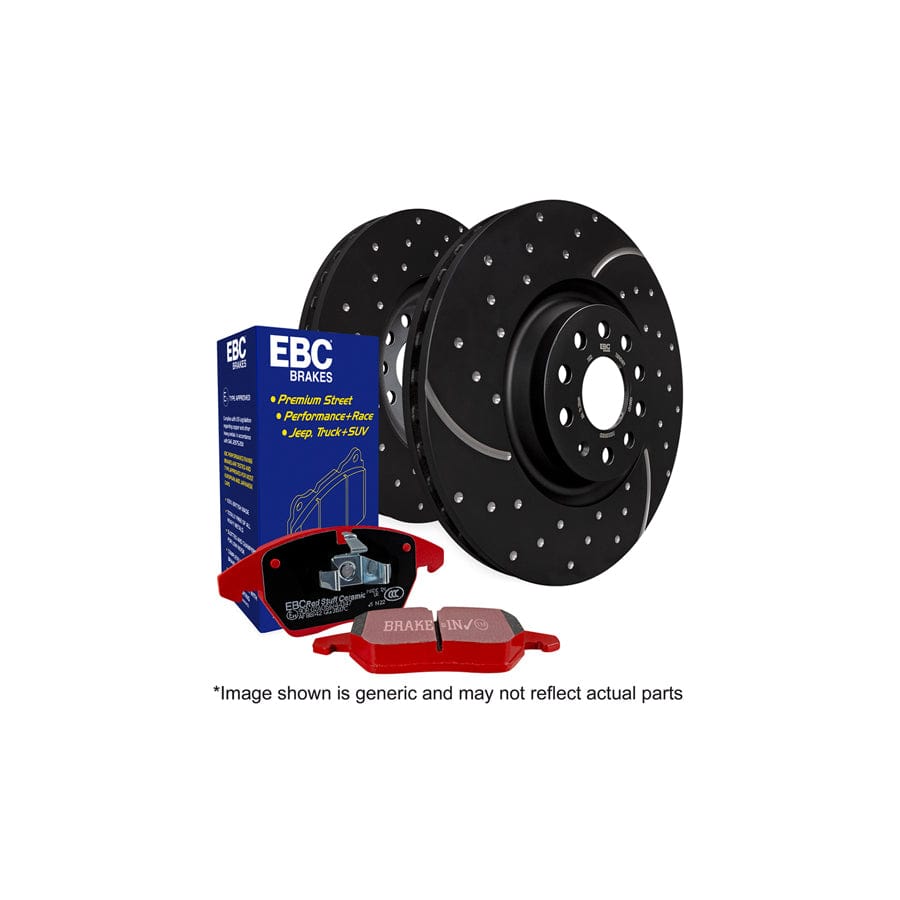

- Kit contains one set of Redstuff brake pads and one pair of GD slotted and dimpled brake discs
- Money saving brake kit including one set of pads and a pair of discs
- Redstuff 3000 series type approved upgrade brake pad set
- Low dust pads which give a brake improvement of up to 15%
- Excellent brake upgrade for street use
- Pair of slotted and dimpled upgrade brake discs with grooves that are designed to dispel gasses and debris
Redstuff 3000 series sport upgrade brake pads are manufactured in the UK and are type approved for your vehicle. Designed for long life with low dust and featuring Brake-In coating for faster bed-in.

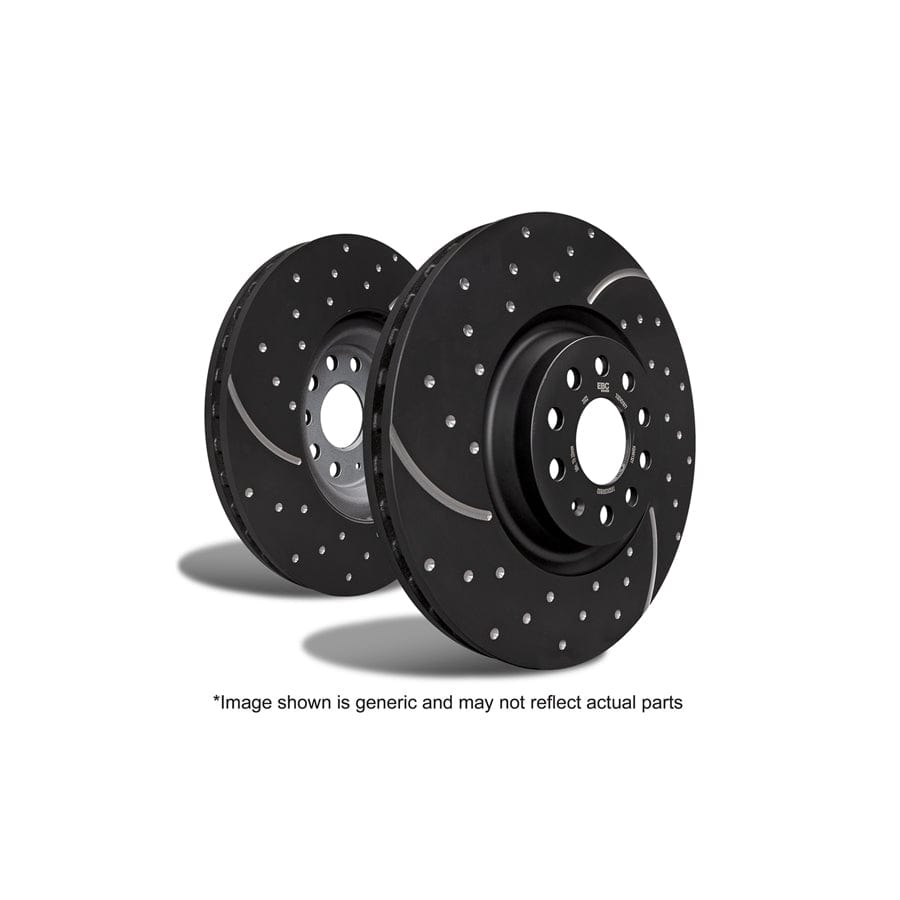

One pair of slotted and dimpled upgrade brake discs. Wide slots and blind drilled dimples are designed to dispel gasses and debris. Manufactured from unique disc alloys and thermic black coated for corrosion resistance. These discs are runout tested.
Features

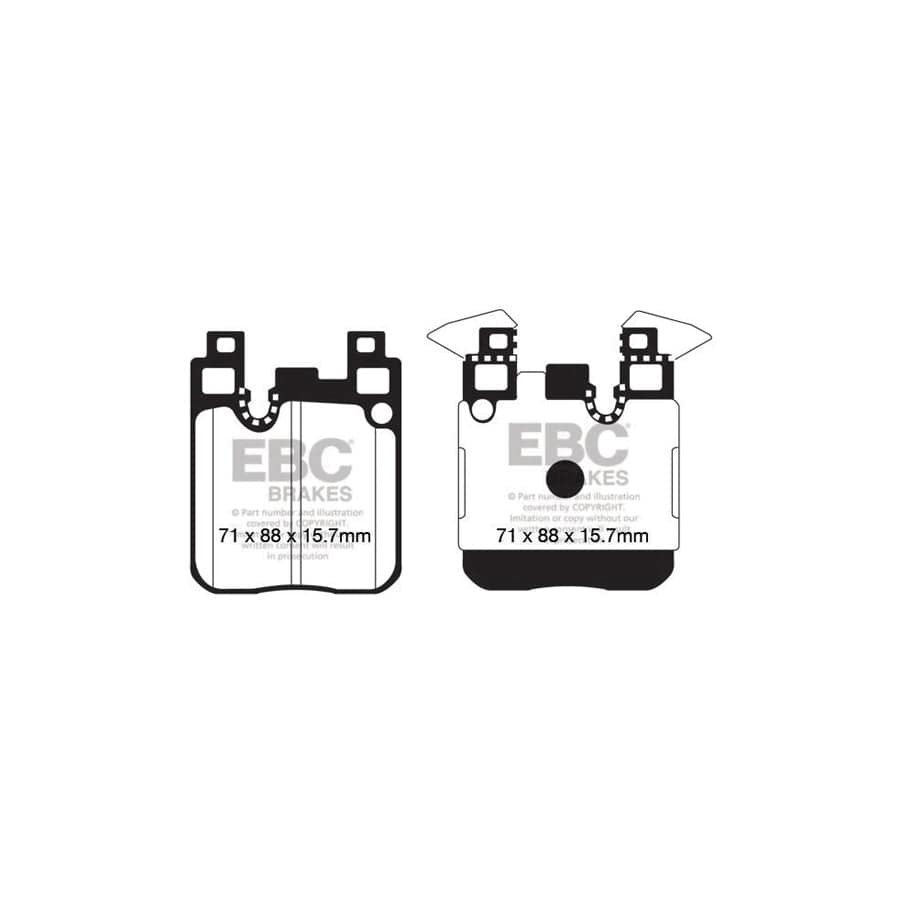

| Pad A Dimensions | : | 71 x 88 x 15.7 |
| Pad B Dimensions | : | 71 x 88 x 15.7 |
| Disc Type | : | Grooved |
| Solid or Vented? | : | V |
| Disc Bolts | : | 5 |
| Disc Diameter | : | 345mm |
| Disc Height | : | 66mm |
| Disc Thickness New | : | 24mm |
| Disc Thickness Min | : | 24mm |
| Kit Components | : | DP32133C + GD2068R |
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| 3 Series (F30) | 320 | 2.0 TD | - | 2012-2019 | Rear |
| 3 Series (F30) | 320 | 2.0 Turbo | - | 2012-2019 | Rear |
| 3 Series (F30) | 325 | 2.0 TD | - | 2013-2019 | Rear |
| 3 Series (F30) | 328 | 2.0 Turbo | - | 2012-2016 | Rear |
| 3 Series (F30) | 330 | 3.0 TD | - | 2012-2019 | Rear |
| 3 Series (F30) | 335 | 3.0 TD | 313 | 2013-2019 | Rear |
| 3 Series (F30) | 335 | 3.0 Turbo | - | 2012-2016 | Rear |
| 3 Series (F30) | 340 | 3.0 Turbo | 326 | 2015-2019 | Rear |
| 3 Series (xDrive F30) | 320 | 2.0 TD | - | 2013-2019 | Rear |
| 3 Series (xDrive F30) | 320 | 2.0 Turbo | - | 2013-2019 | Rear |
| 3 Series (xDrive F30) | 330 | 3.0 TD | - | 2013-2019 | Rear |
| 3 Series (xDrive F30) | 335 | 3.0 Turbo | - | 2013-2016 | Rear |
| 3 Series (xDrive F30) | 335 | 3.0 TD | - | 2013-2019 | Rear |
| 3 Series (xDrive F30) | 340 | 3.0 Turbo | 326 | 2015-2019 | Rear |
| 3 Series (F31) | 320 | 2.0 TD | - | 2012-2019 | Rear |
| 3 Series (F31) | 320 | 2.0 Turbo | - | 2012-2019 | Rear |
| 3 Series (F31) | 325 | 2.0 TD | - | 2013-2019 | Rear |
| 3 Series (F31) | 328 | 2.0 Turbo | - | 2012-2016 | Rear |
| 3 Series (F31) | 330 | 2.0 Turbo | 252 | 2015-2019 | Rear |
| 3 Series (F31) | 330 | 3.0 TD | - | 2012-2019 | Rear |
| 3 Series (F31) | 335 | 3.0 TD | 313 | 2013-2019 | Rear |
| 3 Series (F31) | 335 | 3.0 Turbo | - | 2012-2016 | Rear |
| 3 Series (F31) | 340 | 3.0 Turbo | 326 | 2015-2019 | Rear |
| 3 Series (xDrive F31) | 320 | 2.0 TD | - | 2013-2019 | Rear |
| 3 Series (xDrive F31) | 320 | 2.0 Turbo | - | 2013-2019 | Rear |
| 3 Series (xDrive F31) | 330 | 3.0 TD | - | 2013-2019 | Rear |
| 3 Series (xDrive F31) | 335 | 3.0 Turbo | - | 2013-2016 | Rear |
| 3 Series (xDrive F31) | 335 | 3.0 TD | - | 2013-2019 | Rear |
| 3 Series (xDrive F31) | 340 | 3.0 Turbo | 326 | 2015-2019 | Rear |
| 3 Series (F34 GT) | 320 | 2.0 TD | - | 2013-2019 | Rear |
| 3 Series (F34 GT) | 320 | 2.0 Turbo | - | 2013-2019 | Rear |
| 3 Series (F34 GT) | 325 | 2.0 TD | - | 2013-2019 | Rear |
| 3 Series (F34 GT) | 328 | 2.0 Turbo | - | 2013-2019 | Rear |
| 3 Series (F34 GT) | 330 | 3.0 TD | - | 2014-2019 | Rear |
| 3 Series (F34 GT) | 335 | 3.0 Turbo | - | 2013-2016 | Rear |
| 3 Series (F34 GT) | 340 | 3.0 Turbo | 326 | 2015-2019 | Rear |
| 3 Series (xDrive GT F34) | 320 | 2.0 Turbo | - | 2013-2019 | Rear |
| 3 Series (xDrive GT F34) | 320 | 2.0 TD | - | 2013-2019 | Rear |
| 3 Series (xDrive GT F34) | 328 | 2.0 Turbo | - | 2013-2019 | Rear |
| 3 Series (xDrive GT F34) | 330 | 3.0 TD | - | 2014-2019 | Rear |
| 3 Series (xDrive GT F34) | 335 | 3.0 Turbo | - | 2013-2016 | Rear |
| 3 Series (xDrive GT F34) | 340 | 3.0 Turbo | 326 | 2015-2019 | Rear |
| 4 Series (F32 Coupe) | 420 | 2.0 TD | 181 | 2013-2015 | Rear |
| 4 Series (F32 Coupe) | 420 | 2.0 TD | 190 | 2015-2020 | Rear |
| 4 Series (F32 Coupe) | 420 | 2.0 Turbo | 181 | 2013-2020 | Rear |
| 4 Series (F32 Coupe) | 425 | 2.0 TD | 215 | 2014-2020 | Rear |
| 4 Series (F32 Coupe) | 428 | 2.0 Turbo | 242 | 2013-2017 | Rear |
| 4 Series (F32 Coupe) | 430 | 3.0 TD | 254 | 2013-2020 | Rear |
| 4 Series (F32 Coupe) | 430 | 2.0 Turbo | 252 | 2016-2020 | Rear |
| 4 Series (F32 Coupe) | 435 | 3.0 Turbo | 300 | 2013-2017 | Rear |
| 4 Series (F32 Coupe) | 435 | 3.0 Twin TD | 309 | 2013-2020 | Rear |
| 4 Series (F32 Coupe) | 440 | 3.0 Turbo | 326 | 2016-2020 | Rear |
| 4 Series (xDrive F32 Coupe) | 420 | 2.0 TD | 181 | 2014-2015 | Rear |
| 4 Series (xDrive F32 Coupe) | 420 | 2.0 TD | 190 | 2015-2020 | Rear |
| 4 Series (xDrive F32 Coupe) | 420 | 2.0 Turbo | 181 | 2013-2020 | Rear |
| 4 Series (xDrive F32 Coupe) | 428 | 2.0 Turbo | 242 | 2014-2017 | Rear |
| 4 Series (xDrive F32 Coupe) | 430 | 3.0 TD | 254 | 2014-2020 | Rear |
| 4 Series (xDrive F32 Coupe) | 430 | 2.0 Turbo | 252 | 2016-2020 | Rear |
| 4 Series (xDrive F32 Coupe) | 435 | 3.0 Twin TD | 309 | 2014-2020 | Rear |
| 4 Series (xDrive F32 Coupe) | 435 | 3.0 Turbo | 300 | 2013-2017 | Rear |
| 4 Series (xDrive F32 Coupe) | 440 | 3.0 Turbo | 326 | 2016-2020 | Rear |
| 4 Series (F33 Convertible) | 420 | 2.0 TD | 181 | 2013-2015 | Rear |
| 4 Series (F33 Convertible) | 420 | 2.0 TD | 190 | 2015-2020 | Rear |
| 4 Series (F33 Convertible) | 420 | 2.0 Turbo | 184 | 2014-2020 | Rear |
| 4 Series (F33 Convertible) | 425 | 2.0 TD | 218 | 2014-2020 | Rear |
| 4 Series (F33 Convertible) | 428 | 2.0 Turbo | 242 | 2013-2017 | Rear |
| 4 Series (F33 Convertible) | 430 | 3.0 TD | 258 | 2014-2020 | Rear |
| 4 Series (F33 Convertible) | 435 | 3.0 Turbo | 300 | 2013-2017 | Rear |
| 4 Series (F33 Convertible) | 435 | 3.0 Twin TD | 313 | 2014-2020 | Rear |
| 4 Series (F33 Convertible) | 440 | 3.0 Turbo | 326 | 2016-2020 | Rear |
| 4 Series (xDrive F33 Convertible) | 428 | 2.0 Turbo | 242 | 2013-2020 | Rear |
| 4 Series (xDrive F33 Convertible) | 430 | 2.0 Turbo | 252 | 2016-2020 | Rear |
| 4 Series (xDrive F33 Convertible) | 435 | 3.0 Twin TD | 313 | 2014-2020 | Rear |
| 4 Series (xDrive F33 Convertible) | 440 | 3.0 Turbo | 326 | 2016-2020 | Rear |
| 4 Series (F36 Gran Coupe) | 420 | 2.0 TD | 181 | 2014-2015 | Rear |
| 4 Series (F36 Gran Coupe) | 420 | 2.0 TD | 190 | 2015-2020 | Rear |
| 4 Series (F36 Gran Coupe) | 420 | 2.0 Turbo | 181 | 2013-2020 | Rear |
| 4 Series (F36 Gran Coupe) | 428 | 2.0 Turbo | 242 | 2014-2017 | Rear |
| 4 Series (F36 Gran Coupe) | 430 | 2.0 Turbo | 252 | 2016-2020 | Rear |
| 4 Series (F36 Gran Coupe) | 430 | 3.0 TD | 258 | 2014-2020 | Rear |
| 4 Series (F36 Gran Coupe) | 435 | 3.0 Turbo | 300 | 2014-2017 | Rear |
| 4 Series (F36 Gran Coupe) | 435 | 3.0 Twin TD | 313 | 2014-2020 | Rear |
| 4 Series (F36 Gran Coupe) | 440 | 3.0 Turbo | 326 | 2016-2020 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 420 | 2.0 TD | 181 | 2014-2015 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 420 | 2.0 TD | 190 | 2015-2020 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 420 | 2.0 Turbo | 181 | 2014-2020 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 428 | 2.0 Turbo | 242 | 2014-2017 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 430 | 3.0 TD | 258 | 2014-2020 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 430 | 2.0 Turbo | 252 | 2016-2020 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 435 | 3.0 Turbo | 300 | 2014-2017 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 435 | 3.0 Twin TD | 313 | 2014-2020 | Rear |
| 4 Series (xDrive F36 Gran Coupe) | 440 | 3.0 Turbo | 326 | 2016-2020 | Rear |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-PD12KR257
More Information
Manufactured by
EBC Brakes
Warranty
EBC one year or 10,000 miles warranty
