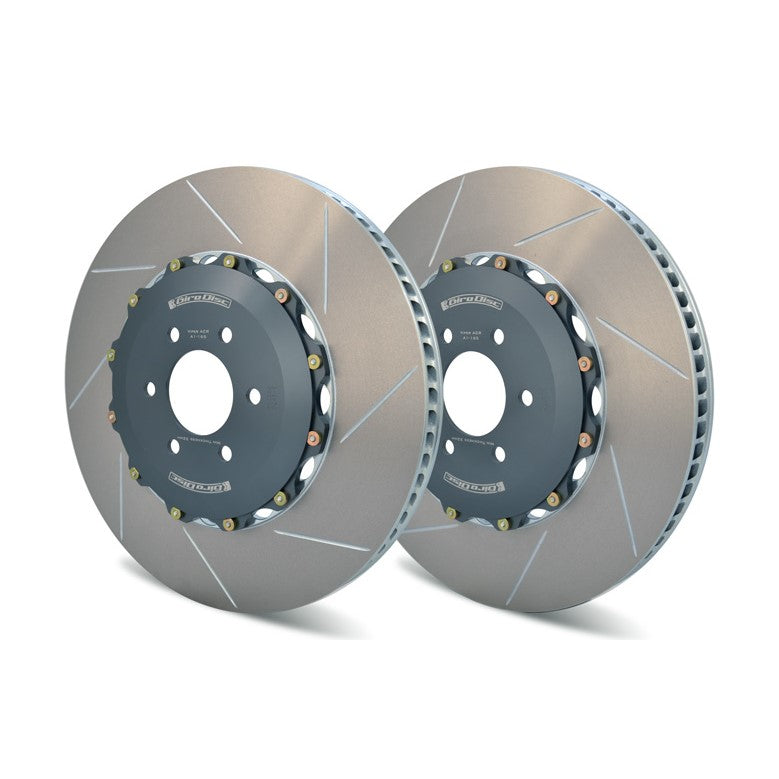

Girodisc A1-220 BMW F80 F82 F83 F87 Front 400mm 2-Piece Brake Discs - Pair
Upgrade the front brakes on your BMW M2 Competition, M3 or M4 with the Girodisc A1-220 400mm 2-piece floating brake discs. These slotted, vented performance front rotors are engineered for serious road and track use, delivering stronger braking, faster cooling and exceptional consistency. Direct fit for factory calipers, this is a premium bolt-on brake upgrade for the S55-powered BMW F80 M3, F82 F83 M4 and F87 M2 Competition platforms.
Made in the USA, the rotors use Girodisc’s proprietary cast iron rings with curved vane internal ventilation to act like a centrifugal pump, pulling air through the disc for maximum heat rejection and reduced brake fade. The lightweight 6061-T6 aircraft-grade aluminium hats are U.S. sourced and help cut unsprung and rotational mass for sharper turn-in and improved ride quality. A floating mount with high strength alloy steel drive pins and anti-noise spring washers allows the disc to expand under heat, self-centre between the pads and stay quiet on the road.
We have fitted and used these on multiple customer BMW M2 Competition, M3 and M4 builds, and feedback has been consistently excellent: stronger initial bite, improved pedal feel, better high-temperature performance and confidence lap after lap. When the time comes, simply replace the iron rings and keep the hats, reducing long-term running costs.
Why choose Girodisc A1-220 400mm front rotors
- Direct replacement front brake discs for BMW F80 M3, F82 F83 M4, F87 M2 Competition
- 400mm 2-piece floating design for serious road and track performance
- Curved vane vented rotor for rapid cooling and reduced fade on track days
- Slotted face and zinc coated finish for consistent pad refresh and corrosion resistance
- 6061-T6 aluminium hats reduce unsprung weight and rotational mass
- Floating drive pin system with anti-noise spring washers for quiet operation
- Self-centering rotor for even pad contact and improved wear
- Serviceable design – replace rings only when worn
- Sold as a matched pair of front discs
Specifications
- Part number: A1-220
- Disc diameter: 400.0 mm
- Disc height: 65.5 mm
- Maximum thickness: 36.0 mm
- Minimum thickness: 34.0 mm
- Construction: 2-piece floating
- Vane style: Curved vane
- Type: Vented
- Finish: Slotted and zinc coated
- Hat material: 6061-T6 aluminium
- Ring material: Proprietary cast iron
Vehicle compatibility
- BMW M Series F80 M3 Saloon S55 (2012-2015)
- BMW M Series F80 LCI M3 Saloon S55 (2015-2018)
- BMW M Series F82 M4 Coupe S55 (2013-2017)
- BMW M Series F82 M4 GTS Coupe S55 (2013-2017)
- BMW M Series F82 LCI M4 Coupe S55 (2016-2019)
- BMW M Series F82 LCI M4 CS Coupe S55 (2016-2019)
- BMW M Series F83 M4 Convertible S55 (2013-2017)
- BMW M Series F83 LCI M4 Convertible S55 (2016-2019)
- BMW M Series F87 LCI M2 N55 (2016+)
- BMW M Series F87 LCI M2 Competition S55 (2016+)
- BMW M Series F87 LCI M2 CS S55 (2018+)
Please note
Suitable with red or silver calipers. Also compatible with CS models with the optional carbon-ceramic brake package with gold calipers. Not suitable for models with blue Brembo calipers, which require different size discs.
Fitting and support
Professional installation recommended. Nforcd offers fitting at our Warwickshire workshop. Request a quote at Sales@nforcd.com. Follow Girodisc’s bedding-in procedure after installation for best performance.
Matching rears
Matching Girodisc 380mm rear 2-piece brake discs for BMW F80 F82 F83 F87 are available. Search our store for the complementary rear set.
Manufacturer
Girodisc – engineered and machined in the USA.
