AK-Motion BMW F20 F21 Data Display for BMW 1 Series including 120i, M135i and M140i
Transform your BMW 1 Series F20 and F21 with the AK-Motion Data Display. This discreet 3.5 inch touchscreen installs neatly in the centre air vent and gives you real-time performance data, diagnostics and control right where you want it. Perfect for daily driving, fast road and track, it delivers the live metrics enthusiasts search for on BMW M140i, M135i and 120i models while retaining a clean, integrated look.
We run this AK-Motion display on our own M140i and we love it. Customers consistently tell us it is one of the best BMW F20 F21 upgrades for monitoring boost, oil temperature, gearbox temperature and much more. If you are looking for a BMW M140i boost gauge, BMW M135i digital gauge, BMW 1 Series F20 F21 data display or a centre vent CANbus display, this is the solution.
Key Benefits
- Purpose-built for BMW F20 F21 1 Series including 120i, M135i and M140i
- Neat centre vent installation with included frame for a clean, integrated finish
- Full-colour touchscreen with anti-reflection film for excellent visibility
- Live data from the car’s CANbus including boost, oil temp, water temp, fuel and rail pressure
- Performance timers including 0 to 100, 100 to 200, 1/8 mile, 1/4 mile and 1/2 mile
- Custom dashboards, adjustable shift light and lap timing
- Read and clear engine fault codes directly on the display
- Feature set tailored per engine and model variance
Important: Please provide your VIN when ordering so we can ensure correct configuration. G series vehicles are not supported.

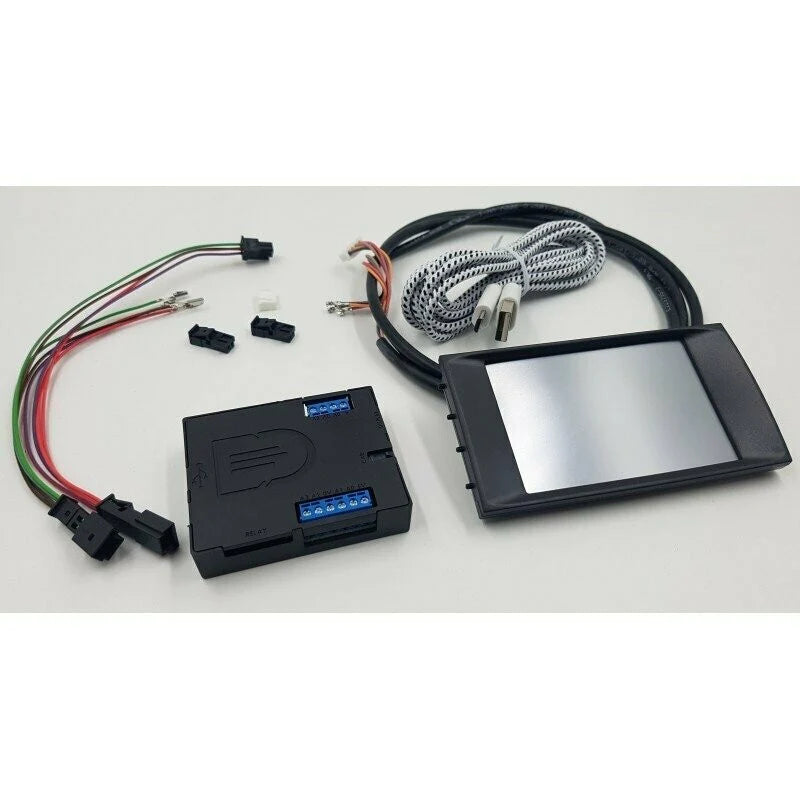

What’s Included
- Control unit
- 3.5 inch display with vent frame
- Vehicle-specific cable set
- Display cable
- USB cable for updates
- Matte anti-reflection film
- Socket housings for rewiring the necessary vehicle cables
Features and Live Data
Functions vary by engine and vehicle, and include:
- Activation and deactivation of Active Sound Design on F series
- Activation and deactivation of DSC and DTC at start on E series
- Control up to four relays
- Speedometer needle sweep on ignition
- Adjustable shift light shown on display or flash on the instrument cluster
- Air flow
- Automatic and manual brightness control
- Battery voltage
- Boost pressure actual value
- Boost pressure target value
- Charge air temperature IAT
- Compensation of scaled maps for N54 with boost pressure over 1.5 bar
- Dashboard with eight freely selectable values
- Delete R on F series without cat code
- DPF differential pressure
- Driven distance since successful DPF regeneration
- Enable burble on F series
- Enable diagnostics OBD2 by Data Display
- Exhaust temperature calculated
- Firing angle
- Exhaust flap control
- Custom bootscreen
- Custom colour scale for values such as oil temperature red, yellow and green
- Custom speed and timing measurement
- Custom values displayed as numbers or bar graphs up to three
- Fuel pressure
- Full graphical touch display 65536 colours
- Gearbox temperature for automatic and DKG E series and F series
- G force
- Ignition time
- Lambda value
- Lap time with distance and time
- OBD2 blocker function unlock with code
- Oil pressure F series and E series with external sensor
- Oil temperature
- Optional external sensors oil temperature, oil pressure, exhaust temperature
- Power
- Pressure before DPF
- Rail pressure
- Read and clear engine error codes
- Save and reset max values
- Save last four timing measurements
- Selectable language and units English, German, Italian, French, Dutch, Bar PSI, PS KW, Lambda AFR, °C °F
- Soot mass DPF
- Speed matchable to GPS
- Timing 0 to 100
- Timing 1/2 mile
- Timing 1/4 mile
- Timing 1/8 mile
- Timing 100 to 200
- Torque
- Torque compensation value for vehicles with tuning or powerbox
- Unit is updatable
- Up to four freely selectable parameters in a flow diagram
- Wastegate position
- Water temperature
Compatibility
- BMW 1 Series F20 and F21 - all models including 120i, M135i and M140i
G series vehicles are not supported.
Installation and Support
Typical installation time is approximately 2 hours. For professional fitting, book with Nforcd in Warwickshire. Request a quote at Sales@nforcd.com. Our team has installed these on customer BMW M140i and M135i cars with excellent results, and we are happy to advise on configuration and use.
Part Numbers
- AKMF2X1000.1 LHD
- AKMF2X1000.2 RHD
Why Buy From Nforcd
- Tested by us on our own BMW M140i and recommended for BMW F20 F21 platforms
- Proven with happy customers who want a quality BMW 1 Series digital gauge and performance monitor
- Expert fitting and aftersales support from our Warwickshire workshop
Manufacturer
AK-Motion
In the Gallery
See the photos for real-world installs, including Henry’s BMW M140i. The centre vent display looks right at home and gives you the live data every BMW F20 and F21 owner wants, from boost and oil temperature to performance timing and G force.
