JXB Performance BMW Driveshaft Centre Support Bearing Carrier Upgrade
Upgrade your BMW propshaft with the JXB Performance driveshaft centre support bearing carrier upgrade. This CSB carrier upgrade is engineered to keep your driveshaft precisely where it should be under load, reduce driveline slop, protect alignment and deliver sharper throttle response with confidence. Perfect for fast road and track. Compatible with E82, E90, F30, F87 and G20 platforms including M140i, 335i, 440i and M2.
Keywords you might be searching for: BMW centre support bearing, BMW CSB, driveshaft bearing carrier, propshaft centre bearing, propshaft support, BMW driveshaft carrier upgrade, E90 centre support bearing, F30 driveshaft bearing, G20 propshaft bearing, M140i driveshaft support, 335i centre bearing, 440i propshaft carrier, M2 CSB upgrade, JXB Performance CSB.
Why upgrade the BMW centre support bearing
The stock BMW centre support bearing carrier uses very soft rubber. Around 20 lb of force can push it off centre. That soft isolation keeps NVH low but allows the OEM bearing to sag, misalign the propshaft and add play in the driveline during shifts and on-off throttle. Over time the factory bushing can dry-rot and crack, leading to vibrations and clunks and placing extra stress on the bearing. The OEM carrier is moulded to the bearing which makes replacement awkward without special tools.
The JXB Performance carrier is the solution. It keeps the driveshaft firmly centred at all times so alignment is maintained under load. The solid construction will not wear out and the thick isolator bushings dramatically limit movement from centre, giving you tighter, more consistent driveline behaviour.
Street and Track bushings to suit your build
- Street bushings: Designed to absorb most drivetrain NVH. Expect a light hum at some speeds in certain cars. With a modified exhaust or windows down you will likely not notice it.
- Track bushings: Maximum control and response for no-compromise performance. These can increase cabin noise.
- Interchangeable: Not sure which you prefer? Swap between Street and Track bushings with the same carrier.
Real-world results
We have installed and run this JXB Performance centre support bearing carrier on customer cars and in-house builds. Feedback has been consistently positive. Customers report reduced driveline shunt, improved shift feel and greater confidence under hard acceleration and deceleration. It is one of the highest impact driveline upgrades you can make on these platforms.
Key features
- Keeps the driveshaft centred to protect alignment and reduce vibration
- Minimises driveline slop for crisper throttle and gear changes
- Durable, solid construction for long-term reliability
- Custom isolator bushings manage NVH far better than the flimsy OEM rubber
- Two-part design clamps around the OEM bearing so the propshaft does not need to be removed
Installation
No driveshaft removal required. The two-part carrier clamps around the OEM bearing after the stock carrier is removed. A cutting tool is needed to remove the factory carrier. Professional installation recommended.
Want it fitted by a BMW performance specialist? Nforcd offers in-house installation in Warwickshire. Request a fitting quote at Sales@nforcd.com.
Compatibility
Fits the following BMW models and platforms. If in doubt, use our compatibility check prior to dispatch.
1 Series
- 1' E81 02/2006 - 12/2011
- 1' E87 02/2003 - 02/2007
- 1' E87 LCI 01/2006 - 06/2011
- 1' E88 11/2006 - 10/2013
- 1' E82 11/2006 - 10/2013
- 1' F20 07/2010 - 02/2015
- 1' F20 LCI 05/2014 - 06/2019
- 1' F21 07/2010 - 02/2015
- 1' F21 LCI 05/2014 - 06/2019
2 Series
- 2' F22 10/2012 - 06/2017
- 2' F22 LCI 09/2016 - 12/2019
- 2' F87 M2 11/2014 - 06/2017
- 2' F87 M2 LCI 09/2016 - 12/2019
- 2' F23 03/2014 - 06/2017
- 2' F23 LCI 09/2016 - 12/2019
3 Series
- 3' E90 02/2004 - 09/2008
- 3' E90 LCI 07/2007 - 12/2011
- 3' E91 02/2004 - 08/2008
- 3' E91 LCI 07/2007 - 05/2012
- 3' E92 05/2005 - 02/2010
- 3' E92 LCI 11/2008 - 06/2013
- 3' E93 09/2005 - 02/2010
- 3' E93 LCI 11/2008 - 10/2013
- 3' F30 02/2011 - 07/2015
- 3' F30 LCI 09/2014 - 10/2018
- 3' F80 M3 04/2012 - 06/2015
- 3' F80 M3 LCI 01/2015 - 10/2018
- 3' G20 10/2017 - 12/2019
- 3' F31 07/2011 - 07/2015
- 3' F31 LCI 09/2014 - 06/2019
- 3' G21 05/2018 - 12/2019
- 3' F34 GT 07/2012 - 06/2016
- 3' F34 GT LCI 09/2015 - 12/2019
4 Series
- 4' F32 11/2012 - 02/2017
- 4' F32 LCI 05/2016 - 12/2019
- 4' F82 M4 02/2013 - 02/2017
- 4' F82 M4 LCI 05/2016 - 12/2019
- 4' F33 03/2013 - 02/2017
- 4' F33 LCI 05/2016 - 12/2019
- 4' F83 M4 06/2013 - 02/2017
- 4' F83 M4 LCI 05/2016 - 12/2019
- 4' F36 Gran Coupé 07/2013 - 03/2017
- 4' F36 Gran Coupé LCI 05/2016 - 12/2019
Popular fitments and search terms: BMW M140i CSB, BMW 335i centre support bearing, BMW 440i propshaft bearing, BMW M2 driveshaft carrier, F30 centre bearing, G20 driveshaft support.
Compatibility check
We verify fitment before dispatch. Provide your UK registration or the last 7 digits of your VIN at checkout so we can confirm the part suits your vehicle.
Part numbers
- BMW01A0-S Street
- BMW01A0-T Track
- BMW01A0-B Both Street and Track bushings
More information
Manufactured by: JXB Performance
Warranty: Two years manufacturer warranty for UK customers and one year for international customers when a VIN is provided at checkout on compatible vehicles.
Photos and videos

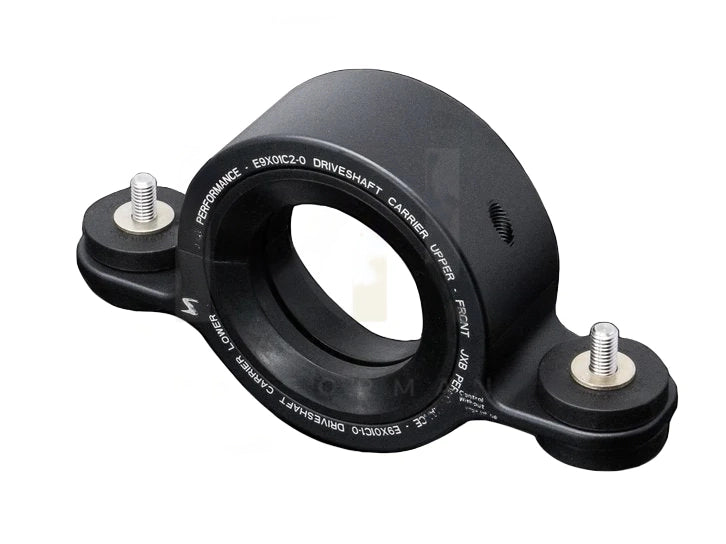

Stock BMW centre support bearing carrier vs upgraded JXB Performance carrier.
