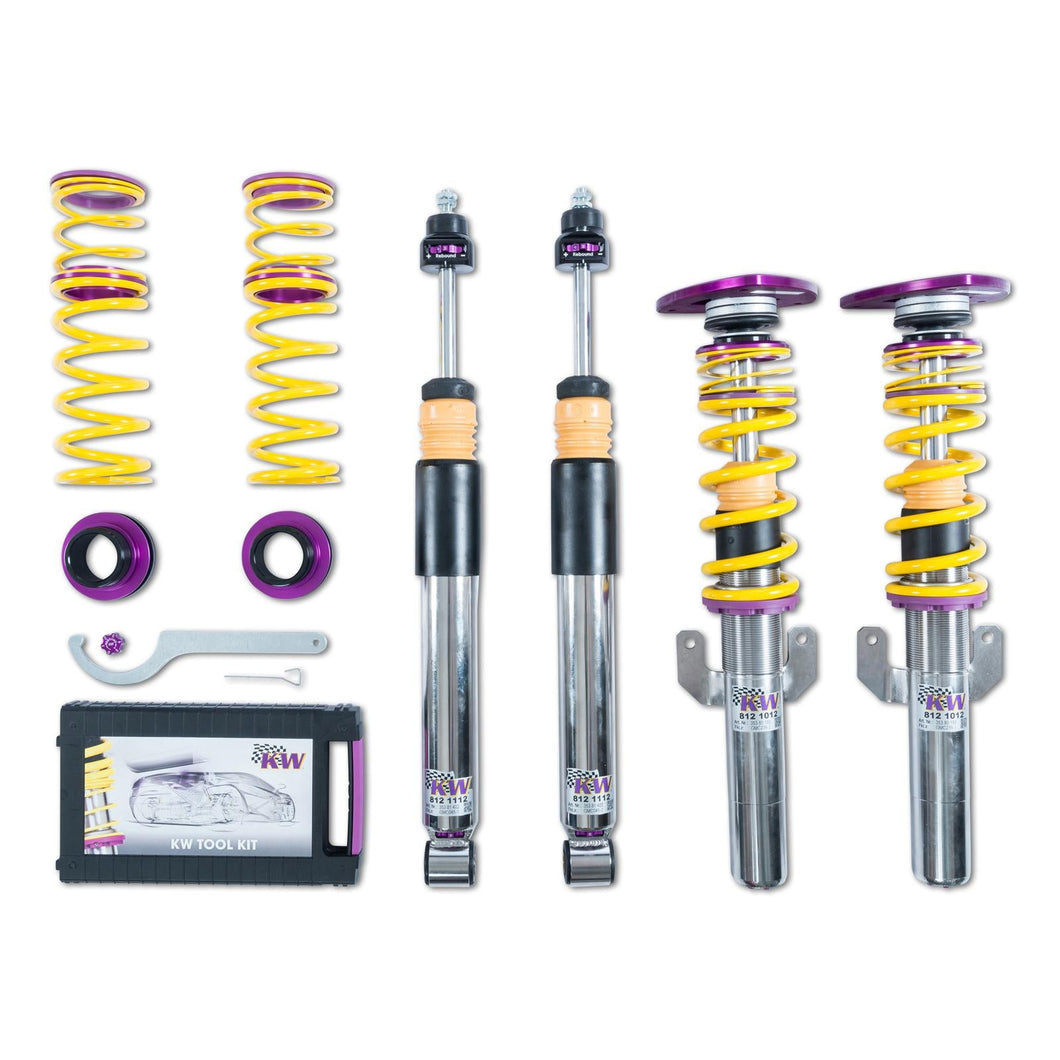

KW BMW F20 F21 F30 F32 2-Way Clubsport Coilover Kit (inc. M140i, 335i, 340i and 440i)
Unlock serious track and fast-road performance with the KW 2-Way Clubsport coilover kit for BMW F20, F21, F30 and F32 platforms. This KW Clubsport coilover kit brings proven motorsport technology to your BMW 1 Series, 3 Series and 4 Series, with independent rebound and compression damping adjustment, height adjustment and corrosion-resistant Inox-Line stainless steel build quality. Nürburgring-developed and tuned for precision, grip and confidence on circuit and on the road, this is the go-to BMW coilover upgrade for M135i, M140i, 335i, 340i, 435i and 440i owners who want sharper turn-in, reduced body roll and consistent performance lap after lap.
We have fitted and driven these Kits ourselves at Nforcd and our customers consistently report a transformational improvement in handling, steering response and tyre contact on both track days and spirited road driving. If you are searching for BMW F20 coilovers, BMW F21 coilovers, BMW F30 coilovers or BMW F32 coilovers, the KW Clubsport 2-way kit is a proven, high-quality solution that delivers.
Why choose KW 2-Way Clubsport for your BMW F-Series
- Track-day ready BMW suspension with independent adjustability for rebound and compression damping
- 16-click rebound adjustment to fine-tune support, stability and ride control
- 12-click low-speed compression adjustment to optimise front end bite, traction and tyre load
- Height adjustable for a purposeful stance and lower centre of gravity
- Inox-Line stainless steel bodies for durability and corrosion resistance
- Developed and tested on the Nürburgring Nordschleife for real-world performance
- Optional front top mounts on certain applications for precise camber control
Key features and benefits
- Independently adjustable rebound and compression damping technology
- Stainless steel Inox-Line construction
- Continuous lowering capability
- Tested, usable adjustment range for road and track
- High-quality components for long-term durability
- 16 precise clicks of rebound adjustment
- 12 precise clicks of compression adjustment
- Unique, independent damping force adjustment to match your driving style and tyre setup
- Optional spherical bearing aluminium top mounts on select applications
Lowering range
- Front: 38 to 63 mm
- Rear: 30 to 58 mm
Maximum axle loads
- Front: 1090 kg
- Rear: 1230 kg
Notes and important information
- Height adjustable on front and rear axles. Front uses threaded strut housings, rear uses adjustable spring perch with matched dampers
- For cars with electronic damper control, the OE system must be deactivated. KW electronic damper shut-down modules are available separately
- Dampers are adjusted using the supplied adjuster wheels. Rebound adjustment is only accessible if the top of the piston rod is reachable, which depends on vehicle construction
- Clubsport with top mount option is front axle only where applicable
- Only for cars with 5-hole connection to the front axle top mount
- Wheel spacers may be required when using OE wheels and tyres, depending on fitment
Vehicle compatibility
- BMW 1 Series F20 (07/2010 — 02/2015)
- 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i and M140i
- BMW 1 Series F20 LCI (05/2014 — 06/2019)
- 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i and M140i
- BMW 1 Series F21 (07/2010 — 02/2015)
- 114d, 114i, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i and M140i
- BMW 1 Series F21 LCI (05/2014 — 06/2019)
- 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i and M140i
- BMW 3 Series F30 (02/2011 — 07/2015)
- 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i and 335i
- BMW 3 Series F30 LCI (09/2014 — 10/2018)
- 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i, 335i and 340i
- BMW 4 Series F32 (11/2012 — 06/2016)
- 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i and 440i
- BMW 4 Series F32 LCI (11/2012 — 06/2016)
- 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i and 440i
Part numbers
- 352208AX for cars without electronic damper control
- 352208AY for cars with electronic damper control
Installation and setup
Professional fitting and geometry are strongly recommended to get the best from your KW Clubsport 2-way coilovers. Nforcd offers installation, corner-weighting and track-focused alignment in Warwickshire. For a tailored quote, email Sales@nforcd.com.
Manufacturer and warranty
- Manufactured by KW
- 2-year KW warranty as standard. 5-year warranty if installed at a KW approved installer
Looking for even more adjustability
If you need separate reservoir and expanded adjustment capability, also consider the KW BMW F20 F21 F30 F32 3-Way Clubsport Coilover Kit.
