EBC PD17KF079 Redstuff Front Brake Pad and BSD Slotted Disc Kit for Audi, Seat, Skoda, VW - ATE and TRW Caliper
Upgrade your stopping power with the EBC PD17KF079 front brake kit, pairing EBC Redstuff 3000 Series ceramic low dust brake pads with EBC BSD slotted brake discs. Designed as a direct fit for ATE and TRW front calipers on popular Audi, Seat, Skoda and Volkswagen performance models, this kit delivers sharper pedal feel, stronger bite and cleaner wheels for fast road driving.
We run Redstuff and BSD on our own cars and have fitted countless sets for customers. Feedback is consistently positive for road use - smooth, confident braking, noticeably less dust and excellent modulation without noise.

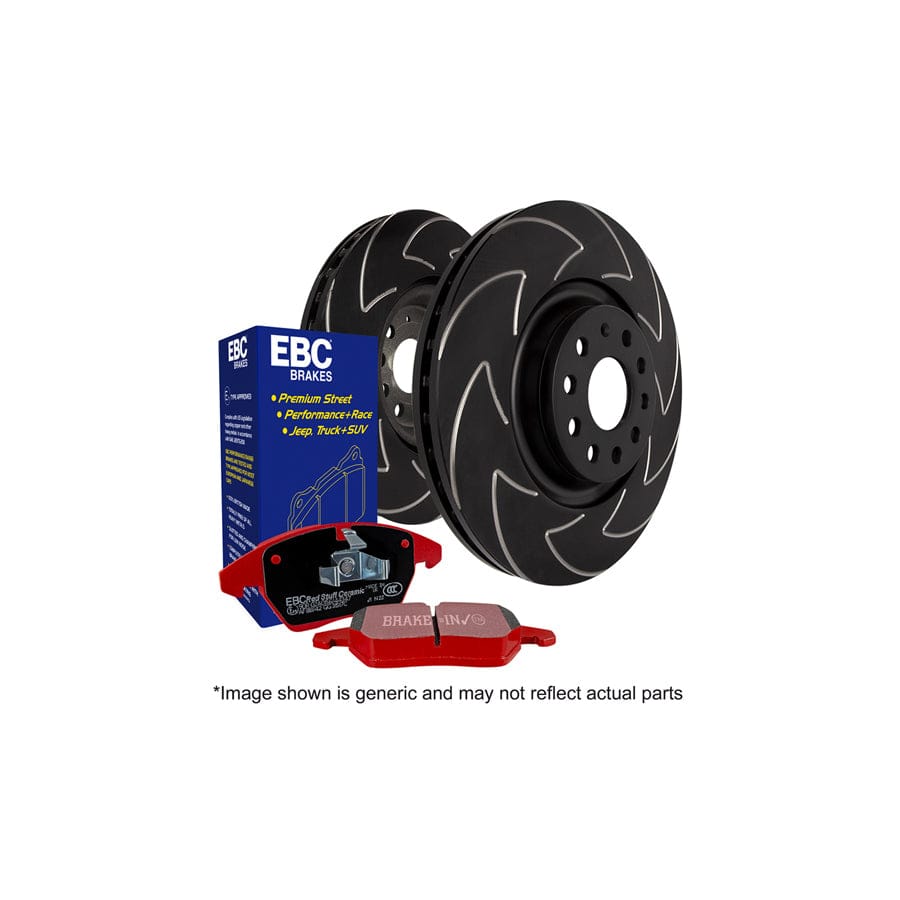

- Complete front axle kit - one set of Redstuff pads + one pair of BSD slotted discs
- Redstuff 3000 Series ceramic low dust pads - type approved, up to 15 percent brake improvement
- Brake-In surface coating for quicker bed-in and immediate bite from new

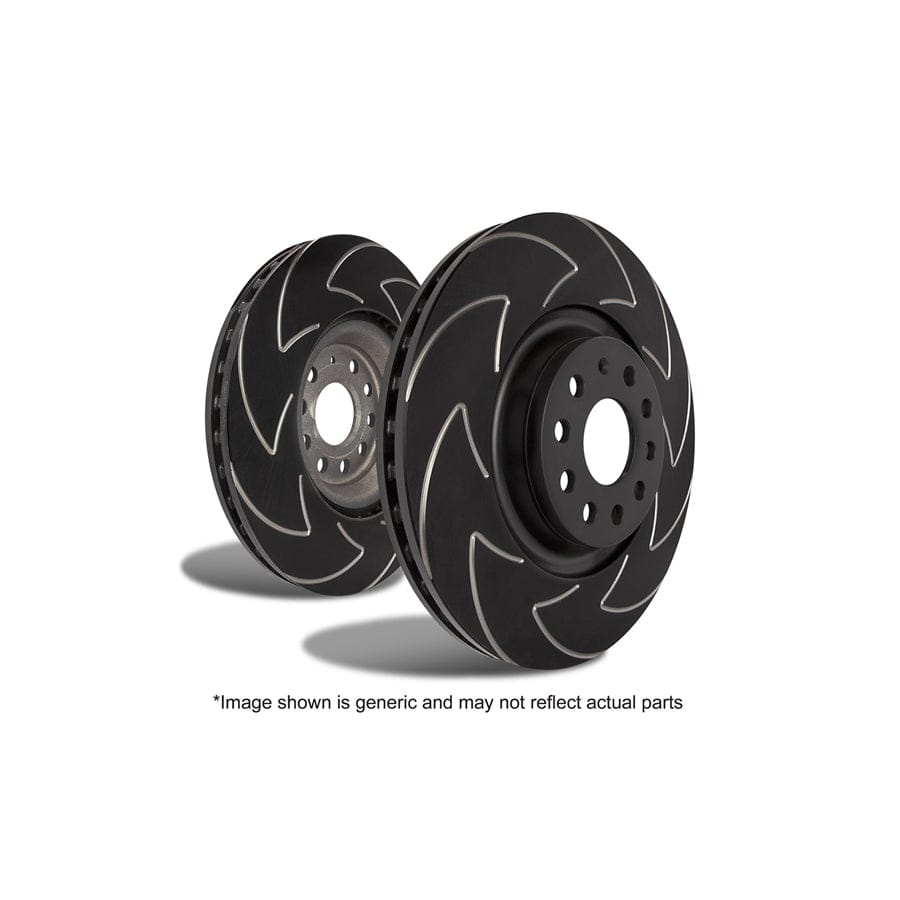

- BSD bi-directional slotted discs - silent braking, improved pad venting and consistent performance
- Precision cast G3000 iron, thermic black coated for corrosion resistance
- Exact replacement fit for factory discs - no modifications required
- Ideal street performance upgrade for Audi S3 8V, TT and TTS 8S, Seat Leon Cupra 5F, Skoda Octavia vRS, VW Golf GTI Performance Pack Mk7, Arteon, Passat and more
Why choose EBC Redstuff and BSD for your VAG performance model
Redstuff pads offer strong cold bite, confident high-speed stopping and significantly reduced brake dust compared to many OE and other performance compounds. BSD slotted discs use a blade groove design to sweep gases and debris, keeping the pad face clean for repeatable performance and a firm pedal without the whirr you can get from aggressive slot patterns.
Key Specifications
Part Number | EBC-PD17KF079 |
Kit Components | DP32127C pads + BSD1877 discs |
Caliper Compatibility | ATE and TRW front calipers |
Disc Type | Slotted, vented |
Disc Diameter | 340 mm |
Disc Height | 50 mm |
Disc Thickness New | 30 mm |
Disc Thickness Min | 30 mm |
Disc Bolt Holes | 5 |

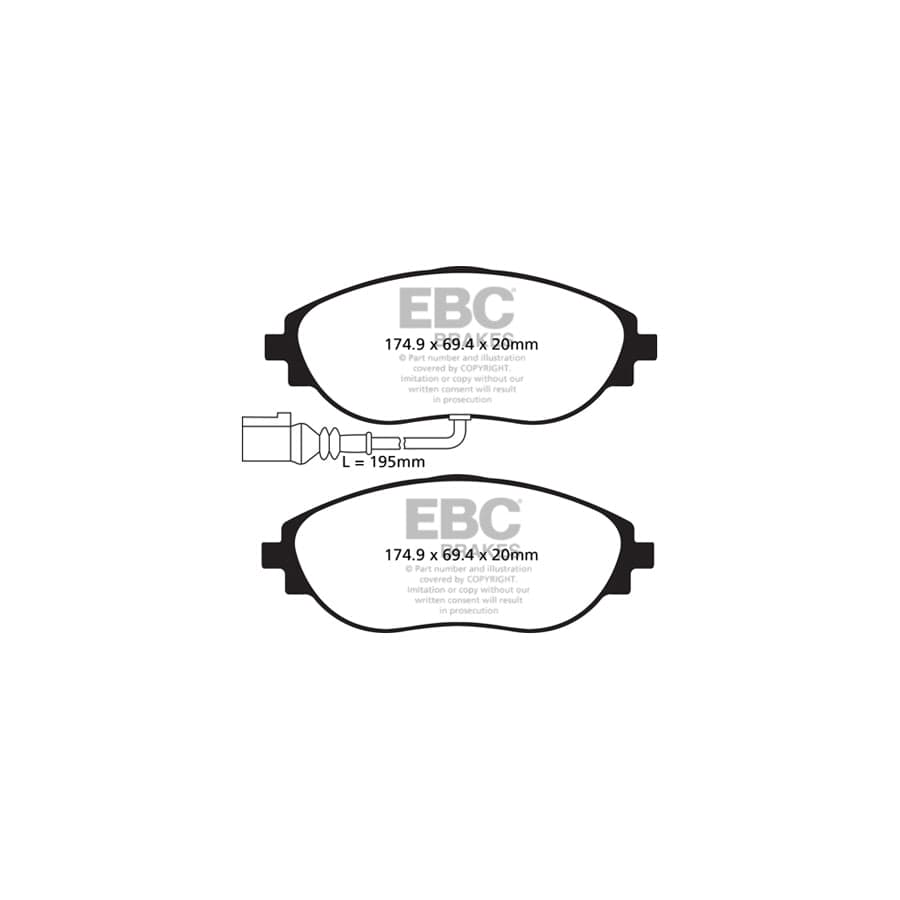

Pad Dimensions A | 174.9 x 69.4 x 20 mm |
Pad Dimensions B | 174.9 x 69.4 x 20 mm |
Vehicle Compatibility Highlights
Front axle fitment on selected:
- Audi S3 8V 2.0 TFSI 280, 300, 310
- Audi TT 8S 2.0 TFSI and TTS 310
- Seat Leon 5F Cupra 2.0 TSI 265, 280, 290, 300
- Skoda Octavia 5E and NX vRS 2.0 TSI 220, 230, 245 and 2.0 TDI 200, plus PHEV 1.4 TSI 245
- VW Golf Mk7 GTI Performance Pack 230, 245 and Clubsport 265
- VW Arteon 2.0 TSI 190, 280 and R 316, 2.0 TDI 200, 240, plus Shooting Brake equivalents
- VW Passat B8 2.0 TSI 220, 280 and 2.0 BiTDI 240, plus Alltrack 3G variants
Model | Sub-Model | Engine | BHP | Year | Position |
S3 | 8V | 2.0 Turbo | 280 | 2013-2016 | Front |
S3 | 8V | 2.0 Turbo | 300 | 2013-2016 | Front |
S3 | 8V | 2.0 Turbo | 310 | 2016-2020 | Front |
TT quattro | 8S | 2.0 Turbo | 230 | 2014-2019 | Front |
TTS quattro | 8S | 2.0 Turbo | 310 | 2014-2020 | Front |
Model | Sub-Model | Engine | BHP | Year | Position |
Leon (5F) | - | 2.0 Turbo Cupra | 265 | 2014-2016 | Front |
Leon (5F) | - | 2.0 Turbo Cupra | 280 | 2014-2016 | Front |
Leon (5F) | - | 2.0 Turbo Cupra | 290 | 2015-2017 | Front |
Leon (5F) | - | 2.0 Turbo Cupra | 300 | 2017-2020 | Front |
Model | Sub-Model | Engine | BHP | Year | Position |
Octavia (5E) | - | 2.0 Turbo RS | 220 | 2013-2017 | Front |
Octavia (5E) | - | 2.0 Turbo vRS | 220 | 2013-2017 | Front |
Octavia (5E) | - | 2.0 Turbo RS | 230 | 2015-2019 | Front |
Octavia (5E) | - | 2.0 Turbo vRS | 230 | 2015-2019 | Front |
Octavia (5E) | - | 2.0 Turbo RS | 245 | 2017-2020 | Front |
Octavia (5E) | - | 2.0 Turbo vRS | 245 | 2017-2020 | Front |
Octavia (NX)(Mk4) | - | 1.4 Turbo and Electric RS | 245 | 2020- | Front |
Octavia (NX)(Mk4) | - | 1.4 Turbo and Electric vRS | 245 | 2020- | Front |
Octavia (NX)(Mk4) | - | 2.0 Turbo RS | 245 | 2020- | Front |
Octavia (NX)(Mk4) | - | 2.0 Turbo vRS | 245 | 2020- | Front |
Octavia (NX)(Mk4) | - | 2.0 TD RS | 200 | 2020- | Front |
Octavia (NX)(Mk4) | - | 2.0 TD vRS | 200 | 2020- | Front |
Octavia (NX)(Mk4) | 4x4 | 2.0 TD RS | 200 | 2020- | Front |
Octavia (NX)(Mk4) | 4x4 | 2.0 TD vRS | 200 | 2020- | Front |
Superb (3T) | - | 3.6 4WD | 260 | 2014-2015 | Front |
Superb (3V) | PHEV | 1.4 Turbo and Electric | 218 | 2019- | Front |
Superb (3V) | - | 2.0 Turbo | 190 | 2019- | Front |
Superb (3V) | - | 2.0 Turbo | 220 | 2015- | Front |
Superb (3V) | - | 2.0 Turbo | 280 | 2015- | Front |
Model | Sub-Model | Engine | BHP | Year | Position |
Arteon | - | 2.0 Turbo | 190 | 2018- | Front |
Arteon | - | 2.0 Turbo | 280 | 2017- | Front |
Arteon R | - | 2.0 Turbo | 316 | 2020- | Front |
Arteon | - | 2.0 Twin TD | 240 | 2017- | Front |
Arteon Shooting Brake | - | 2.0 Turbo | 190 | 2020- | Front |
Arteon Shooting Brake R | - | 2.0 Turbo | 316 | 2020- | Front |
Arteon Shooting Brake | - | 2.0 TD | 200 | 2020- | Front |
Golf (Mk7) | Performance Package | 2.0 Turbo GTi | 230 | 2013-2017 | Front |
Golf (Mk7) | Performance Package | 2.0 Turbo GTi | 247 | 2017-2019 | Front |
Golf (Mk7) | Clubsport | 2.0 Turbo GTi | 265 | 2016-2019 | Front |
Passat (B7) | - | 3.6 | - | 2012-2014 | Front |
Passat (B8) | - | 2.0 Turbo | 220 | 2015-2020 | Front |
Passat (B8) | - | 2.0 Turbo | 280 | 2016-2020 | Front |
Passat (B8) | - | 2.0 Twin TD | 240 | 2014- | Front |
Passat Alltrack (3G) | - | 2.0 Turbo | 220 | 2015- | Front |
Passat Alltrack (3G) | - | 2.0 TD | 184 | 2015- | Front |
Passat Alltrack (3G) | - | 2.0 TD | 190 | 2015- | Front |
Passat Alltrack (3G) | - | 2.0 TD | 240 | 2015- | Front |
Fitting and Support
Professional fitting available at Nforcd in Warwickshire. For a fitting quote, email Sales@nforcd.com.
Compatibility Check
To ensure the part you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this using your UK registration number or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Manufactured by
EBC Brakes - Redstuff 3000 Series pads and BSD bi-directional slotted discs, manufactured and engineered for performance road use.
Warranty
EBC one year or 10,000 miles warranty.
