Genuine BMW ZF 6HP19Z Automatic Transmission Oil Pan/Gearbox Sump Gasket - E60 E81 E90 F01 (130i 335i 535i) - OEM 24117571235

Genuine BMW ZF 6HP19Z Automatic Transmission Oil Pan/Gearbox Sump Gasket - E60 E81 E90 F01 (130i 335i 535i) - OEM 24117571235

£29.34
£29.34
£31.00
Sold out
Tax included. Shipping calculated at checkout.

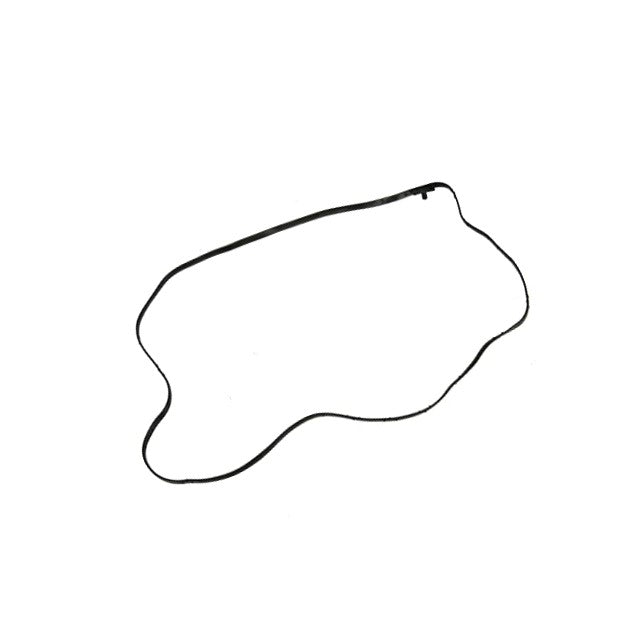

Genuine BMW E60 E81 E90 F01 Transmission Oil Pan Gasket - ZF 6HP19Z - Part Number 24117571235

Keep your BMW shifting smoothly with this Genuine BMW automatic transmission oil pan gasket for ZF 6HP19Z 6-speed gearboxes. This OEM BMW gearbox sump gasket is the correct factory part to fix transmission oil leaks, restore a perfect seal and protect your ZF auto box. Ideal for popular models including BMW 130i, 335i and 535i across E60, E81, E90 and F01 platforms.

Part number: 24117571235

Why choose this Genuine BMW transmission oil pan gasket

  • Exact OEM fit for ZF 6HP19Z automatic transmissions used across E60, E81, E90, F01 and more
  • Prevents gearbox oil leaks and maintains correct ATF pressure for smooth, consistent shifts
  • Durable BMW factory sealing material engineered for heat, pressure and longevity
  • Zero guesswork installation with the correct OEM profile and tolerances

We use Genuine BMW drivetrain parts on our own builds and customer cars, and this gasket continues to deliver leak-free performance. Our customers choose this genuine BMW gearbox gasket for reliability, perfect fit and long-term peace of mind.

Perfect for these BMW models and engines

This BMW automatic transmission pan gasket suits vehicles equipped with the ZF 6HP19Z 6-speed auto, including:

  • BMW 1 Series E81, E87, E87 LCI, E88, E82
  • BMW 3 Series E90, E90 LCI, E91, E91 LCI, E92, E92 LCI, E93, E93 LCI
  • BMW 5 Series E60, E60 LCI, E61, E61 LCI
  • BMW 6 Series E63, E63 LCI, E64, E64 LCI
  • BMW 7 Series E65, E66, F01, F02
  • BMW X Series X1 E84, X3 E83 LCI, X5 E70, X6 E71
  • BMW Z Series Z4 E85, E86, E89

Popular applications include BMW 130i, BMW 335i and BMW 535i models with the 6-speed ZF automatic.

Fitting and support

Need professional fitting for your BMW transmission oil pan gasket in the UK? We can help. Nforcd is based in Warwickshire and offers expert fitting services for BMW automatic gearbox components. Request a fitting quote via Sales@nforcd.com.

Compatibility check

To ensure this part fits your vehicle, we run a compatibility check prior to dispatch. Provide your UK registration or the last 7 digits of your VIN at checkout and we will confirm fitment for your BMW.

Compatibility details

  • 1' E81 (02/2006 — 12/2011)
  • 1' E87 (02/2003 — 02/2007)
  • 1' E87 LCI (01/2006 — 06/2011)
  • 1' E88 (11/2006 — 10/2013)
  • 1' E82 (11/2006 — 10/2013)

Also fits the following as a retrofit:

  • 1' F20 (11/2011 — 02/2015)
  • 1' F20 LCI (06/2014 — 06/2019)
  • 1' F21 (12/2011 — 02/2015)
  • 1' F21 LCI (07/2014 — 06/2019)
  • 2' F22 (10/2012 — 06/2017)
  • 2' F22 LCI (09/2016 — 12/2019)
  • 2' F87 M2 (11/2014 — 06/2017)
  • 2' F87 M2 LCI (09/2016 — 12/2019)
  • 2' F23 (03/2014 — 06/2017)
  • 2' F23 LCI (10/2016 — 12/2019)
  • 3' E90 (02/2004 — 09/2008)
  • 3' E90 LCI (07/2007 — 12/2011)
  • 3' E91 (02/2004 — 08/2008)
  • 3' E91 LCI (07/2007 — 05/2012)
  • 3' E92 (05/2005 — 02/2010)
  • 3' E92 LCI (11/2008 — 06/2013)
  • 3' E93 (09/2005 — 02/2010)
  • 3' E93 LCI (11/2008 — 10/2013)
  • 5' E60 (12/2001 — 02/2007)
  • 5' E60 LCI (11/2005 — 12/2009)
  • 5' E61 (10/2002 — 02/2007)
  • 5' E61 LCI (11/2005 — 05/2010)
  • 6' E63 (02/2004 — 07/2007)
  • 6' E63 LCI (04/2006 — 07/2010)
  • 6' E64 (03/2004 — 07/2007)
  • 6' E64 LCI (04/2006 — 07/2010)
  • 7' E65 (07/2002 — 07/2008)
  • 7' E66 (09/2002 — 07/2008)
  • 7' F01 (09/2007 — 06/2012)
  • 7' F02 (09/2007 — 06/2012)
  • X1 E84 (09/2008 — 06/2015)
  • X3 E83 LCI (11/2006 — 08/2010)
  • X5 E70 (02/2006 — 03/2010)
  • X6 E71 (01/2007 — 03/2010)
  • Z4 E85 (10/2004 — 08/2008)
  • Z4 E86 (10/2005 — 08/2008)
  • Z4 E89 (01/2008 — 08/2011)

Key search terms

BMW transmission oil pan gasket, BMW gearbox sump gasket, BMW automatic transmission gasket, BMW ZF 6HP19Z gasket, ZF 6HP19 gasket, ATF pan gasket, E60 transmission gasket, E90 transmission gasket, F01 transmission gasket, 130i auto gearbox gasket, 335i transmission pan seal, 535i gearbox oil pan gasket, genuine BMW gasket 24117571235, OEM BMW transmission seal, BMW auto gearbox leak fix.

More information

Warranty
Two years manufacturer warranty for UK customers and one year manufacturer warranty for international customers if VIN is provided during check out on compatible vehicles.

Manufactured by
BMW

Part number
24117571235
