MAHLE Motorsport Conrod Bearings – BMW E60 E61 M5, E63 E64 M6 – S85B50 V10
Upgrade your BMW S85 V10 with genuine MAHLE Motorsport conrod bearings. Precision engineered in the UK, these connecting rod bearings are built for performance, reliability and longevity on fast road and track. Perfect for BMW E60 M5, E61 M5 Touring, E63 M6 and E64 M6 models using the S85B50 engine, they deliver race-bred durability, consistent clearances and excellent oil film stability.
- Applicable for BMW S85B50 engines
- Complete set for all 10 cylinders (V10) – full engine coverage
- Manufactured in the UK by MAHLE Motorsport to elite motorsport standards
- Nominal optimal clearance of 55 micron (43 to 57 micron range)
- Designed using proprietary MAHLE Motorsport software used across F1, Le Mans, NASCAR, MotoGP, WRC and DTM
- Race-proven construction for high RPM, high load durability
MAHLE Motorsport rod bearings are produced by the same specialists who supply leading race series including Formula 1, Le Mans, NASCAR, MotoGP, WRC and DTM. Expect exceptional consistency and fatigue strength for demanding S85 V10 use.

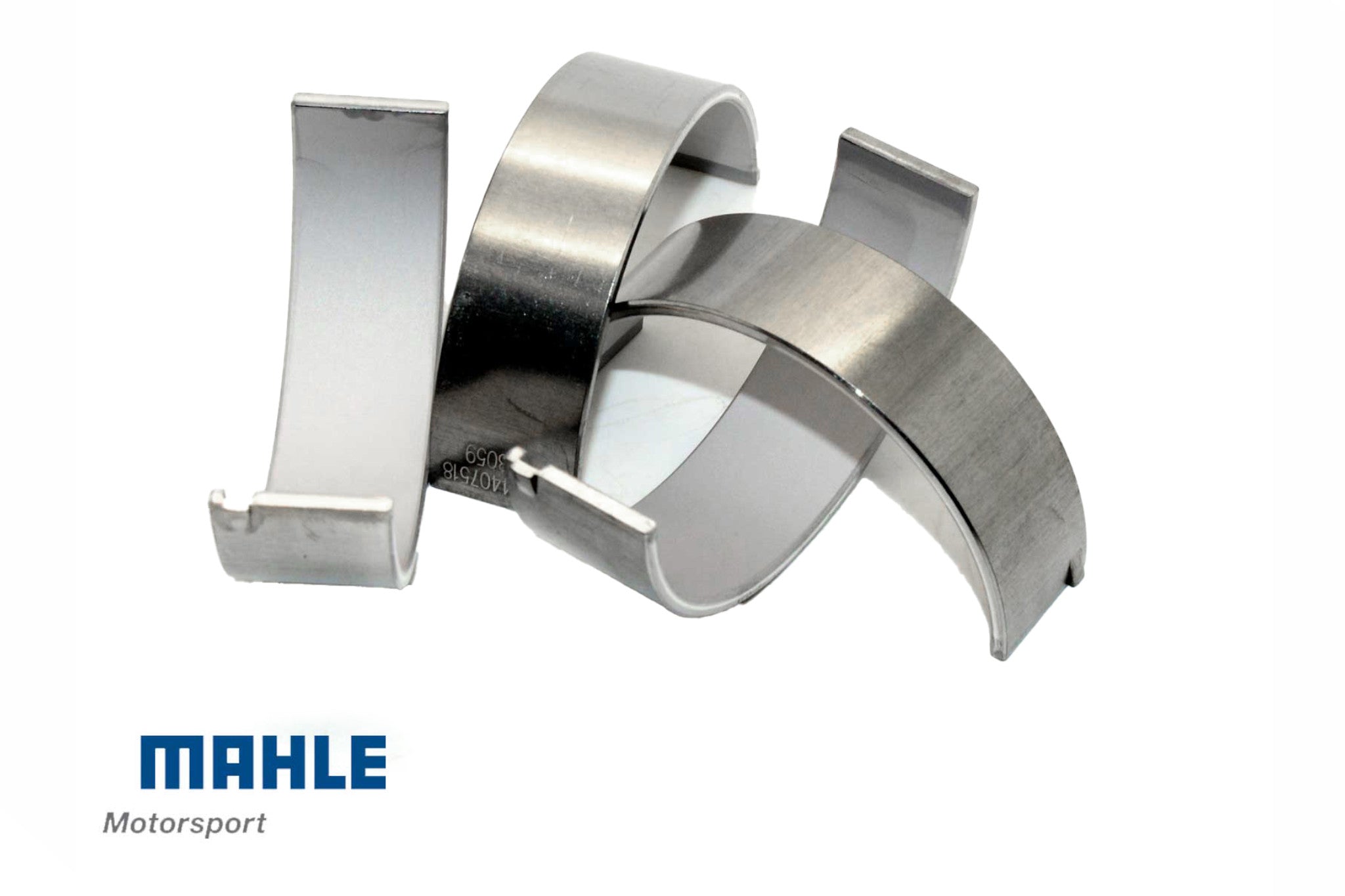

Bearing construction and materials
High strength steel back with a cast bronze substrate finished with a lead indium overlay (originally known as VP2). This structure delivers higher fatigue strength than typical race bearings along with better conformability. Do not confuse these with generic “tri-metal” bearings that are usually sintered with lower fatigue strength and lead/tin overlays. MAHLE’s VP2-type overlay remains a proven choice in major global race series.
Why choose MAHLE Motorsport bearings for your S85 V10
- Optimised clearances for stable oil film and protection at sustained high RPM
- Excellent fatigue resistance for tuned or hard-driven engines
- Consistent sizing and finish for precise assembly and reliable performance
- Ideal for rebuilds, preventative maintenance and performance upgrades
At Nforcd we have supplied and installed these bearings on S85 applications and the results have been excellent. Customers have been very happy with the fit, finish and performance.
What is included

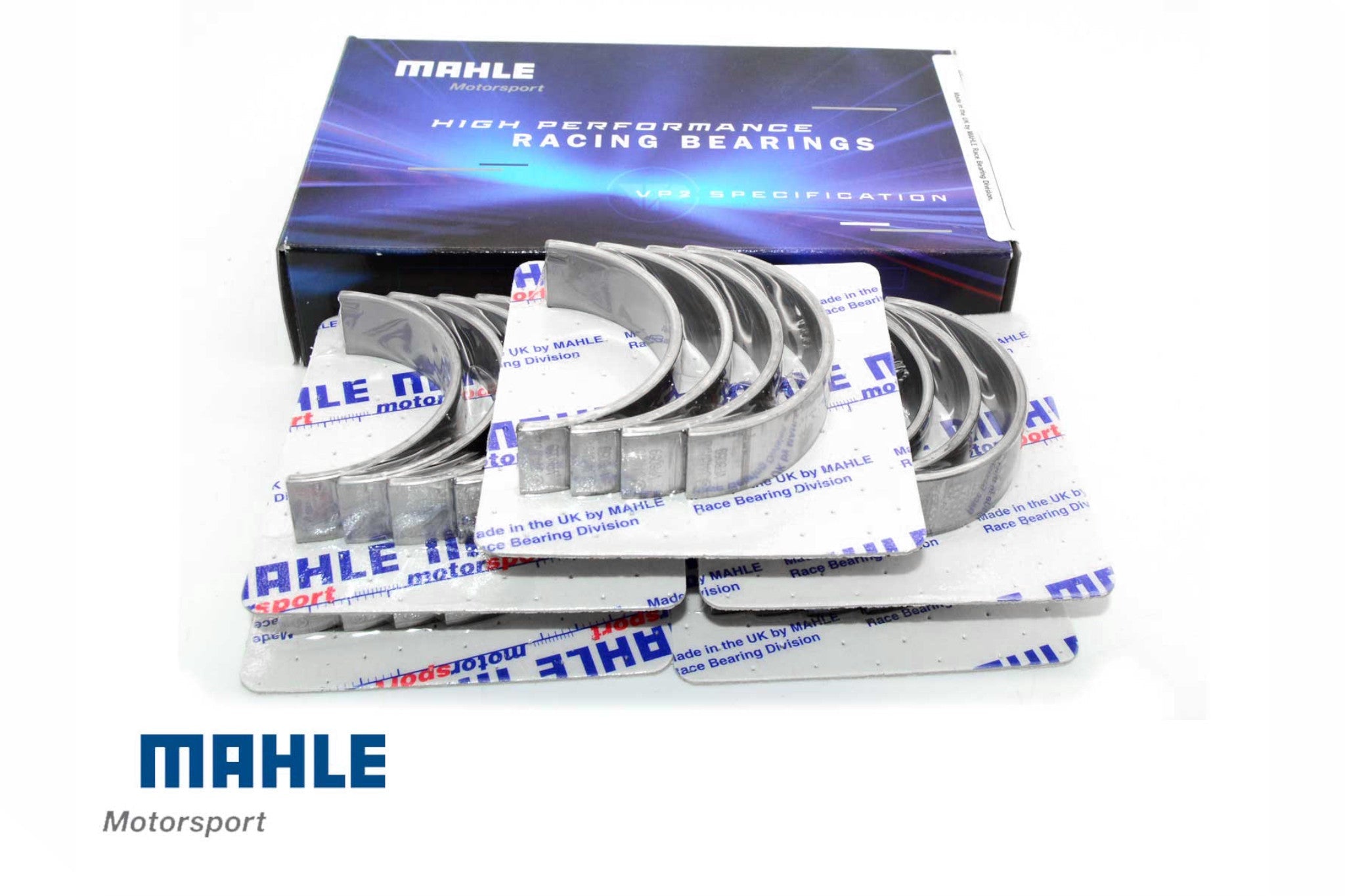

- MAHLE Motorsport conrod bearing set for S85B50 V10 (complete set for 10 cylinders)
Note: ARP rod bolts are available separately as an optional upgrade.
Optional upgrade: ARP S85 Rod Bolts
Designed by BE Bearings and manufactured by ARP to be used with BMW factory connecting rods. Custom torque specifications are used to minimise big-end bore distortion. These bolts have been measured and verified to help maintain roundness within ARP torque spec.
| Composition | ARP2000 |
| Part Number | ARP-S85 |
| Yield strength | 200,000 PSI |
| Tensile strength | 220,000 PSI |
| Torque specification | 50 ft/lbs or 0.0065–0.0070 inch stretch |
Fitting and installation
Professional installation is recommended. Nforcd offers supply and fitting from our workshop in Warwickshire. Request a quote at Sales@nforcd.com.
Compatibility
- BMW E60 M5 – S85B50 V10
- BMW E61 M5 Touring – S85B50 V10
- BMW E63 M6 – S85B50 V10
- BMW E64 M6 – S85B50 V10
