Mr12Volt Mercedes-Benz W221 NTG 3.0 CarPlay and Android Auto Interface, MOST Bus, Pre-Facelift 2006–2008
Part number: P2000-NTG30MM

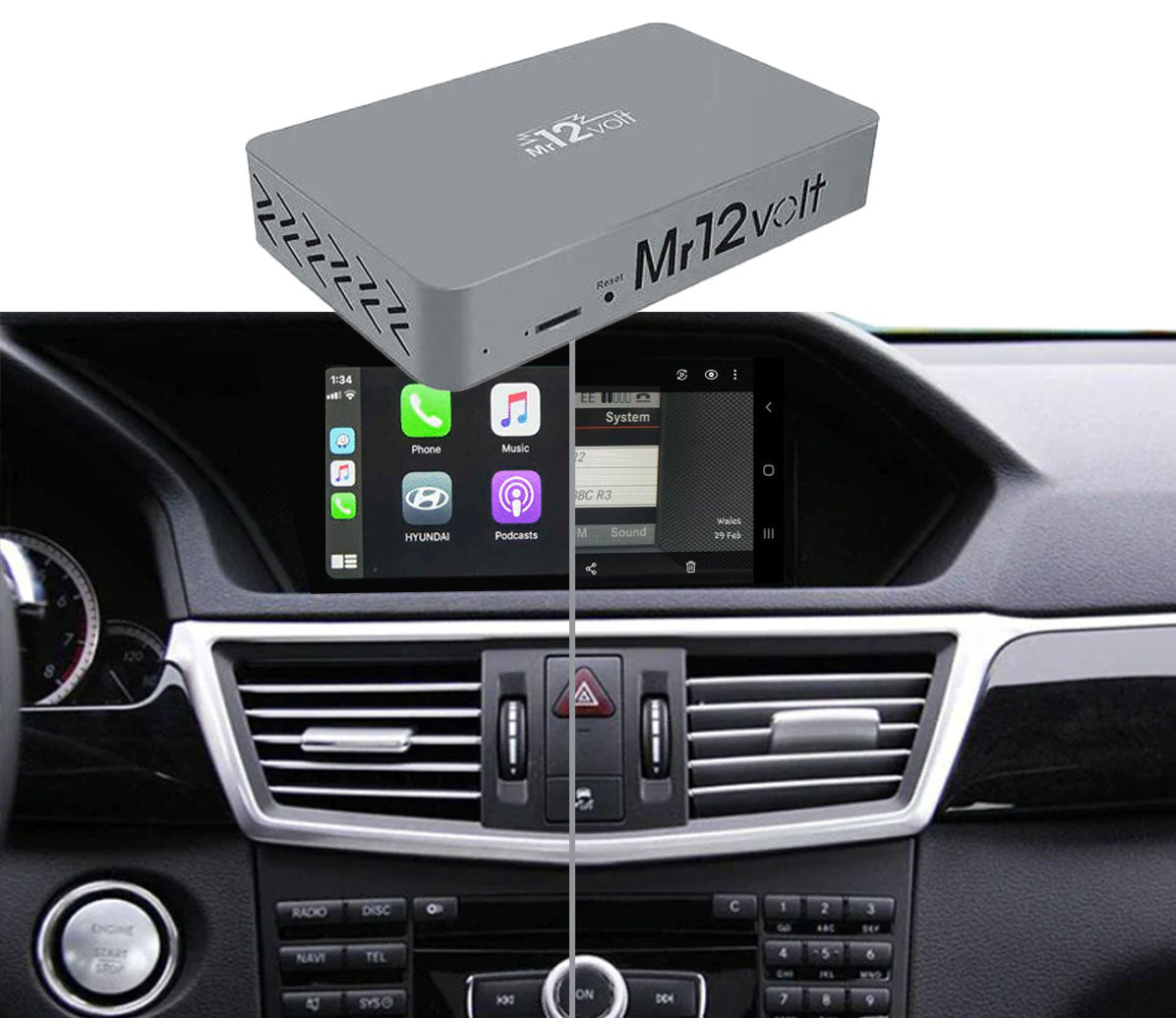

Upgrade your Mercedes-Benz S-Class W221 or CL-Class W216 with seamless Apple CarPlay and Android Auto using the Mr12Volt P2000-NTG30MM. This premium Mercedes NTG 3.0 CarPlay retrofit runs on the fibre optic MOST bus and uses the OEM TV input for a true digital-to-digital signal path. No AUX downgrade, no third-party coding, just factory-level integration and high-end sound quality that works brilliantly with Harman Kardon and other Mercedes high sound systems.
We have installed and used this kit ourselves and our customers consistently praise the audio quality, stability and OEM-style user experience. If you are searching for a Mercedes W221 CarPlay upgrade, W216 Android Auto retrofit, or a Mercedes NTG3.0 CarPlay adapter, this is the solution we recommend.
Why choose the Mr12Volt P2000-NTG30MM CarPlay and Android Auto interface
- Runs on the MOST fibre-optic bus with digital-to-digital audio via OEM TV input for high-end sound quality
- No coding required thanks to built-in TV enabling function
- Wireless and wired Apple CarPlay and Android Auto for maps, music, calls and messaging
- OEM microphone supported for clean, factory-like hands-free calls
- Supports OEM reverse camera and allows aftermarket front, reverse and blind spot cameras (up to AHD720)
- Wireless MirrorLink for screen mirroring
- Bluetooth hands-free and audio streaming with Apple Lossless music support
- USB video and music playback including 1080p formats
- Highly customisable 15-band DSP equaliser to fine-tune your sound
- MB and Mr12Volt Bluetooth can be connected at the same time. MB handles calls, Mr12Volt handles media for a smooth OEM experience
Compatibility
- Mercedes-Benz W221 S-Class 2006–2008 pre-facelift, NTG 3.0
- Mercedes-Benz W216 CL-Class 2006–2008 pre-facelift, NTG 3.0
Note: This product does not support Mercedes models from North America (USA, Canada).
How it works
- Selected via the TV feature on Mercedes NTG 3.0
- No coding tools required. After installation, activate the TV function using the console buttons as per the user guide (typically Disc/Radio + Return)
- Supports integration of the OEM microphone
- Supports aftermarket camera inputs up to AHD720
If a factory TV module is fitted, it must be disabled and bypassed with a loop connector.
P2000 supported multimedia formats
- Video decoding: H.264 (Baseline/Main/High Profile, Level 1–4.2) 30fps @1080p
- VC-1 (Simple/Main/Advanced Profile, levels 0–3) 30fps @1080p
- MPEG1/2/4 (SP levels 0–6, MP low/medium/high, ASP levels 0–5) 30fps @1080p
- RealVideo 8/9/10 30fps @1080p
- VP6/7/8 (including WebM) 30fps @1080p
- DivX 3/4/5/6 30fps @1080p
- H.263 (Profile 0, levels 10–70) 30fps @720x576
- JPEG codec (Baseline interleaved) up to 8176x8176
- Video containers: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
- Audio: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more
Technical data
- Operating temperature: -20 to +80 degrees centigrade
- DAC resolution: 18-bit
- MP3 bit rate: 8–384 kbit
- Voltage: 10–14.6 V DC
- Operating current: 450 mA (up to 700 mA when charging a mobile phone)
- S/N ratio: 95 dB
- Total harmonic distortion: 0.1%
- Frequency response: 20 Hz–20 kHz
Perfect search terms for this product
Mercedes W221 CarPlay, Mercedes S-Class CarPlay retrofit, Mercedes CL W216 Android Auto, Mercedes NTG 3.0 CarPlay interface, NTG3.0 CarPlay adapter, MOST bus CarPlay Mercedes, Harman Kardon CarPlay upgrade, Mercedes S-Class 2006 CarPlay, Mercedes S-Class 2007 CarPlay, Mercedes S-Class 2008 CarPlay, Mercedes CL 2006 Android Auto, Mercedes CL 2007 Android Auto, Mercedes CL 2008 Android Auto, Mr12Volt P2000-NTG30MM, Mercedes reverse camera integration, wireless CarPlay Mercedes W221, Android Auto retrofit Mercedes UK.
Fitting and installation
Professional installation recommended. Nforcd offers expert fitting in Warwickshire. For a tailored quote and booking, email Sales@nforcd.com.
