Mr12Volt Audi A5 MMI 2G High CarPlay and Android Auto Interface with DSP – Model No: P2000-2G20MD
Upgrade your Audi A5 or A4 with the ultimate Apple CarPlay and Android Auto retrofit for MMI 2G High. The Mr12Volt P2000 MD series P2000-2G20MD runs on the Audi MOST bus for outstanding sound quality and adds a highly customisable 15‑band DSP equaliser, wireless and wired CarPlay, wireless and wired Android Auto, Bluetooth hands‑free and audio streaming, USB video and music playback, plus multiple camera inputs. This is the Audi A5 CarPlay retrofit and Audi A4 CarPlay retrofit UK drivers are searching for, a seamless MMI 2G High CarPlay and Android Auto upgrade that feels factory.
We have installed this Mr12Volt unit ourselves and our customers have been genuinely impressed with the OEM‑like integration, reliable wireless CarPlay performance, clean audio over MOST, and the powerful DSP tuning. It transforms daily driving with easy navigation, music, calls and messaging through your existing Audi screen and controls.
At a glance
- Model and part number: P2000-2G20MD, Mr12Volt P2000 MD series
- Designed for Audi MMI 2G High, runs on MOST bus for high‑end audio quality
- Wireless and wired Apple CarPlay, wireless and wired Google Android Auto
- Wireless MirrorLink phone mirroring
- Bluetooth hands‑free calling and A2DP audio streaming
- USB video and music playback up to 1080p
- Reverse, front, left or right camera input, supports aftermarket cameras up to AHD720
- Apple Lossless ALAC music streaming support
- 15‑band DSP equaliser for precise sound tuning
Compatibility

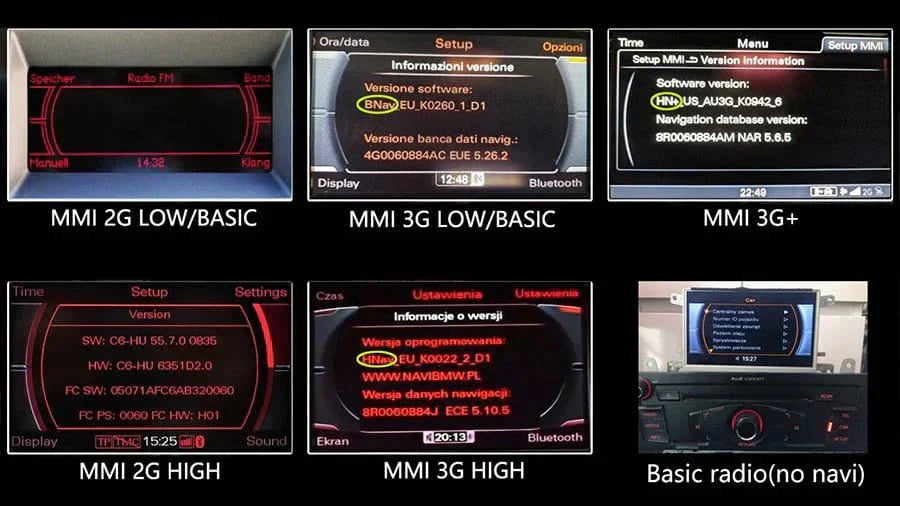

Compatible with Audi MMI 2G High only. Not compatible with MMI 2G Basic or Low systems which have the red and black information display.
- Audi A4 B8 8K 2007 to 2008
- Audi A5 8T 8K 2008 to 2009
How it integrates
- Select Mr12Volt through the Audi Media button and it plays via the CD changer channel
- No coding required, the original CD changer can be retained and used alongside Mr12Volt
- Supports aftermarket cameras up to AHD720 for reverse or front views
- OEM microphones are not integrated, use the supplied mic for Siri and Google Assistant voice commands
- Audi MMI and Mr12Volt Bluetooth can be paired at the same time, Audi MMI handles HF, Audi MMI HF will take over Mr12Volt when a call is received
Audio performance and DSP
- MOST bus connection for clean, high‑resolution sound
- Highly customisable 15‑band DSP equaliser for precise tuning
- 18‑bit DAC resolution
- S/N ratio 95 dB, THD 0.1 percent, frequency response 20 Hz to 20 kHz
- Supports Apple Lossless music streaming for audiophile‑grade playback
USB video and music playback
High performance video and audio codec support up to 1080p 30 fps
- H.264 Baseline and Main High Profile Level 1 to 4.2 at 1080p 30 fps
- VC‑1 Simple and Main Profile, Advanced Profile levels 0 to 3 at 1080p 30 fps
- MPEG‑1, MPEG‑2, MPEG‑4 SP and ASP at 1080p 30 fps
- RealVideo 8, 9, 10 at 1080p 30 fps
- VP6, VP7, VP8 WebM at 1080p 30 fps
- DivX 3 to 6 at 1080p 30 fps
- H.263 Profile 0 up to 720 x 576 at 30 fps
- JPEG Baseline interleaved up to 8176 x 8176
- Video formats: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
- Audio formats: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more
Technical data
- Operating temperature: minus 20 to plus 80 degrees centigrade
- Voltage: 10 to 14.6 V DC
- Operating current: 450 mA, up to 700 mA when charging a mobile phone
- DAC resolution: 18‑bit
- S/N ratio: 95 dB
- Total harmonic distortion: 0.1 percent
- Frequency response: 20 Hz to 20 kHz

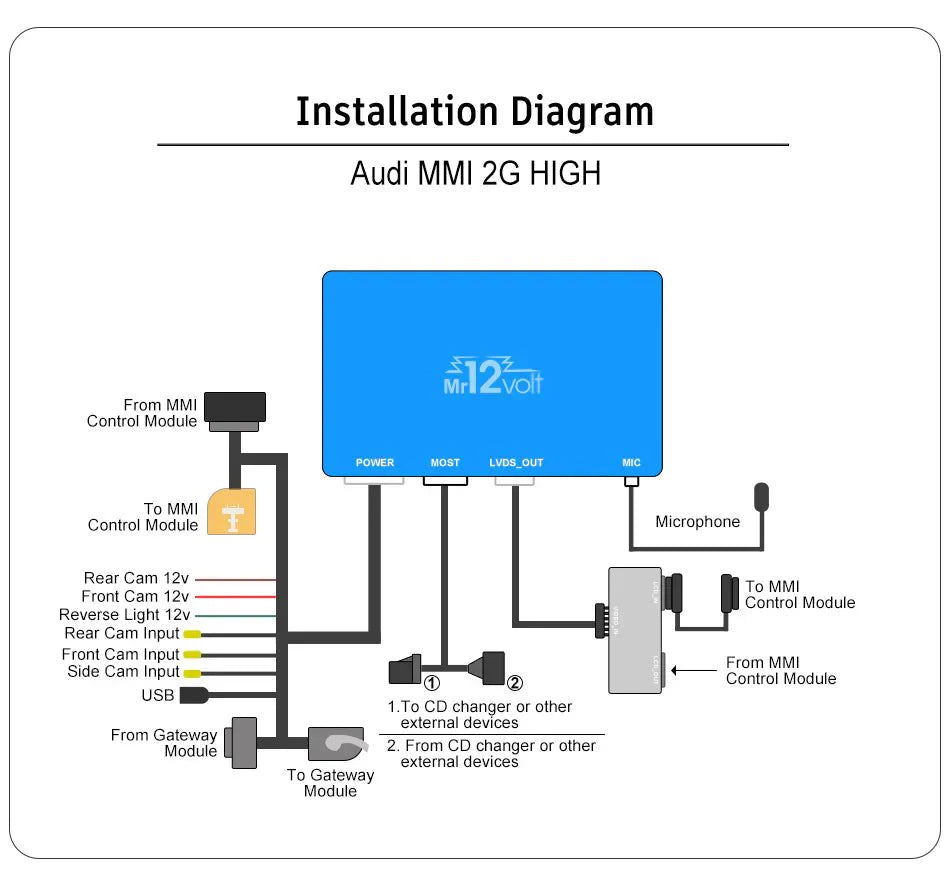

Installation and fitting
Plug‑and‑play integration through the MMI 2G High Media and CD changer channel with no coding required. Professional fitting is recommended for the cleanest install and camera integration. Nforcd offers expert installation in Warwickshire, request a fitting quote at Sales@nforcd.com.
Videos
Helpful link
How to mirror to P2000 from phone
