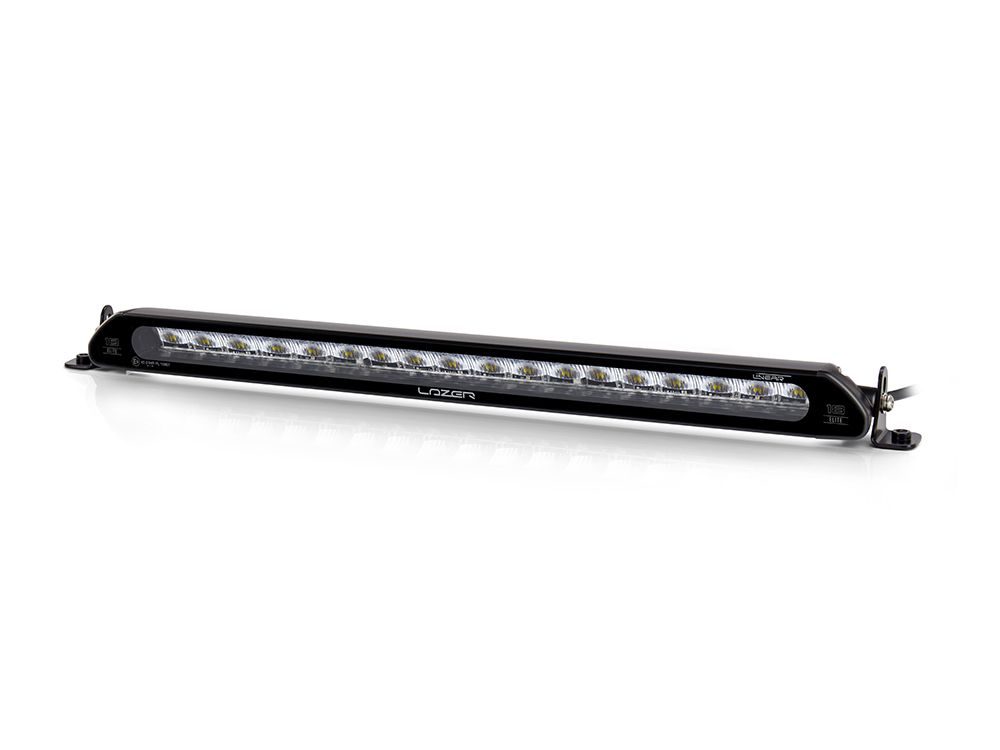

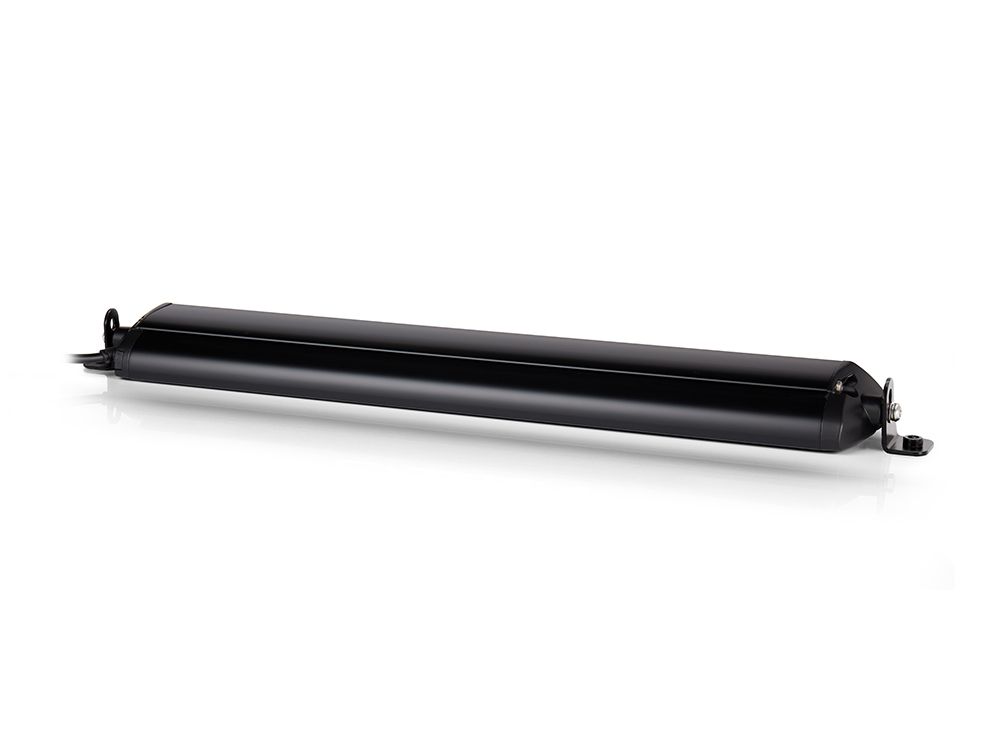

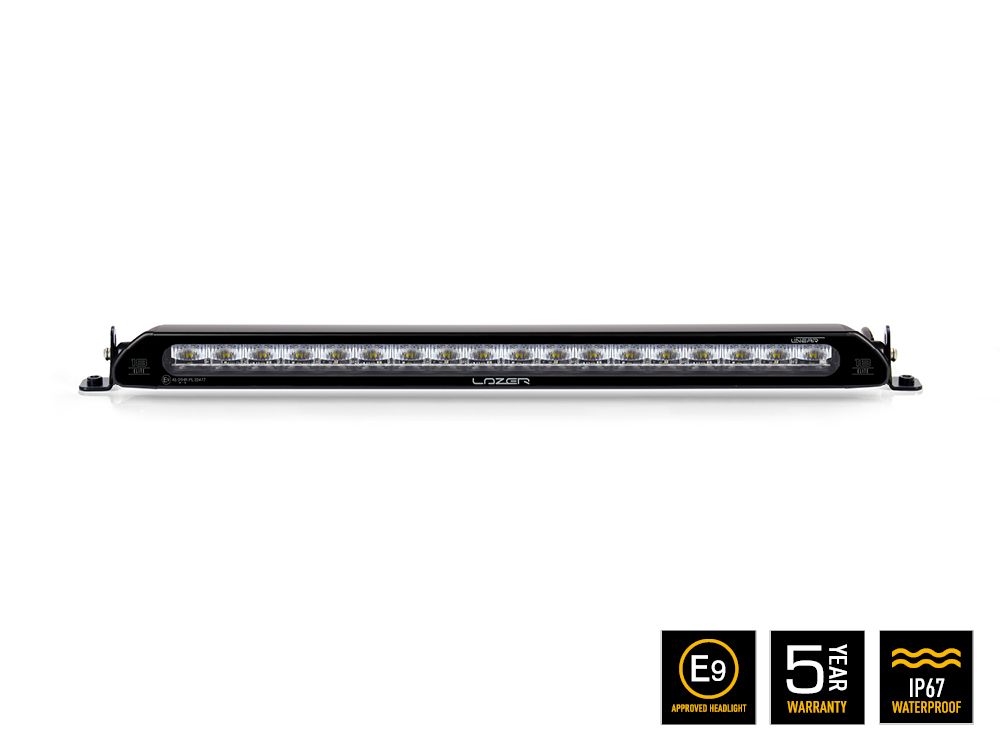

Lazer Lamps Linear-18 Elite LED Light Bar - Universal, Low Profile, Road Legal
Upgrade your night-time visibility with the Lazer Lamps Linear-18 Elite LED lamp. This slimline, low profile 40 mm high auxiliary high beam light bar delivers outstanding illumination for road use, with a crisp 5000K colour temperature and a perfectly tuned beam pattern. Built in the UK and ECE R112 approved, the Linear-18 Elite is the go-to universal LED light bar for performance cars, 4x4s, vans and pickups where space, style and serious performance matter.
We run these on our own cars and customer vehicles and the feedback is consistent: exceptional punch down the road, superb spread without bonnet glare, and a discreet OEM+ look. If you are searching for Lazer Linear-18 Elite, Linear 18 Elite LED light bar, slimline LED driving light, road legal LED high beam, or universal ECE auxiliary light, this is the one.
Why choose the Linear-18 Elite
- Elite grade performance with twice the light output versus Standard Linear models
- Ultra-slim 40 mm low profile for stealth, grille or roof mounting
- Vacuum-metallised wide optics for a balanced, road-focused beam pattern
- Designed, engineered and manufactured in Britain with a 5-year warranty
- Road legal auxiliary high beam - ECE R112 approved, ECE Ref 45
- Discreet, aero housing that minimises wind noise in roof mount applications
- Universal fit for cars, 4x4, SUV, van, pickup, rally and off-road builds
Headlight-beating performance, built for the road
The Linear-18 Elite combines highly efficient 3W LEDs with precision optics to maximise usable light where you need it. Expect a long, even throw with excellent width, reduced foreground glare and no reflection off the bonnet when positioned correctly. It is a superb choice for rural driving, B-roads, fast road runs and winter commuting where you want powerful, road-legal auxiliary high beam performance in a sleek package.
Key features
- Total luminous flux: 12,150 lumens
- Driver field-of-view effective flux: 8,651 lumens
- Colour temperature: 5000K for high contrast in poor weather
- 36 high output LEDs, 50,000 hour LED life
- Voltage range: 10 to 32V DC, ideal for 12V and 24V vehicles
- Power consumption: 126W, current draw: 8.8A at 14.4V
- Start-up time: 100 ms
- Beam distance: 975 m at 0.25 lx, 690 m at 0.5 lx, 488 m at 1 lx, 282 m at 3 lx
- Horizontal beam angle: 64 degrees
- Road legal: ECE R112 approved, ECE Reference 45
- Dimensions: 532 mm width x 62 mm depth x 40 mm height
- Weight: 1090 g
- Made in Britain with a comprehensive 5-year warranty
Universal fitment and mounting
The Linear-18 Elite is a universal LED driving light bar that suits grille, bumper or roof mounting. The sleek, aerodynamic housing minimises wind noise on roof installs, and the controlled vertical spread helps avoid bonnet glare. It is a clean addition to performance cars, hot hatches, estates, 4x4s and utility vehicles.
Prefer Intelligent Low Beam Assist? The Linear-18 Elite is also available with i-LBA for automatic high beam integration. If you want the version with integrated position light, that option is available on the Linear-18 Elite range too.
What’s included
- 1 x Linear-18 Elite LED Lamp

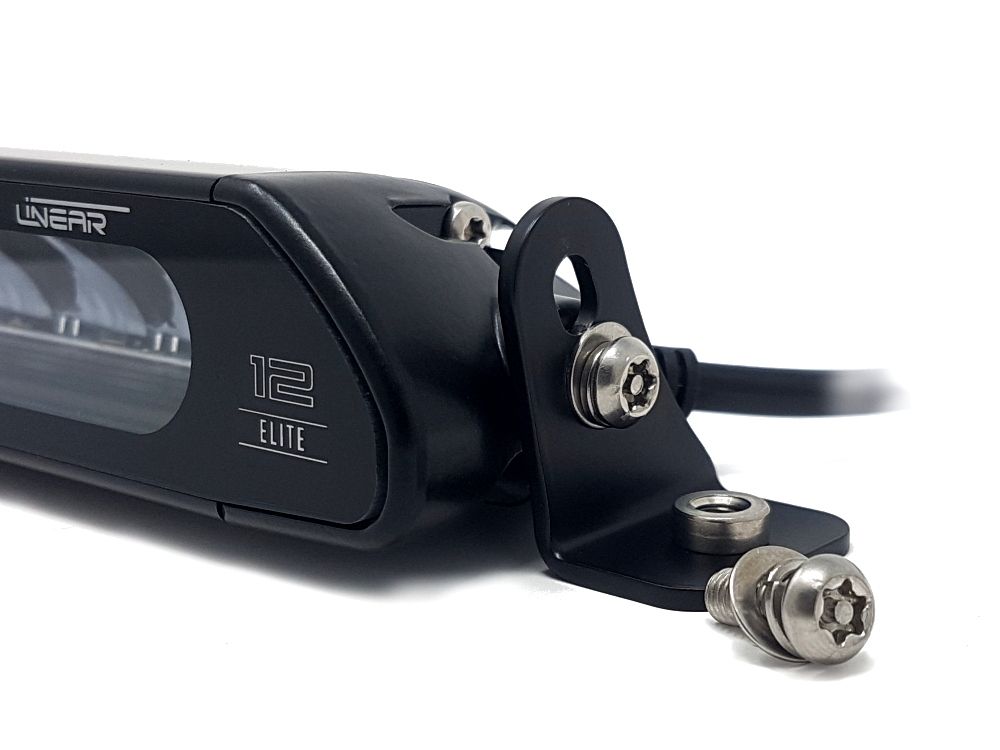

- 1 x Anti-Theft Side Mount (1127k)
- 1 x Installation instructions
- Optional: Lazer wiring kit, low power, 12V
- Optional: Lazer CAN Interface, dual output
- Optional: Lazer CAN Contactless Reader
Compatibility
Universal fitment for vehicles with suitable mounting space and wiring provision.
Installation and fitting
Professional fitting recommended for best alignment, switching and integration with OEM controls.
Nforcd offer in-house installation in Warwickshire. To request a fitting quote, contact Sales@nforcd.com.
Part number
0L18-EL-LNR
SEO search terms
Lazer Lamps Linear-18 Elite, Linear 18 Elite LED light bar, slimline LED driving light, low profile 40 mm LED bar, road legal ECE R112 auxiliary high beam, universal LED light bar 12V 24V, 5000K LED light bar, 12150 lumens LED bar, made in UK driving lights, performance car LED light bar, rally lights, off road LED bar, roof mounted LED light bar, grille mounted LED light bar, Lazer Linear 18 Elite UK.
Manufactured by: Lazer Lamps
