AIRTEC Motorsport’s solution to improving the original set up is utilise the available space behind the front bumper and develop a direct replacement radiator that’s both wider and thicker. This means capacity is increased by a 65% over standard, whilst frontal area is also increased by 13% to help cool the extra capacity.
AIRTEC part no: ATRADBMW5
TECHNICAL DATA

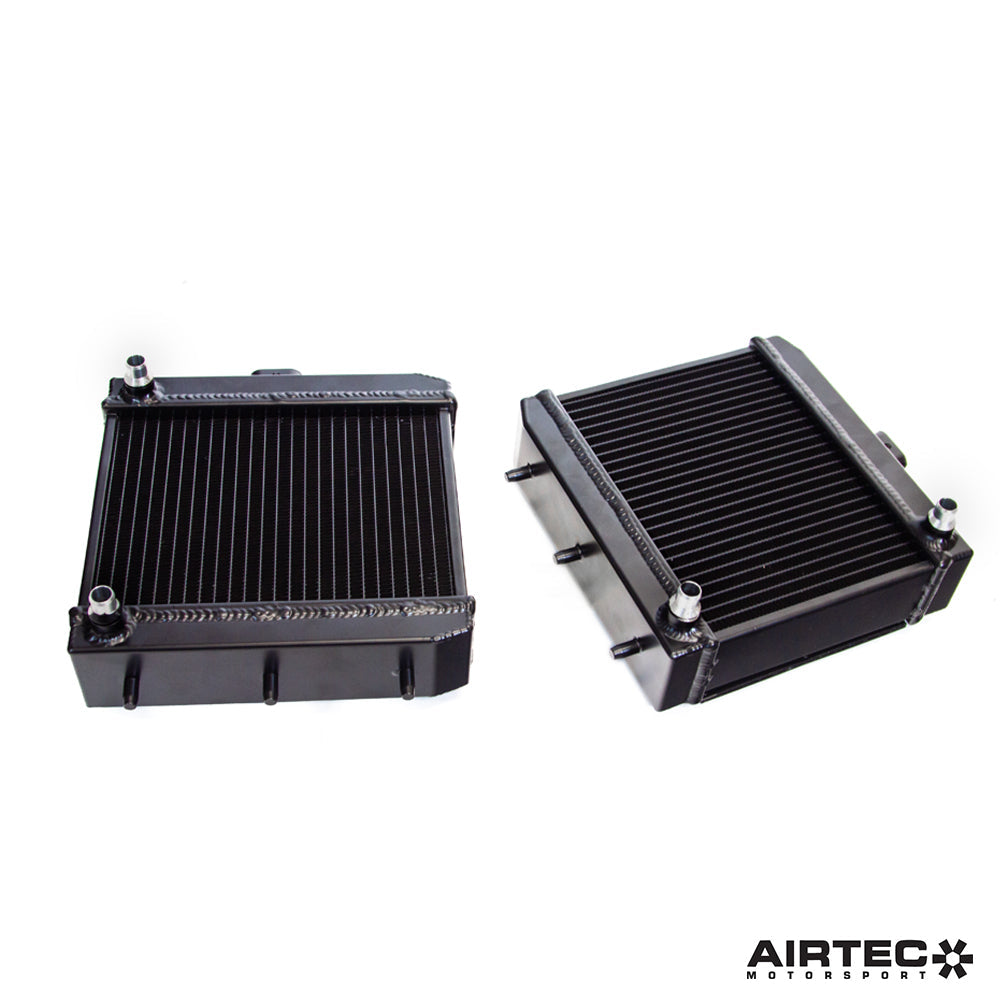

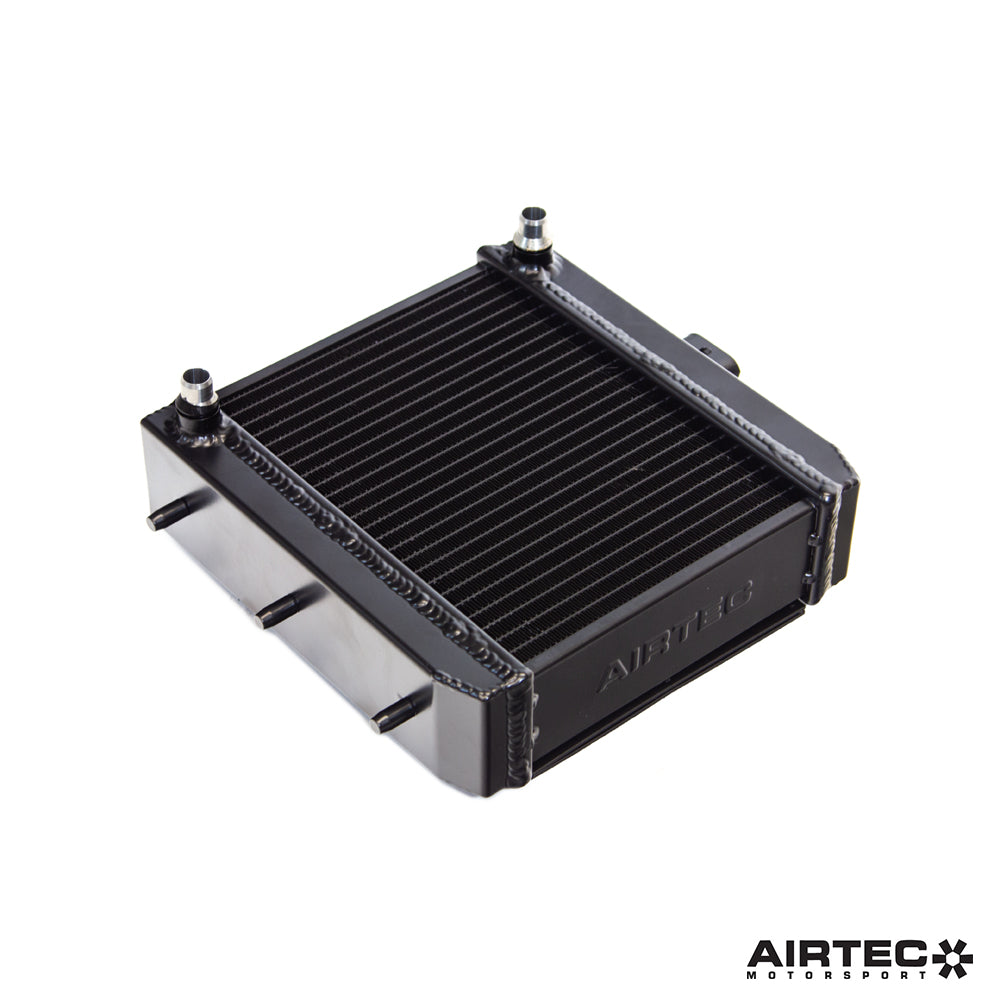

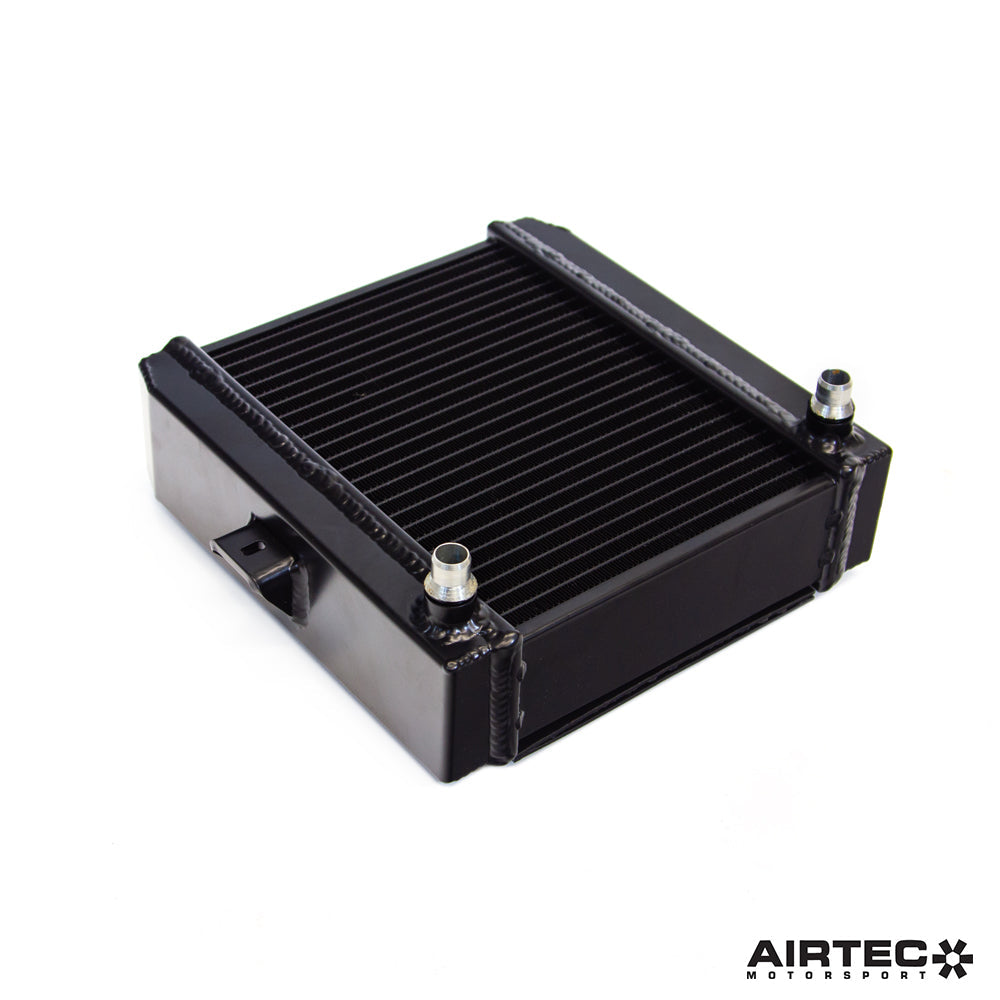

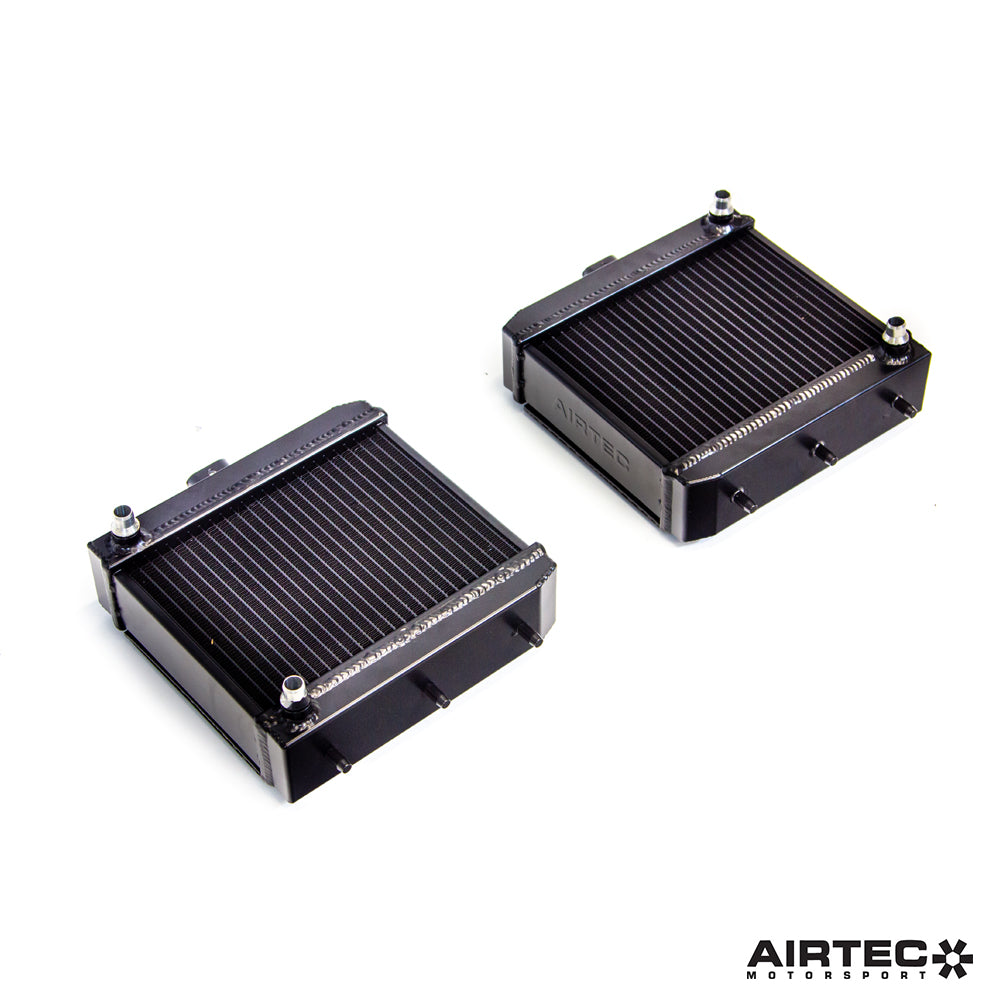

As part of our expanding BMW platform product range, AIRTEC Motorsport is proud to launch our auxiliary radiator upgrade aimed at BMW M2 Competition/M3 & M4 models for fast road or track use.
AIRTEC Motorsport’s solution to improving the original set up is utilise the available space behind the front bumper and develop a direct replacement radiator that’s both wider and thicker. This means capacity is increased by a 65% over standard, whilst frontal area is also increased by 13% to help cool the extra capacity.
Despite the significant increases, the radiator fits neatly behind the bumper and requires no modifications to fit, using the OEM mounts and the original coolant connectors.
Furthermore, to protect the larger core in its vulnerable position at the front of the car, there is also a mesh stone guard fitted in place, as OEM radiators can often become damaged over time, which limits their cooling ability.
Finished in a high-quality powder-coated black finish, the comprehensive fitting kit includes a detailed instruction fitting guide.
Also available individually.
Dimensions:
OEM radiator:
Width: 250mm
Height: 183mm
Depth: 40mm
Capacity: 9.9 litres
Frontal area: 425cm²
AIRTEC Motorsport radiator:
Width: 262mm
Height: 183mm
Depth: 58mm
Capacity: 2.8 litres
Front area: 479cm²
Features:
- 65% increase in capacity to the original
- 13% larger frontal surface area
- Offers improved cooling ability
- Stone guard to protect the core
- Direct fit with no cutting or trimming
- Comprehensive fitting guide
AIRTEC part no: ATRADBMW5
