Upgrade the cooling of your BMW Gen 1 B58 automatic gearbox with the Burger Motorsports Transmission Oil Cooler Kit. Designed for F-chassis cars, this front-mounted air to transmission fluid radiator helps keep ATF temperatures in check for improved durability during hard driving. Supplied by Nforcd in the UK, this aftermarket cooler replaces the stock coolant-to-ATF heat exchanger and is a popular choice for B58 owners, especially those running larger-than-factory turbos.
- Front-mounted air to transmission fluid radiator replaces the OE coolant-to-ATF heat exchanger
- Helps significantly reduce transmission fluid temperatures and combat heat-related slip
- Improved Racing 165°F 74°C thermostat included for rapid warm-up and correct operating temperatures
- Complete plug-and-play kit with brackets, lines, fittings and coolant plugs
- Increases transmission oil capacity
- Compatible with RHD and LHD, RWD and AWD, ZF8HP50 and ZF8HP70
- Not compatible with manual transmissions
Vehicle fitment Gen 1 B58 F-chassis
- BMW 1 Series: 2015+ F20 F21 M140i
- BMW 2 Series: 2016-2021 F22 F23 M240i and M240i xDrive
- BMW 3 Series: 2016-2019 F30 F31 F34 340i and 340i xDrive
- BMW 4 Series: 2016-2020 F32 F33 F36 440i and 440i xDrive including Gran Coupe
How it works
The kit mounts behind the driver-side kidney grille to take advantage of existing airflow, dissipating excess heat from the transmission fluid. The included 165°F 74°C thermostat maintains a minimum operating temperature and bypasses the cooler until the fluid is up to temperature, helping prevent over-cooling.

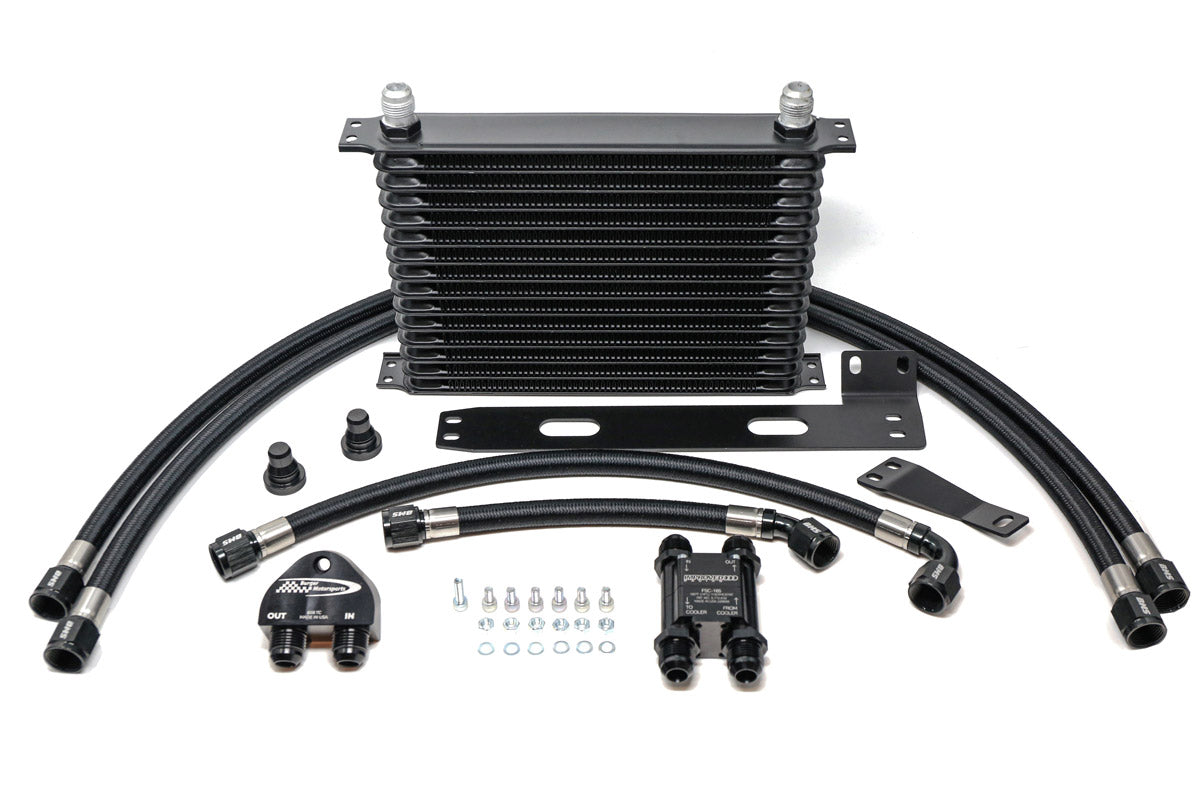

What’s included

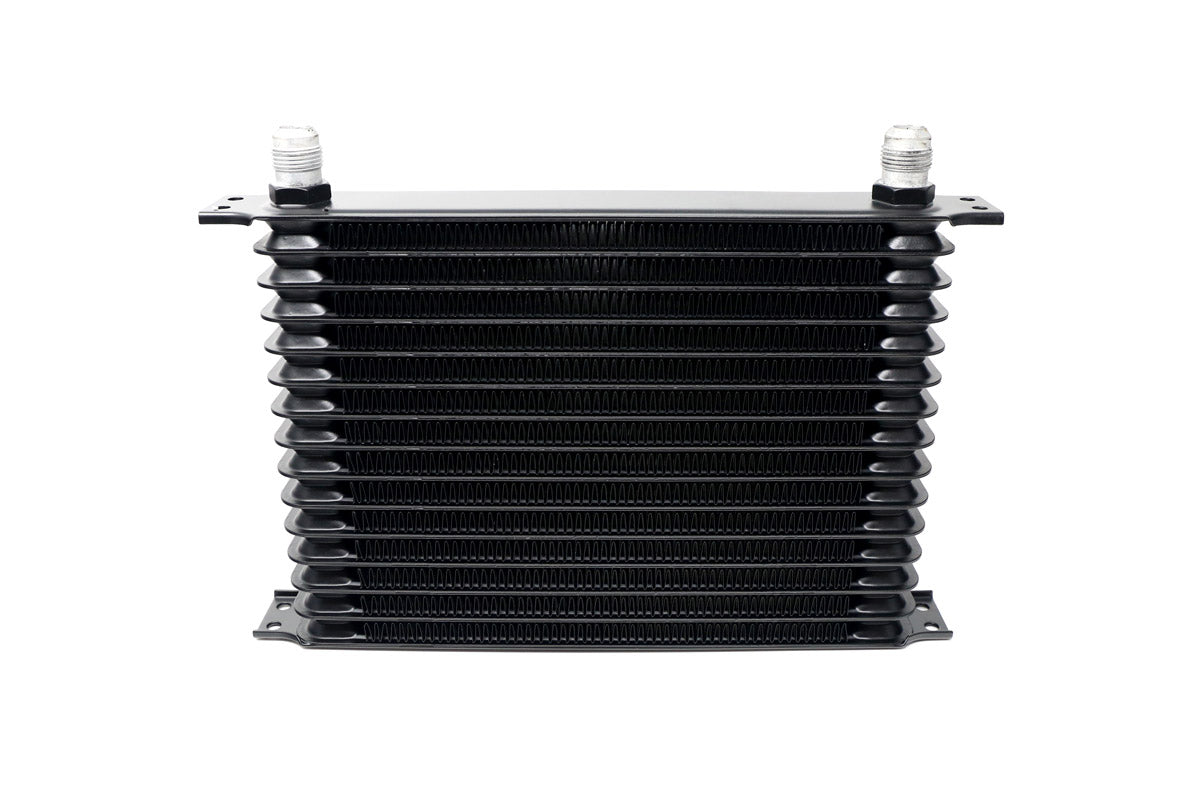

- High-capacity transmission oil cooler

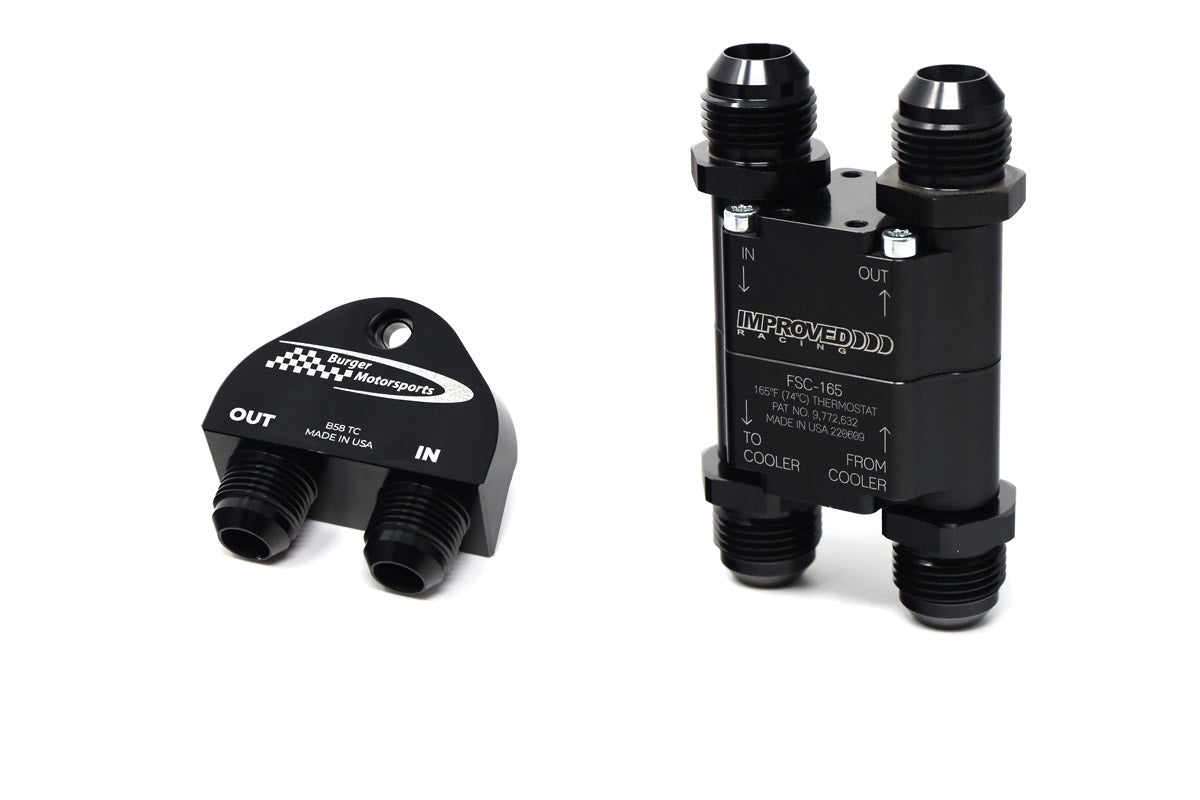

- Billet adapter
- Pair of mounting brackets
- Two coolant plugs
- Improved Racing 165°F 74°C thermostat with fittings

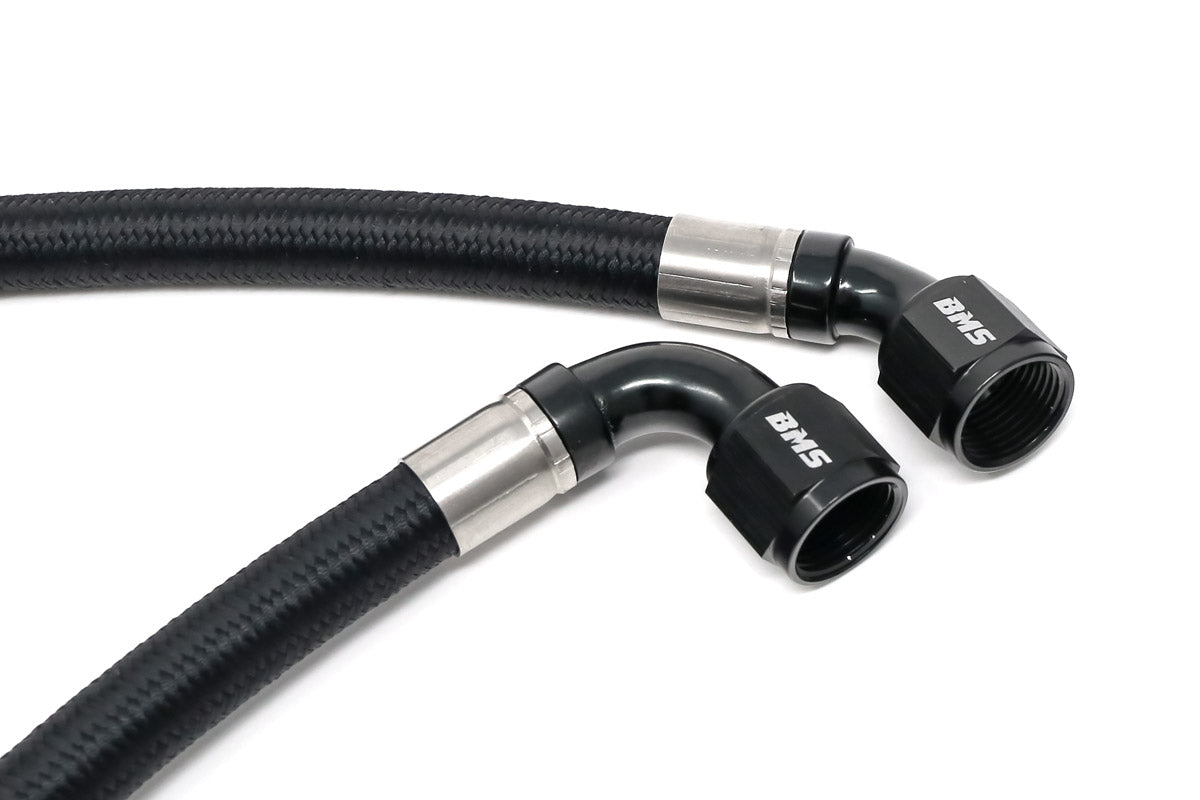

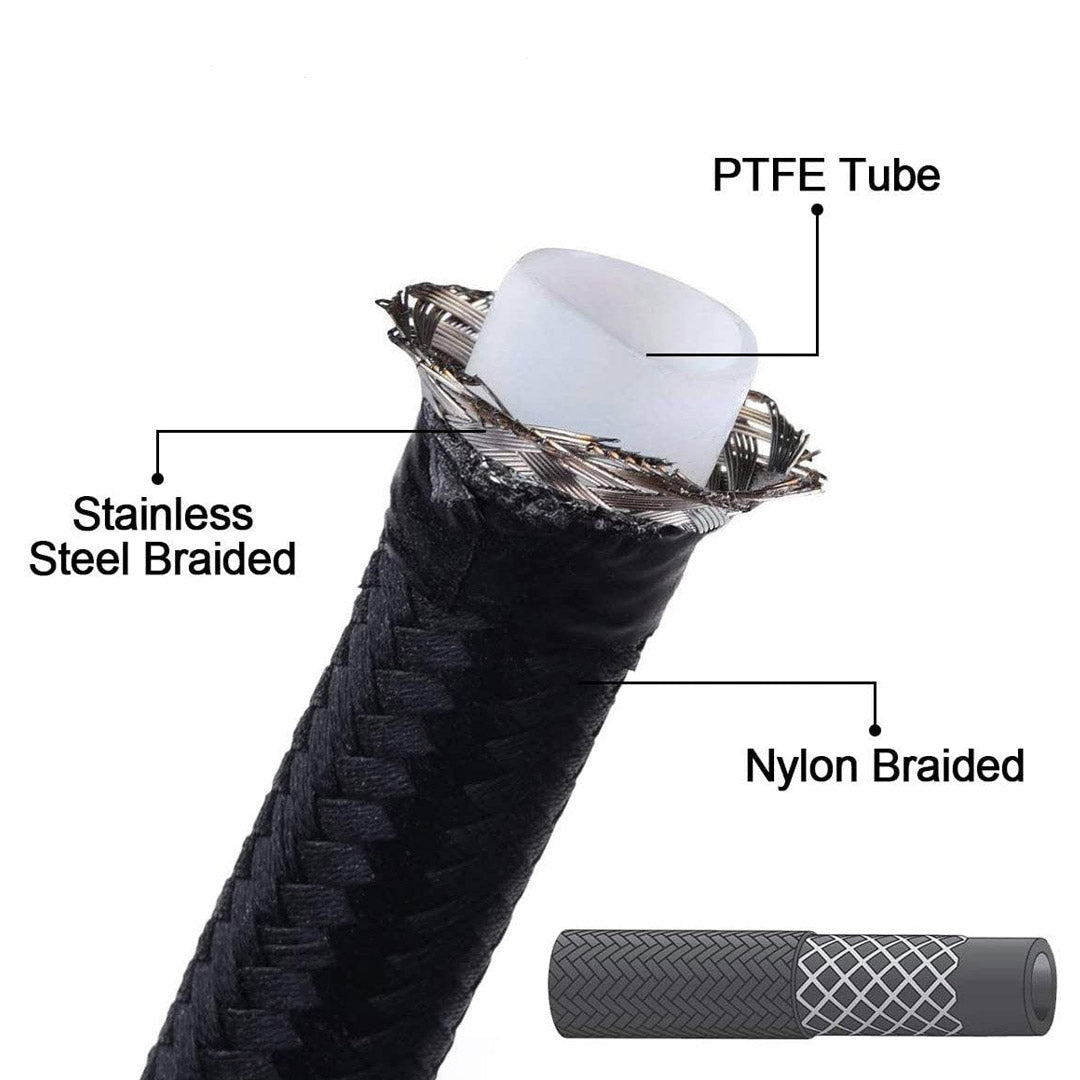

- Four -10 AN crimped PTFE/SS/nylon-covered lines
- Six M6x1.0x12 mm bolts with washers and nuts
- One M6x1.0x20 mm bolt
If you’re increasing power on a Gen 1 B58 F-chassis automatic, this BMS transmission cooler is a smart reliability upgrade. Order from Nforcd with confidence. Professional fitting is available at Nforcd in Warwickshire. To request a fitting quote, email Sales@nforcd.com.
