Keep oil mist out of your intake and protect your B58 with the BMS Oil Catch Can for the 2020 to 2026 Toyota Supra GR MK5. This proven oil separator is engineered specifically for the turbocharged B58 PCV system to capture blow-by before it coats your intercooler, charge pipes and intake tract, helping maintain clean airflow and consistent performance. Available from Nforcd for fast UK delivery.
- Purpose-built BMS catch can kit for the B58 Toyota Supra GR MK5 2020 to 2026
- Helps reduce oil vapour contamination in the intake system for cleaner running
- Triple internal baffle for efficient air oil separation without clogging
- High-flow, large diameter hoses maintain OEM-level PCV ventilation
- Closed-loop PCV design keeps fumes inside the system, not vented to atmosphere
- Precision CNC machined, anodised black aluminium can and fittings

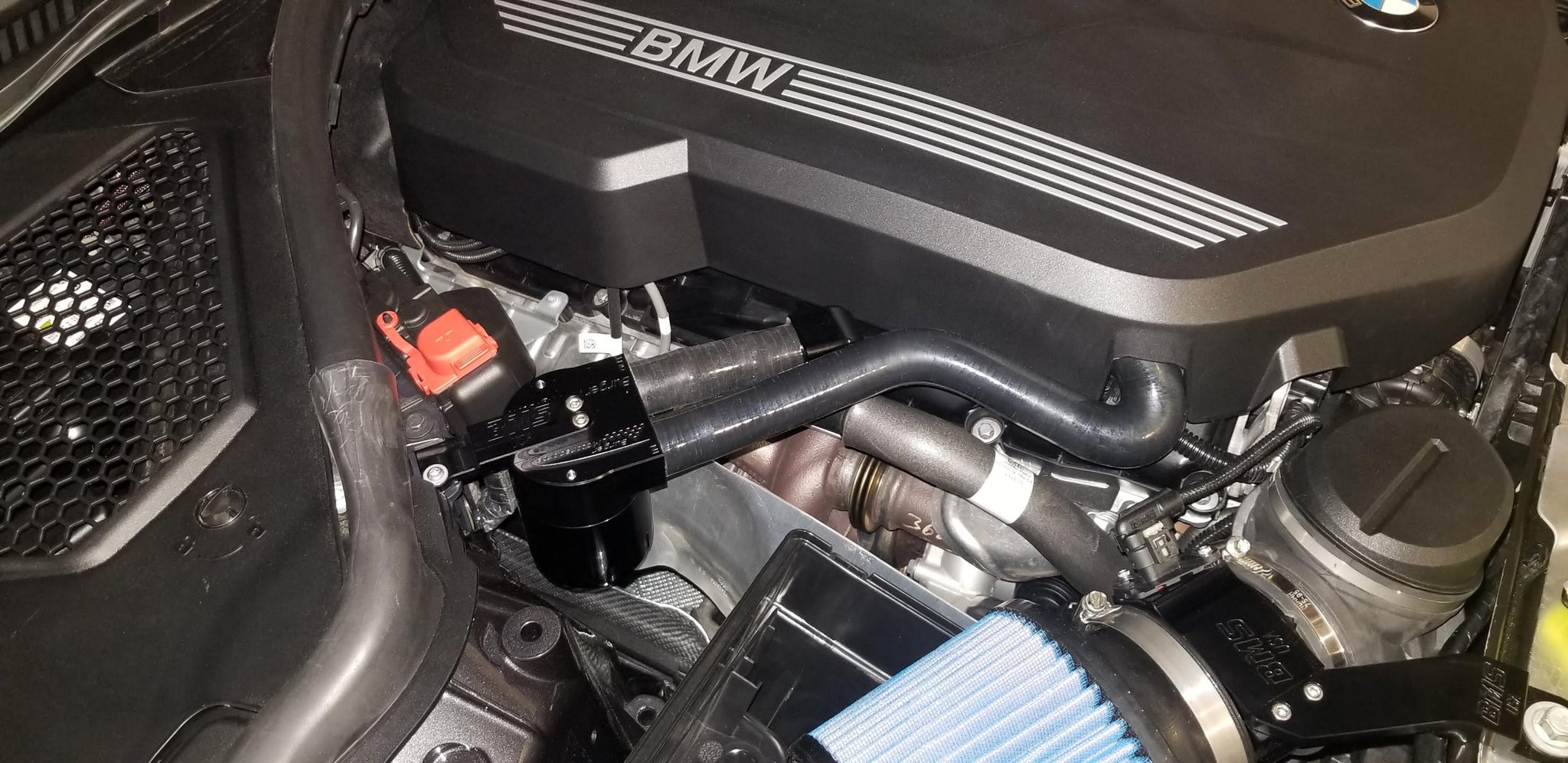

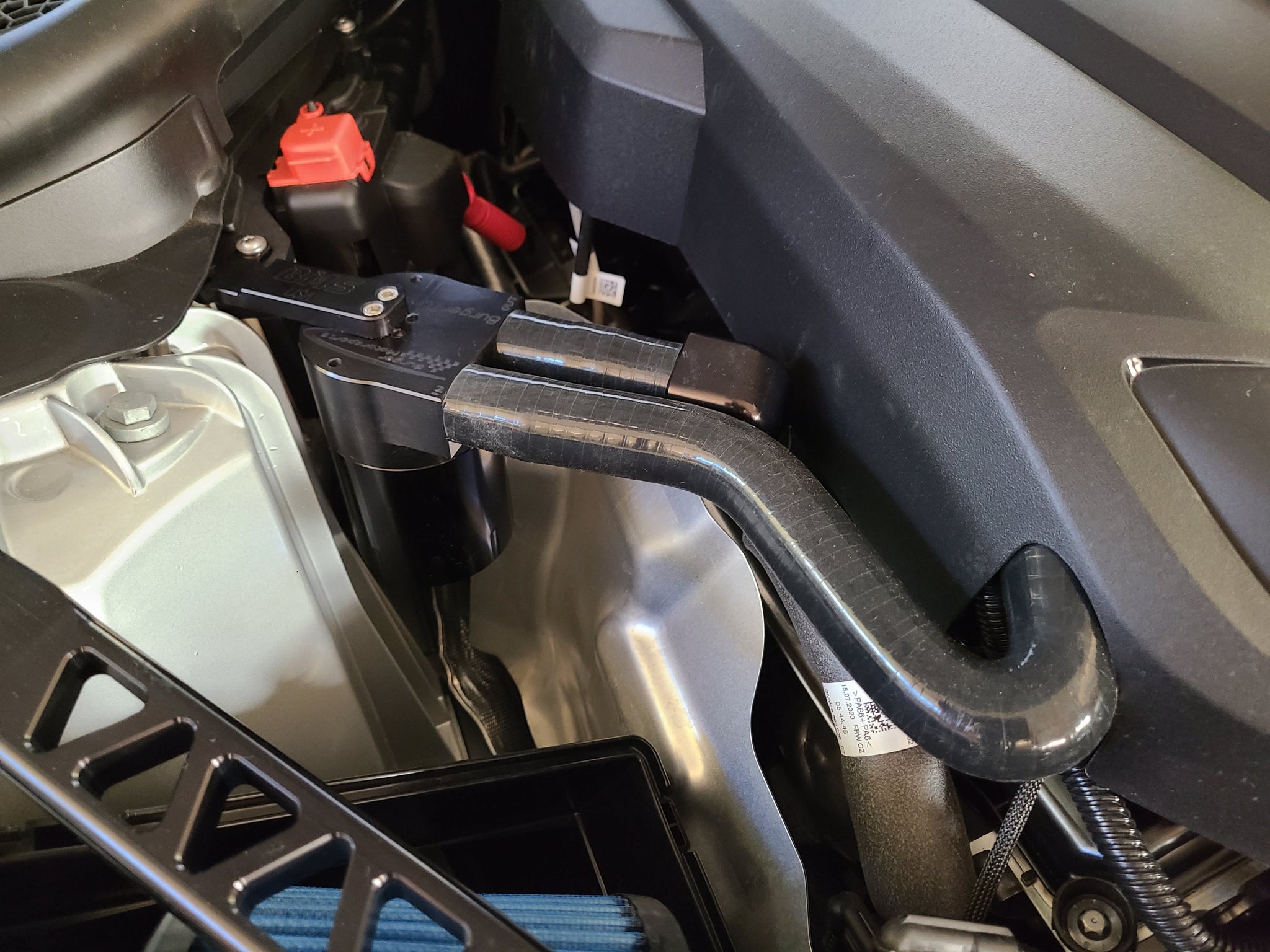

- Stealth mounting with short hose runs for efficient operation
- Quick, reversible install with all hardware included, around 20 minutes

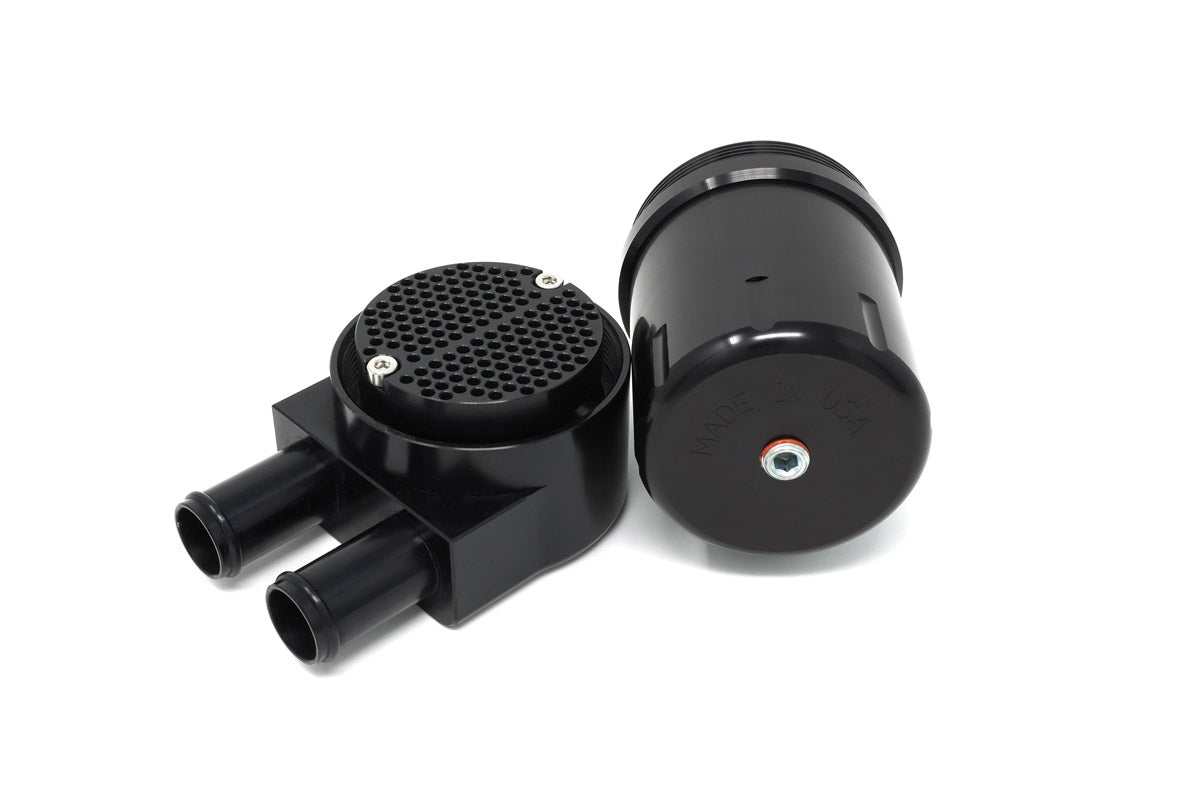

- Easy servicing via screw-off base or 1/8 NPT drain plug
- Made in the USA, can body guaranteed for the life of the vehicle
Fitment
Toyota Supra GR MK5 2020 to 2026 with B58 engine only.
Installation requirement

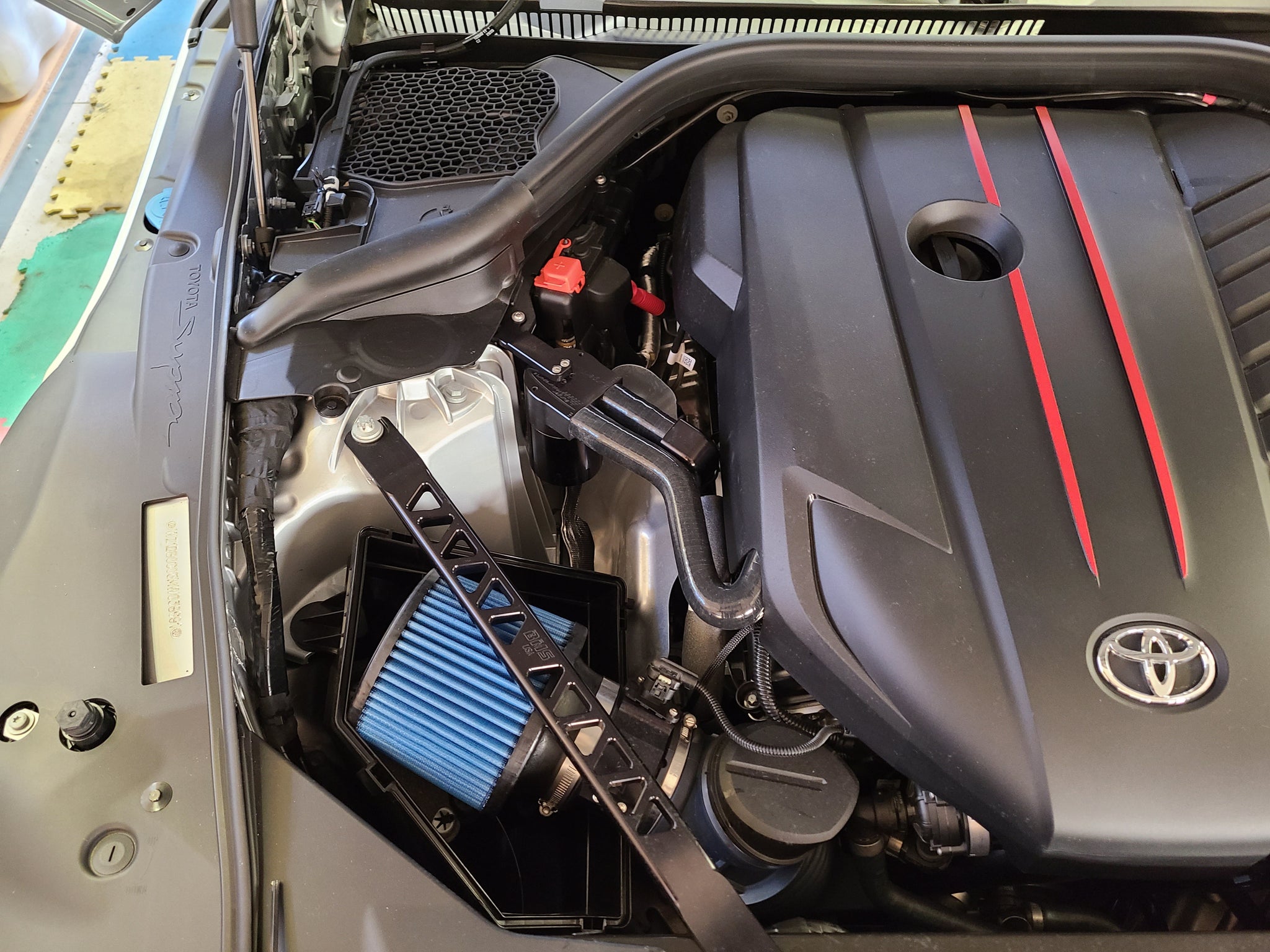

This kit requires either the BMS Supra Intake to fit, or if retaining the factory airbox you will need the BMS B58 intake muffler delete to create the clearance for the catch can.
What’s included

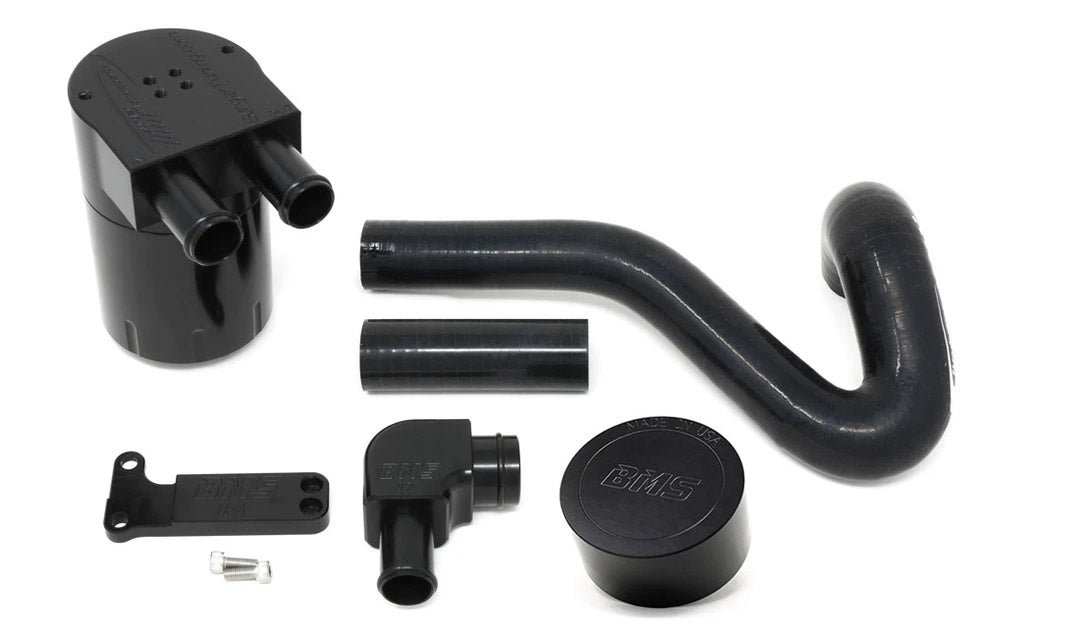

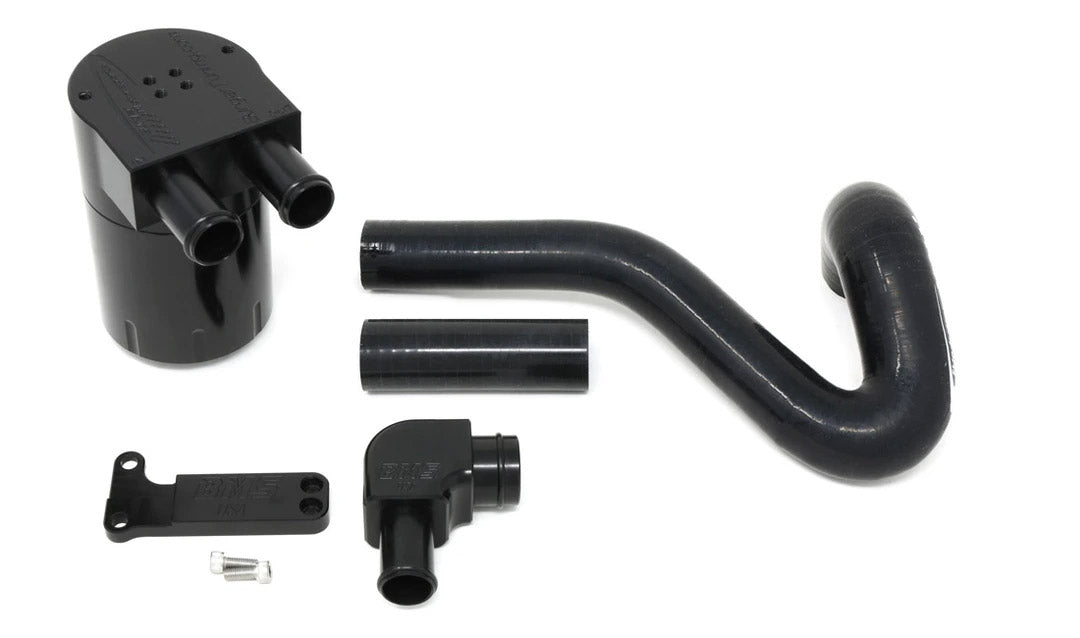

Oil catch can assembly, billet B58 bracket, 90 degree billet fitting, custom silicone inlet hose, 3.5 inch straight silicone hose, and stainless steel bracket hardware.

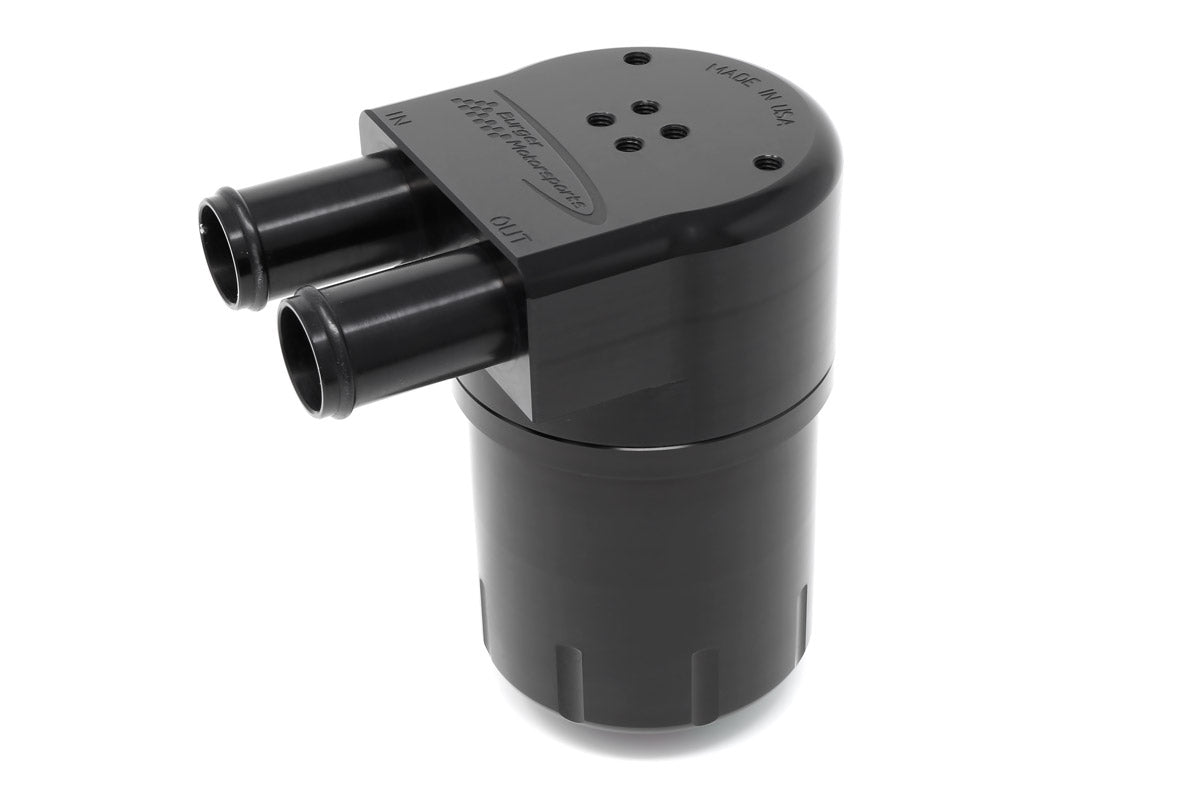

Can dimensions
Height with lid: 111 mm
Can diameter: 63.7 mm
Lid length to nozzle end: 101 mm
Nozzle outer diameter: 19.2 mm
Nozzle inner diameter: 17 mm
Fluid capacity: up to 5.5 fl oz 162.6 mL
Optional upgrades
Clear-view catch can base to visually check oil level available as an option. Note: the transparent base is not suitable for use in climates where temperatures frequently drop to 0°C or below.
Oil Filler Cap Connection Kit available separately to add a second inlet to the can for increased capture from additional PCV sources.
Nforcd knows this BMS oil catch can kit well and it has been a popular Supra upgrade for customers looking to keep their B58 running clean. Order online today or contact us for advice. Professional fitting is available at Nforcd in Warwickshire. To request a fitting quote, email Sales@nforcd.com.
