Get accurate ethanol content for your flex fuel setup with the Universal BMS CANflex CANbus E85 Analyser ECA from Nforcd. Designed to read directly from a flex fuel sensor sensor kit sold separately, CANflex broadcasts your ethanol percentage over CANbus so your ECU, flash tune or JB4 can use the signal. View your blend at a glance on the integrated LED display or via the free CANflex app on your smartphone.

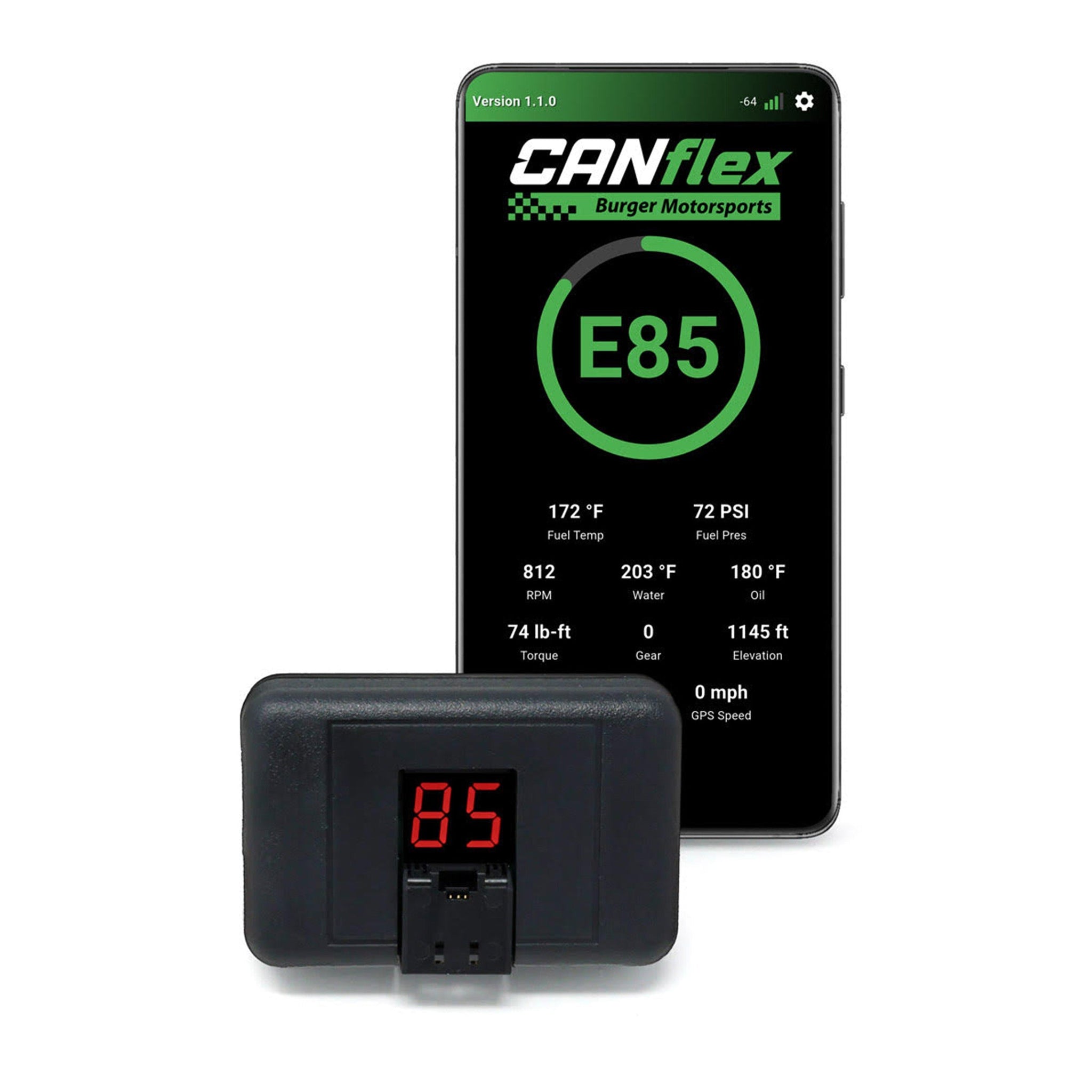

- Real time E85 ethanol content reading via built in LED display and the free BMS CANflex app for iOS and Android
- Universal CANbus ethanol content analyser that connects to a flex fuel sensor sensor kit sold separately
- CANbus output for JB4 and flash only tunes, plus a 5V legacy output for older integrations
- Optional low fuel pressure monitoring input supports a 10 bar Fuel-It sensor with 1/8 inch NPT angle tee sold separately, ideal where no factory low side sensor is present
- Works with both front mount and rear mount flex fuel sensor installations

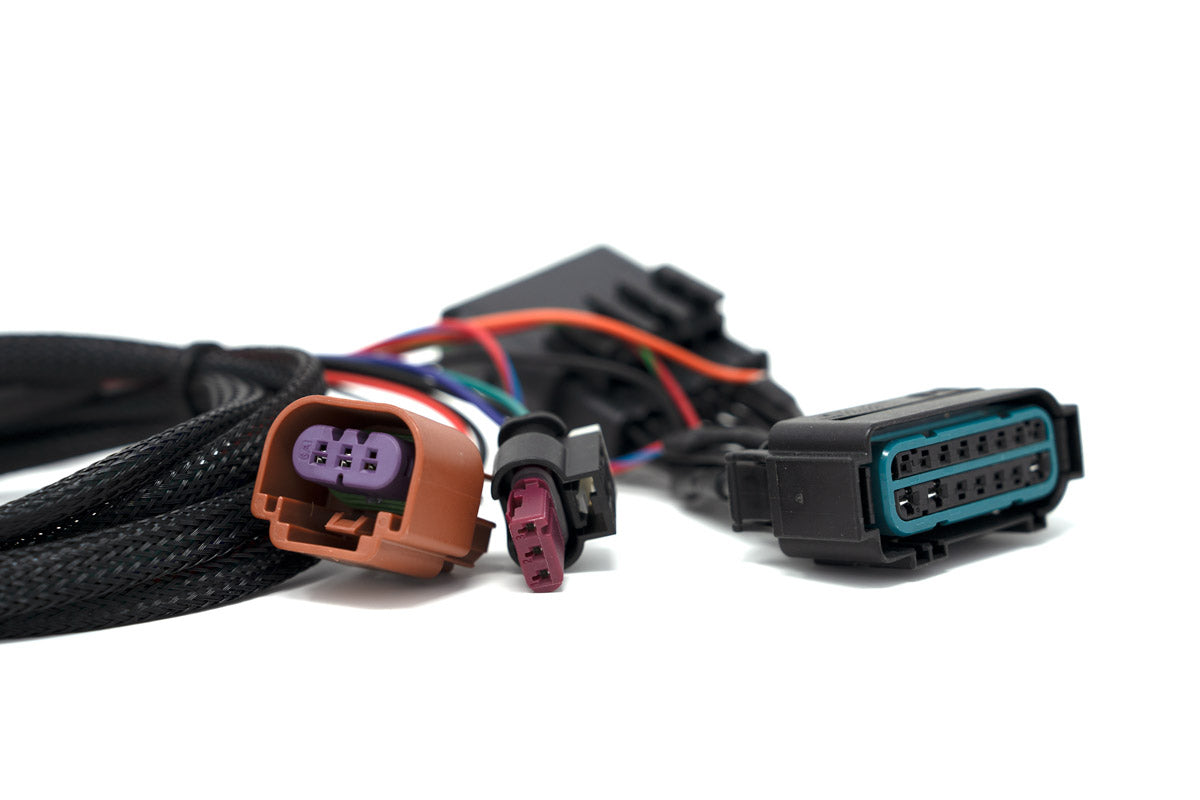

- Choice of harnesses:
- Universal harness for JB4, BM3, MHD, EcuTek and more, with removable posi-taps for easy install front or rear
- Plug and play harness only for BMW Gen2 B58 and S58 X3M and X4M with automatic transmissions, flex fuel kit must be in the engine bay near the ECU. BM3 is not compatible with the PnP harness and requires the universal harness. Rear mounted kits must use the universal harness
- LED notes: shows current ethanol content, 01 indicates a sensor read error, decimal point illuminates when CANbus is active. Display unit is not waterproof, mount away from moisture
Download the free CANflex app:
Nforcd supplies and supports BMS CANflex across a wide range of performance builds, making it a smart upgrade for anyone running E85 or flex fuel. Need it installed? Professional fitting is available through Nforcd in Warwickshire. Request a quote at Sales@nforcd.com.
