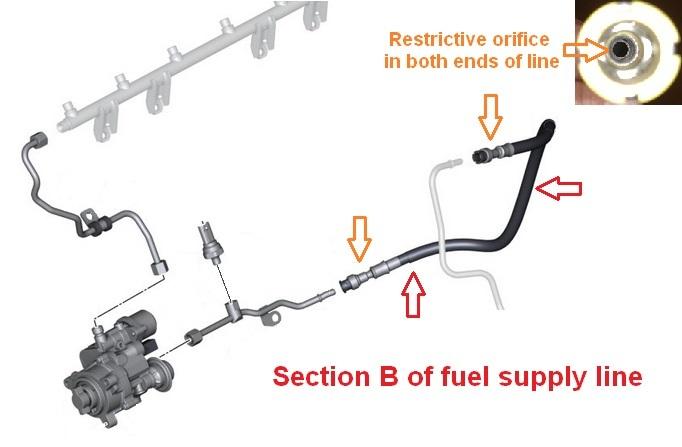

Upgrade your BMW 135i or 335i E-chassis N54 or N55 with a Bluetooth flex fuel kit that lets you see your exact ethanol content in real time. Supplied by Nforcd, this complete plug-and-play solution replaces the factory fuel lines from the tank to the engine bay with a single high-flow -6AN E85 compatible line and integrates an ethanol sensor with a Bluetooth analyser for live monitoring via the Fuel-It or JB4 mobile apps. It also provides a 0 to 5V analogue output for JB4 or flash tuning.

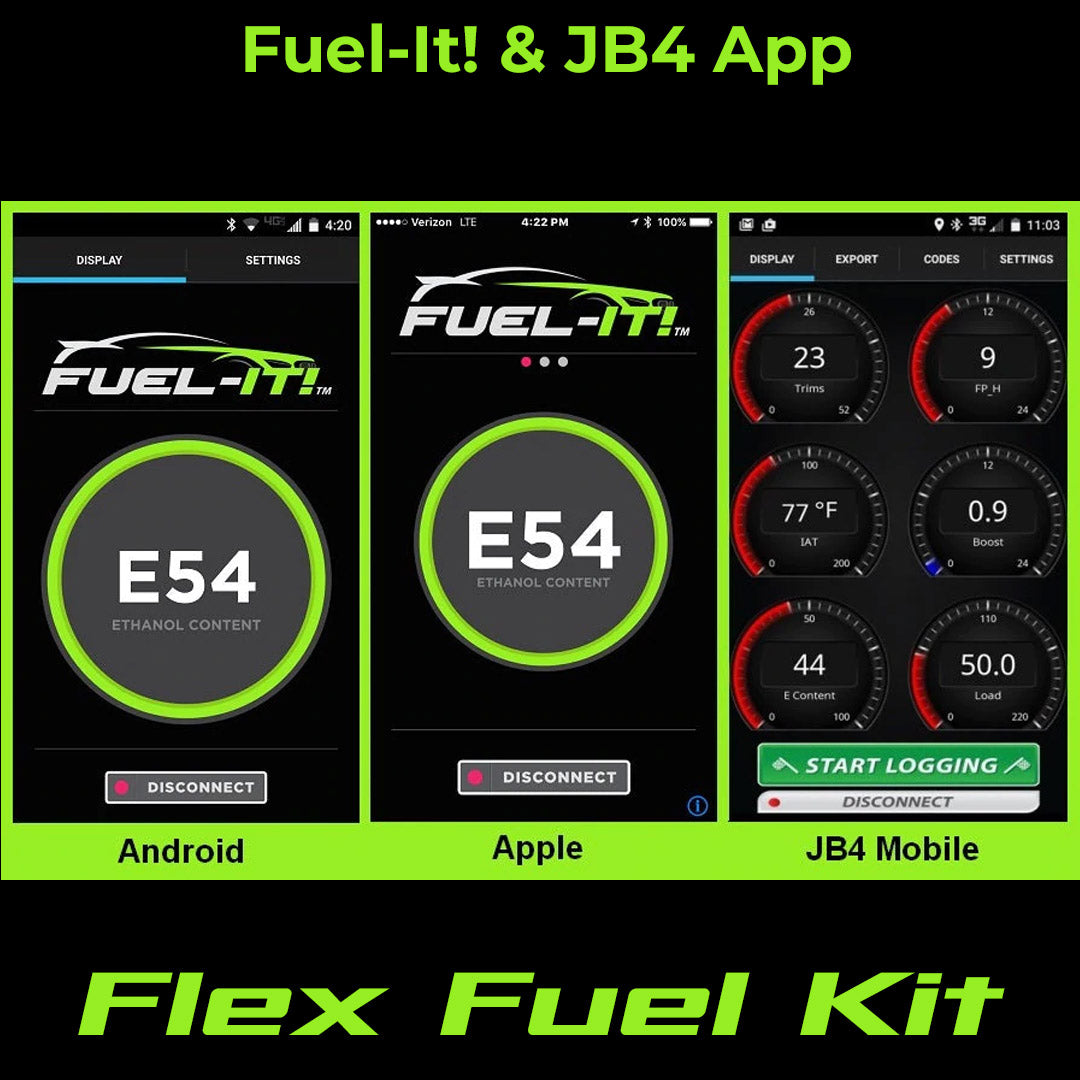

- Real-time ethanol content monitoring on your smartphone or tablet using the Fuel-It or JB4 app
- Complete plug-and-play flex fuel sensor kit for BMW 135i and 335i E-series with N54 or N55 engines

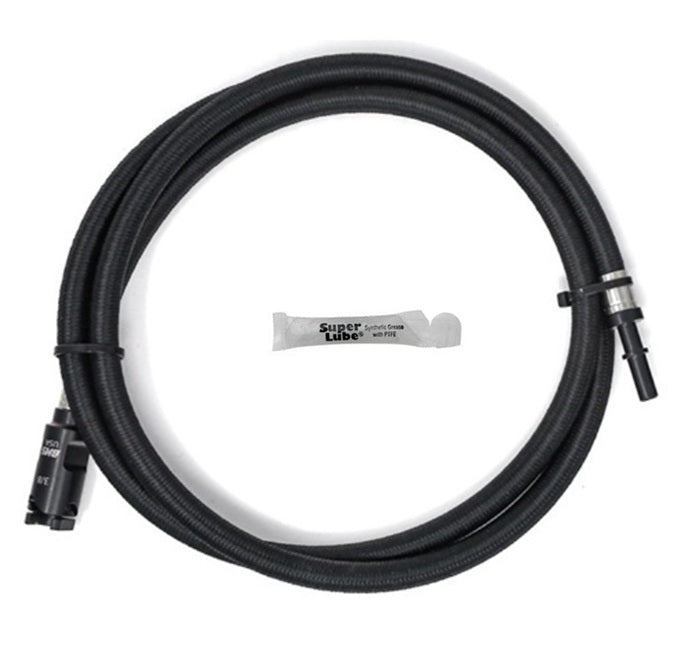

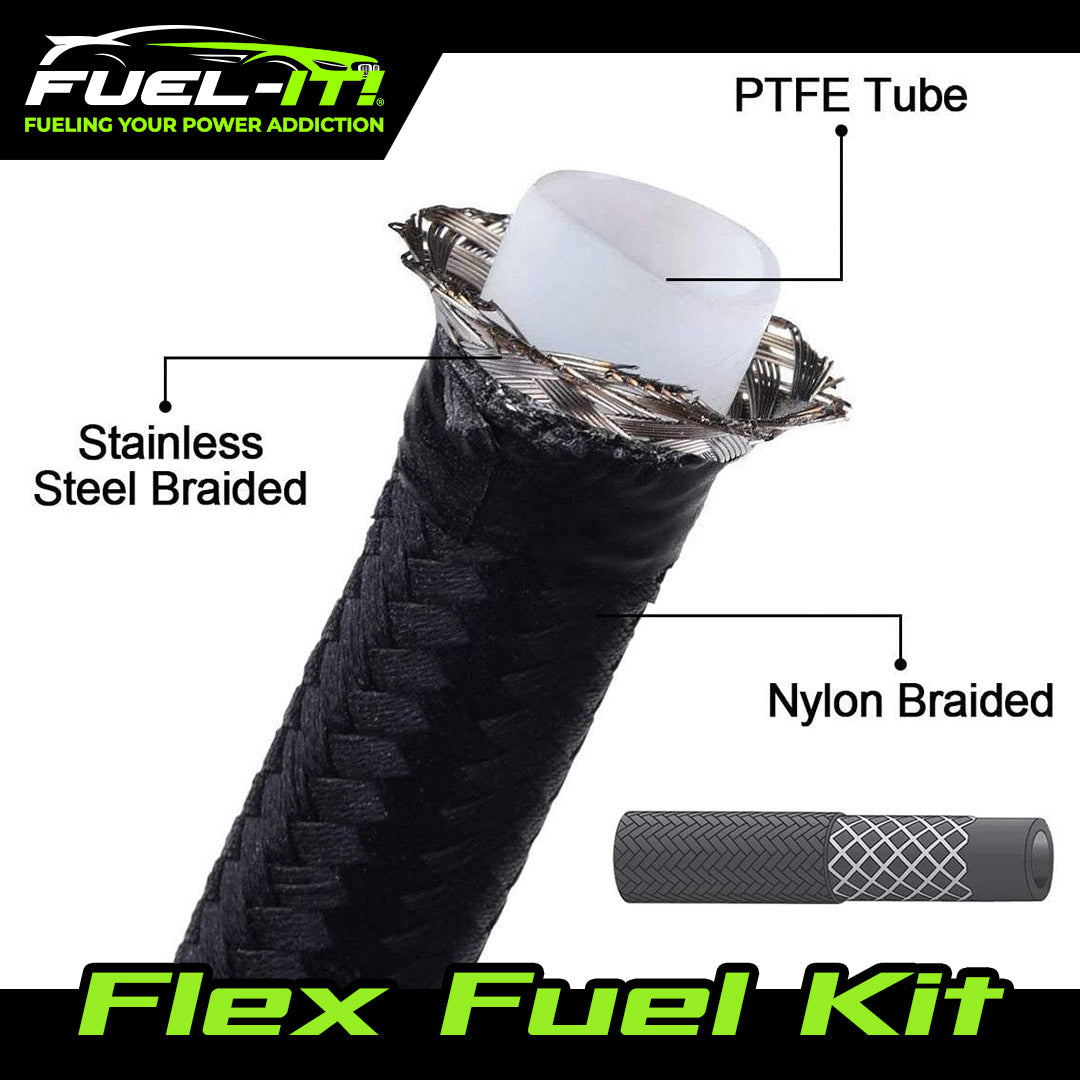

- Upgraded -6AN E85 compatible fuel line from fuel tank to engine bay
- Integrated Bluetooth ethanol analyser plus 0 to 5V analogue output for JB4 or flash tuning
- Custom billet aluminium fittings interface with OEM connectors for a clean, no-modification install
- Designed for off-road use only
Choose the configuration that matches your setup:

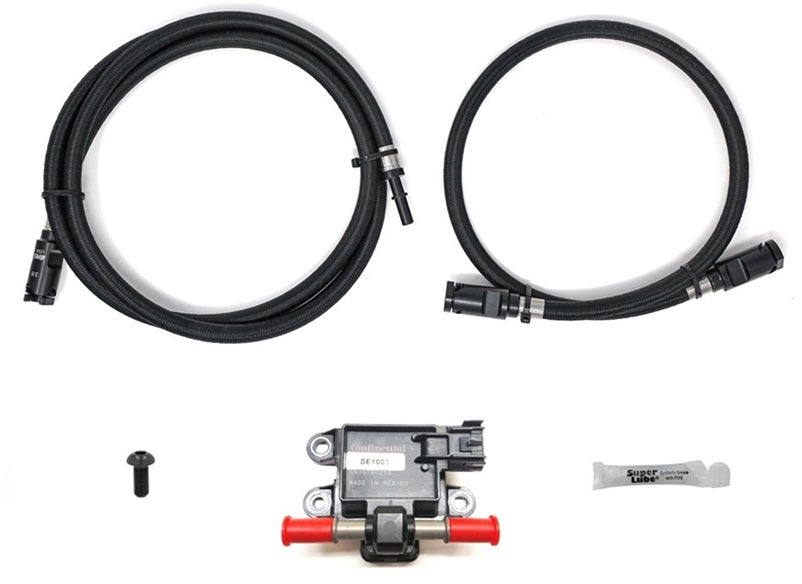

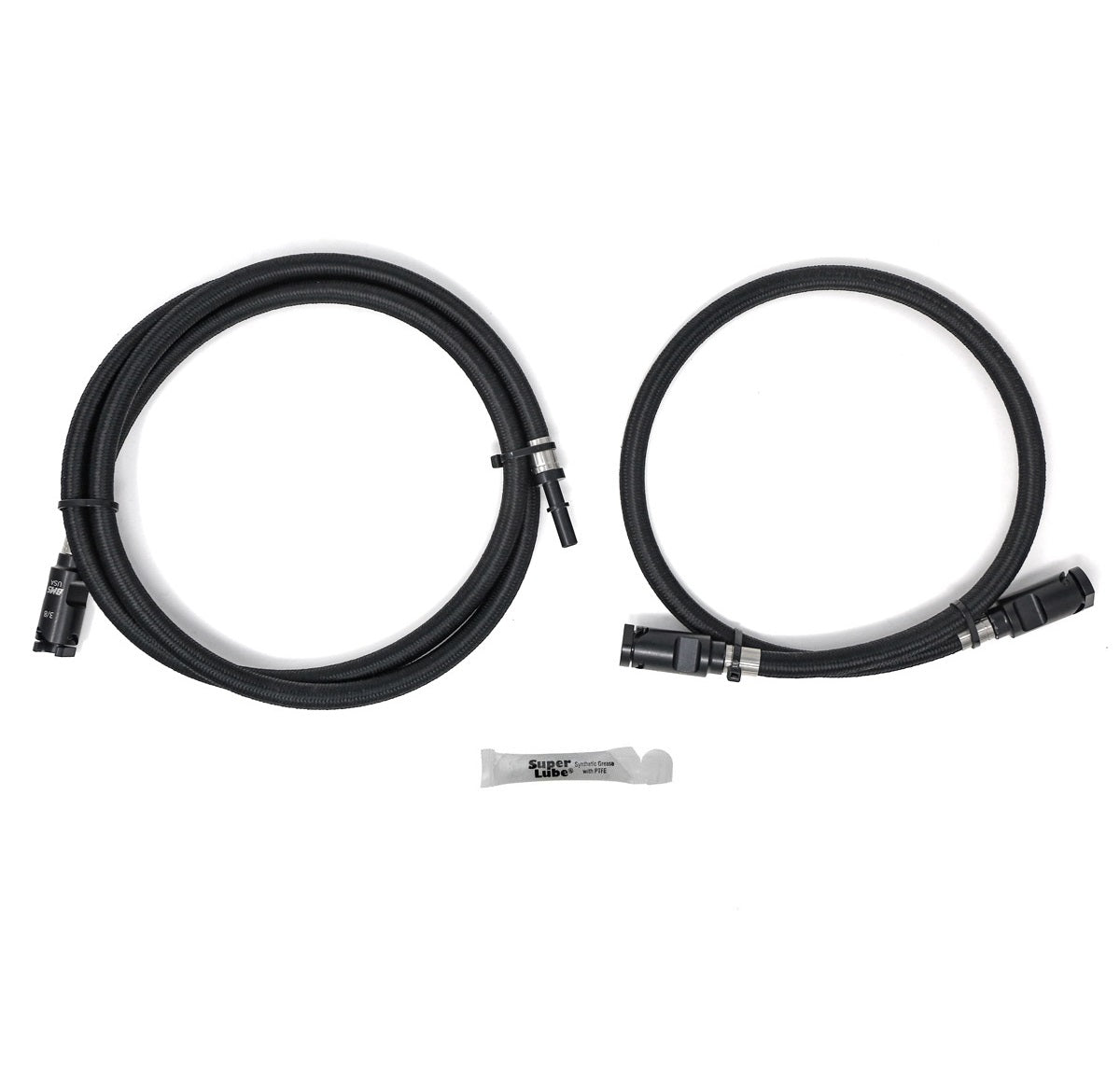

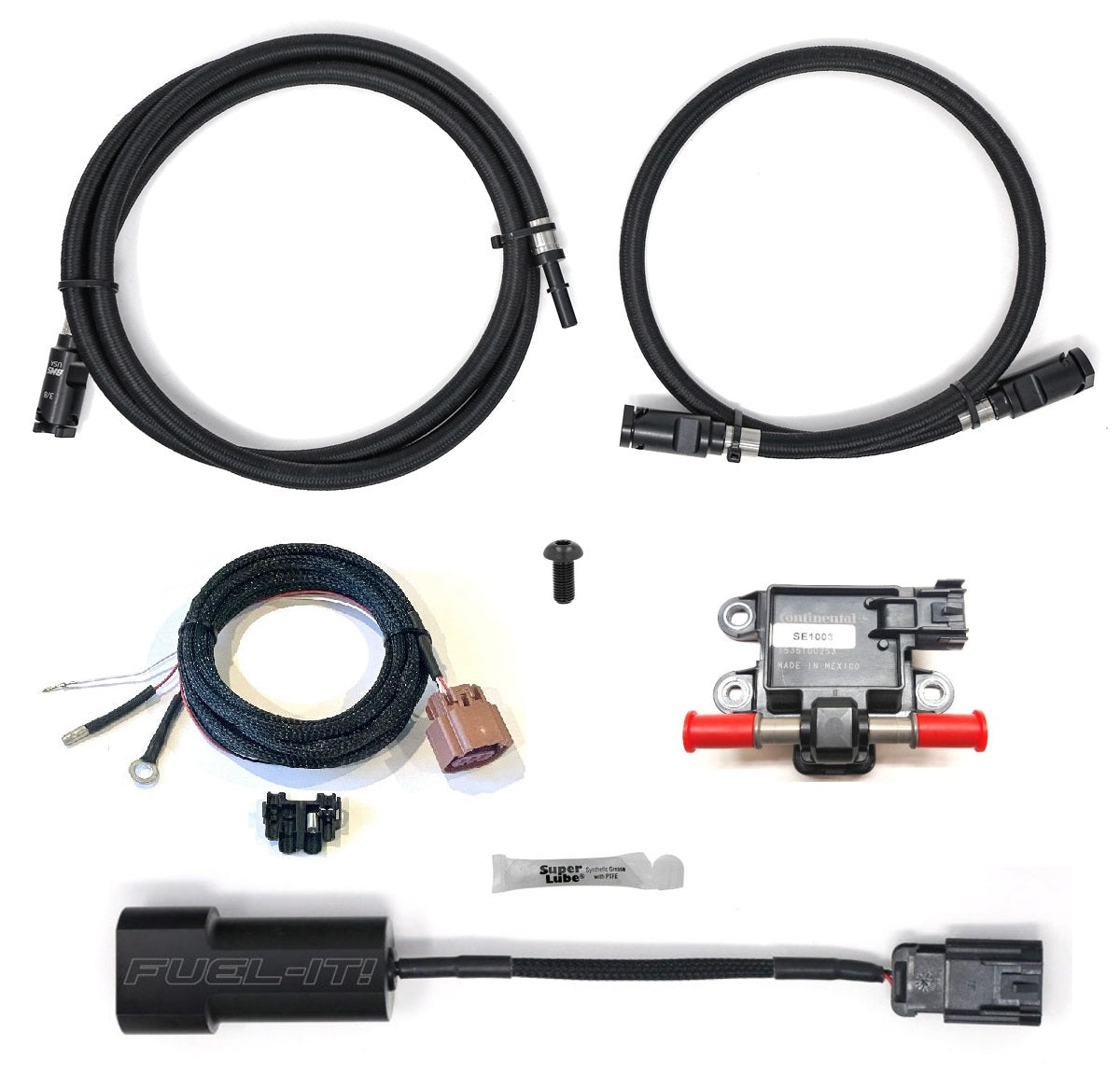

- HPFP to fuel tank (stock): Replaces both factory fuel lines with one continuous high-flow line from the tank to the HPFP and adds the ethanol sensor.

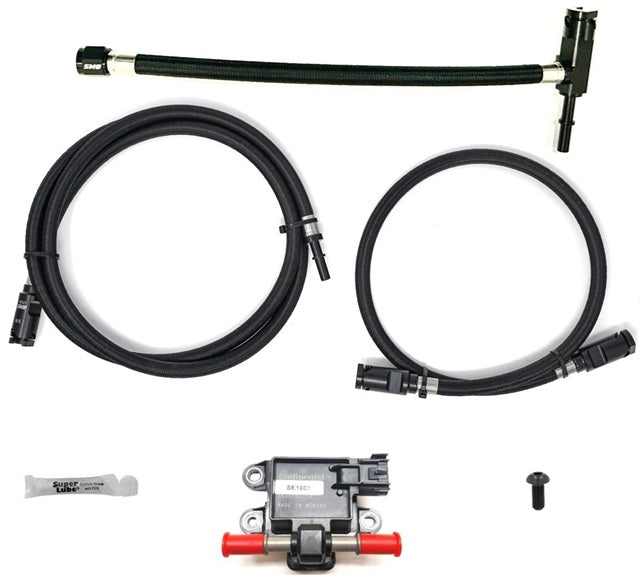

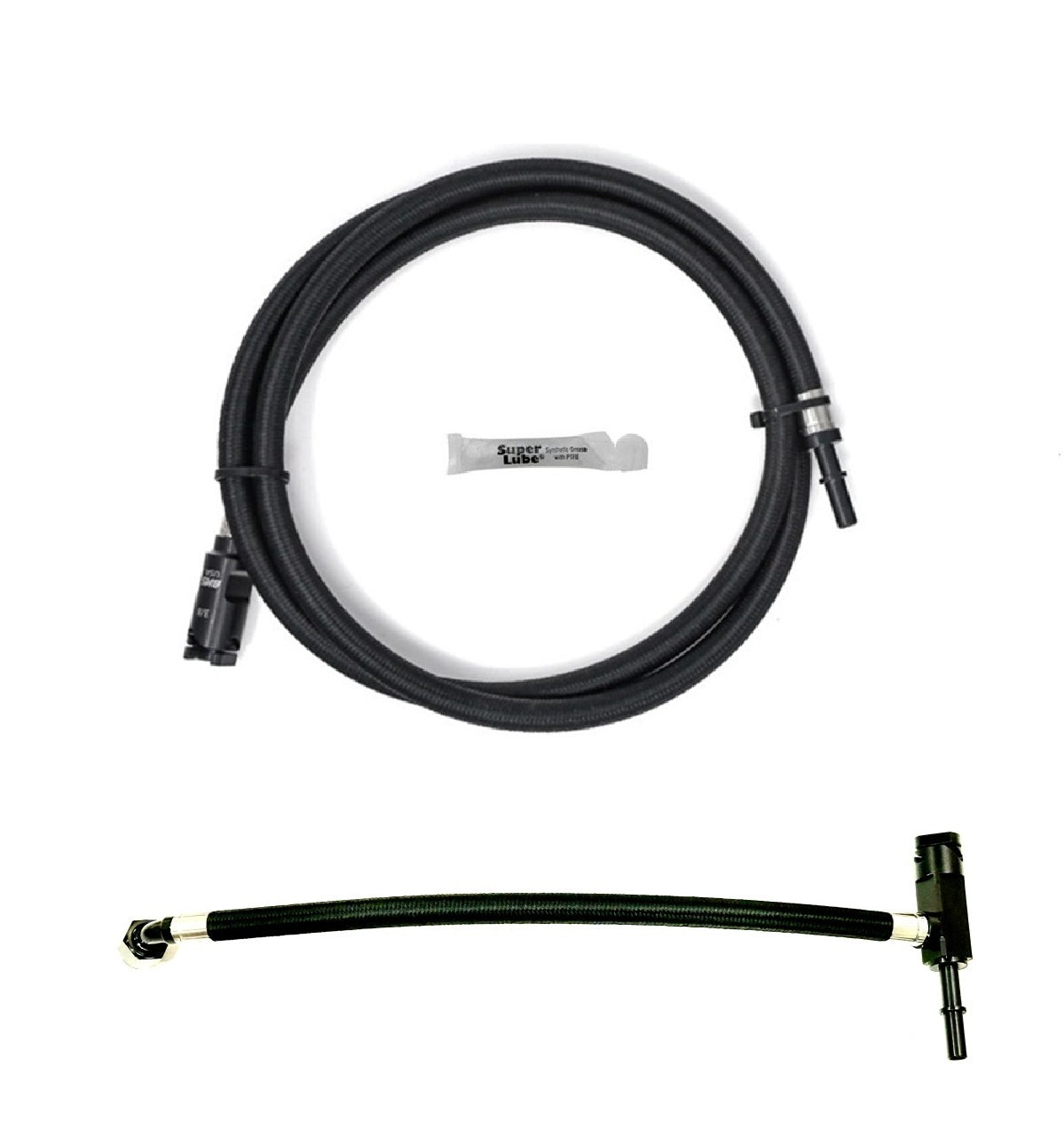

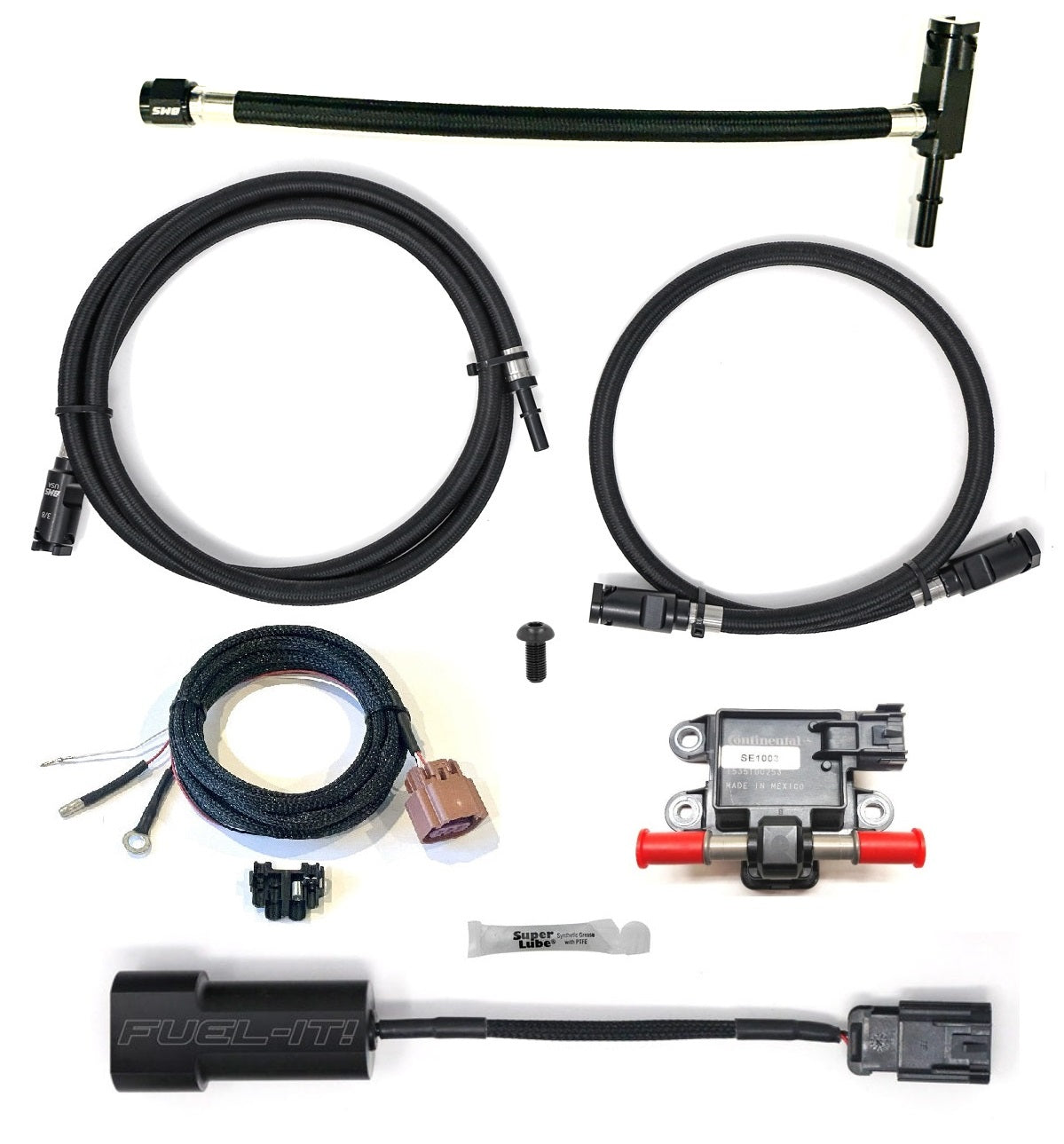

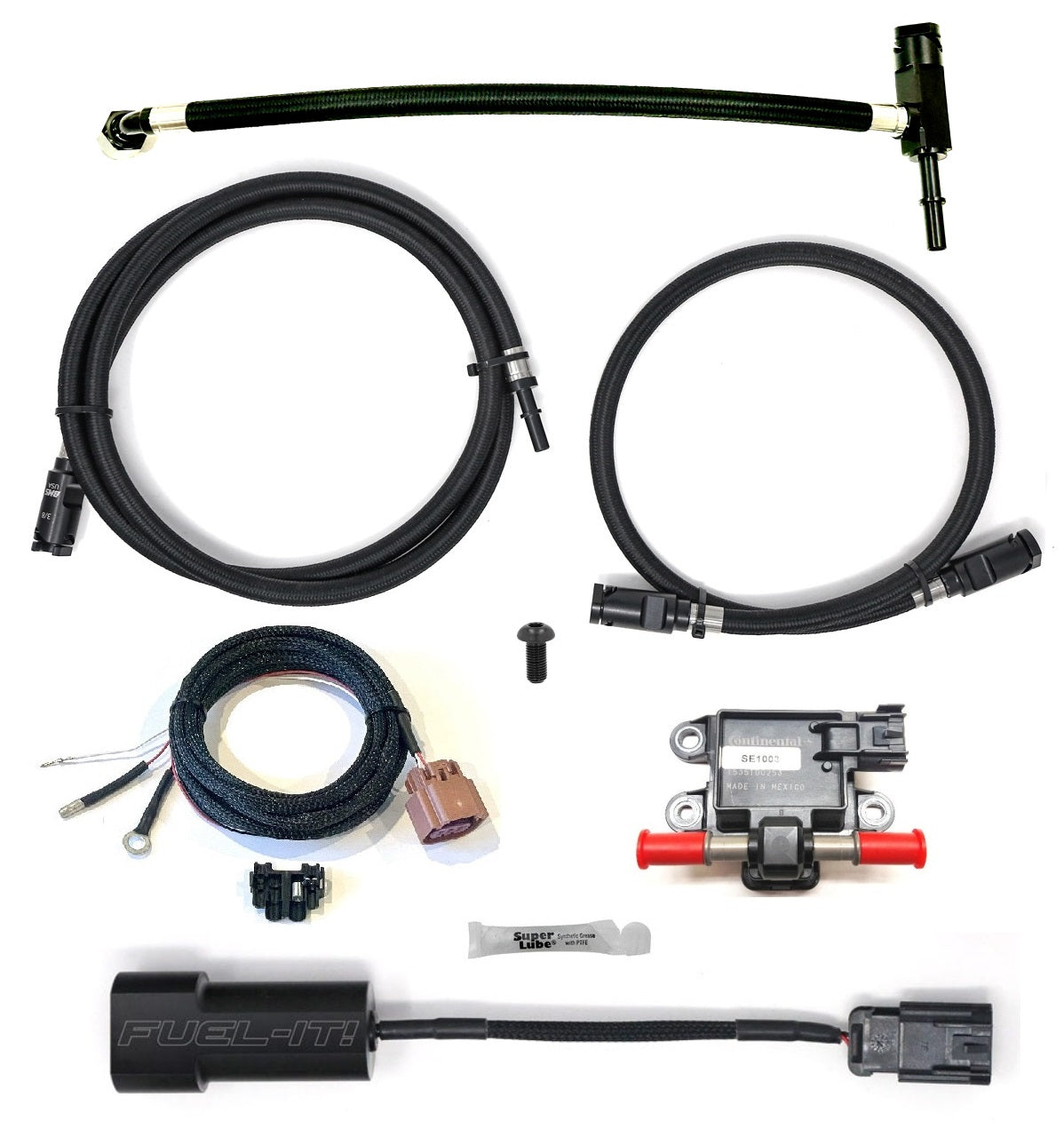

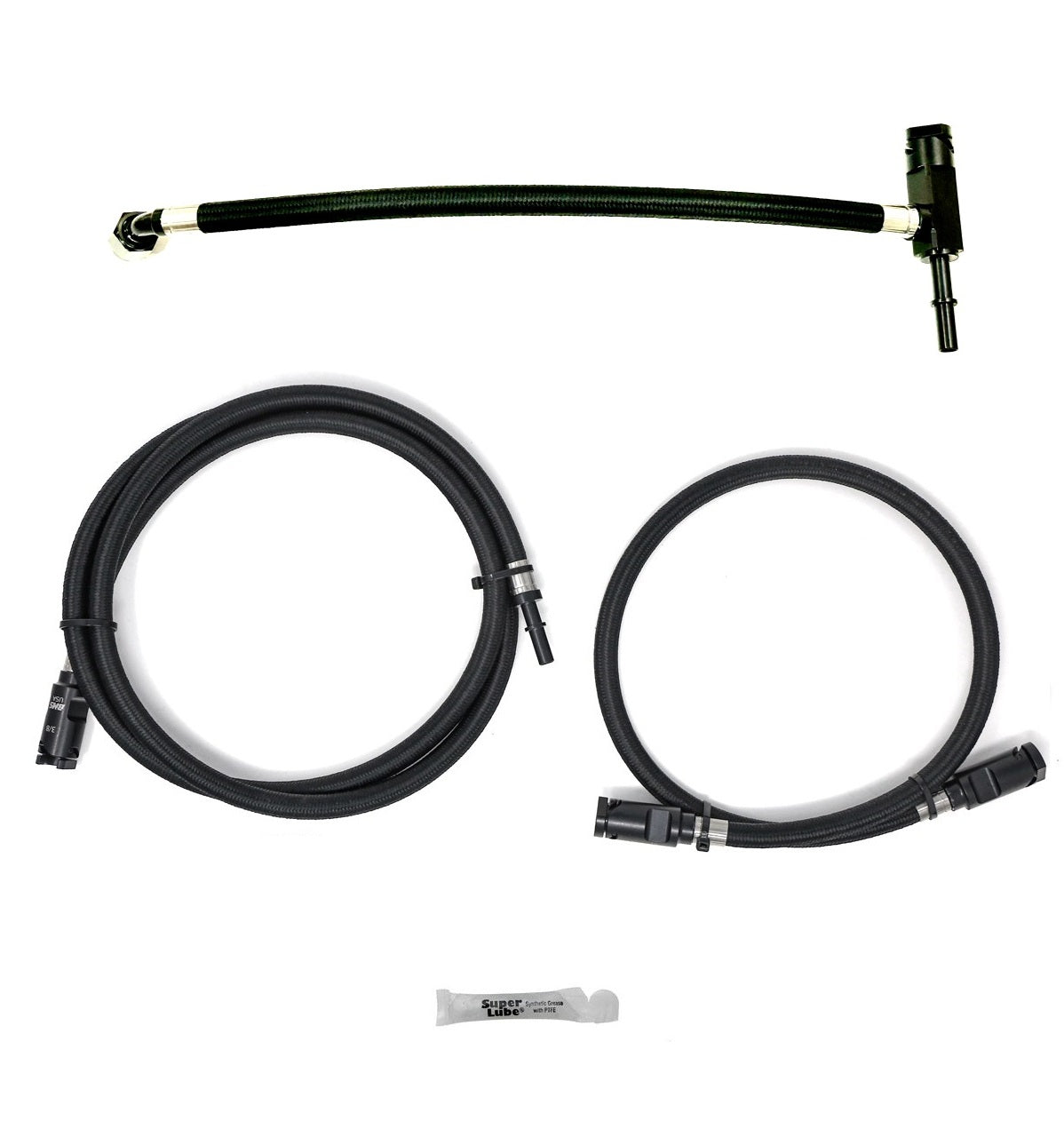

- Port Injection to fuel tank: For vehicles running a Fuel-It port injection kit. Replaces the stock lines, integrates the ethanol sensor and uses a Y-adapter to feed both the HPFP and PI. Custom fittings eliminate tees and extra joints for a cleaner, higher-flow layout.

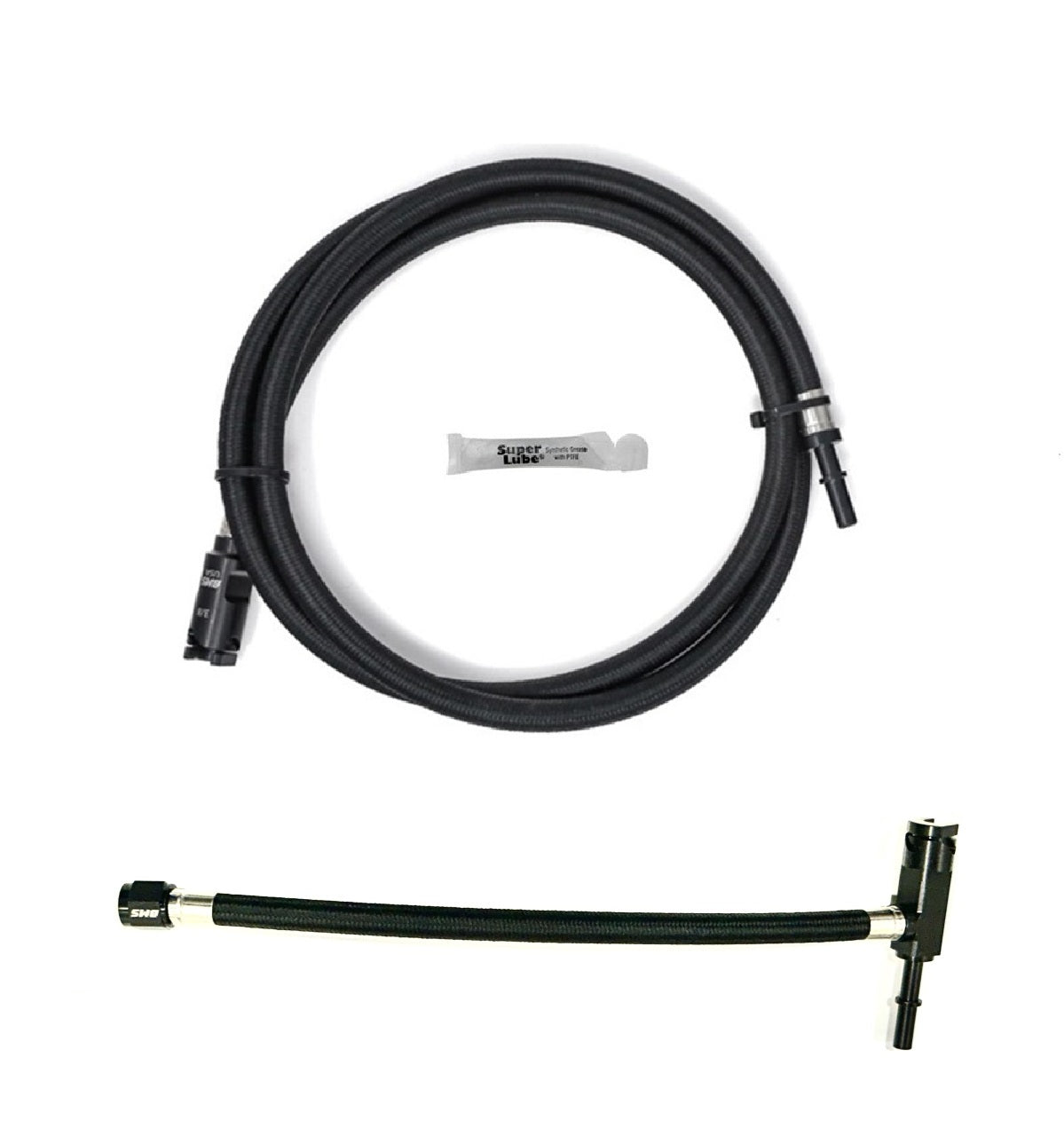

- Phoenix Racing Manifold to fuel tank: For cars using the Phoenix Racing Manifold port injection kit. Replaces the stock lines, integrates the ethanol sensor and uses a Y-adapter to supply both the HPFP and PI with fuel, with simplified, high-flow fittings.

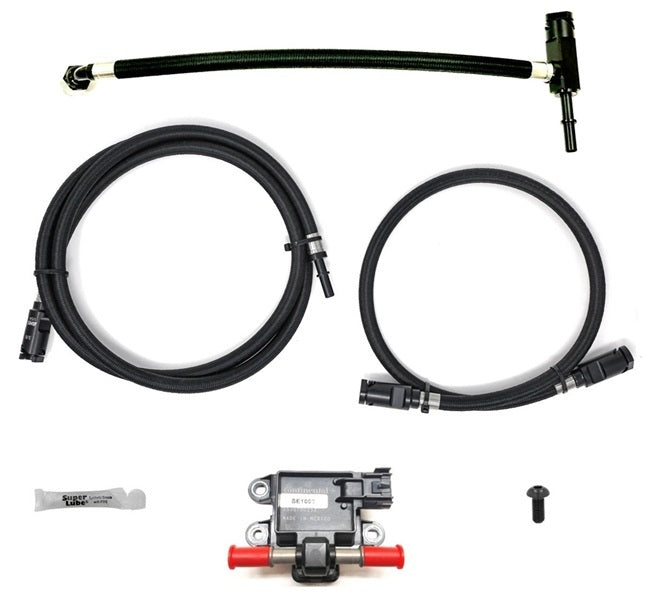

- Non-Fuel-It port injection to fuel tank: For other aftermarket PI kits. Includes a longer 18 inch feed line from the Y to the PI rail. Cut to length and install the included -6AN female fitting or -6AN female elbow to connect to your PI rail.
JB4 wiring guidance:
- N54 E-series: Connect the white wire to position 15 on the JB4 25-pin harness. In the JB4 menu select WMI Ethanol Setup option 1 to enable the pin 15/16 flex fuel input.
- N55 E-series: Connect the white wire to position 16 on the JB4 25-pin harness. In the JB4 menu select WMI Ethanol Setup option 1 to enable the pin 15/16 flex fuel input.
Nforcd knows this product well and it has proven popular with our BMW tuning customers looking to run E85 or ethanol blends confidently. Order your Bluetooth flex fuel kit today for a precise, OEM-style installation with live ethanol content data. Professional fitting is available through Nforcd in Warwickshire. To request a quote, email Sales@nforcd.com.
