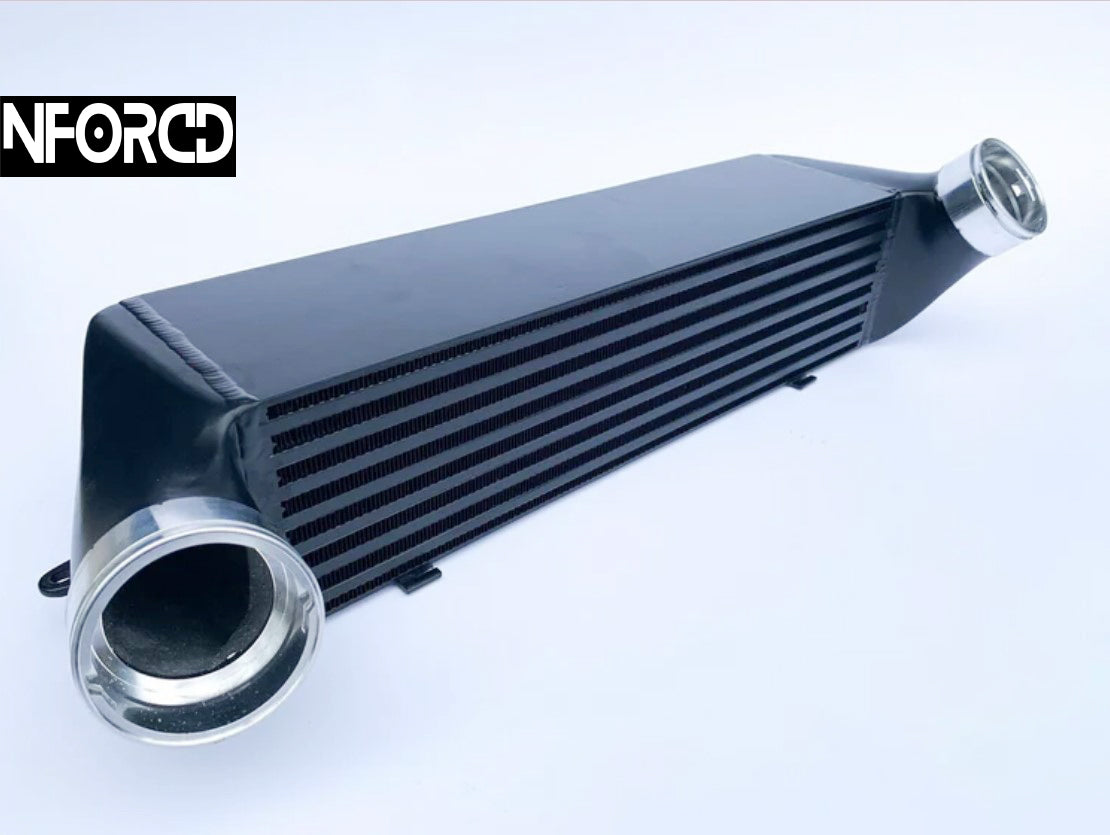

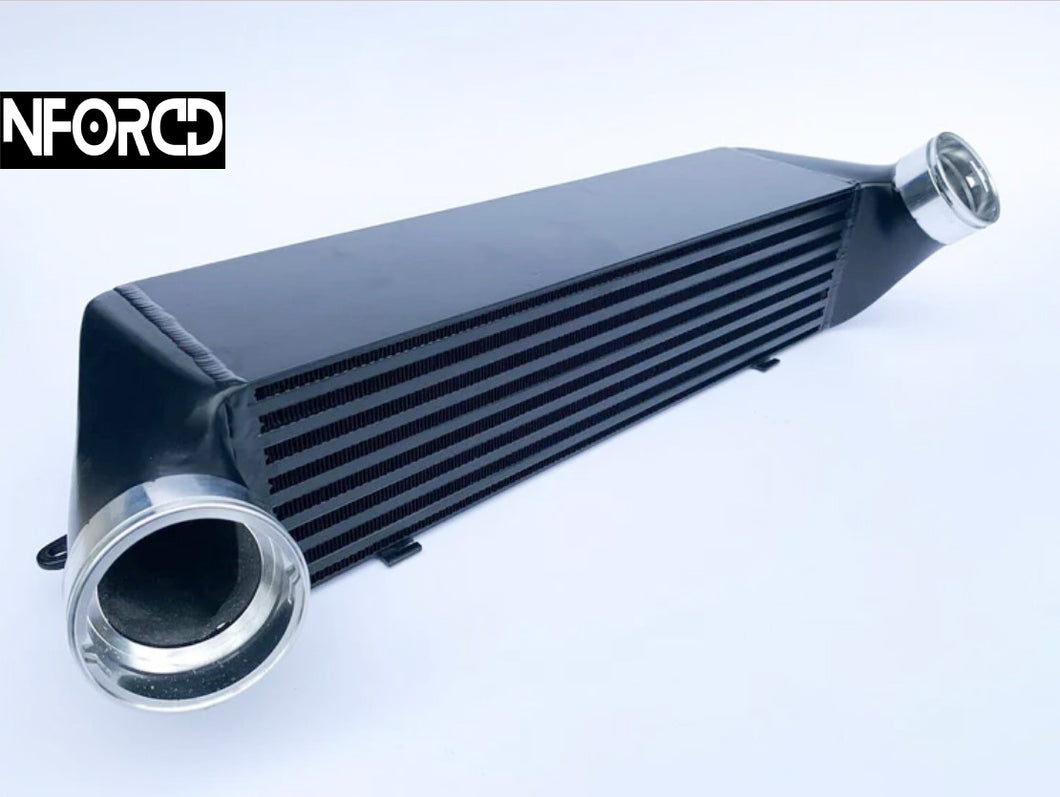

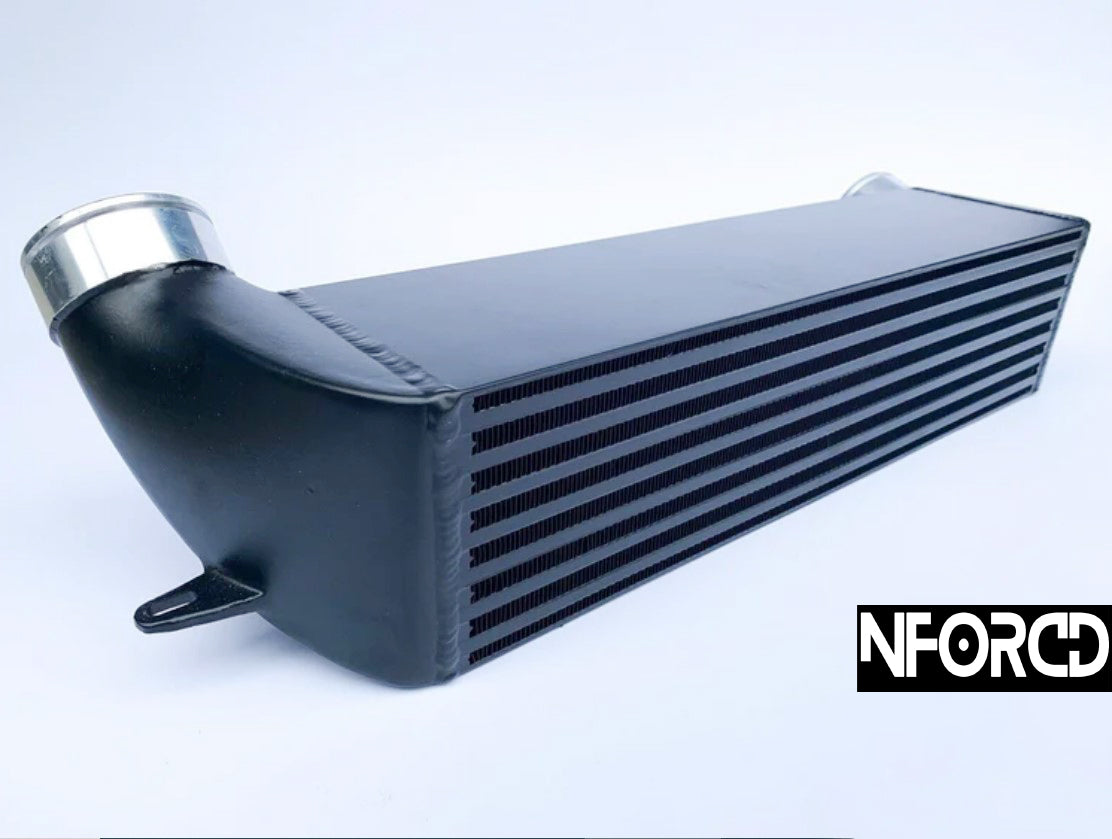

BMW Front Mount Intercooler Upgrade for 1 Series F20 F21, 2 Series F22 F23, 3 Series F30 F31 F34, 4 Series F32 F33. Perfect for 420i 420d 320i 330d 328i 335i and more
If you are searching for a BMW turbo intercooler upgrade, BMW FMIC, BMW N55 intercooler or BMW F30 F32 intercooler, this front mount intercooler delivers the cooling performance your petrol or diesel BMW needs. Designed for popular models including 420i, 420d, 320i and 330d, it is a direct replacement intercooler that dramatically reduces intake air temperatures and keeps power consistent on the road.
Why upgrade your BMW intercooler
We have engineered this intercooler using a high quality bar and plate core paired with flowed cast end tanks to maximise cooling efficiency, reduce heat soak and stabilise intake air temperature. We have fitted and used these intercoolers on customer cars and feedback has been excellent. Testing on multiple vehicles showed a massive drop in outlet temperatures compared with the standard intercooler, delivering repeatable performance pull after pull.
Proven temperature results
On-road testing over 5 consecutive runs recorded similar intercooler intake temperatures for the standard unit and the MTC intercooler at approximately 135 to 140 degrees. At the outlet into the engine, the standard intercooler measured around 75 to 80 degrees. The MTC intercooler consistently delivered outlet temperatures in the high 20s over all 5 runs. Lower IAT means more consistent performance when driving hard.
Key features
- Massive 5 inch competition bar and plate core with flowed cast end tanks
- Four extra rows at the front to increase surface area for superior cooling
- Internal fin on the intake side helps direct airflow up through the top four extra cores
- Approximate weight 11.5 kg for strong thermal mass and durability
- Near 100 percent more internal volume and approximately 90 percent more external surface area than the standard intercooler
- Dimensions 520 mm x 210 mm x 130 mm. This is a huge increase over stock and the same size as the Wagner dimensions
- Direct fit plug and play in the OEM location. Professional installation recommended at around 1 to 2 hours
In our view this is one of the best value performance intercooler upgrades for these BMW models. Ideal for standard or remapped cars looking to control IAT, reduce heat soak and enjoy repeatable performance on spirited drives.
Confirmed fitment list
Fits the following BMW F-Series models with the factory intercooler location:
BMW 1 Series F20 F21
- 114i F20 F21 75 kW 102 PS 2012+
- 116i F20 F21 100 kW 136 PS 2011+
- 118i F20 F21 125 kW 170 PS 2011+
- 125i F20 F21 160 kW 218 PS 2012+
- M135i F20 F21 235 kW 320 PS 2011+
- 114d F20 F21 70 kW 95 PS 2012+
- 116d F20 F21 85 kW 116 PS 2011+
- 118d F20 F21 105 kW 143 PS 2011+
- 120d F20 F21 135 kW 184 PS 2011+
- 125d F20 F21 160 kW 218 PS 2012+
BMW 2 Series F22 F23
- 220i F22 F23 135 kW 184 PS 2014+
- 228i F22 F23 180 kW 245 PS 2014+
- M235i F22 F23 240 kW 326 PS 2014+
- 218d F22 F23 103 kW 143 PS 2014+
- 220d F22 F23 135 kW 184 PS 2014+
- 225d F22 F23 160 kW 218 PS 2014+
BMW 3 Series F30 F31 F34
- 316i F30 F31 F34 100 kW 136 PS 2011+
- 320i F30 F31 F34 135 kW 184 PS 2011+
- 328i x and s F30 F31 F34 180 kW 245 PS 2011+
- 335i x and s F30 F31 F34 235 kW 320 PS 2011+
- 316d F30 F31 F34 85 kW 116 PS 2012+
- 318d F30 F31 F34 105 kW 143 PS 2012+
- 320d F30 F31 F34 135 kW 184 PS 2011+
- 325d F30 F31 F34 160 kW 218 PS 2013+
- 330d F30 F31 F34 190 kW 258 PS 2012+
- 335d F30 F31 F34 230 kW 313 PS 2013+
BMW 4 Series F32 F33
- 420i F32 F33 135 kW 184 PS 2013+
- 428i F32 F33 180 kW 245 PS 2013+
- 435i F32 F33 225 kW 306 PS 2013+
- 420d F32 F33 135 kW 184 PS 2013+
- 425d F32 F33 160 kW 218 PS 2014+
- 430d F32 F33 190 kW 258 PS 2013+
- 435d F32 F33 230 kW 313 PS 2013+
Installation and support
The intercooler is a direct fit. There are helpful installation videos available online. For professional fitting we recommend booking with Nforcd in Warwickshire. Request a quote at Sales@nforcd.com and our team will be happy to help.
