Monitor your ethanol blend with confidence. The Fuel-It! Bluetooth Flex Fuel Kit gives BMW 535i and Z4 owners running N54 or N55 engines real-time ethanol content directly on your phone via the Fuel-It! or JB4 mobile app. Designed as a true plug-and-play upgrade for E chassis models, it replaces the factory feed with a continuous -6AN E85 compatible fuel line, integrates an ethanol sensor with Bluetooth analyser, and offers a 5V analogue output for JB4 or flash tuning.

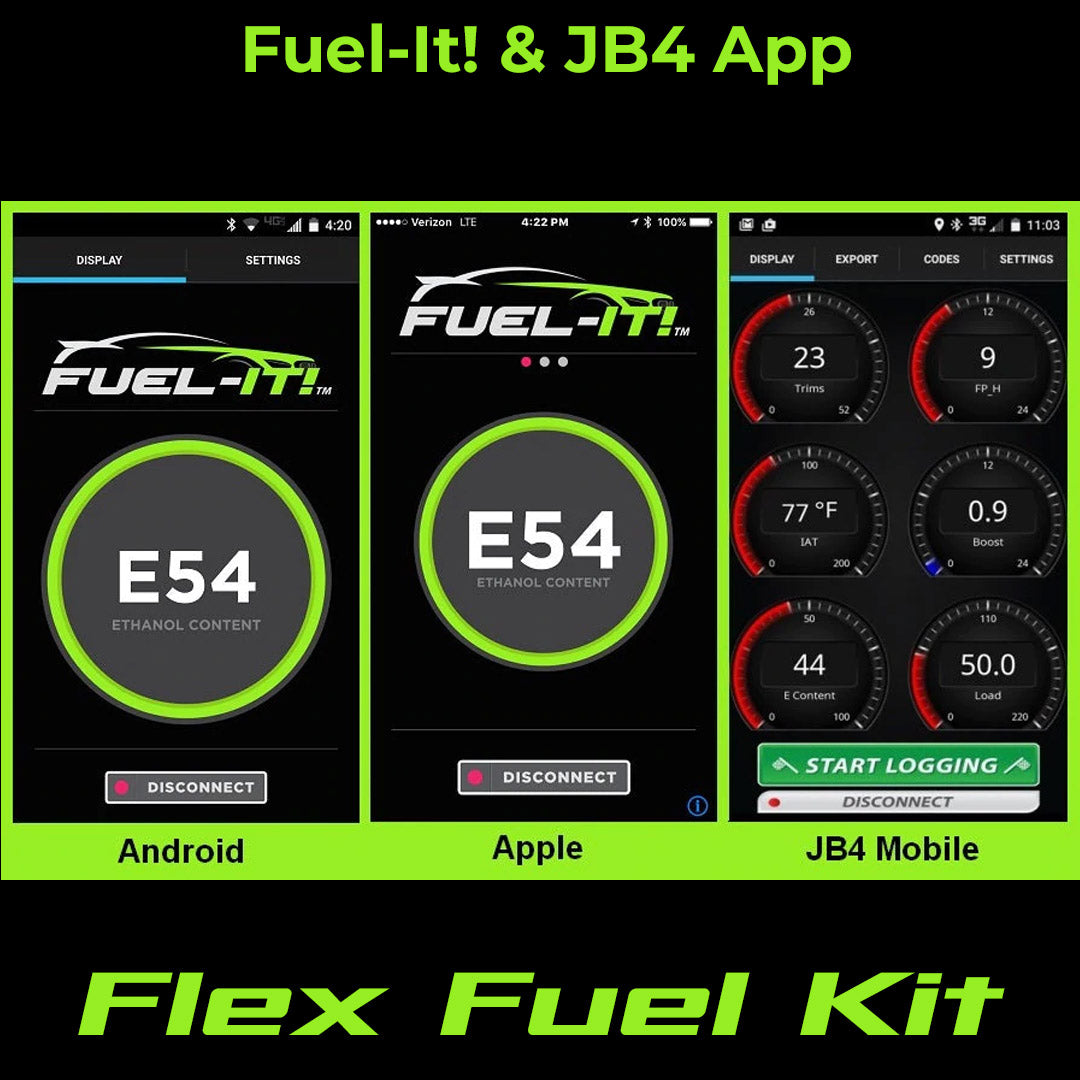

- Live ethanol percentage on iOS and Android using the Fuel-It! or JB4 app
- Bluetooth connectivity plus 5V analogue output for JB4 or flash tune integration
- Upgraded continuous -6AN E85 compatible line from tank to engine bay for clean, high-flow routing
- Custom billet aluminium fittings mate to OEM fittings so no modifications are needed
- Multiple configurations to suit stock HPFP, Fuel-It! port injection, Phoenix Racing manifold PI, or other aftermarket PI rails
- Purpose-built, plug-and-play solution for E chassis BMW 535i and Z4 with N54 or N55 engines
Choose the configuration that matches your setup:
HPFP to fuel tank (stock)

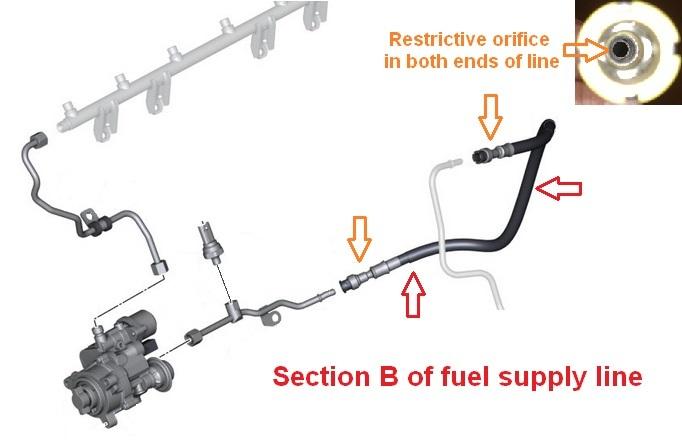

Replaces both factory lines with a single continuous feed from the fuel tank to the HPFP and adds the ethanol sensor.
Port Injection to fuel tank
For vehicles running the Fuel-It! port injection kit. Replaces the stock lines from the tank to the engine bay, integrates the ethanol sensor, and uses a Y adapter to supply both the HPFP and PI. Custom fittings remove tees and extra joints for a cleaner, high-flow layout.
Phoenix Racing Manifold to fuel tank
For cars using the Phoenix Racing Manifold port injection kit. As above, it replaces the stock lines, integrates the ethanol sensor, and uses a Y adapter to feed the HPFP and PI with fewer fittings for improved flow and a tidier install.
Non-Fuel-It! port injection to fuel tank
For other aftermarket PI kits. Includes a longer 18 inch feed line from the Y to the PI rail. Trim to your required length and install the supplied -6AN female fitting or -6AN female elbow to connect to your PI rail.
JB4 connections for E chassis:
N54 Connect the white wire to position 15 on the JB4 25 pin harness. In the JB4 menu select WMI Ethanol Setup option 1 to enable the pin 15/16 flex fuel input.
N55 Connect the white wire to position 16 on the JB4 25 pin harness. In the JB4 menu select WMI Ethanol Setup option 1 to enable the pin 15/16 flex fuel input.
Nforcd knows this upgrade well and it has been a popular choice for customers looking to run E85 or ethanol blends with confidence. Order your kit today and select the correct configuration for your build. Professional fitting is available at Nforcd in Warwickshire. To request a fitting quote, email Sales@nforcd.com.
