F5X MINI JCW GP3 / CLUBMAN
Performance Increase JCW GP3: 15-18hp, 17-20ft-lb
Fitment: 306hp F56 JCW GP3 and 306hp F54 JCW Clubman

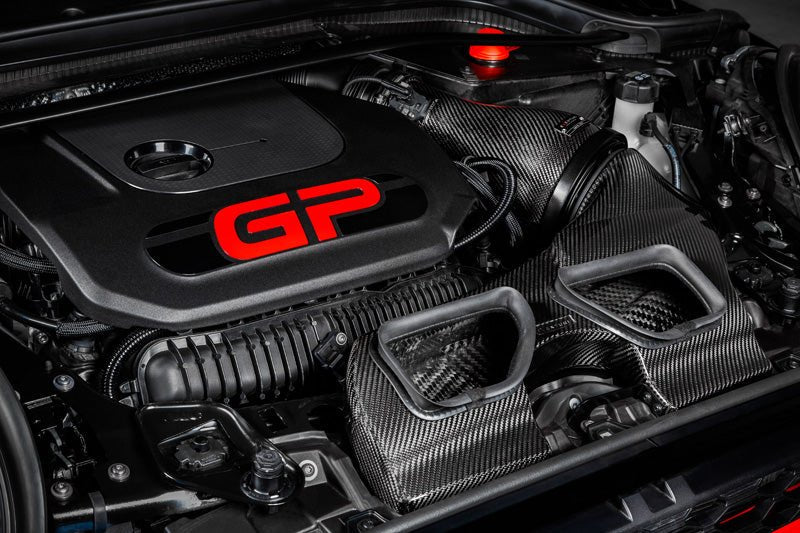

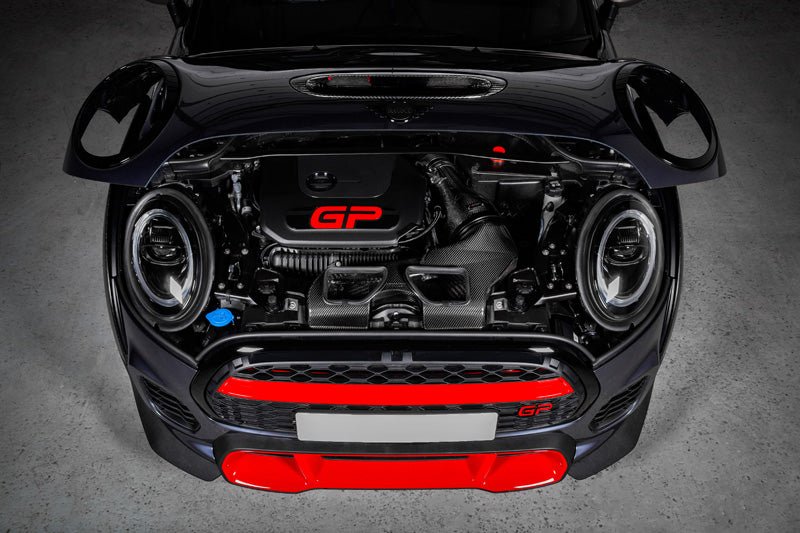

The F5X JCW Eventuri intake system is a perfect example of our “Complete System” principal. It is a sealed system which ensures that the turbo does not draw hot air from the engine bay but enhanced with a functional bonnet scoop which forces ambient air into the intake duct. This duct has a larger internal volume than the stock version and also draws air from the stock location above the radiator. The combination of a sealed system with an air scoop results in lower intake temperatures than the stock airbox and avoids heat soak which is a common issue especially on higher powered MINIs. To ensure the smoothest flow possible we use our Patented Venturi filter housing which has an integrated MAF section for a seamless flow path to the turbo.
The Eventuri Difference
The F5X JCW Eventuri system uses our Patented Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the turbo. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo.
The Eventuri F5X JCW intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards.

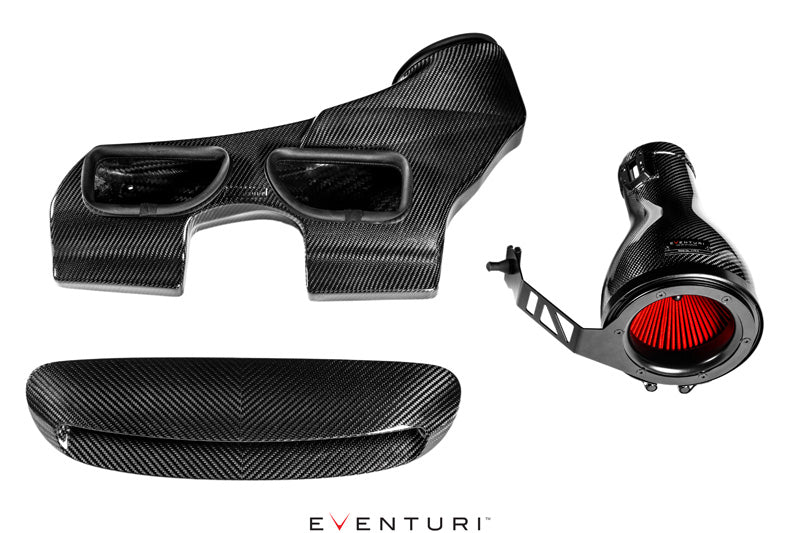

Each intake system consists of:
- Carbon Fibre Venturi Filter Housing with integrated MAF tube
- Bespoke High Flow Dry Filter
- Carbon Fibre inlet Duct

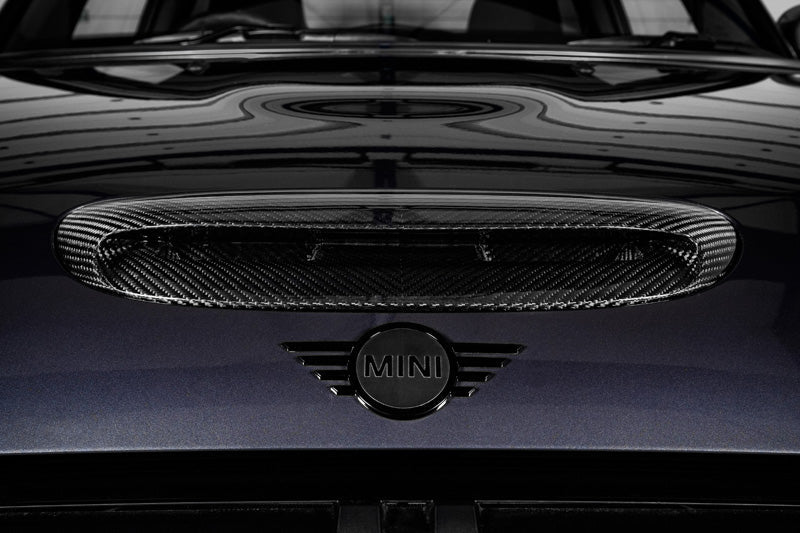

- Carbon Fibre Inlet Scoop
- CNC Machined MAF Boss
- Laser Cut Stainless Steel Bracket Work
