Unlock reliable power on pump fuel with this complete Water Methanol Injection kit for the BMW F9x M5 and M8 S63TU platforms. By cooling the intake charge and effectively increasing octane when correctly calibrated, this WMI system helps support higher boost and timing for stronger, more consistent performance. Supplied by Nforcd and built around proven Burger Motorsports hardware, it is a popular upgrade for enthusiasts looking for a dependable, tunable solution.
- Purpose-built WMI kit for BMW F90 M5 and M5 Competition 2018 to 2024, plus F92 M8 Coupe, F93 M8 Gran Coupe, and F91 M8 Convertible from 2020 onwards

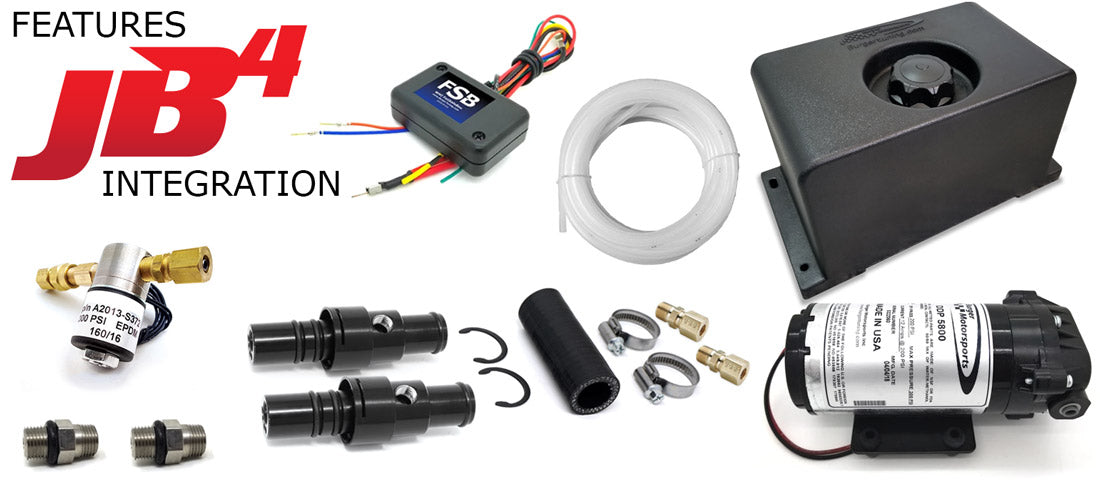

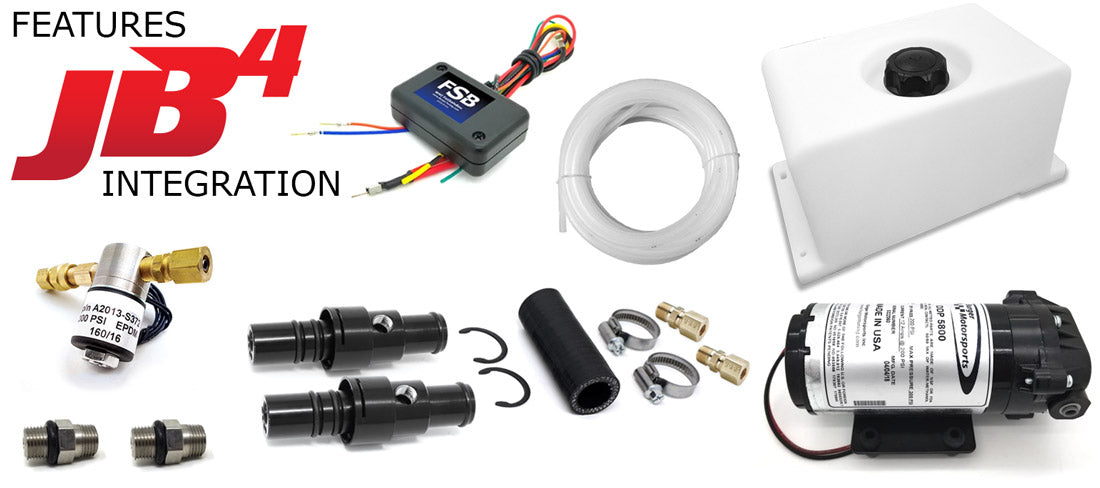

- Integrates with JB4 when paired with the optional FSB controller for progressive flow mapping, CANbus-based safety and in-app control via JB4 Mobile
- High quality Aquatec pump, high speed solenoid and leak-resistant compression fittings for dependable operation
- Includes F90 plug and play nozzle adapters and two BM7 nozzles for a neat, model-specific installation

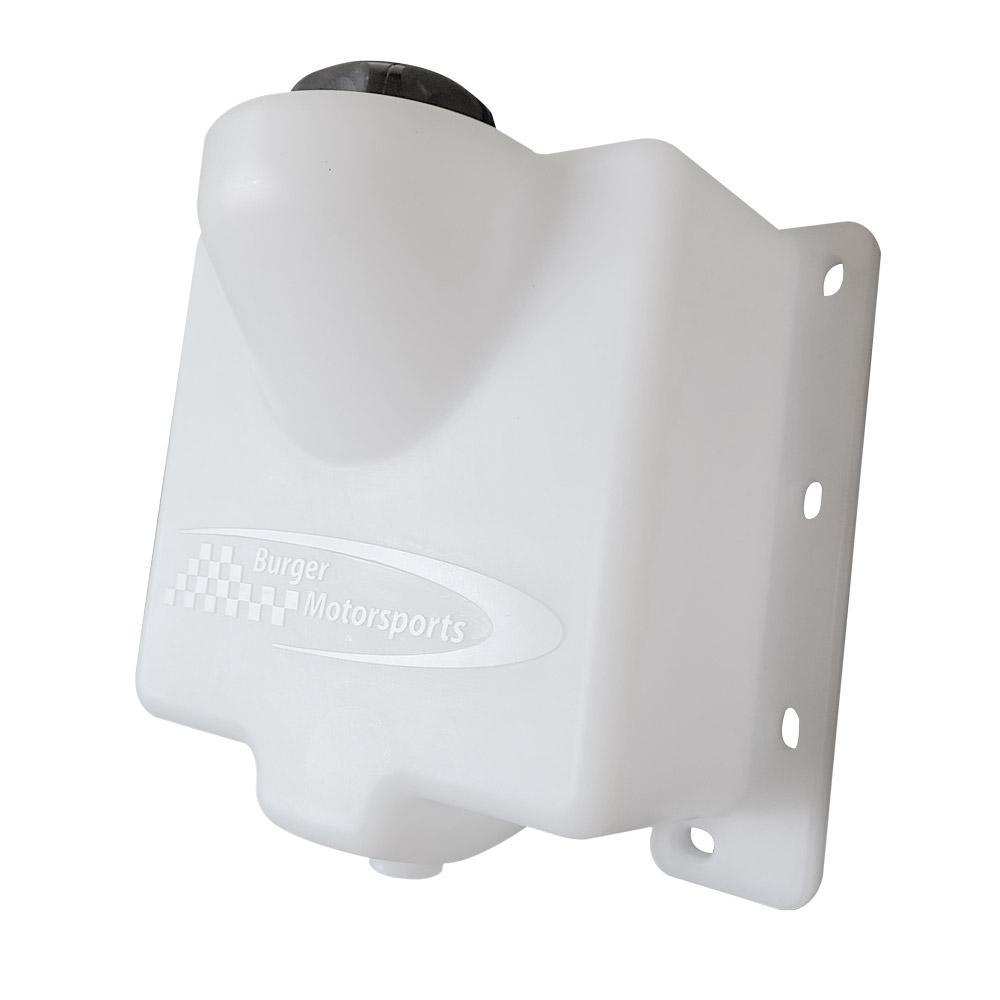

- Flexible installation options using the supplied 1 gallon clear tank or by tapping the washer reservoir
- Optional AEM boost-dependent controller available for standalone control with easy-to-set activation points

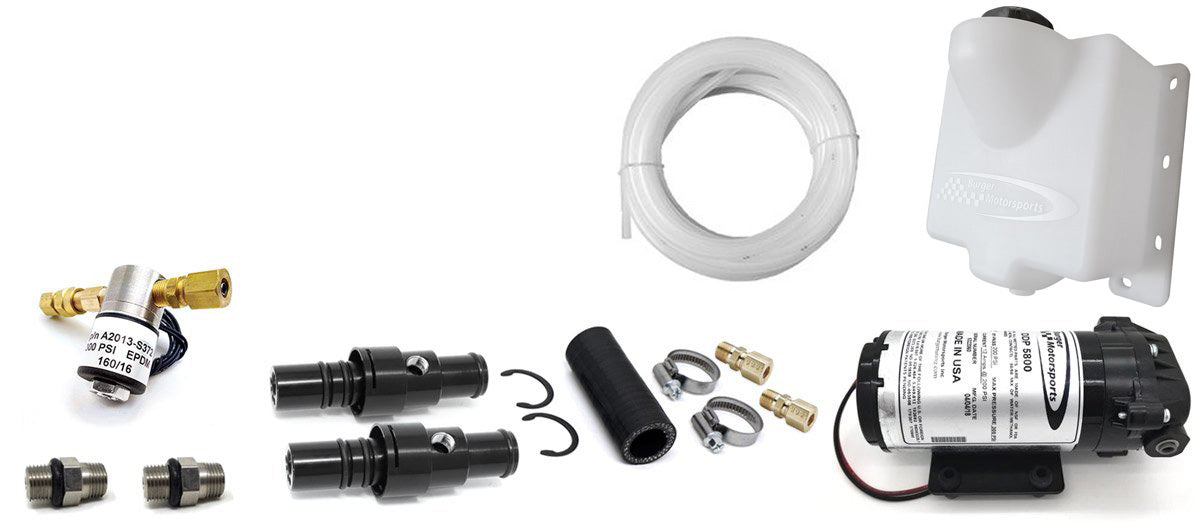

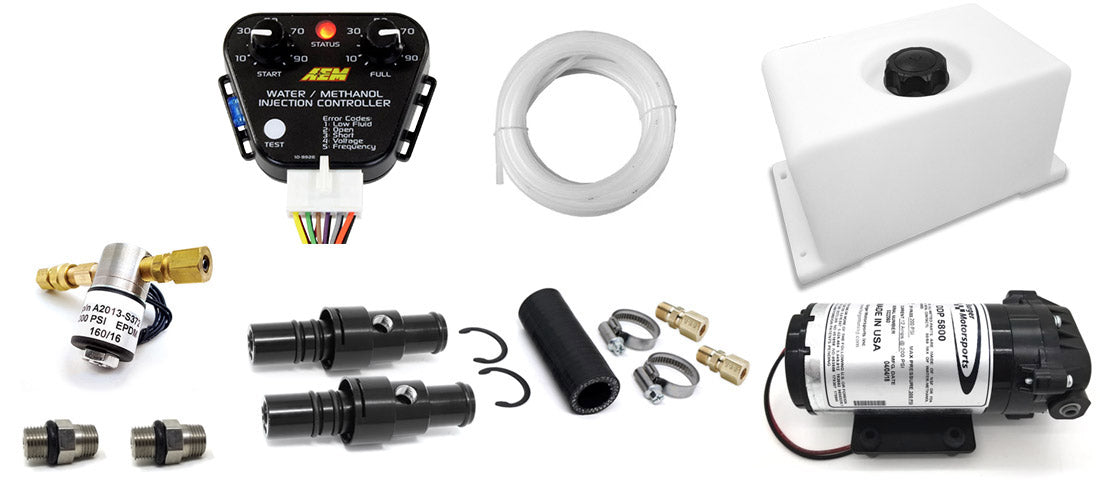

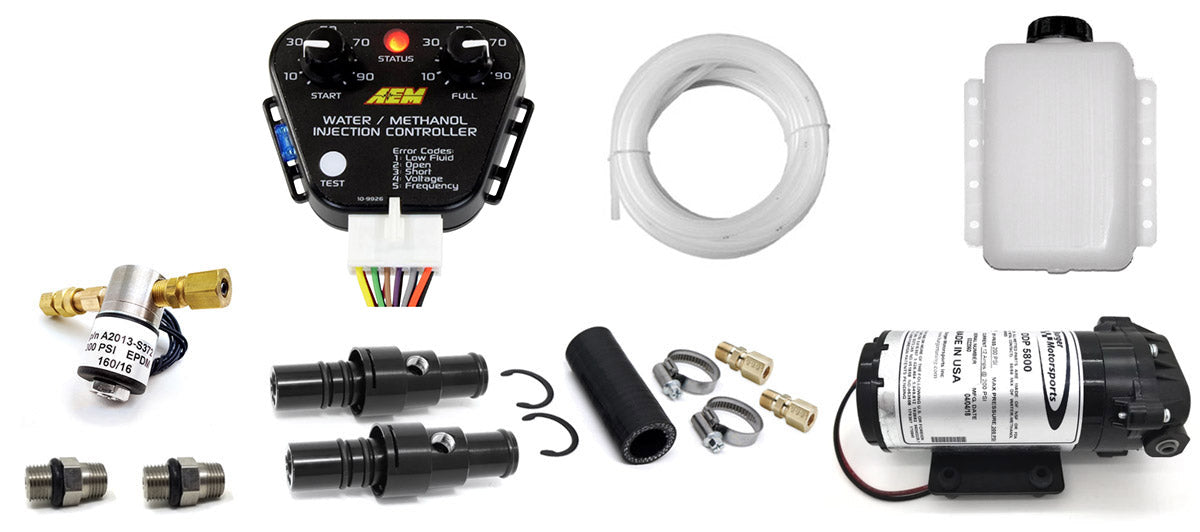

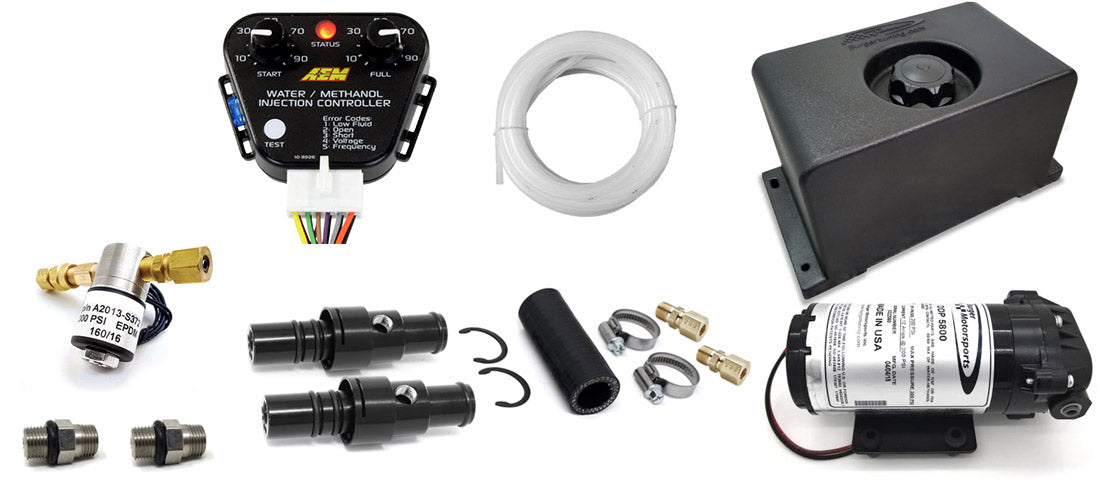

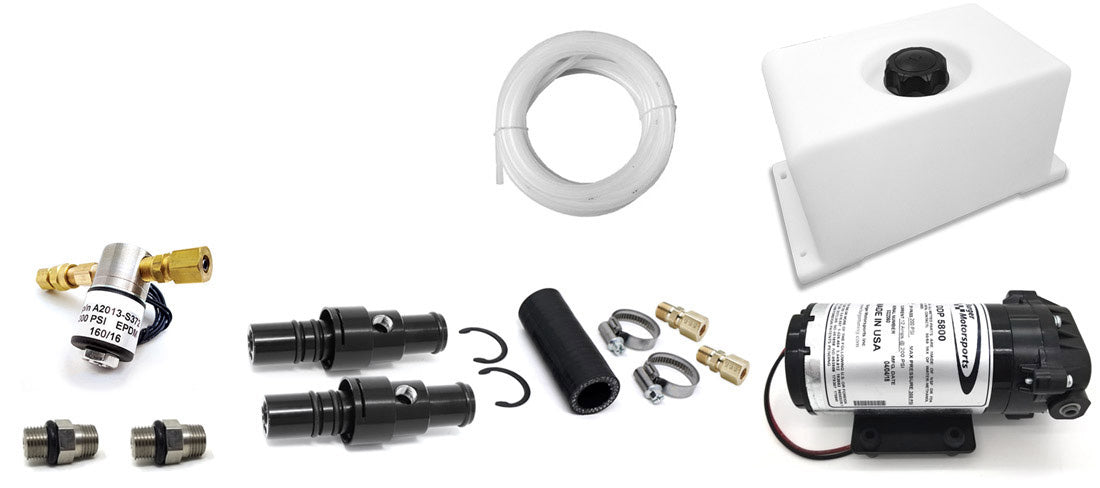

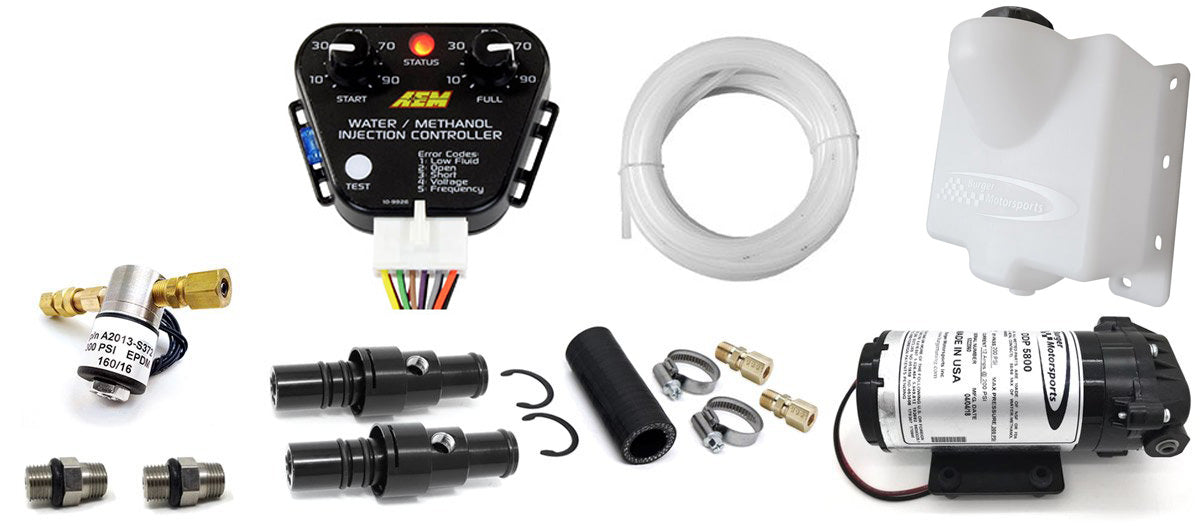

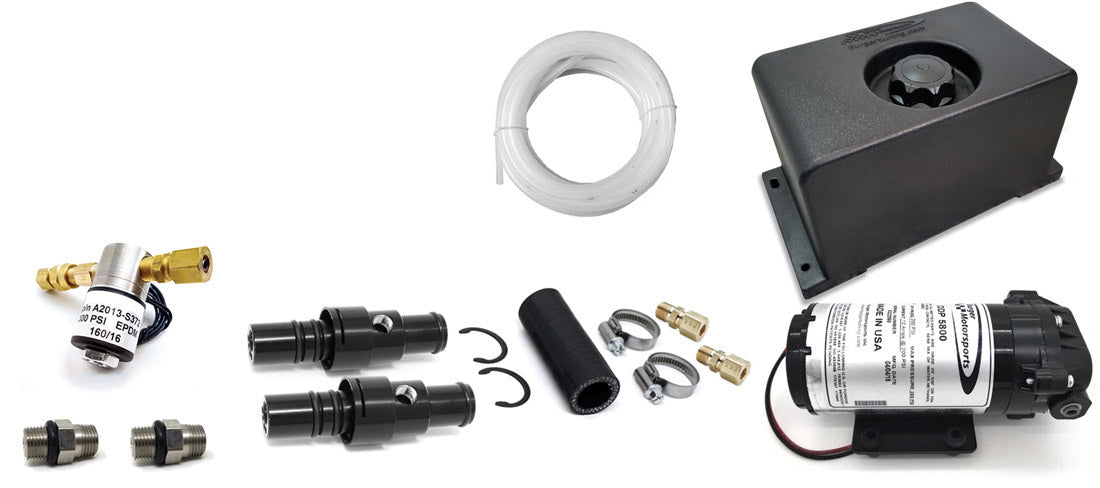

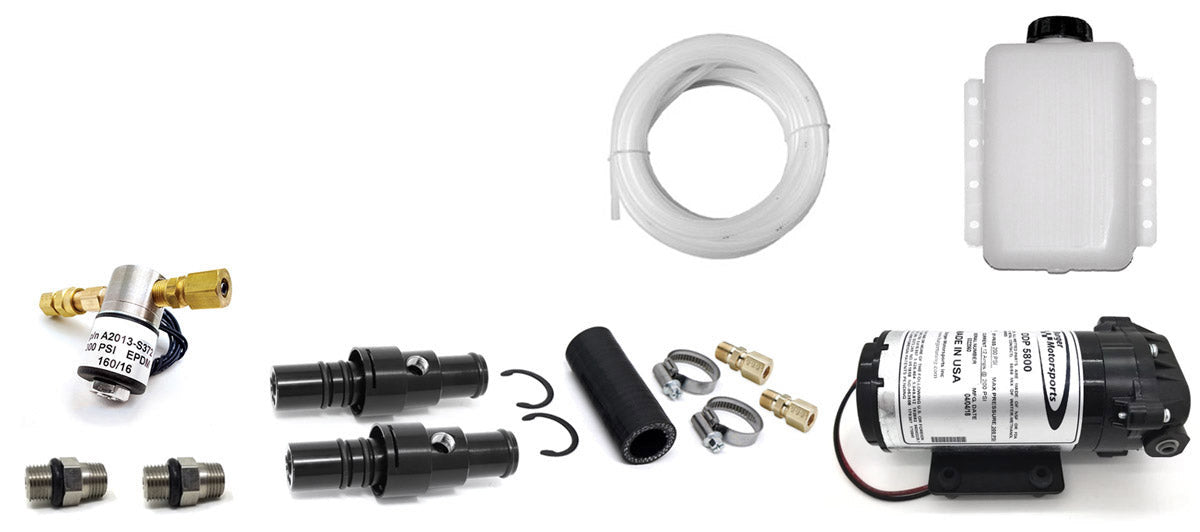

What’s in the kit
- WMI pump
- WMI solenoid and filter assembly

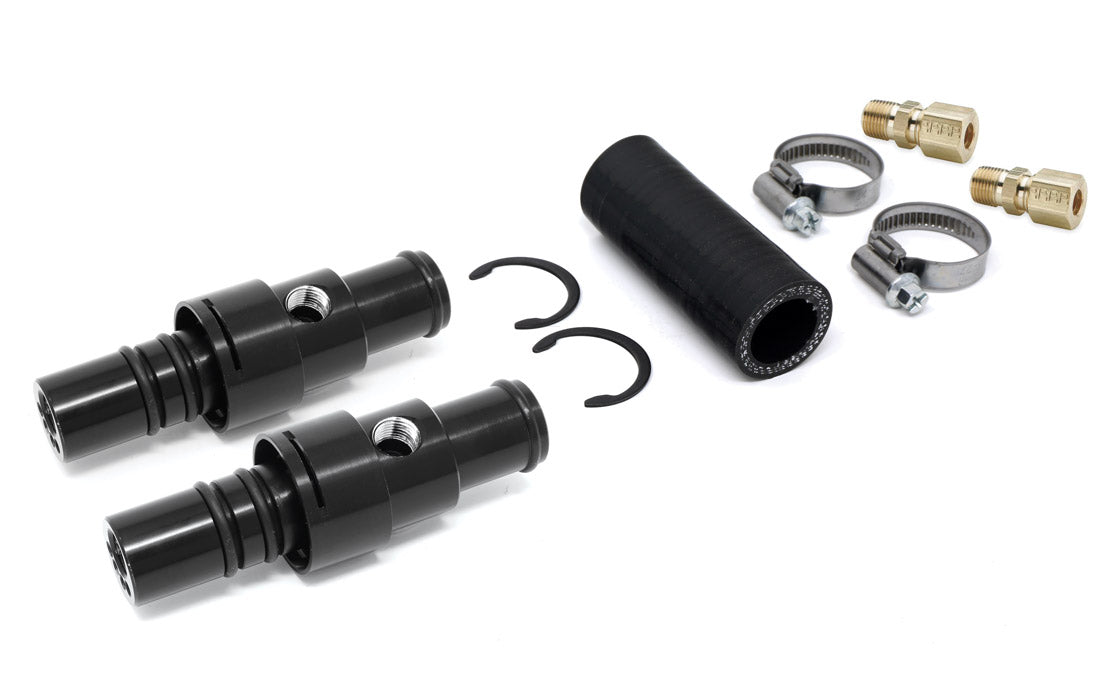

- F90 plug and play nozzle adapters
- Two BM7 nozzles
- Compression fittings for nozzles, solenoid, tee and filter
- 15 ft WMI fluid line
- 15 ft black and red wiring
- 10 amp fuse
- Grounding forks for FSB, pump and power splice
Control options

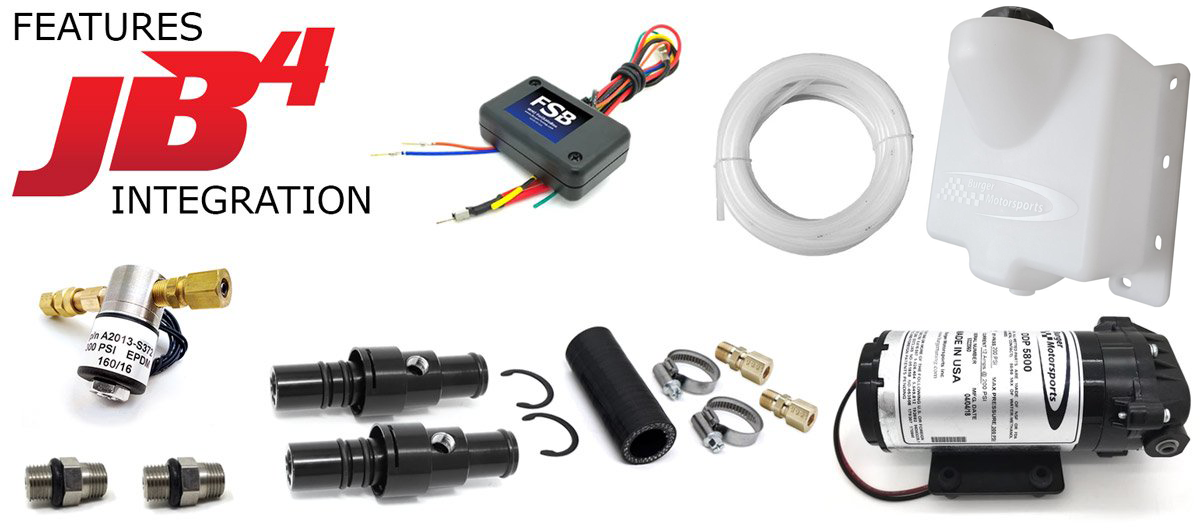

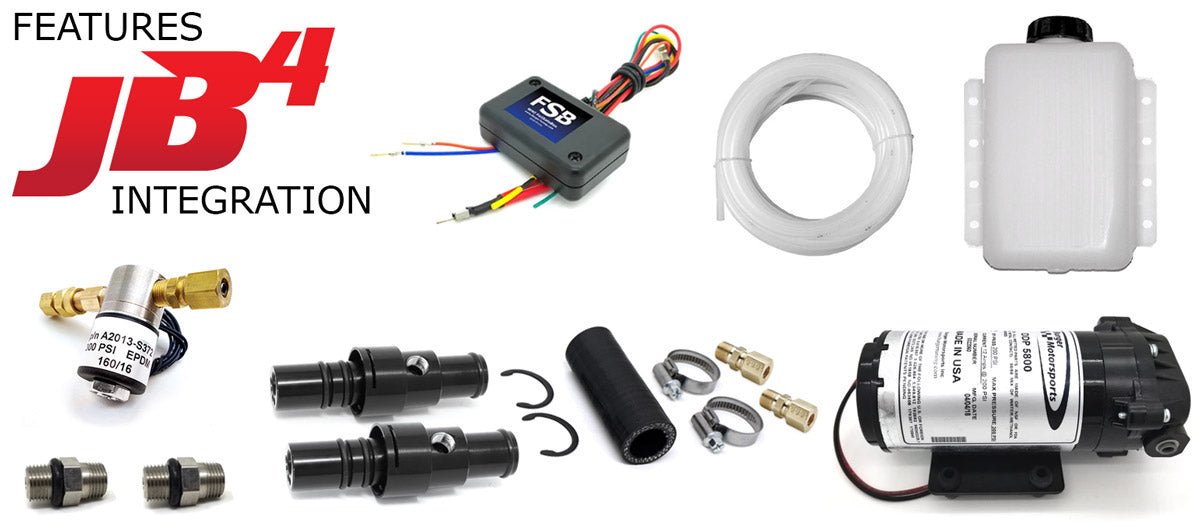

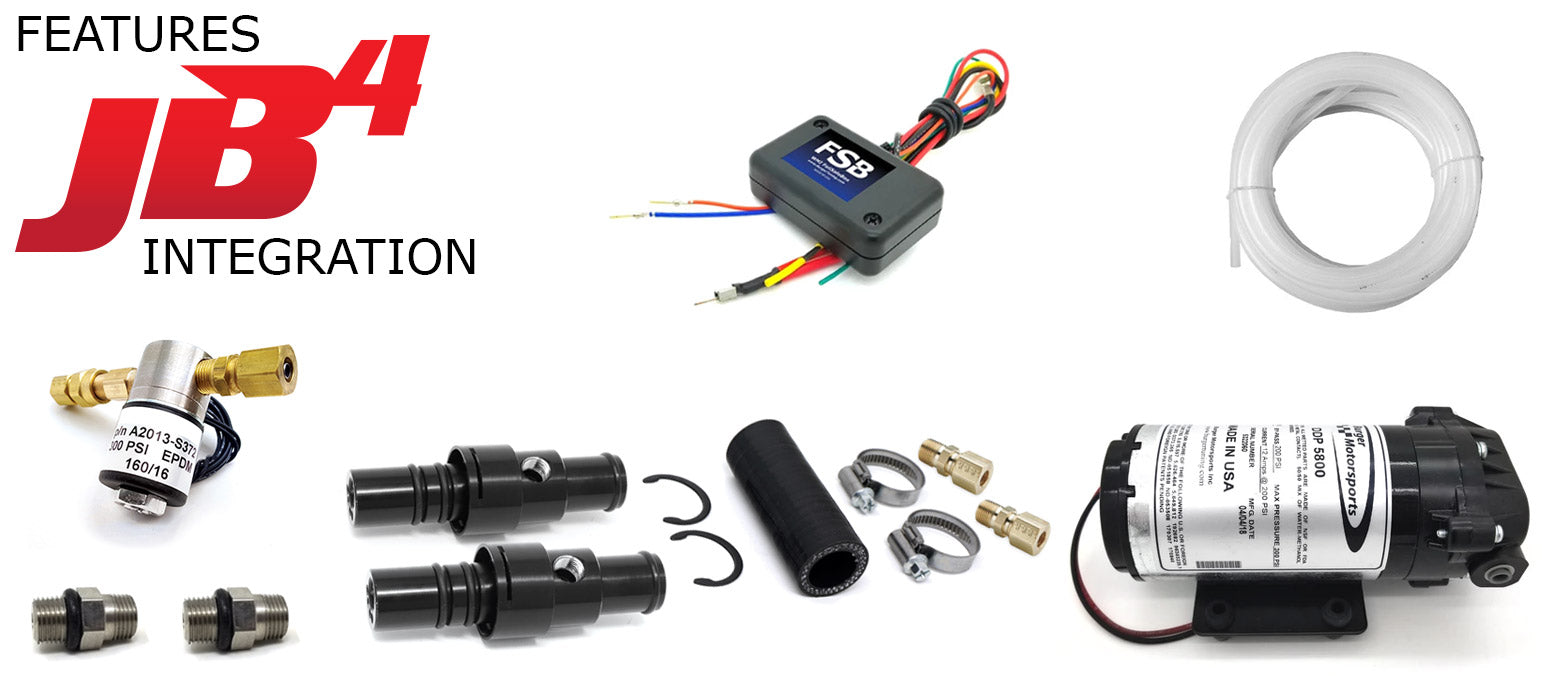

For the most seamless tuning integration, add the optional JB4 Failsafe Box (FSB). When used with JB4, the system enables progressive flow control, monitors pump current and responds to CANbus data such as boost, throttle, engine speed and intake temperature. If flow drops or the tank runs dry, JB4 can automatically reduce performance to help protect the engine, and WMI can be enabled or disabled within the JB4 Mobile app. Alternatively, choose the optional AEM boost-dependent controller featuring robust, easy-to-adjust start and full points, a covered status LED and test buttons.
Installation notes

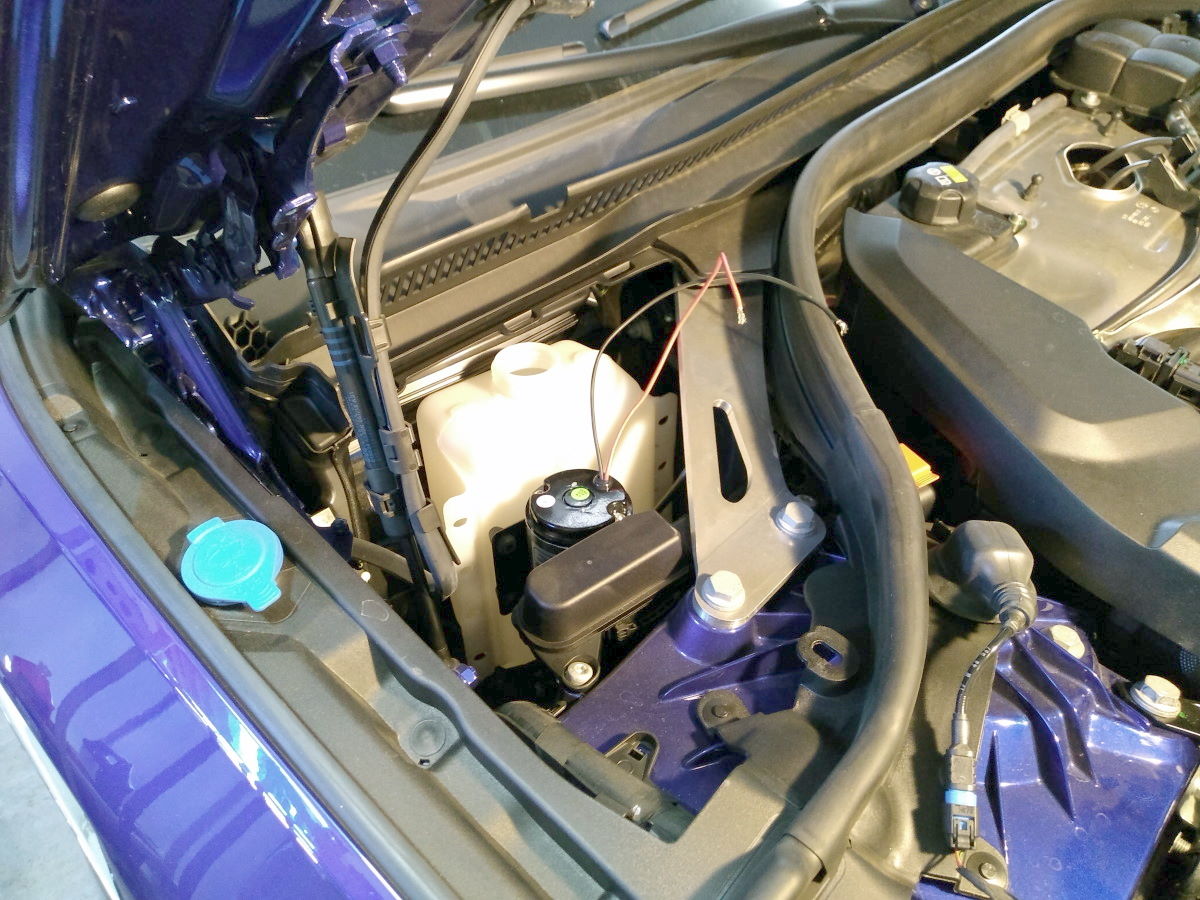

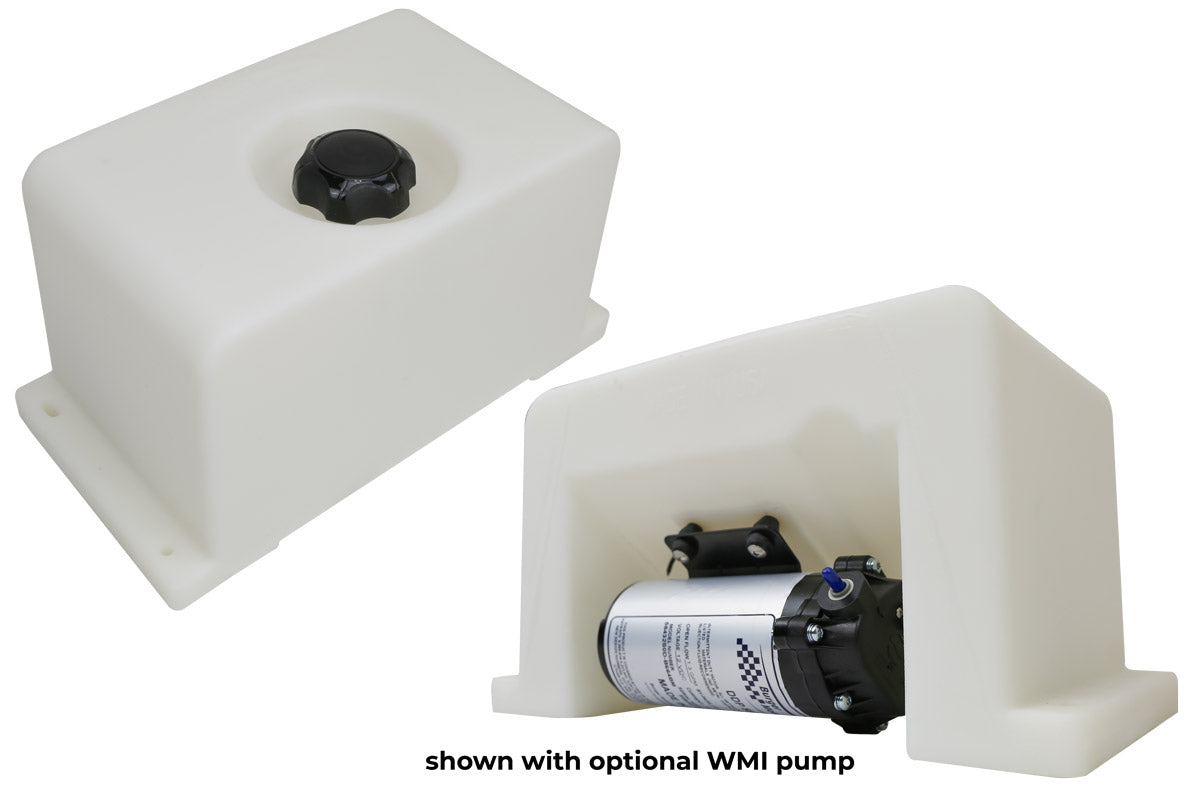

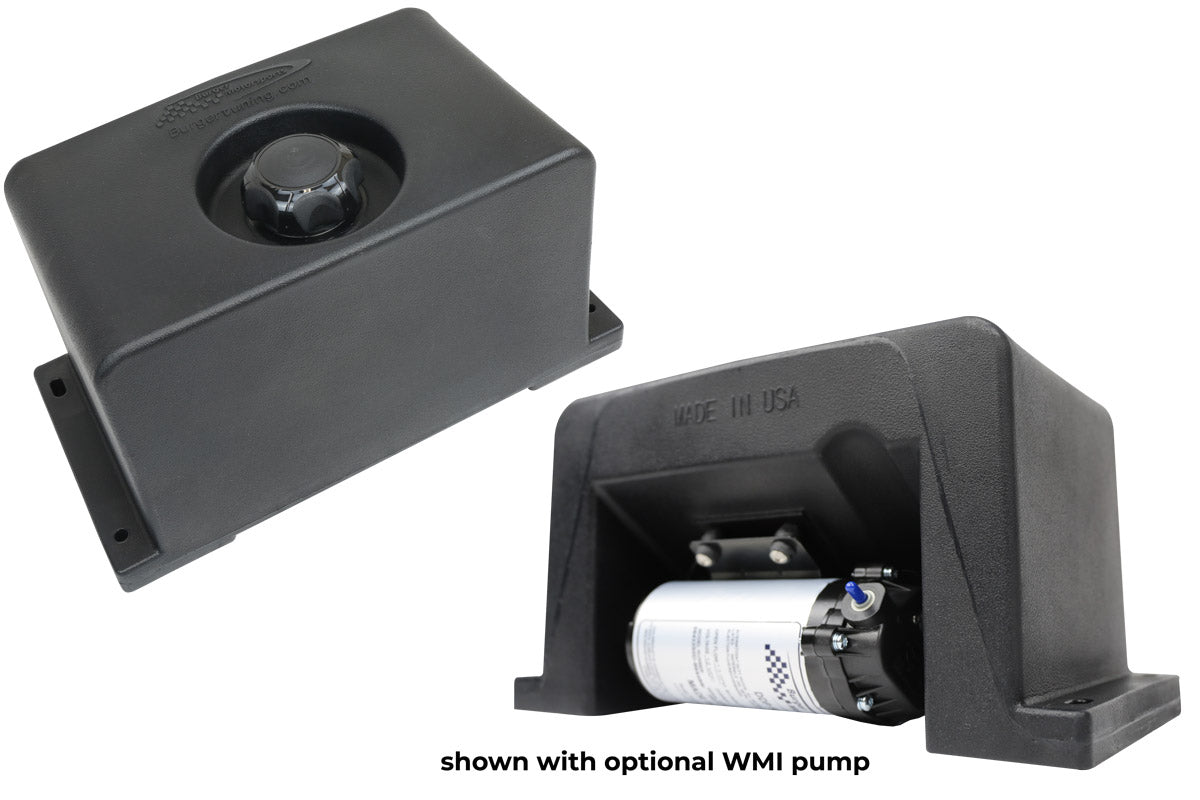

The pump can be mounted in front of the firewall or attached when tapping the washer fluid reservoir to avoid a separate tank. No mounting bracket is supplied for the pump or tank, so a suitable mounting solution will be required. Many owners also choose to mount the 1 gallon tank in the boot, or upgrade to a larger trunk-mount tank such as a 2 gallon option.
Nforcd knows this kit inside out and it has been a popular choice with our BMW M customers. Order online with confidence, or contact us for advice on the best control solution for your setup. Professional fitting is available through Nforcd in Warwickshire. To request a fitting quote, email Sales@nforcd.com.
