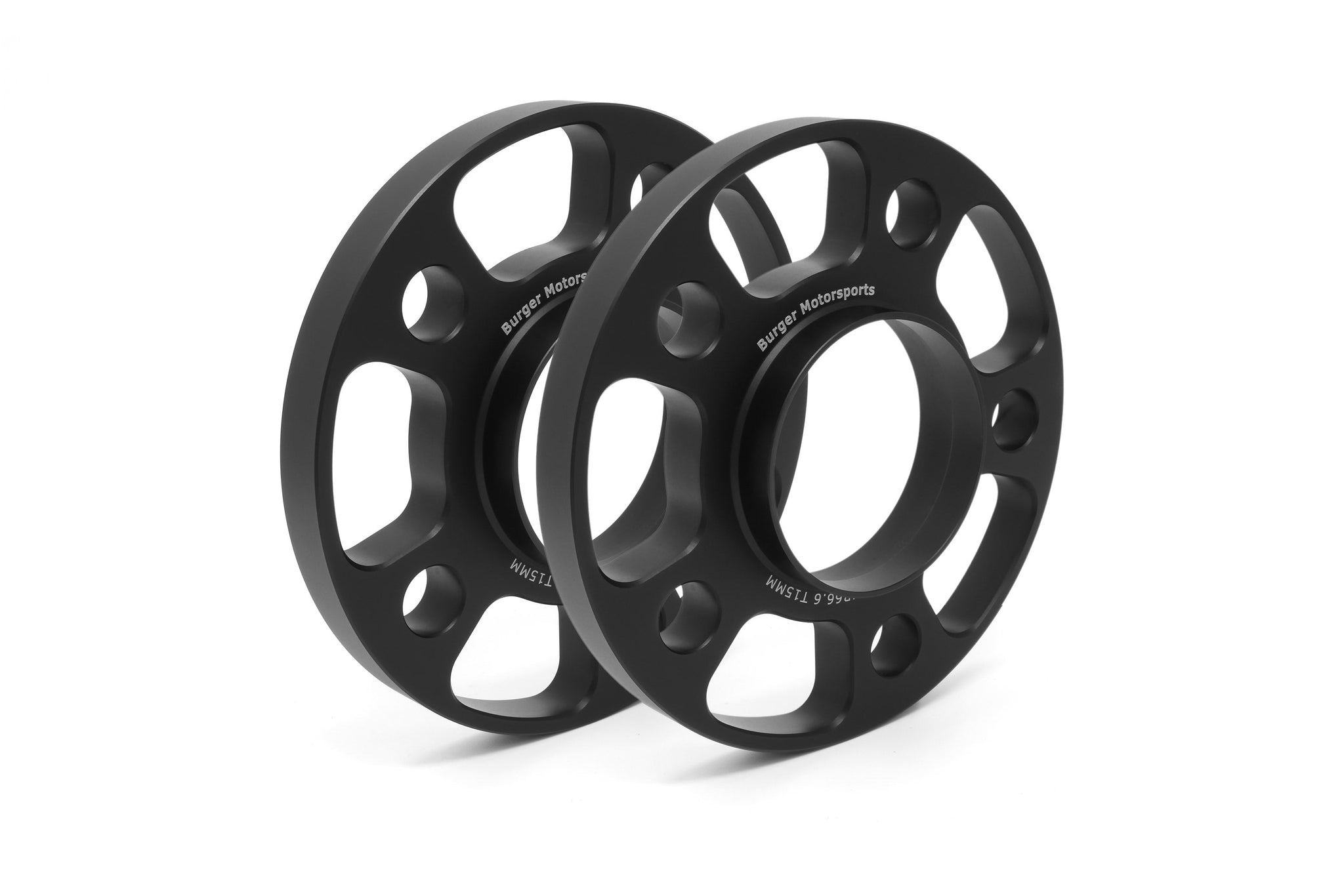

Give your BMW G chassis the wider stance and sharper road feel it deserves with Lightweight Hubcentric Wheel Spacers by Burger Motorsports, supplied by Nforcd. Precision machined and designed to minimise added rotating mass, these spacers deliver a clean, aggressive look while helping improve lateral stability and clearance for brakes, suspension and wheel offsets.
- Lightweight hub-centric design for a precise, vibration-free fit
- CNC machined 7075-T6 aluminium with durable black anodising
- Supplied as a pair with 10 extended concentric floating seat lug bolts
- 66.6 mm centre bore and 5x112 PCD with M14 x 1.25 thread
- Safe for xDrive and ideal for both street and track use
- Simple bolt-on install with included anti-seize paste

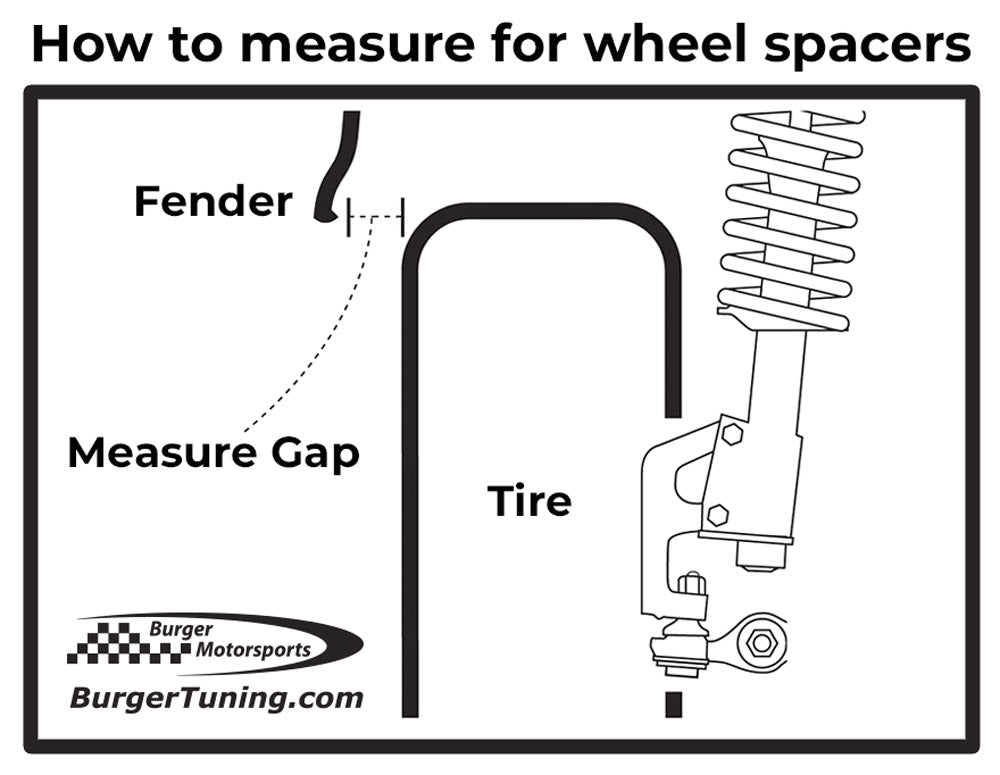

Typical sizing guidance for factory wheels and tyres is 10 mm to 13 mm front and 13 mm to 15 mm rear. 20 mm suits specific applications. Always measure your vehicle before ordering as results vary with wheel design, offsets and tyre sizes.
Specifications
Centre bore 66.6 mm
Bolt pattern 5x112
Thread M14 x 1.25
Bolt seat cone with concentric floating washer

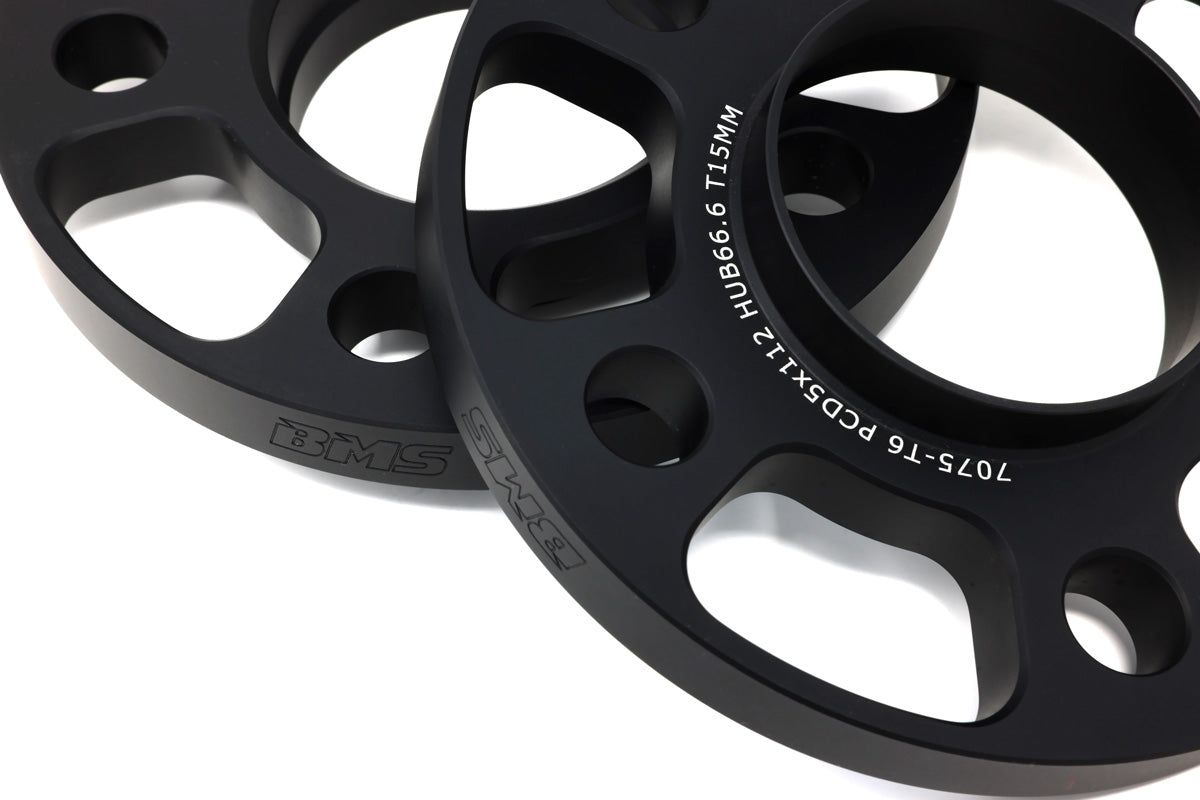

Material 7075-T6 aluminium, black anodised
Recommended torque 105 ft-lb 142 Nm
What’s in the box

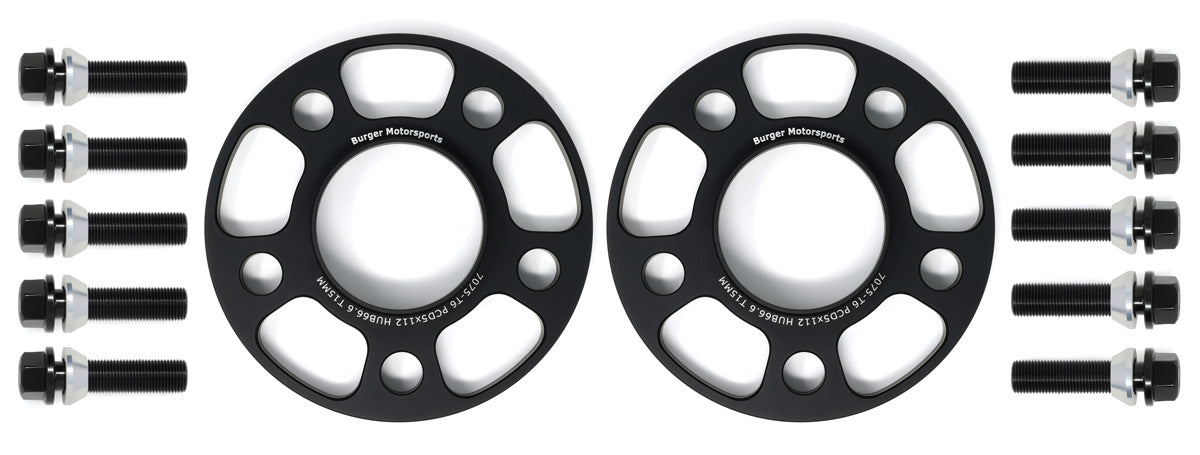

2 x Lightweight Racing Wheel Spacers

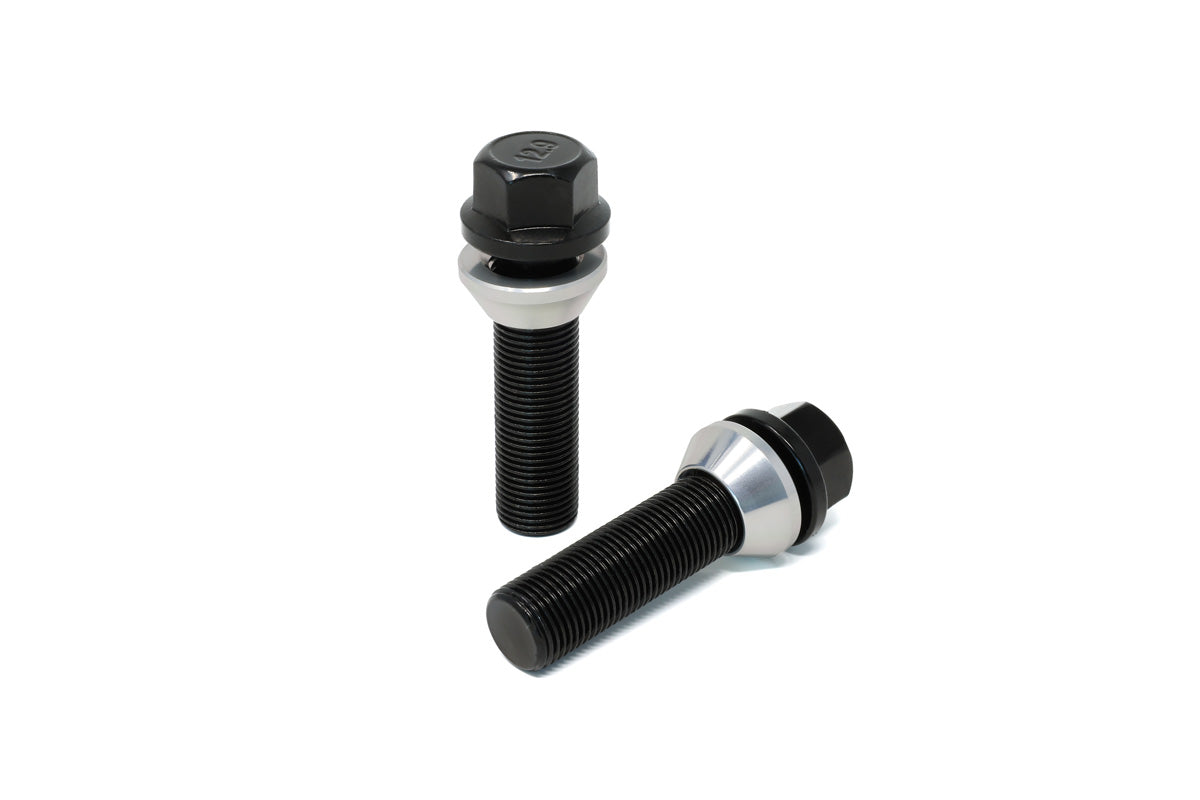

10 x Extended concentric floating seat lug bolts zinc plated
1 x Packet of anti-seize
Compatibility
Designed for BMW G chassis applications including, for example, G42 2 Series 230i and M240i, G87 M2, G20 G21 3 Series including G80 M3, G22 G23 G26 4 Series including G82 M4, G30 G31 and G60 G61 G68 5 Series, G11 G12 7 Series, G14 G15 8 Series, G01 X3 and F97 X3M, G02 X4 and F98 X4M, G05 X5, G06 X6, G07 X7, G29 Z4, plus BMW i models such as i4 G26, i5 G60 and iX. Also fits select F chassis that take G chassis spacers including F90 M5, F91 F92 F93 M8, F48 X1 and F39 X2. If you are unsure, contact Nforcd for advice before purchase.
Installation is straightforward. Remove the wheel, place the spacer on the hub, then refit the wheel using the supplied longer bolts. Do not mix bolt lengths between spacer sizes. Nforcd knows this product well and it has been a popular upgrade with our customers. For professional fitting, Nforcd offers installation in Warwickshire. Request a fitting quote at Sales@nforcd.com and order your spacers today.
