Mr12Volt High-End BMW NBT MOST Bus CarPlay and Android Auto Retrofit Interface with OEM Microphone Support
Upgrade your BMW F Series iDrive with the Mr12Volt P2000-NBTMM CarPlay and Android Auto retrofit interface. This BMW NBT CarPlay and Android Auto module delivers true OEM-style integration over the BMW MOST bus for high-end sound quality, seamless control with the original iDrive controller, and retention of your factory iDrive display. Enjoy wireless Apple CarPlay, wired Apple CarPlay, wireless Android Auto, wired Android Auto, Bluetooth handsfree calling, Bluetooth music streaming, USB video and music playback, and a highly customisable 15-band DSP equaliser. If you are searching for BMW CarPlay retrofit, BMW Android Auto retrofit, BMW NBT CarPlay upgrade, or BMW F Series CarPlay module, this is the premium solution that works and sounds right.
We have installed and used this kit extensively and our customers have been delighted with the performance, audio quality, and factory look and feel. Bring your older yet superb BMW NBT or NBT ID4 system right up to date with modern navigation, music, podcasts and calls through Apple CarPlay or Android Auto without losing OEM functionality.
Part Number
P2000-NBTMM
Why choose this BMW CarPlay and Android Auto retrofit
- Runs on BMW MOST bus for high-end sound quality with no loss in audio fidelity
- Wireless and wired Apple CarPlay and Google Android Auto for BMW NBT and NBT ID4
- Supports the OEM BMW microphone for clean, factory-quality voice calls
- Retains original iDrive screen and full iDrive system functionality
- Operate CarPlay and Android Auto using the original BMW iDrive controller
- 15-band DSP equaliser to fine-tune your in-car audio for better clarity and punch
- Apple Lossless music streaming support for audiophile-grade playback
- Wireless MirrorLink, Bluetooth handsfree and audio streaming
- USB video and music playback with broad codec support
- Reverse, front, left and right camera inputs with support up to AHD720
Compatible BMW models with NBT or NBT ID4 (8.8 inch or 10.25 inch)
- BMW 1 Series F20 F21
- BMW 2 Series F22 F23 F87 M2
- BMW 3 Series F30 F31 F34 F80 M3
- BMW 4 Series F32 F33 F36 F82 M4
- BMW 5 Series F10 F11 F07
- BMW 6 Series F12 F13 F06
- BMW 7 Series F01 F02
- BMW X3 F25
- BMW X4 F26
- BMW X5 F15 F85
- BMW X6 F16 F86
Ideal search terms for this fitment include BMW F87 M2 CarPlay retrofit, BMW F80 M3 Android Auto retrofit, BMW F82 M4 CarPlay module, BMW F30 F31 CarPlay upgrade, BMW F32 F36 Android Auto upgrade, BMW NBT CarPlay interface, BMW NBT ID4 CarPlay and Android Auto.

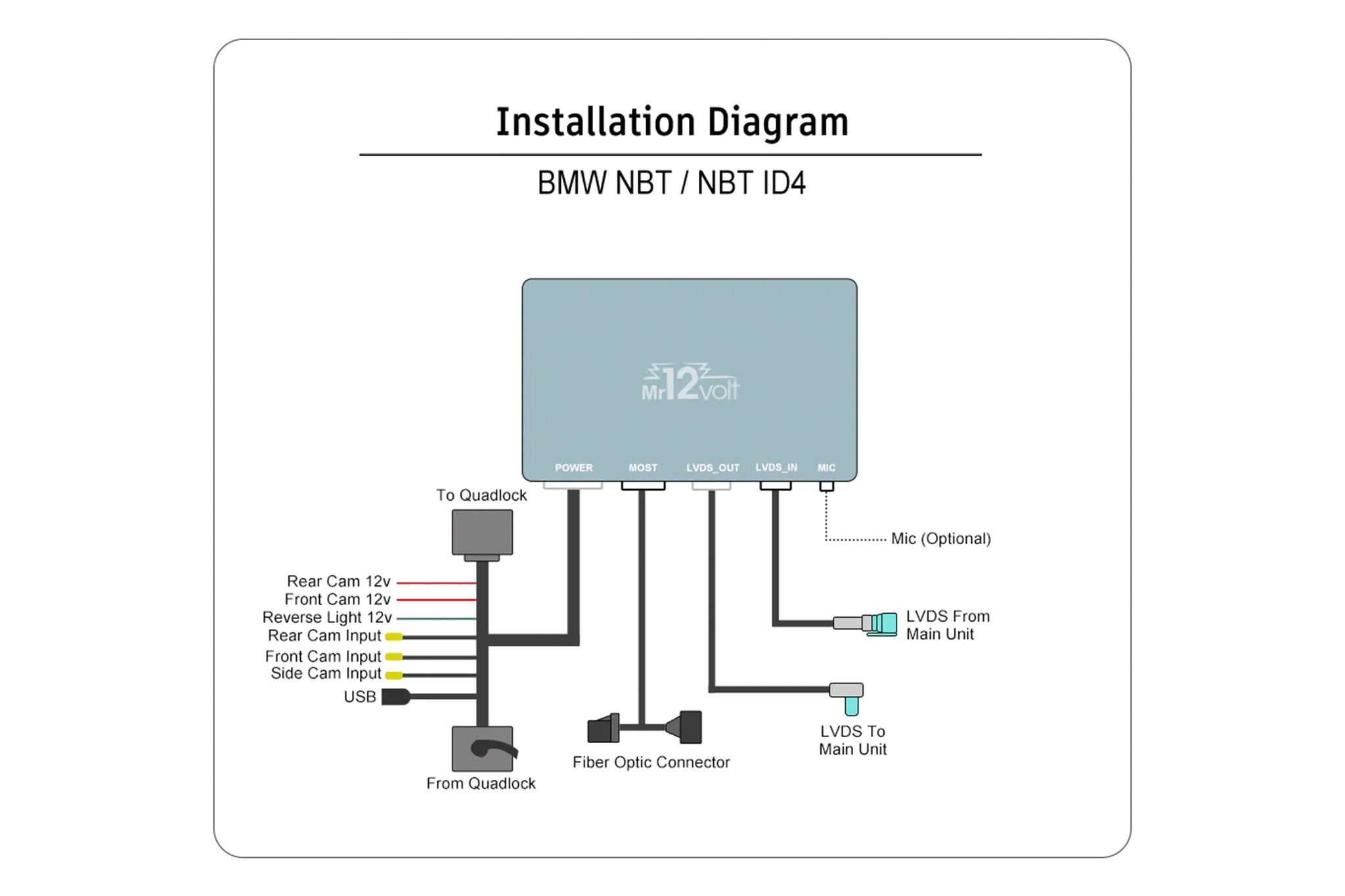

How it works
- Mr12Volt is selected through the TV feature of NBT
- If a factory TV module is installed, it must be bypassed to use the P2000MM

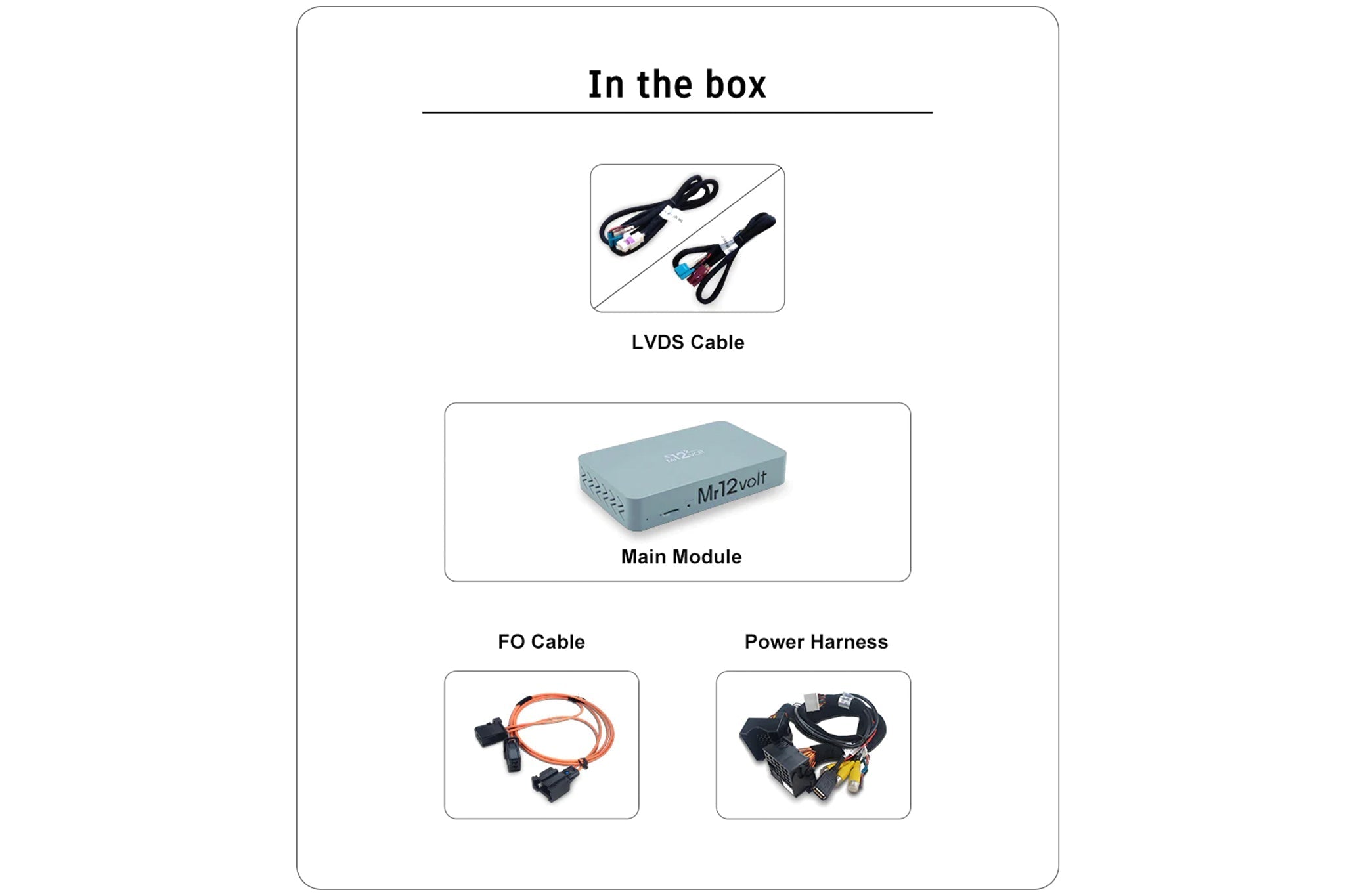

- Supports integration of the OEM microphone via the included mic splitter
- Supports aftermarket cameras up to AHD720
Important requirement
The TV feature must be enabled in order to use this product.
Nforcd fitting and support
Professional fitting is available at Nforcd in Warwickshire. For a fast installation quote and booking, email Sales@nforcd.com. We know these BMW CarPlay and Android Auto retrofits inside out and are happy to help with compatibility checks and advice.
Media and codec support
- Video decoding: H.264 Baseline and Main High Profile Level 1 to 4.2 at 30 fps up to 1080p
- Video decoding: VC-1 Simple and Main Profile low to high levels, Advanced Profile levels 0 to 3 at 30 fps up to 1080p
- Video decoding: MPEG1, MPEG2, MPEG4 Simple Profile levels 0 to 6, Main Profile low to high, ASP levels 0 to 5 at 30 fps up to 1080p
- Video decoding: RealVideo 8, 9, 10 at 30 fps up to 1080p
- Video decoding: VP6, VP7 versions 0 to 3, VP8 version 2 WebM at 30 fps up to 1080p
- Video decoding: DivX 3, 4, 5, 6 at 30 fps up to 1080p
- Video decoding: H.263 Profile 0 levels 10 to 70 at 30 fps up to 720x576
- JPEG codec: Baseline interleaved up to 8176 x 8176
- Supported video file formats: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
- Audio codec support: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more
Search-friendly terms for fast finding
BMW CarPlay retrofit NBT, BMW Android Auto retrofit NBT, BMW NBT ID4 CarPlay, BMW F Series CarPlay module, BMW 1 Series CarPlay retrofit, BMW 2 Series Android Auto, BMW 3 Series CarPlay, BMW 4 Series Android Auto retrofit, BMW 5 Series CarPlay, BMW 6 Series Android Auto, BMW X3 X4 X5 X6 CarPlay retrofit, BMW M2 M3 M4 CarPlay upgrade, MOST bus CarPlay interface for BMW, OEM microphone support BMW CarPlay, wireless Apple CarPlay BMW, wireless Android Auto BMW, P2000-NBTMM, Mr12Volt P2000 MM.
