Jaguar XF XFR XK XKR CarPlay and Android Auto Retrofit - Mr12Volt P2000 MM MOST Bus Interface with OEM Microphone
Part number: P2000-XF09MM

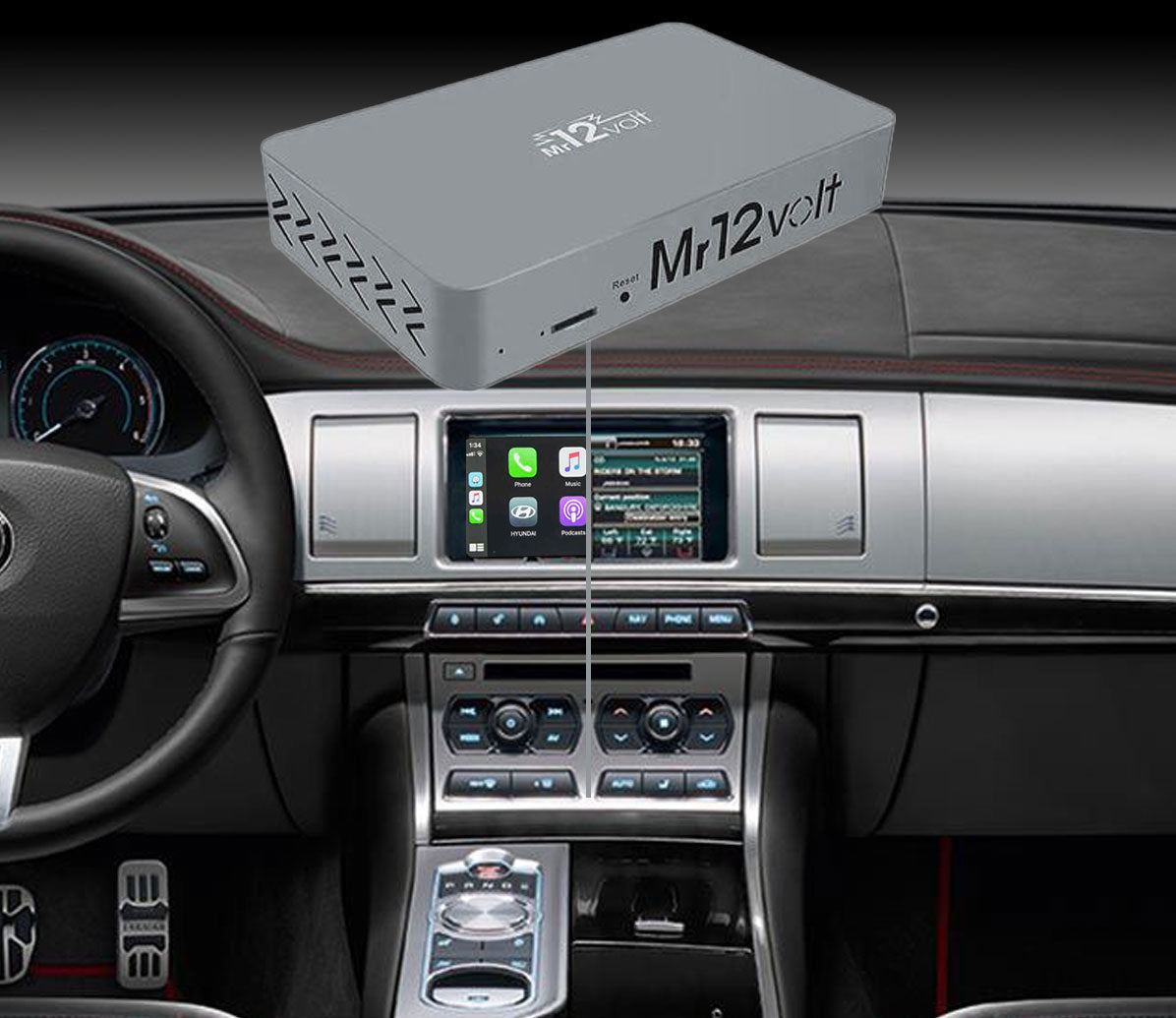

Transform your Jaguar infotainment with a premium Apple CarPlay and Android Auto upgrade that looks and feels factory. The Mr12Volt P2000 MM series delivers high-end audio over the OEM MOST fibre optic bus, now with built-in DSP and genuine OEM microphone support for crystal-clear calls and voice control. We use this kit ourselves and our customers love the seamless integration, rich sound and reliable wireless performance.
Compatible vehicles
- Jaguar XF / XFR 2009 - 2011 (pre-facelift)
- Jaguar XK / XKR 2009 - 2015
Important: the P2000 replaces the OEM USB module.
Why choose this Jaguar CarPlay and Android Auto retrofit
- OEM microphone support for factory-quality handsfree calls and voice commands
- MOST BUS high-end audio - pristine sound through the fibre optic system
- Wireless and wired Apple CarPlay - iPhone navigation, Siri, Apple Music, messages
- Wireless and wired Android Auto - Google Maps, Waze, Spotify, Google Assistant
- Wireless MirrorLink
- Bluetooth handsfree and audio streaming
- USB video and music playback up to 1080p
- Reverse, front, left or right camera inputs - supports aftermarket cameras up to AHD720
- Supports Apple Lossless music streaming
- Highly customisable 15-band DSP equaliser for precise tuning
- No coding required - simple selection via Portable Audio > USB
How it works
- Select Mr12Volt via the head unit path: Portable Audio > USB
- No coding or dealer tools needed

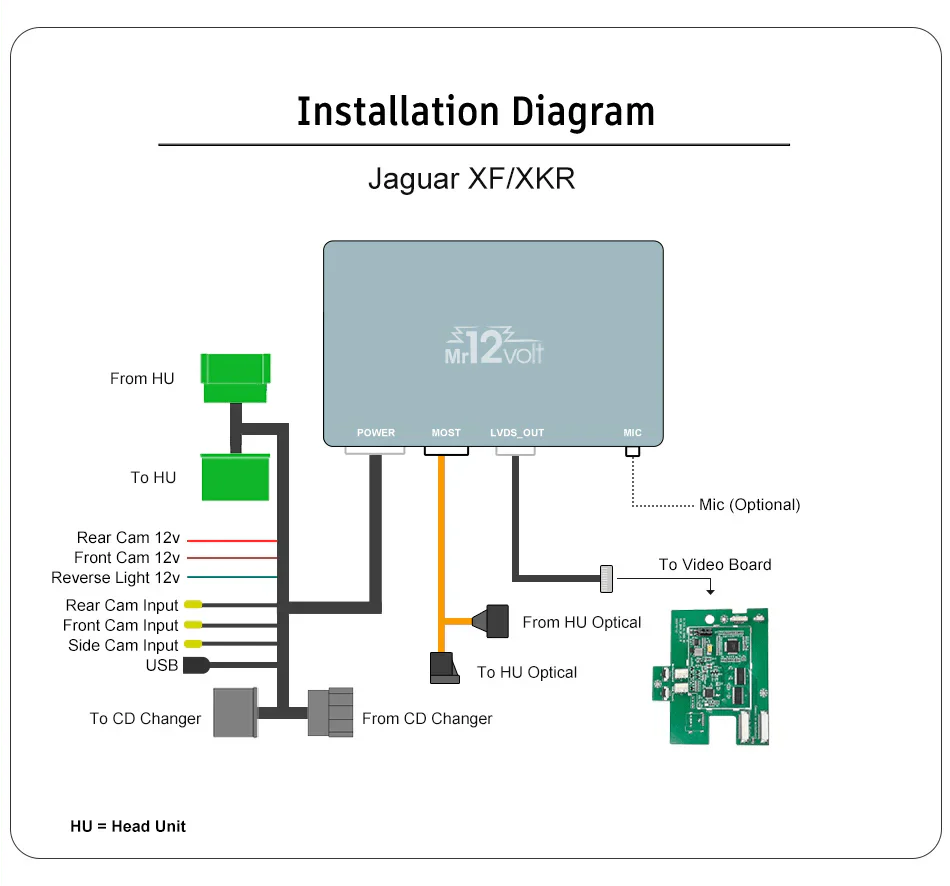

- Integrates over the vehicle’s MOST fibre optic audio network for the best possible sound
Installation videos
Supported multimedia formats
- Decoding H.264 Baseline and Main High Profile, Level 1-4.2 - 30fps @ 1080p
- Decoding VC-1 Simple Main Profile low, medium and high levels - Advanced Profile levels 0-3 - 30fps @ 1080p
- Decoding MPEG1/2/4 Simple Profile levels 0-6 - Main Profile low, medium and high levels - ASP levels 0-5 - 30fps @ 1080p
- Decoding Real-Video 8/9/10 - 30fps @ 1080p
- Decoding VP6/7/8 VP6.0/1/2, VP7 v0-3, VP8 v2 (WebM) - 30fps @ 1080p
- Decoding DivX DivX3/4/5/6 - 30fps @ 1080p
- Decoding H.263 Profile 0 levels 10-70 - 30fps @ 720x576
- JPEG codec Baseline interleaved - up to 8176x8176
- Video containers mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
- Audio codecs MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more
Additional technical data
- Operating temperature -20 to +80 degrees centigrade
- DAC resolution 18-bit
- MP3 bitrate 8 to 384 kbit
- Voltage 10 to 14.6 V DC
- Operating current 450 mA - 700 mA when charging a mobile phone
- Signal to noise ratio 95 dB
- Total harmonic distortion 0.1%
- Frequency response 20 Hz to 20 kHz
Useful link
How to mirror to P2000 from your phone
Professional fitting and support
Want it installed properly first time? We can help. Nforcd is based in Warwickshire and offers expert fitting for this Jaguar CarPlay and Android Auto retrofit. Request a quote via Sales@nforcd.com.
