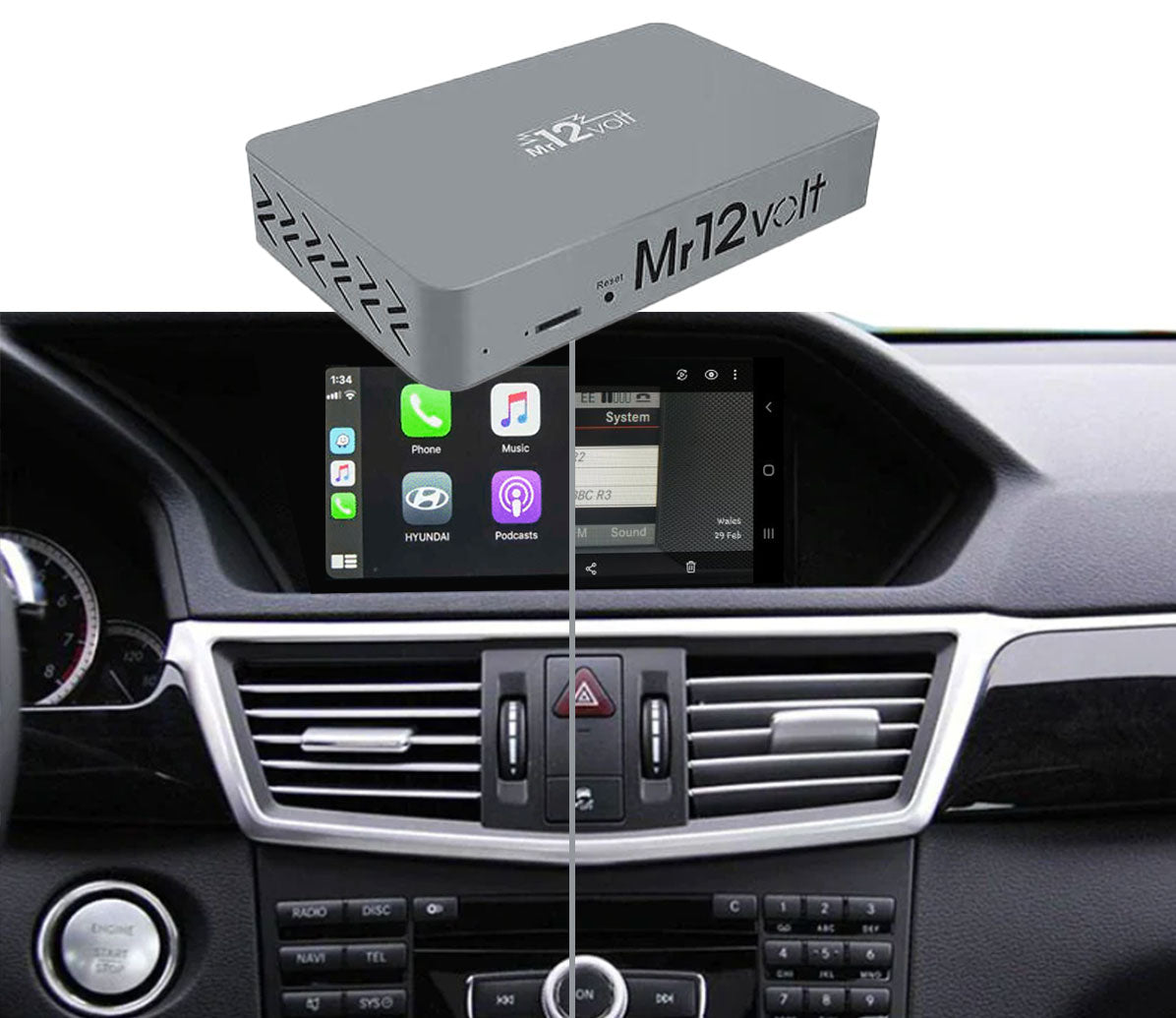

Mr12Volt Mercedes-Benz MOST Bus NTG 4.5 and NTG 4.7 CarPlay and Android Auto Interface. High-end digital CarPlay upgrade for Mercedes with fibre optic audio and TV source integration.
Part Number: P2000-NTG45MM
Upgrade your Mercedes-Benz NTG 4.5 or NTG 4.7 system with Mr12Volt P2000-NTG45MM and enjoy Apple CarPlay and Android Auto the way it should be. Unlike AUX-in based adapters that compromise sound, this interface runs on the Mercedes MOST fibre optic bus and uses the factory TV video input for true digital to digital audio. If your car has Harman Kardon or a high-spec factory audio system, this is the premium CarPlay and Android Auto retrofit you want.
We use this unit ourselves and our customers consistently rate it highly for audio quality, stability and seamless OEM integration. No coding required. No third-party tools. Just press the C and Return buttons together for 5 seconds after installation to enable the TV menu and select Mr12Volt.
Why choose this Mercedes CarPlay and Android Auto retrofit
- Runs on the Mercedes MOST bus for high-end digital sound quality, not AUX
- TV input integration with built-in TV enabling function. No coding required
- Supports the OEM microphone for clean hands-free calls
- Works with the factory reverse camera. Add front, reverse and blind-spot cameras up to AHD720
- Wireless and wired Apple CarPlay and Google Android Auto
- Wireless MirrorLink, Bluetooth hands-free and audio streaming
- USB video and music playback including Apple Lossless support
- Highly customisable 15-band DSP equaliser for fine-tuned audio
Compatible Mercedes-Benz models with NTG 4.5 or NTG 4.7 2012 to 2015
- W212 A207 C207 E-Class
- W204 C-Class
- W176 A-Class
- W246 B-Class
- C218 CLS
- W166 ML
- X166 GL
- W463 G-Class
- R172 SLK
- R231 SL
- C197 and R197 SLS
How it works
- Select Mr12Volt through the Mercedes TV feature on NTG 4.5 or NTG 4.7
- No factory TV module and no coding tools needed. After install, press Return and C for 5 seconds to activate the TV option
- Supports aftermarket cameras up to AHD720
- Integrates with the OEM microphone
- MB Bluetooth and Mr12Volt Bluetooth can be connected at the same time. MB handles calls and can take over when a call is received
Multimedia support
High performance video and audio codec:
- Decoding H.264 Baseline and Main High Profile, Level 1 to 4.2, 30fps at 1080p
- Decoding VC-1 Simple Main Profile low, medium and high levels. Advanced Profile levels 0 to 3, 30fps at 1080p
- Decoding MPEG1, MPEG2, MPEG4 Simple Profile levels 0 to 6. Main Profile low, medium and high levels. ASP levels 0 to 5, 30fps at 1080p
- Decoding Real-Video 8, 9, 10, 30fps at 1080p
- Decoding VP6, VP7, VP8 WebM, 30fps at 1080p
- Decoding DivX 3, 4, 5, 6, 30fps at 1080p
- Decoding H.263 Profile 0 levels 10 to 70, 30fps at 720 x 576
- JPEG codec Baseline interleaved up to 8176 x 8176
- Video formats: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
- Audio formats: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more
Technical data
- Operating temperature: -20 to +80 degrees centigrade
- DAC resolution: 18-bit
- MP3 bitrate: 8 to 384 kbit
- Voltage: 10 to 14.6 V DC
- Operating current: 450 mA typical. 700 mA when charging a mobile phone
- Signal to noise ratio: 95 dB
- Total harmonic distortion: 0.1 percent
- Frequency response: 20 Hz to 20 kHz

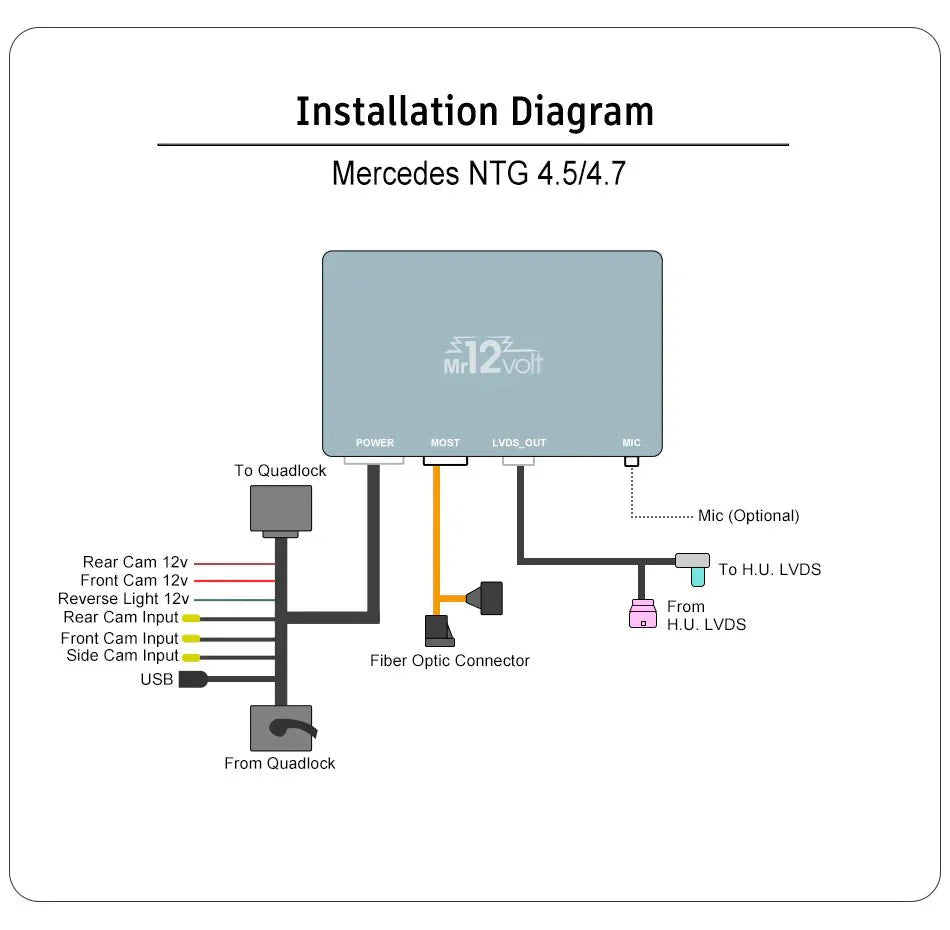

Installation help
We offer professional fitting at Nforcd in Warwickshire. Request a quote at Sales@nforcd.com.
Installation videos
User manual: NTG45MM
Why buy from Nforcd
- We have installed and tested the Mr12Volt P2000-NTG45MM on NTG 4.5 and NTG 4.7 cars with excellent customer feedback
- Specialist advice and fitting support in the UK
- Focused on premium in-car audio and integration
Order your Mr12Volt P2000-NTG45MM today for the ultimate Mercedes Apple CarPlay and Android Auto upgrade on NTG 4.5 and NTG 4.7 with OEM-like integration and uncompromised digital sound.
