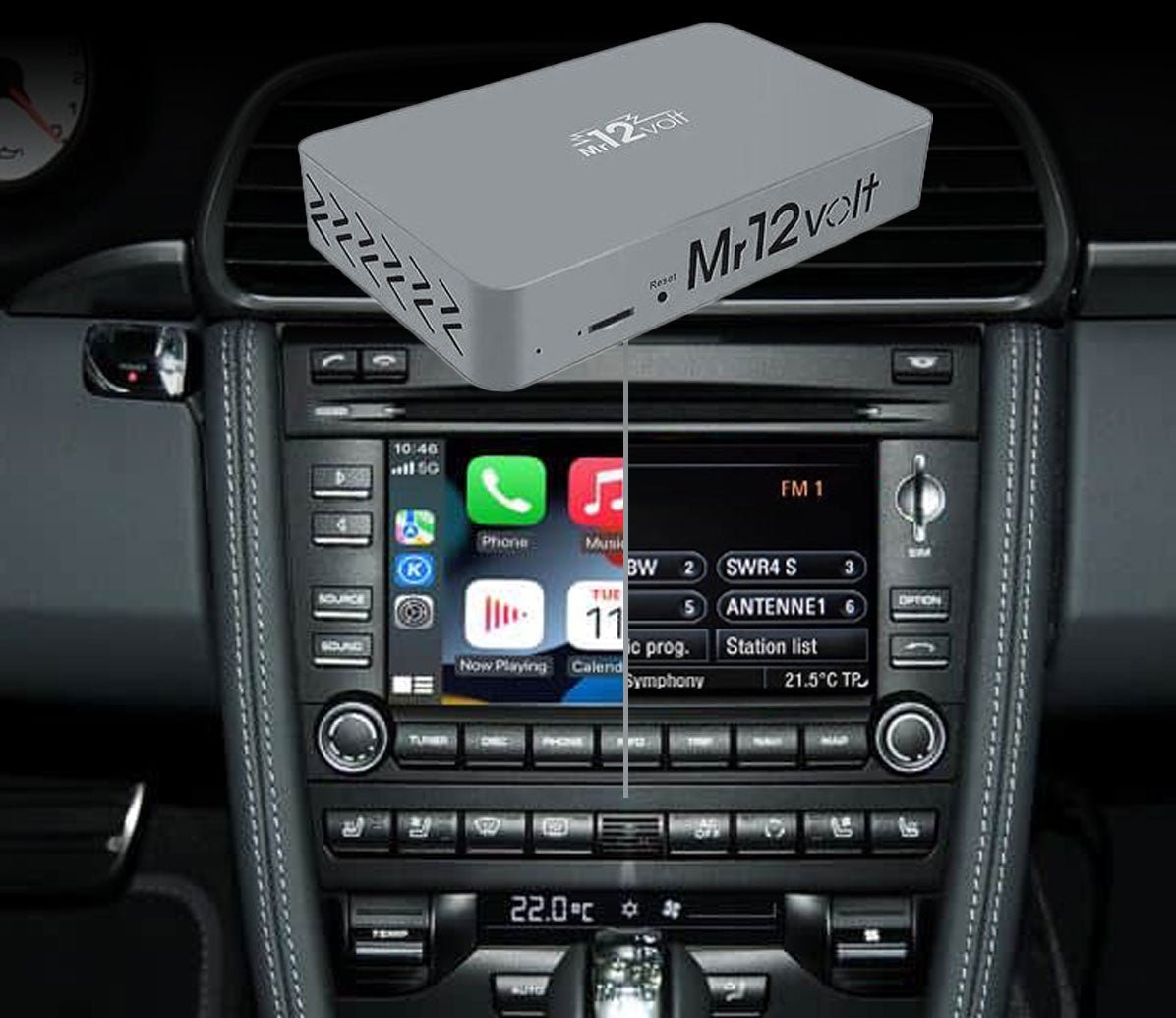

Mr12Volt P2000-PCM30MM Porsche PCM 3.0 CarPlay and Android Auto MOST Bus Interface with OEM Microphone Support
Part number / Model: P2000-PCM30MM
Upgrade your Porsche infotainment the right way with the Mr12Volt P2000-PCM30MM CarPlay and Android Auto retrofit for PCM 3.0. This MOST Bus plug-and-play interface unlocks wireless Apple CarPlay and wireless Android Auto with OEM microphone support, premium sound quality and factory-style operation via the PCM’s TV source. It is the cleanest Porsche CarPlay retrofit for PCM 3.0 we have used, and our customers love the seamless integration, fast boot, crisp audio and simple controls.
If you are searching for Porsche CarPlay upgrade, Porsche PCM 3.0 CarPlay retrofit, Porsche 911 CarPlay, Porsche Boxster CarPlay, Porsche Cayman CarPlay, Porsche Cayenne CarPlay, MOST fibre optic CarPlay kit or Android Auto for Porsche PCM 3.0, this is the high-quality solution you want.
Compatibility
- Porsche PCM 3.0 head unit
- 911 2009 to 2011
- Cayenne 2009
- Boxster and Cayman 2009 to 2012
Does not fit vehicles equipped with the CDR31 unit.
Important: If your Porsche has OEM TV built in, please do not purchase yet. The OEM rear camera will not function properly with this version. Please wait for a future updated product.
Why choose the Mr12Volt P2000-PCM30MM CarPlay retrofit
- OEM microphone support for clear calls and voice control through the factory mic
- MOST Bus integration for high-end sound quality through the factory fibre optic system
- Wireless and wired Apple CarPlay and wireless and wired Android Auto
- Wireless MirrorLink for screen mirroring
- Bluetooth hands-free calling and Bluetooth audio streaming
- USB video and music playback with wide codec support
- Reverse, front, left or right camera inputs with support for aftermarket cameras up to AHD 720
- Apple Lossless music streaming support
- Highly customisable 15‑bar DSP equaliser to fine tune your sound
How it works
- Select the Mr12Volt interface via the TV function on the PCM
- No coding required and no factory TV module needed — once installed, the TV icon appears on the PCM home menu immediately
- Retains factory controls and integrates cleanly with your original system
Base audio note
For Porsche vehicles with base audio and no fibre optic cable in the car’s harness, please follow this video to modify the supplied FO Y-cable to a direct male-to-male cable:
Multimedia and codec support
- Video decoding: H.264 Baseline and Main High Profile Level 1 to 4.2 up to 30 fps at 1080p
- VC-1 Simple and Main Profile, Advanced Profile levels 0 to 3 up to 30 fps at 1080p
- MPEG1/2/4 Simple Profile levels 0 to 6, Main Profile low to high, ASP levels 0 to 5 up to 30 fps at 1080p
- RealVideo 8/9/10 up to 30 fps at 1080p
- VP6/7/8 including WebM up to 30 fps at 1080p
- DivX 3/4/5/6 up to 30 fps at 1080p
- H.263 Profile 0 levels 10 to 70 up to 30 fps at 720 x 576
- JPEG codec Baseline interleaved up to 8176 x 8176
- Video containers: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
- Audio formats: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more
Technical data
- Operating temperature: -20 to +80 degrees C
- DAC resolution: 18 bit
- MP3 bit rate: 8 to 384 kbit
- Voltage: 10 to 14.6 V DC
- Operating current: 450 mA (700 mA when charging a mobile phone)
- Signal to noise ratio: 95 dB
- Total harmonic distortion: 0.1%
- Frequency response: 20 Hz to 20 kHz
Professional fitting
We offer expert installation at Nforcd, Warwickshire. For a fitting quote or to book, email Sales@nforcd.com.
What owners say
We have installed and used the Mr12Volt P2000-PCM30MM extensively. Feedback from Porsche owners has been consistently positive: fast and stable wireless CarPlay and Android Auto, great audio over the MOST fibre optic system, OEM mic clarity and a factory-style user experience. If you want the best Porsche PCM 3.0 CarPlay and Android Auto retrofit, this is it.
Related help
How to mirror to P2000 from phone
