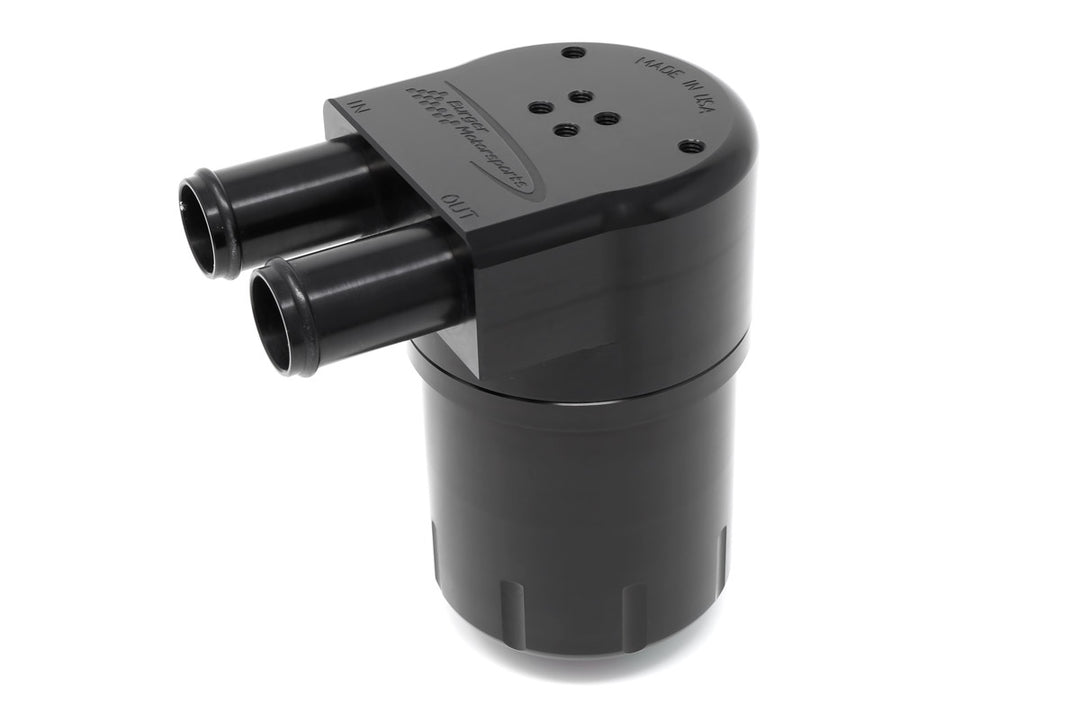

Stop oil blow-by from contaminating your intake on the Mazda 3 and CX-30 2.5L Turbo. The BMS Oil Catch Can Kit is a dedicated PCV oil separator engineered specifically for these SKYACTIV 2.5L turbo engines. Precision CNC machined and free flowing, it captures oil vapour before it coats the intercooler, charge pipes and intake valves, helping preserve octane quality and throttle response while keeping the factory closed-loop PCV system intact.
- Triple-baffle, non-clogging internal design for effective air and oil separation
- Large 16 mm plus inlet and outlet with full-bore routing to avoid crankcase pressure build-up
- 100 percent CNC machined, anodised black aluminium can with a billet bracket for a durable, stealth install
- Short hose runs using heavy-duty custom silicone hoses for optimal PCV ventilation

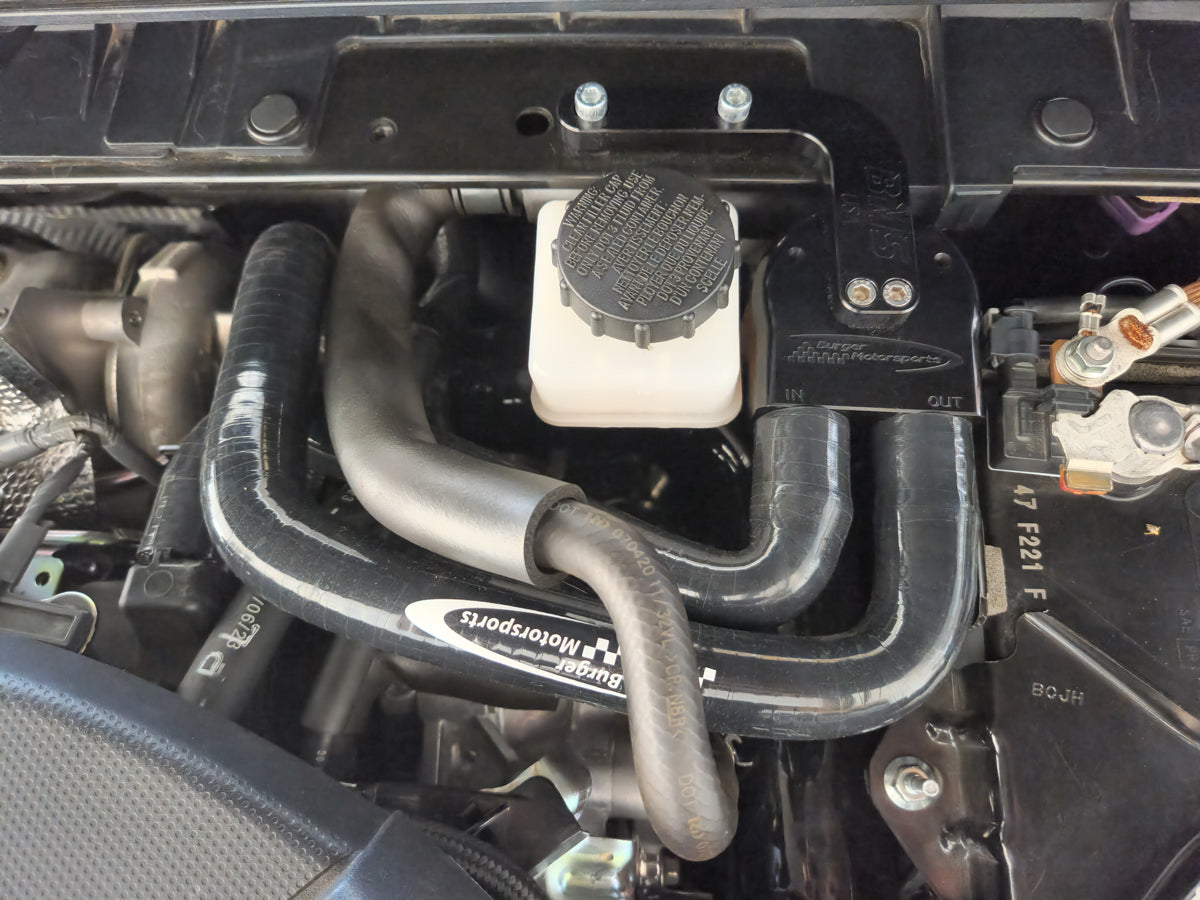

- Quick, reversible fitting in around 20 minutes with all hardware included

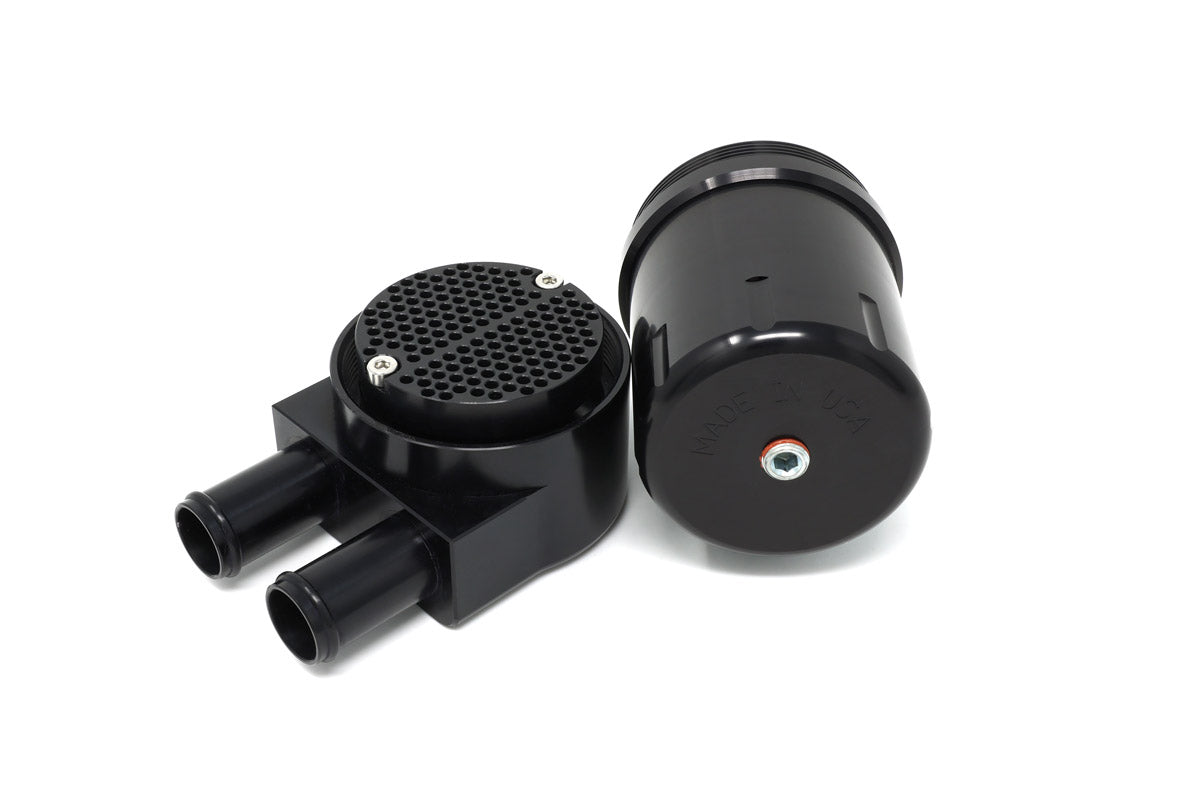

- Simple maintenance via screw-off base or drain plug, typically every 3 to 6 months
Made in the USA and backed by a lifetime guarantee on the can. Designed from the ground up for the turbo Mazda application, this catch can helps maintain intake system efficiency and long-term engine health without restricting flow or venting to atmosphere.
Vehicle compatibility
2021 onward Mazda 3 SKYACTIV 2.5L Turbo
2019 onward Mazda CX-30 SKYACTIV 2.5L Turbo
For right-hand drive vehicles, please email us before purchasing for special instructions.
Catch can dimensions
Height with lid 111 mm
Can diameter 63.7 mm
Lid length to nozzle end 101 mm
Nozzle outer diameter 19.2 mm
Nozzle inner diameter 17 mm

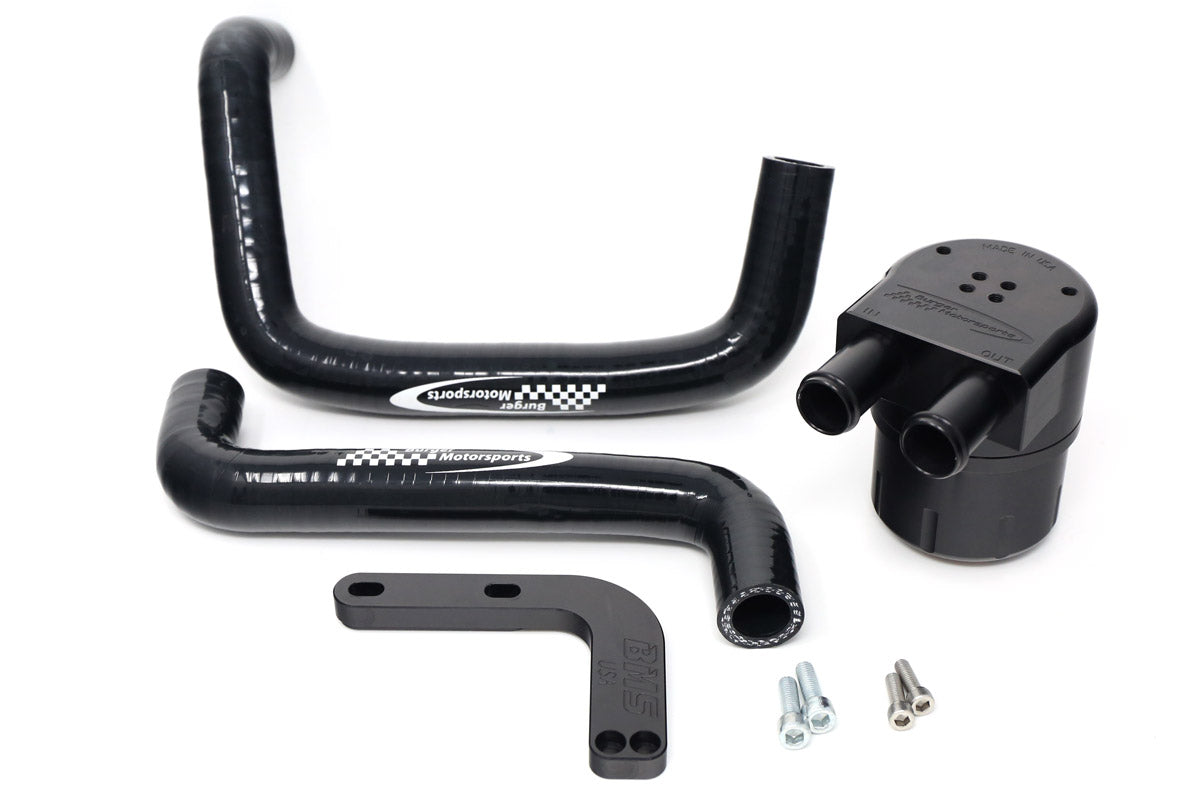

What’s included
- BMS billet triple-baffle oil catch can
- Billet J bracket
- Two heavy-duty custom silicone hoses
- Two M5 x 0.8 x 12 mm internal hex oil catch can lid screws
- Two M6 x 1.0 x 12 mm internal hex bracket screws
Nforcd supplies the BMS oil catch can kit for Mazda 3 2.5T and CX-30 turbo as an effective aftermarket upgrade to keep your PCV system clean and efficient. Order online today. Professional fitting is available through Nforcd in Warwickshire. To request a fitting quote or RHD guidance, email Sales@nforcd.com.
