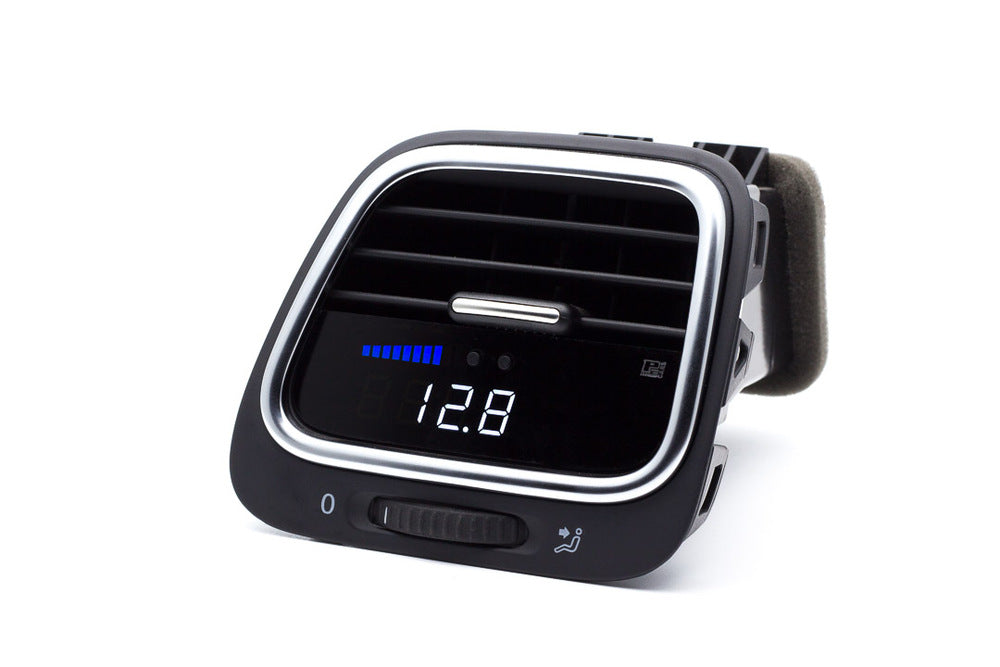

P3 Analog Gauge for VW EOS and VW Scirocco 2009-2018 is the go-to performance gauge for drivers who want accurate, real-time data in a clean, integrated display. Perfect for stock or tuned turbo diesel or petrol models, this P3 boost gauge and vacuum gauge lets you keep an eye on critical parameters for safer, stronger performance on road or track.
Important: This gauge is not plug and play. A boost or vacuum hose run to the engine is required and wiring must be completed for power, ground and any optional analogue inputs. A boost tap is not included.
Looking for a VW Scirocco boost gauge or a VW EOS boost gauge that is discrete, responsive and reliable? The P3 Analog Gauge delivers precise analogue boost, vacuum and battery voltage readings, plus two additional 0-5V inputs for popular performance sensors. Ideal for monitoring turbo boost pressure, battery health and additional data from oil pressure, fuel pressure, coolant temperature, intake temperature or wideband AFR sensors that output a 0-5V linear signal.
- Vehicle compatibility: VW EOS 2009-2018, VW Scirocco 2009-2018
- Use cases: VW Scirocco boost gauge, VW EOS boost gauge, vacuum gauge, battery voltage gauge, performance gauge kit, turbo boost pressure gauge, analogue display gauge, tuning monitor
4 available analogue readouts
- Analog boost (yellow/purple/black - dedicated plug for analogue boost sensor). Note: boost tap not included.
- Analog input 1 (brown wire - reads any 0-5V linear output sensor).
- Analog input 2 (blue wire - reads any 0-5V linear output sensor).
- Battery voltage (red wire and black wire - read through power and ground).
Optional auto-dim feature
- Green wire - connect to any circuit that has power only when headlamps are on, then enable in the configuration menu for automatic display dimming at night.

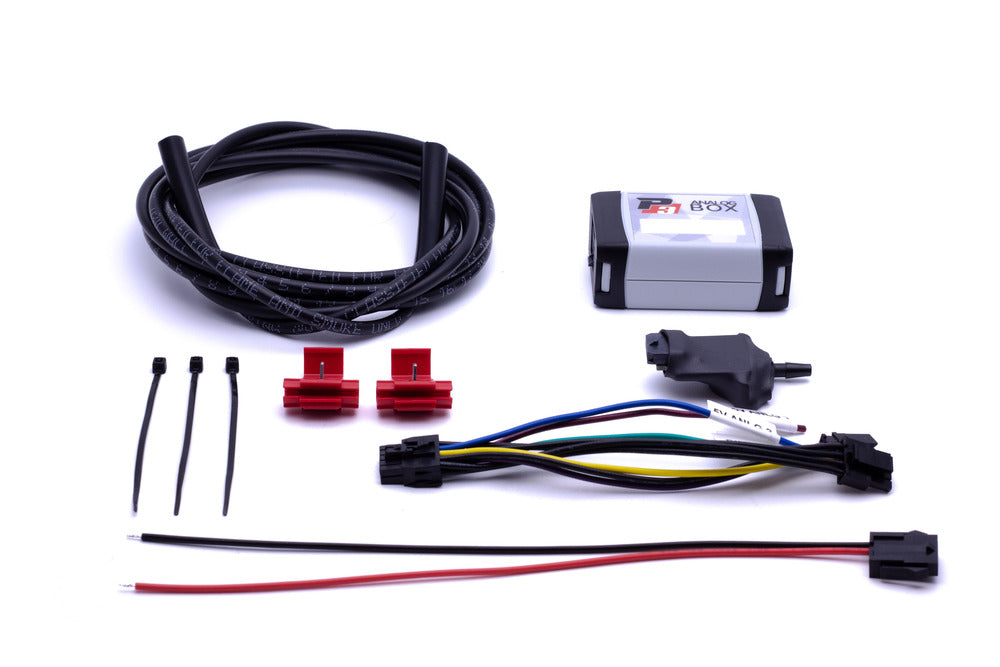

What’s in the P3 Analog Gauge base kit
- Integrated display
- Analog Box control unit
- Main harness
- Hard-wire harness
- Analog boost sensor. Note: boost tap not included.
- Approximately 5 feet of 5/32 inch O.D. boost tubing with 5/32 inch I.D. hose at each end
- 3 zip ties
- 2 scotchlok wire taps
Why choose this P3 gauge for your VW Scirocco or VW EOS
- Accurate analogue boost and vacuum monitoring for turbocharged engines
- Two flexible 0-5V inputs for popular performance sensors
- Battery voltage readout for quick electrical health checks
- Clean, integrated display for a stealth, factory-style look
- Proven with our own cars and loved by Nforcd customers for its responsiveness and reliability
Installation and fitting
- This product requires a vacuum or boost hose to the engine and hard-wiring for power and ground. A boost tap is not included.
- Professional fitting recommended. Nforcd offers installation in Warwickshire. Request a quote: Sales@nforcd.com
Search-friendly terms: VW Scirocco boost gauge 2009-2018, VW EOS boost gauge 2009-2018, P3 Analog Gauge VW, P3 boost gauge, vacuum gauge VW Scirocco, vacuum gauge VW EOS, battery voltage gauge VW, performance gauge kit VW Scirocco, performance gauge kit VW EOS, 0-5V sensor gauge, tuning gauge, turbo boost pressure gauge, analogue boost gauge.
Order your P3 Analog Gauge today for the VW EOS and VW Scirocco and enjoy precise boost, vacuum and sensor data in a sleek, integrated display that enhances both performance and confidence behind the wheel.
