P3 Multi-Gauge (*Diesel engines not fully supported)
Plug and Play install - just plug into your obd2 port and install into dash!
Reads and clears OBD2 Codes
OBD2 Data for Oil Temp, Coolant Temp, Intake Air Temp, Exhaust Gas Temp, Throttle Plate, Vehicle Speed, RPM, Shift-light, Battery voltage, 0-60 timer
Peak Recall on all functions
Boost and Vacuum from OBD2 port
Optional Auto-Dim or Manual Dimmer
2 x universal 0-5v linear analog inputs

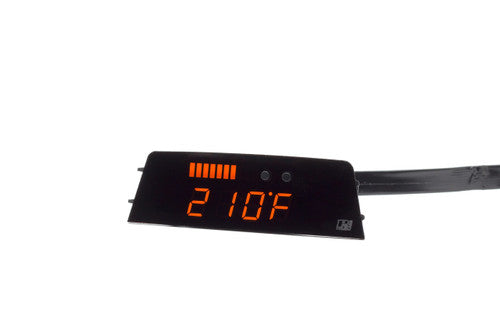

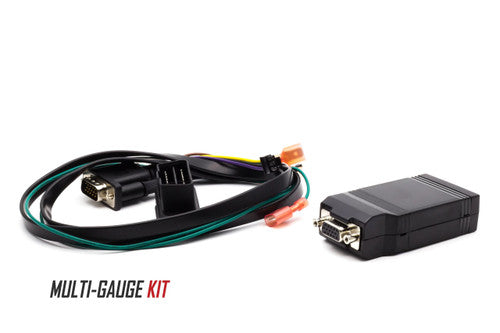

Includes digital display, custom OBD2 wire harness and control box.
*Diesel engines do not read throttle angle, ignition timing or intake air temps.
*Diesel engines require use of analog sensor for boost reading
Track Pack software upgrade (GAS ENGINES ONLY)
Adds Air/Fuel ratio through the OBD2 port
Adds 0-100/60-130/60-0/100-0 timers
Optional 80psi boost sensor (does not include boost tap/tubing)
Allows gauge to read boost directly from intake/charge pipe
Plugs directly into the OBD2 harness (no wiring required)
Can be added/removed from the gauge at any time
Tubing kit can be found on our accessories page
Boost tap kit
Installs between MAP sensor and intake
Approximately 60" of 5/32" O.D. flexible plastic tubing
2 sections of 5/32" I.D. hose to connect to tap and analog sensor

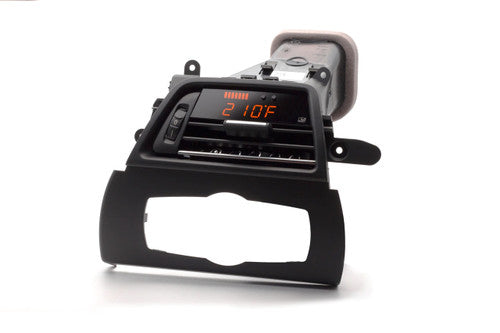

OEM vent option
We install the display in an OEM vent for your vehicle to make your install even easier
P3 Gauges offer a Multifunction gauge that gives you the information you need while maintaining a clean, OEM look. Starting at a price competitive to single feature old-school needle gauges, they offer unmatched feature to price ratio.
All Multi-Gauges include an on-the-fly configuration menu for setting units (BAR/PSI, Farenheit/Celsius MPH/KPH), Shift light, analog boost sensor calibration and more. See www.p3gauges.com/install for more details.
