7.5mm (.30 inch) Wheel Spacer for BMW E24, E28, E30 M3, E31, E32, E34, E36, E38, E46, Z3, Z4
Wheel spacers are the ideal solution to resolve a number of fitment and aesthetic problems --
- Correct wheel offset issues
- Achieve a flush fitment instead of the "tucked under" look
- Clearance the wheel from contact with other components (suspension, brakes, etc).
- Improve handling and stability by increasing track width
A spacer fits between the wheel and the hub assembly and pushes the wheel out by the thickness of the spacer. Longer wheel bolts or wheel studs are required and included.
This latest generation of the Turner Motorsport Wheel Spacers represents a total redesign of the wheel spacer concept - a ground-up, clean sheet design based on our years of BMW service and motorsports. We took everything we have learned from our service technicians, customers, and race team crew and built the spacer to beat all spacers. We've been in the BMW wheel spacer business probably longer than anybody and when it came time to make our own spacers, a basic spacer design just wouldn't do. We had to make a spacer that is lightweight (for lower unsprung mass), has a tough and durable coating to last through our New England winters, is easily removed (your mechanic will thank you), and is precisely engineered and manufactured for a proper fit on the hub and in the wheel. You won't find a better engineered wheel spacer on the market!
- hub-centric design with our Hub Extenders
- precise tolerance fitment thanks to CAD process and CNC mill machine
- aerospace grade aluminum lightweight but very strong with high resistance to corrosion
- additional military-spec hardcoat for further corrosion resistance
- innovative Quick Release pockets for easy removal (better than a chamfered back edge)
- laser engraved size and part number for easy identification

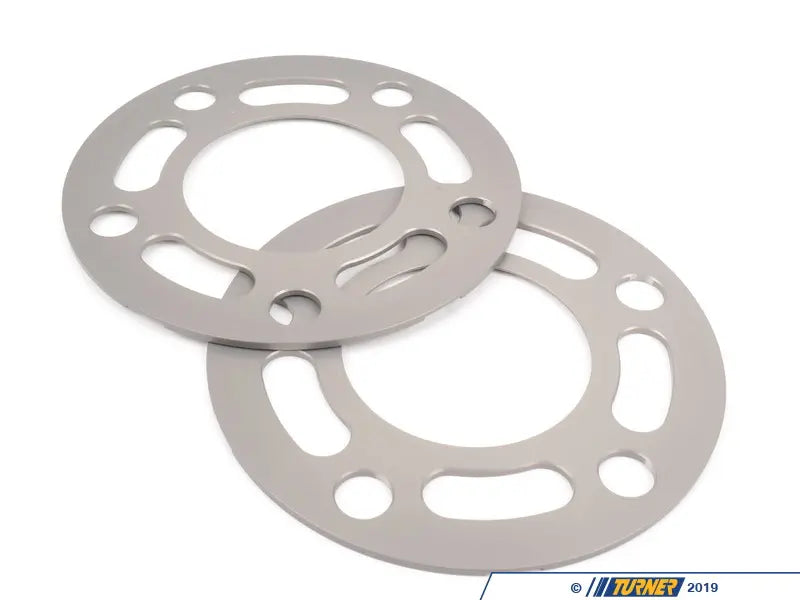

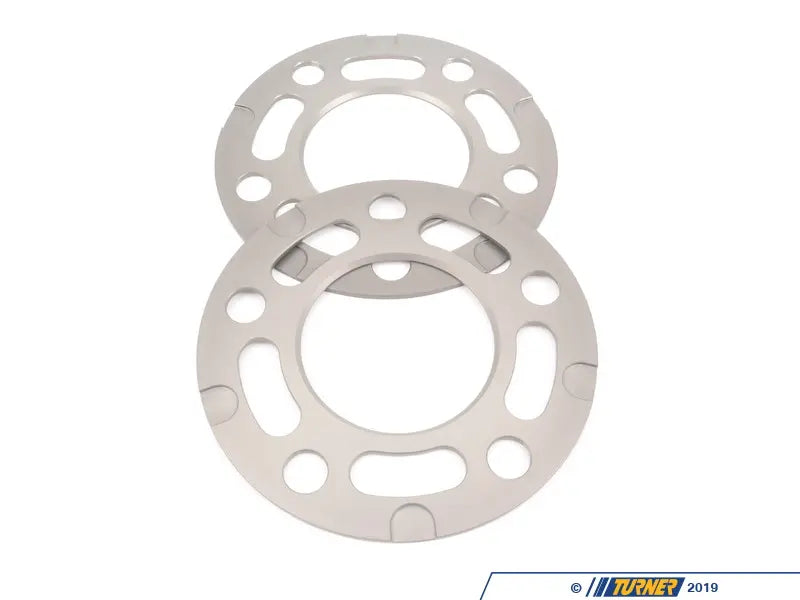

- stealthy anthracite or black color
- extended bolt sets in factory-matching black or bright silver finish available (wheel stud kits also available)
- Turner Motorsport track and street tested!
- Made in the USA
Extended Wheel Bolts
Longer wheel bolts or wheel studs are required for all BMW wheel spacers. Spacers cannot be used with stock bolts. Our extended lug bolts are very high quality and high-grade steel lug bolt (grade 10.9).
Specifications
- bolt pattern: 5 x 120
- center bore: 72.6mm
- hubcentric: yes
- wheel pad size: normal
*Hub extenders are recommended for use with these spacers*
2x 7.5mm Wheel Spacers
- BMW 1 Series E82
- 128i 135i & 1M Coupe
- BMW 1 Series E88
- 128i & 135i
- BMW 2 Series F22 F23
- 228i 228i xDrive 230i 230i xDrive M235i M235i xDrive M240i M240i xDrive
- BMW 3 Series E30 (1988-1991)
- M3
- BMW 3 Series E36 (1992-1998)
- 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic & M3
- BMW 3 Series E46 1999-2005)
- 323i 323ci 325i 325ci 328i 328ci 330i 330ci & M3
- BMW 3 Series E90 E91 E92
- 325i 325xi 328i 328xi 330i 330xi 335d 335i 335i 335xi 335xi & M3
- BMW 3 Series F30 F31 F34
- 320i 320i xDrive 328d 328d xDrive 328i 328i xDrive 330e 330i 330i xDrive 335i 335i xDrive 340i 340i xDrive ActiveHybrid 3 & 328d
- BMW 4 Series F32 F33 F36
- 428i 428i xDrive 430i 430i xDrive 435i 435i xDrive 440i & 440i xDrive
- BMW 5 Series E28 (1982-1988)
- 524td 528e 533i 535i 535is & M5
- BMW 5 Series E34 (1989-1995)
- 525i 530i 535i 540i & M5
- BMW 5 Series E60 E61
- 525i 525xi 528i 528xi 530i 530i 530xi 535i 535xi 545i 550i & M5
- BMW 5 Series F07
- 535i 550i 550i xDrive 528i xDrive
- BMW 5 Series F10
- 535d 535d xDrive 535i 535i xDrive 550i 550i xDrive ActiveHybrid 5 & M5
-
BMW 6 Series E24 (1982-1989)
- 633csi 635csi & M6
- BMW 6 Series E63 E64
- 645Ci 650i & M6
- BMW 6 Series F06
- 640i 640i xDrive 650i 650i xDrive Alpina B6 xDrive M6 Gran Coupe S63 4.4L
- BMW 6 Series F12 F13
- 640i 640i xDrive 650i 650iX M6 M6 S63 4.4L
- BMW 7 Series E32 (1988-1994)
- 730i 735i 735il 740i 740il & 750il
- BMW 7 Series E38 (1995-2001)
- 740i 740il & 750il
- BMW 7 Series E65 E66
- 745i 750i 760i 760Li & B7 Alpina
- BMW 7 Series F01
- 740i 750i 750i xDrive Alpina B7 & Alpina B7 xDrive
- BMW 7 Series F02
- 740Ld xDrive 740Li 750Li 750Li 760Li & ActiveHybrid 7
-
BMW 8 Series E31 (1990-1999)
- 840i 840ci 850i 850ci & 850csi
- BMW M Series F87
- M2 & M2 Competition
- BMW Z3 Series Z3 BMW (1997-2002)
- Z3 1.9, Z3 2.3, Z3 2.5i, Z3 2.8, Z3 3.0i, Z3 M Roadster & Z4 M Coupe
- BMW Z3 Series Z3
- Z3 M Coupe Z3 M Roadster
- BMW Z4 Series Z4
- Z4 M Coupe Z4 M Roadster Z4 sDrive28i Z4 sDrive30i Z4 sDrive35i Z4 sDrive35is
- BMW Z3 Series (2003-2008)
- Z4 2.5i Z4 3.0i Z4 3.0si Z4 M Roadster M Coupe
- BMW Z8 Series E52
- Z8 S62 & Z8 Alpina M62 4.8L
- BMW X1 Series E84
- X1 sDrive28i X1 xDrive28i & X1 xDrive35i
- BMW X3 Series E83 X3
- X3
- BMW X3 Series F25
- X3 sDrive28i X3 xDrive28d X3 xDrive28i xDrive2.8i xDrive3.5i xDrive3.5i N55 3.0L
- BMW X4 Series F26
- X4 M40iX X4 xDrive28i X4 xDrive35i
- BMW X5 Series E53
- X5
- BMW X5 Series E70
- X5 M X5 xDrive30i X5 xDrive35d X5 xDrive35i X5 xDrive48i & X5 xDrive50i
- MINI All All
TWH9905003 (Silver)
TWH9905003BLACK (Black)
Manufactured by
Turner Motorsport
