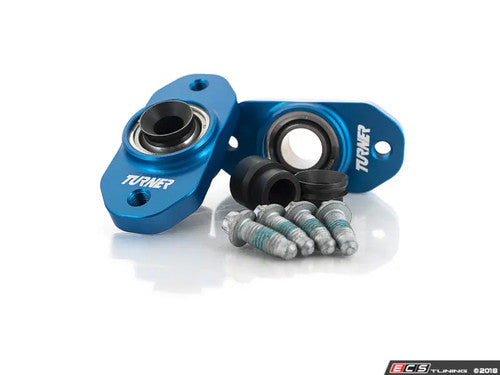

Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88
Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88
Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88
Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88
  • Load image into Gallery viewer, Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88
  • Load image into Gallery viewer, Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88
  • Load image into Gallery viewer, Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88
  • Load image into Gallery viewer, Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88

Turner Motorsport Monoball Lower Rear Shock Mount - Pair - 3 Series E90 & E82/E88

£345.85
£345.85
Sold out
Tax included. Shipping calculated at checkout.

Heads-up on cancellations & returns: if you cancel an order or return an item, you won't get back 100% of what you paid. We apply a 10% restocking fee, the outbound shipping is non-refundable, and we have to pass on Shopify / PayPal payment processing fees; these aren't returned to us when we refund you. International orders also lose on exchange-rate spread in both directions. If the original packaging is damaged or missing, a reboxing charge applies. For international orders specifically, if you refuse to pay our shipping invoice or supply a prepaid label after placing the order, the same deductions apply. We're upfront about this — please be sure of your purchase before ordering.

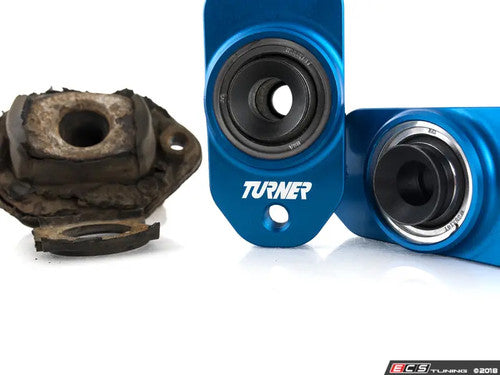

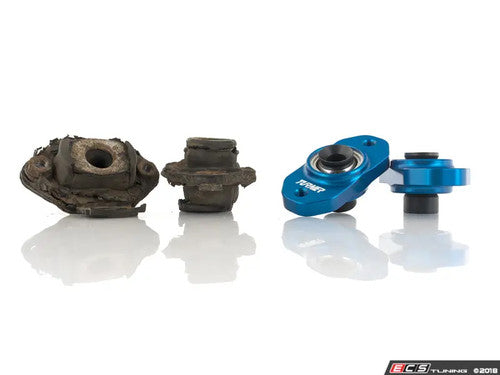

The lower rear shock mounts on the E8x/E9x chassis are known for quick failure and completely falling apart when they do, which will quickly be felt in your driving experience. The combination of rubber and steel, mounted in a low pocket on the rear control arm make this a perfect mix for corrosion destroying the mount. By allowing uninhibited shock articulation and a direct connection to the lower control arm, this solid monoball design eliminates slop and improves shock efficiency, allowing for more predictable handling on the street or the track - with minimal added noise, vibration, and harshness.

The engineering team at Turner came up with a design that would increase performance covering the largest issues with these rubber bushings. The performance improvement of these mounts is primarily due to the low friction articulation allowed by the bearing, combined with the elimination of unwanted deflection. Rubber mounts do not allow for proper free damper movement and the damping affect reduces the shock's ability to control wheel end movement directly.

Key Benefits:

Monoball rear lower shock mount eliminates unwanted deflection, maximizing shock efficiency and performance.

Allows full shock body articulation for low friction movement and reduced side loading and improved shock wear.

Designed to work with stock non-M taper seat stud style shocks (not M eyelet mount type).

Maintains OE shock position

Design features:

Rebuildable using off the shelf bearings - these are the last rear shock mounts you’ll need to buy

Includes new hardware

Made in USA

Housing:

Billet CNC 6061-T6 aluminum housing, type II anodized for exceptional durability and corrosion resistance

Bearing:

FK WSSX14T teflon lined spherical bearing

440C heat-treated stainless steel ball, 1 ⅜” ball dia.

17-4 PH heat-treated stainless steel race

Self-lubricating PTFE liners are chemically bonded to the inner diameter of the race to offer a very high load-carrying capacity with greatly increased dynamic wear characteristics.

Static Axial Load Rating: 10,800 lbs.

Rod End Misalign Angle: 6 degrees

Bearing inserts:

CNC machined 1144 steel, heat treated and melonite coated designed to maximize ball articulation while offering exceptional durability and corrosion resistance.

This Part Fits the Following Vehicles

Make Model Submodel Engine

BMW E82 128i N52 3.0L

BMW E82 135i N54 3.0L

BMW E82 135i N55 3.0L

BMW E88 128i N52 3.0L

BMW E88 135i N54 3.0L

BMW E88 135i N55 3.0L

BMW E90 325i N52 3.0L

BMW E90 325xi N52 3.0L

BMW E90 328i N52 3.0L

BMW E90 328xi N52 3.0L

BMW E90 330i N52 3.0L

BMW E90 330xi N52 3.0L

BMW E90 335d M57 3.0L

BMW E90 335i N54 3.0L

BMW E90 335i N55 3.0L

BMW E90 335xi N54 3.0L

BMW E90 335xi N55 3.0L

BMW E91 325xi N52 3.0L

BMW E91 328i N52 3.0L

BMW E91 328xi N52 3.0L

BMW E92 328i N52 3.0L

BMW E92 328xi N52 3.0L

BMW E92 335i N54 3.0L

BMW E92 335i N55 3.0L

BMW E92 335is N54 3.0L

BMW E92 335xi N54 3.0L

BMW E92 335xi N55 3.0L

BMW E93 328Ci All

BMW E93 328i N52 3.0L

BMW E93 335i N54 3.0L

BMW E93 335i N55 3.0L

BMW E93 335is N54 3.0L

*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
