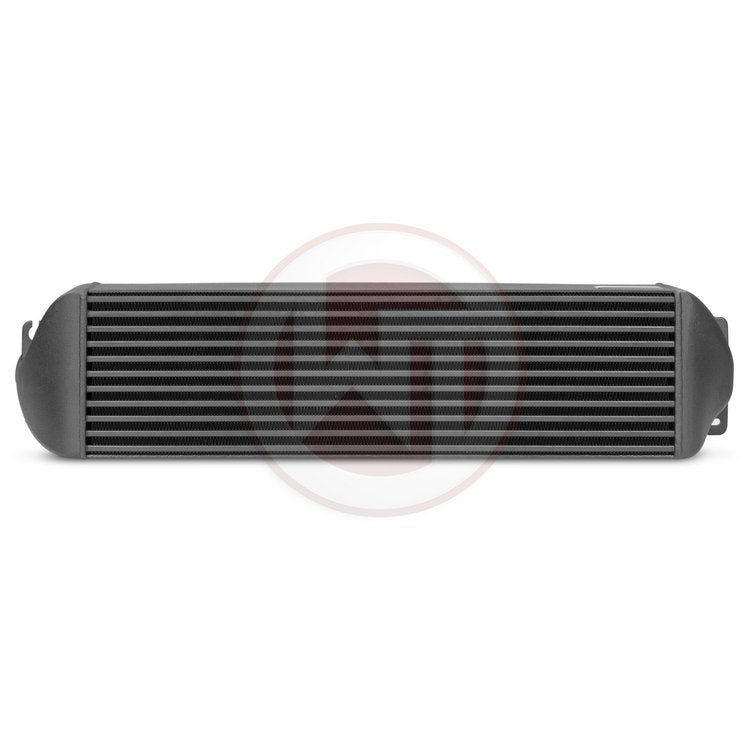

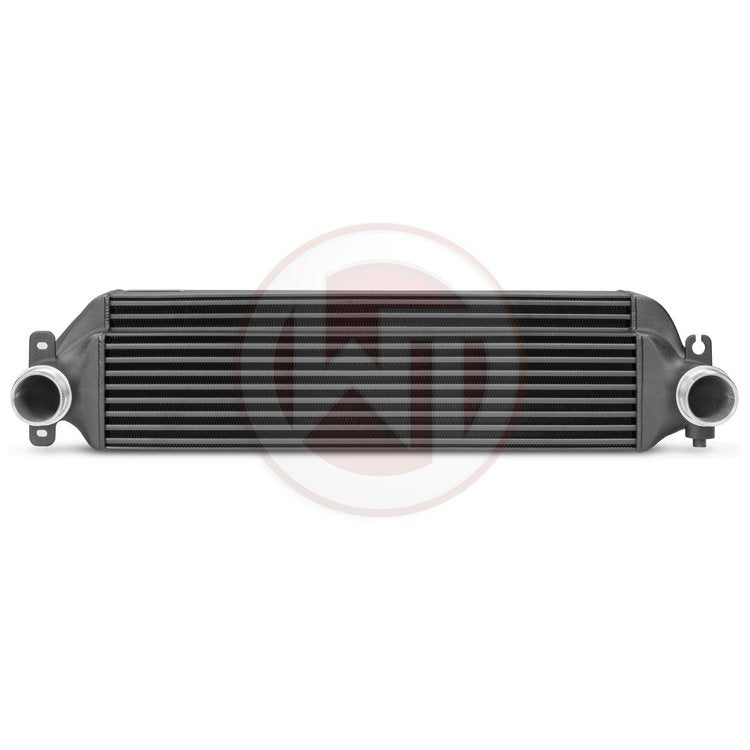

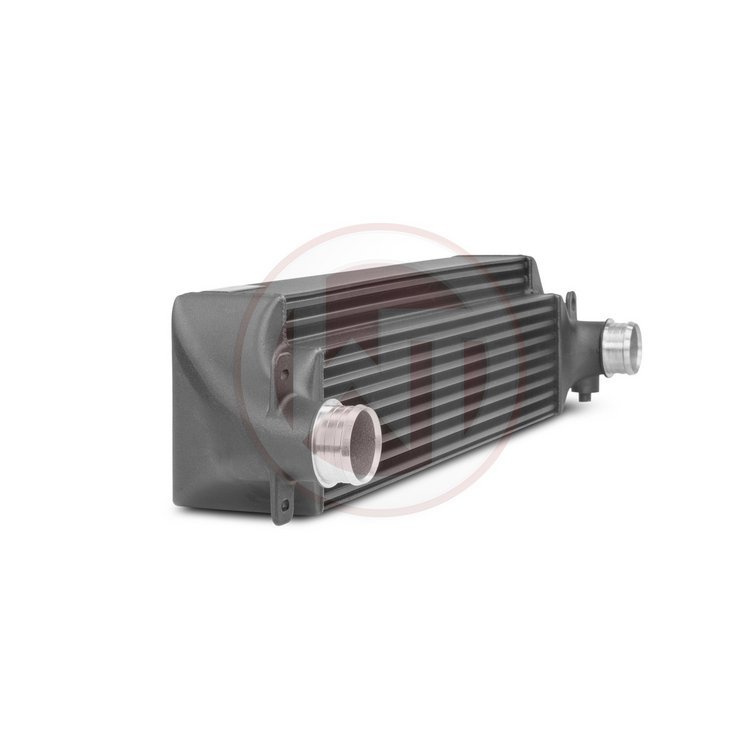

Upgrade your Toyota GR Yaris 1.6 Turbo with the Wagner Tuning Competition Intercooler Kit and Charge Pipe Kit for serious, repeatable performance on road and track. This front mount intercooler upgrade is a direct replacement for the OEM GR Yaris intercooler, delivering a larger, freer-flowing core and optimised charge pipework for improved cooling, response and reliability. Perfect for fast road, track days and racing use.
The Wagner Tuning high performance tube and fin core has been engineered specifically for the GR Yaris, with stepped dimensions of 630 mm x 137 mm x 135 mm plus 630 mm x 43 mm x 100 mm, giving a total 14.36 litres of core volume. That means a 24 percent larger frontal area and a 69 percent increase in core volume compared to the stock intercooler, supporting lower charge temperatures and consistent power delivery.
CFD optimised cast aluminium end tanks maximise internal airflow for excellent cooling with minimal back pressure. A specially designed air baffle maintains airflow to adjoining components, such as the water radiator, making this a smart, complete solution for hard-driven GR Yaris builds.
- Toyota GR Yaris intercooler upgrade - direct fit, plug and play
- Competition tube and fin core with stepped design for maximum surface area
- 24 percent larger frontal area vs stock intercooler
- 69 percent more core volume vs stock intercooler

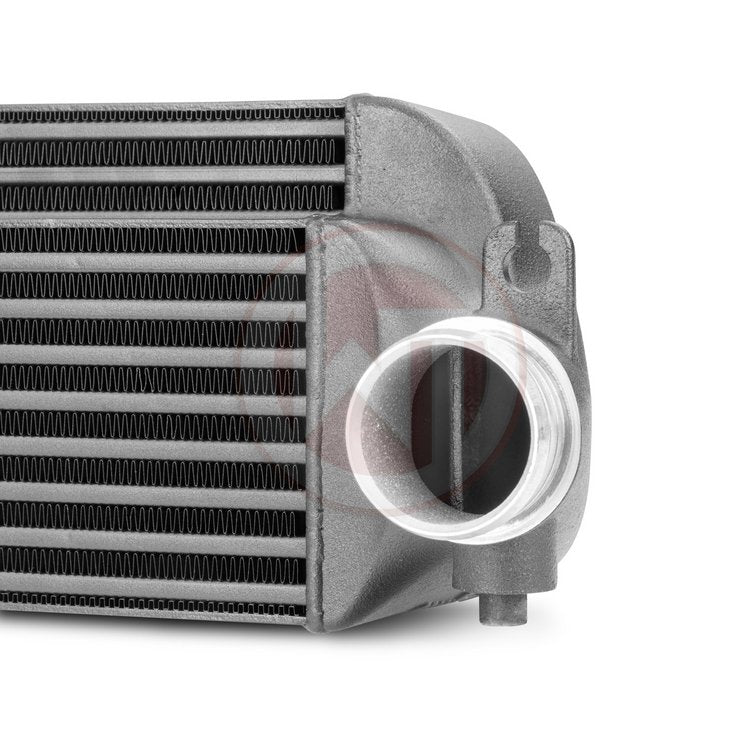

- CFD optimised cast aluminium end tanks for smooth, efficient flow
- Anti-corrosion powder coated finish with excellent heat transfer
- Enlarged 60 mm inlet and outlet for increased flow
- Includes reinforced silicone hoses and aluminium boost and charge pipe
- Ideal for fast road, track and motorsport applications
Technical data
- Core dimensions: 630 mm x 137 mm x 135 mm plus 630 mm x 43 mm x 100 mm (stepped core, 14.36 litres)
- Core dimensions in inches: 24.8 in x 5.4 in x 5.3 in plus 24.8 in x 1.7 in x 3.94 in (stepped core, 876 in³)
- Stock intercooler: V = 8.5 L / 519 in³, A = 913 cm² / 141 in²
- Wagner Tuning intercooler: V = 14.36 L / 876 in³ (+69 percent), A = 1134 cm² / 176 in² (+24 percent)
- Inlet and outlet diameter: 60 mm

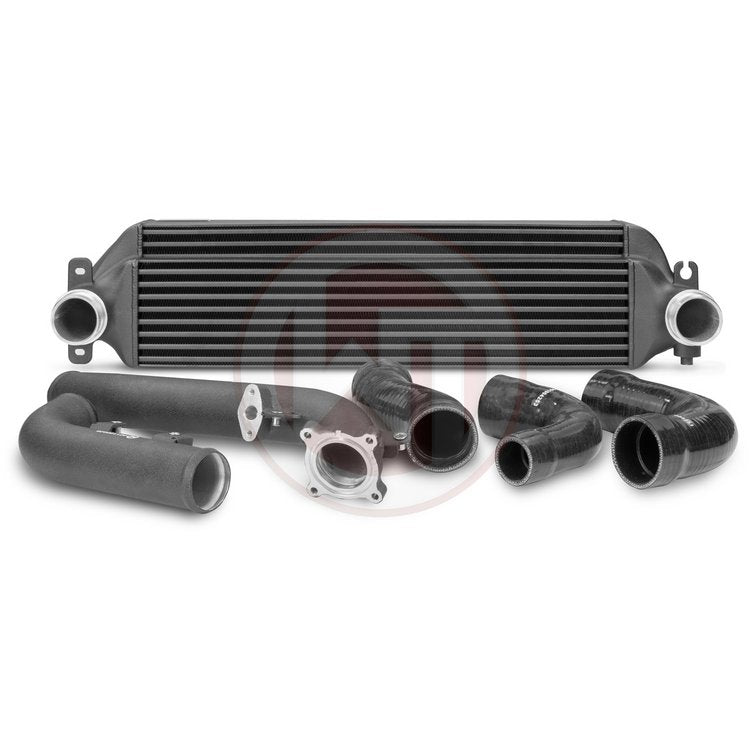

What’s included
- 1 x Wagner Tuning Competition intercooler
- 3 x reinforced silicone hoses in black
- 1 x aluminium boost pipe
- 1 x aluminium charge pipe
- All required mounting hardware
- Installation instructions
Installation is straightforward with a true plug and play design that replaces the original intercooler. The anti-corrosion powder coated finish ensures long term durability and optimal heat transfer in all conditions.
At Nforcd we have fitted this Wagner Competition Intercooler and Charge Pipe Kit to customer GR Yaris builds and the feedback has been excellent, with customers praising the fitment quality, robust hardware and consistent performance on spirited road drives and track sessions.
Professional fitting
Want it fitted by specialists who know GR Yaris performance inside out? Nforcd offers professional installation at our Warwickshire facility. Request a fitting quote at Sales@nforcd.com.
