BMW and MINI Wheel Stud and Nut Conversion Kit – M14 x 1.25
Fed up with juggling heavy wheels and fiddly factory wheel bolts on your BMW or MINI? Upgrade to the MMR Performance Stud and Nut Kit and transform every wheel change. This BMW wheel stud conversion kit is designed for cars with M14 x 1.25 threads, delivering faster wheel swaps, stronger fixing, easier spacer use and a smarter motorsport look. Ideal for road, track day and motorsport use where reliability, speed and safety matter.
At Nforcd we run this stud and nut kit on our own cars and customer builds and it has been faultless. Our customers love the quicker, cleaner wheel changes and the premium finish. If you regularly remove and refit wheels, this is the BMW and MINI wheel stud and nut kit you want.
Why convert to wheel studs on BMW and MINI?
- Stronger fixing than factory wheel bolts with high tensile steel motorsport studs and large, open-ended wheel nuts.

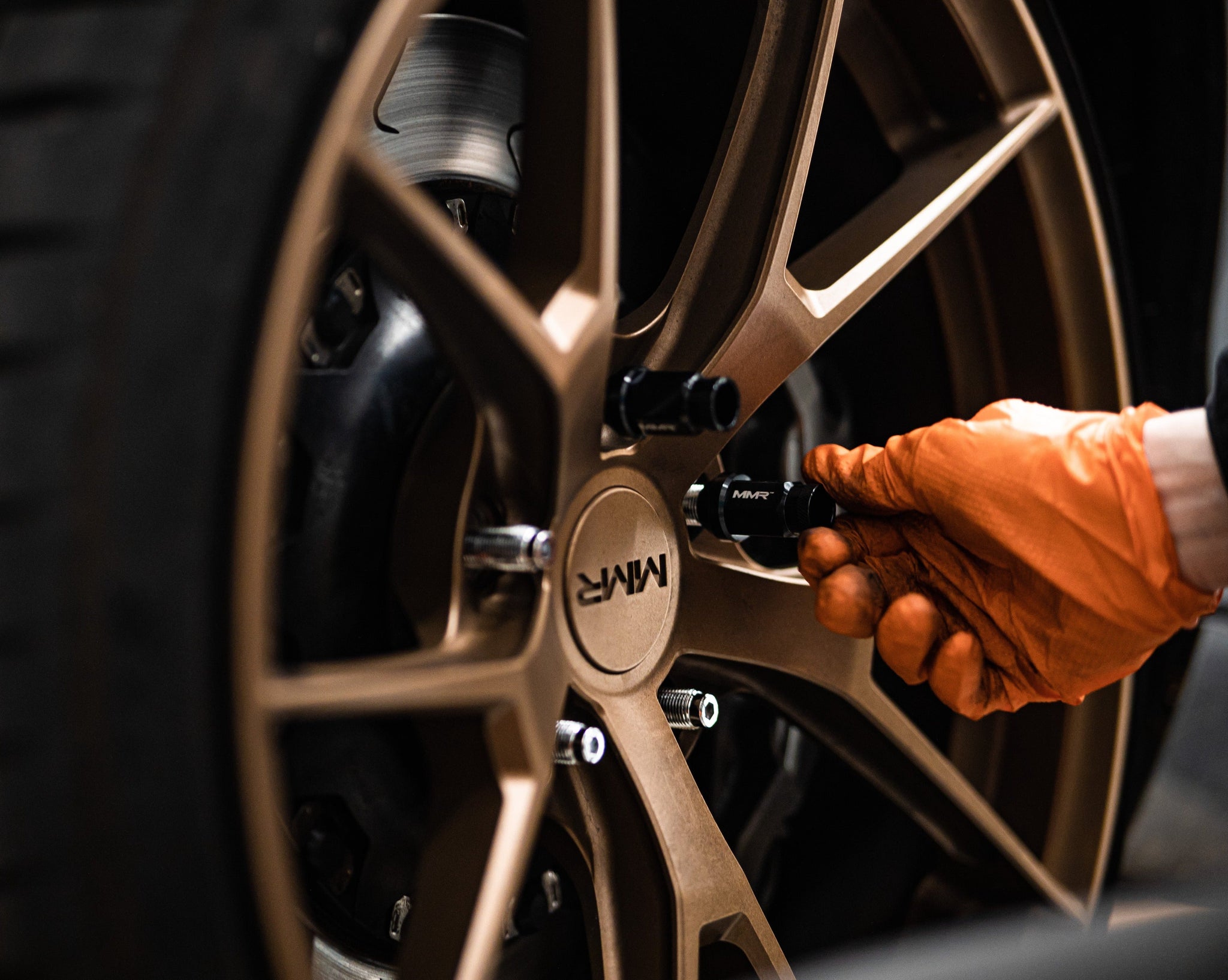

- Quicker wheel changes for track days and motorsport. No more lining up heavy wheels while trying to thread bolts.
- Spacer friendly. Safely run different wheel spacer sizes without running out of bolt threads.

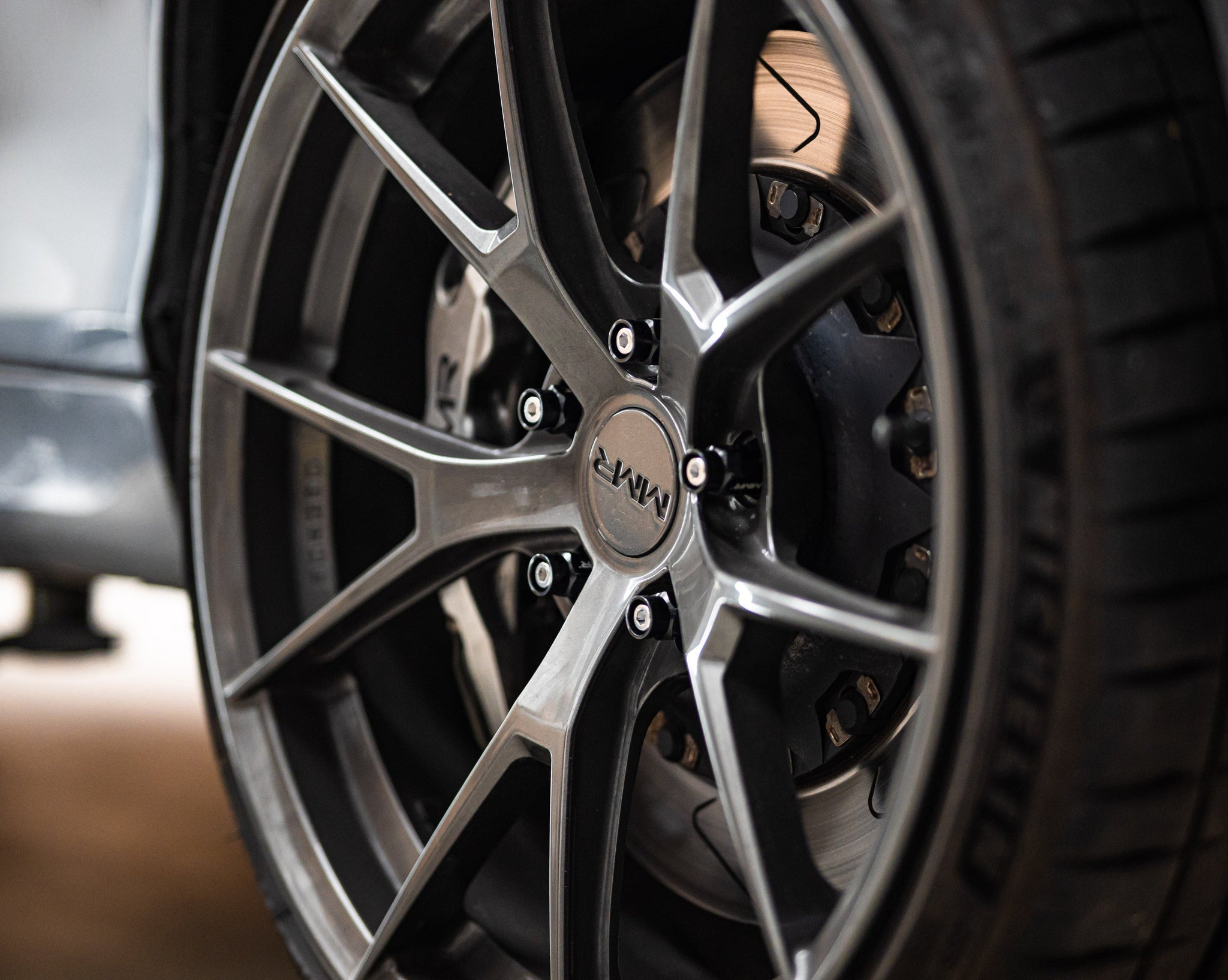

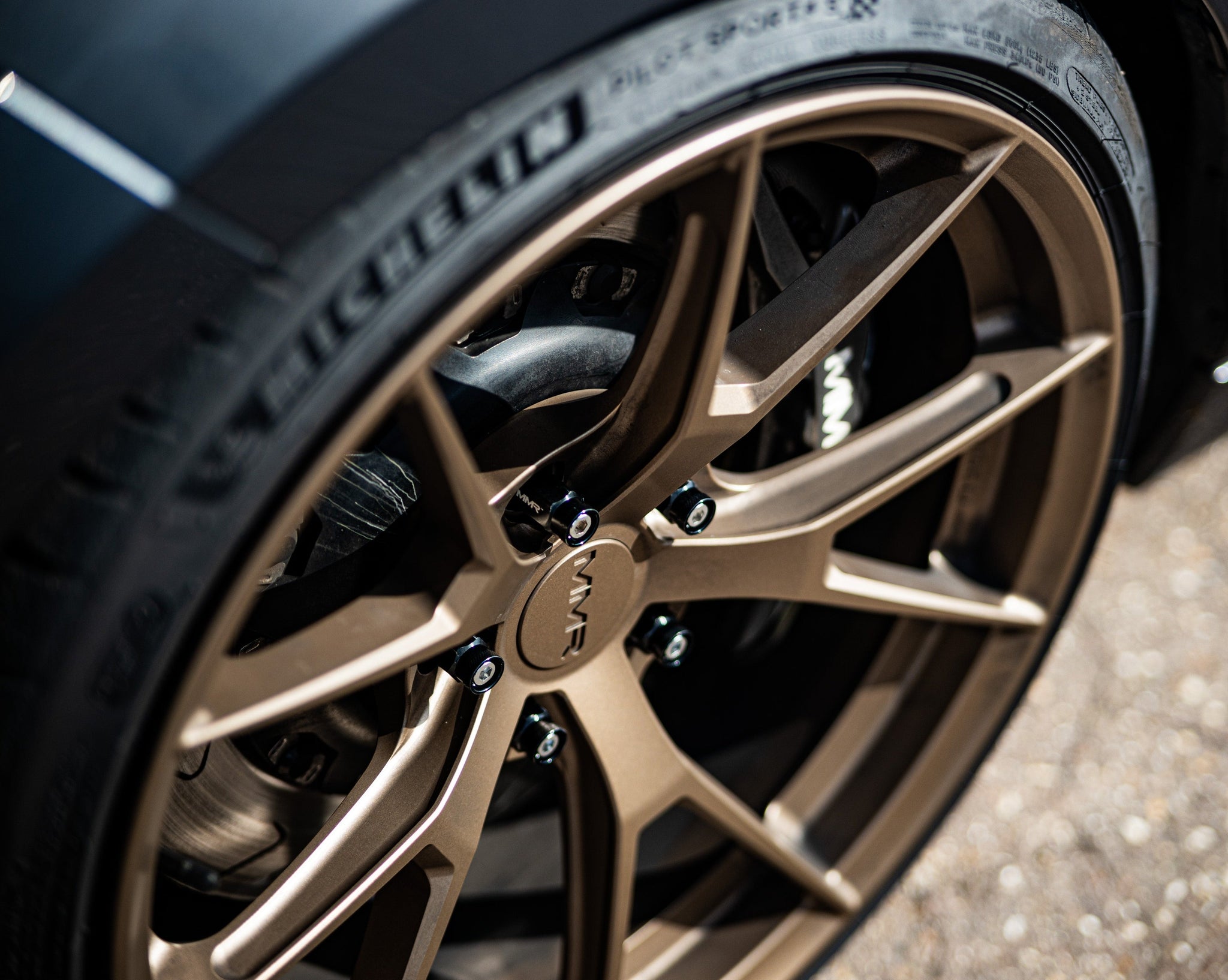

- Beautiful midnight-black gloss anodised wheel nuts elevate your BMW or MINI’s look.
- Available with conical seat or ball seat nuts to suit OEM or aftermarket wheels.
- Simple, reversible bolt-to-stud conversion with internal hex drive for easy installation.
Fitment and compatibility
For vehicles with M14 x 1.25 threads:
- All BMW F Series models 2011–2017
- All BMW G Series models 2018+
- All MINI R56 models 2007–2014
- All MINI F56 models 2014+
Common search terms: BMW wheel studs M14x1.25, BMW stud conversion, BMW wheel nut kit, MINI wheel studs, MINI stud and nut kit, BMW F Series wheel studs, BMW G Series wheel studs, MINI F56 wheel studs, track wheel studs, longer wheel studs, open-ended wheel nuts, bolt-to-stud conversion.
Choose your stud length
- 70 mm studs: No spacers, or up to 10 mm spacer
- 80 mm studs: Spacers between 10 mm and 20 mm
Choose your seat type
Match the nut seat to your wheel seat profile:
- Conical seat nuts – typically used by most OEM wheels
- Ball seat nuts – often used by certain aftermarket wheels
Please check your wheel seat type before ordering. It is important to get this right.
Built for strength, speed and safety

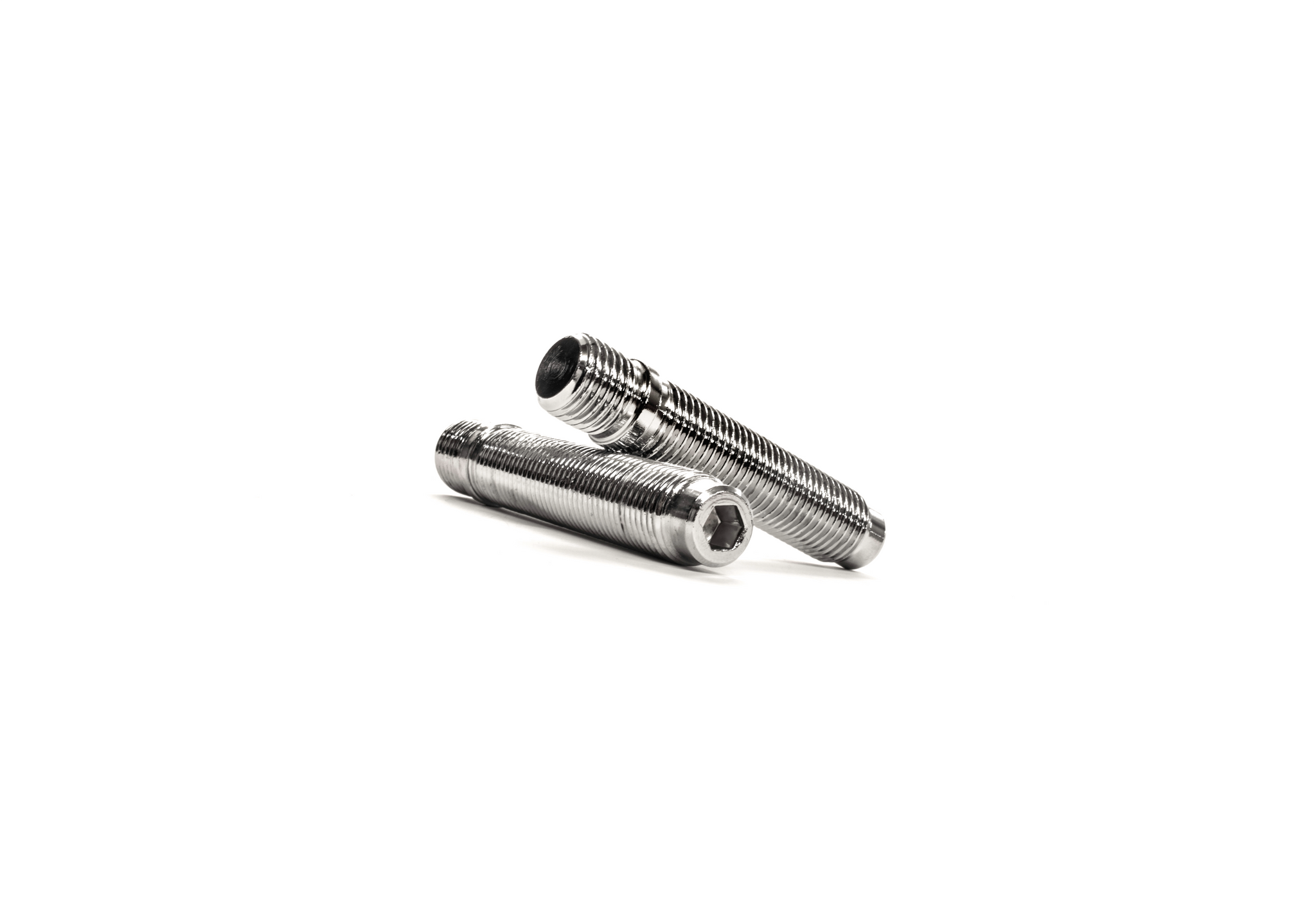

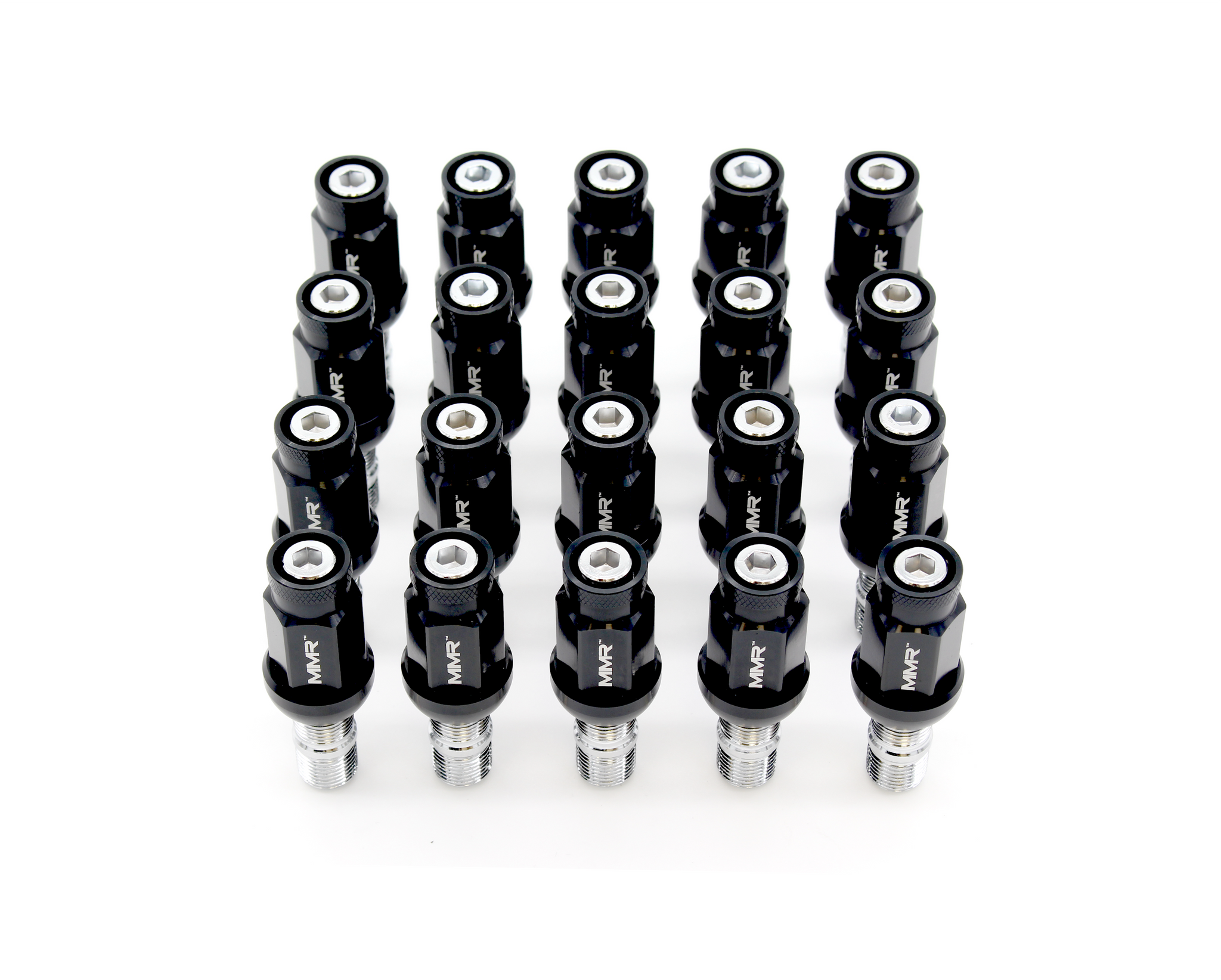

- M14 x 1.25 heat treated high carbon steel studs with chrome plated finish.

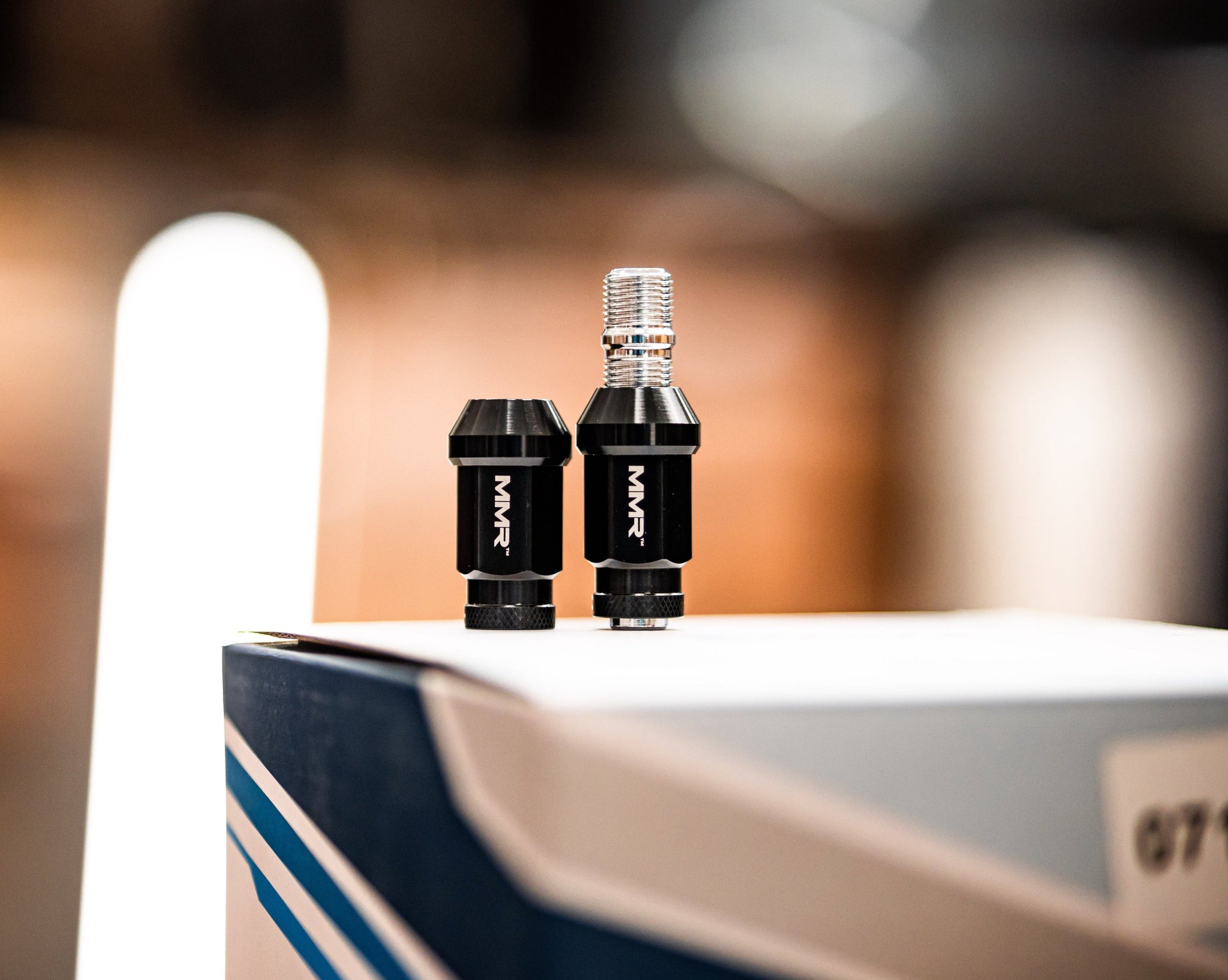

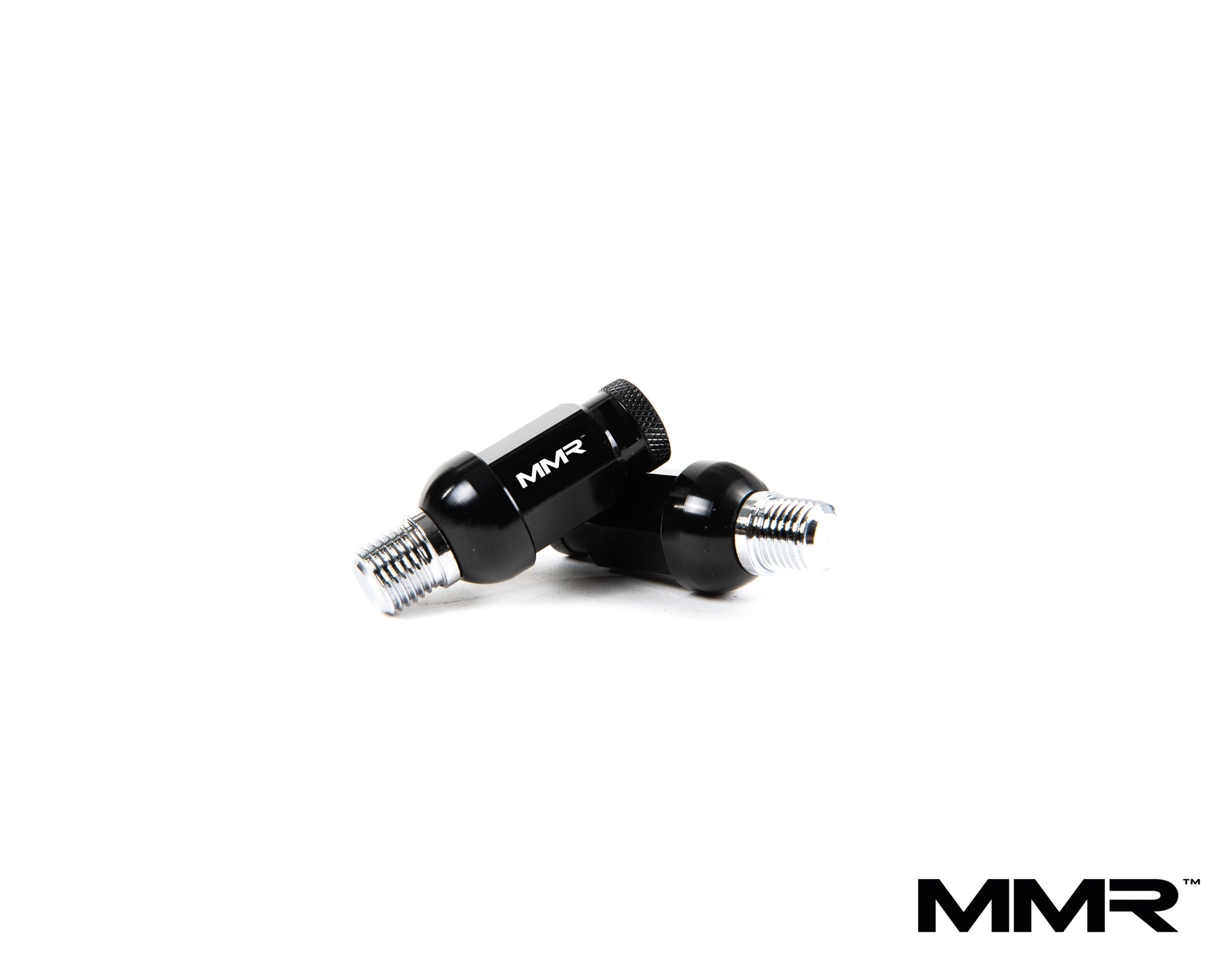

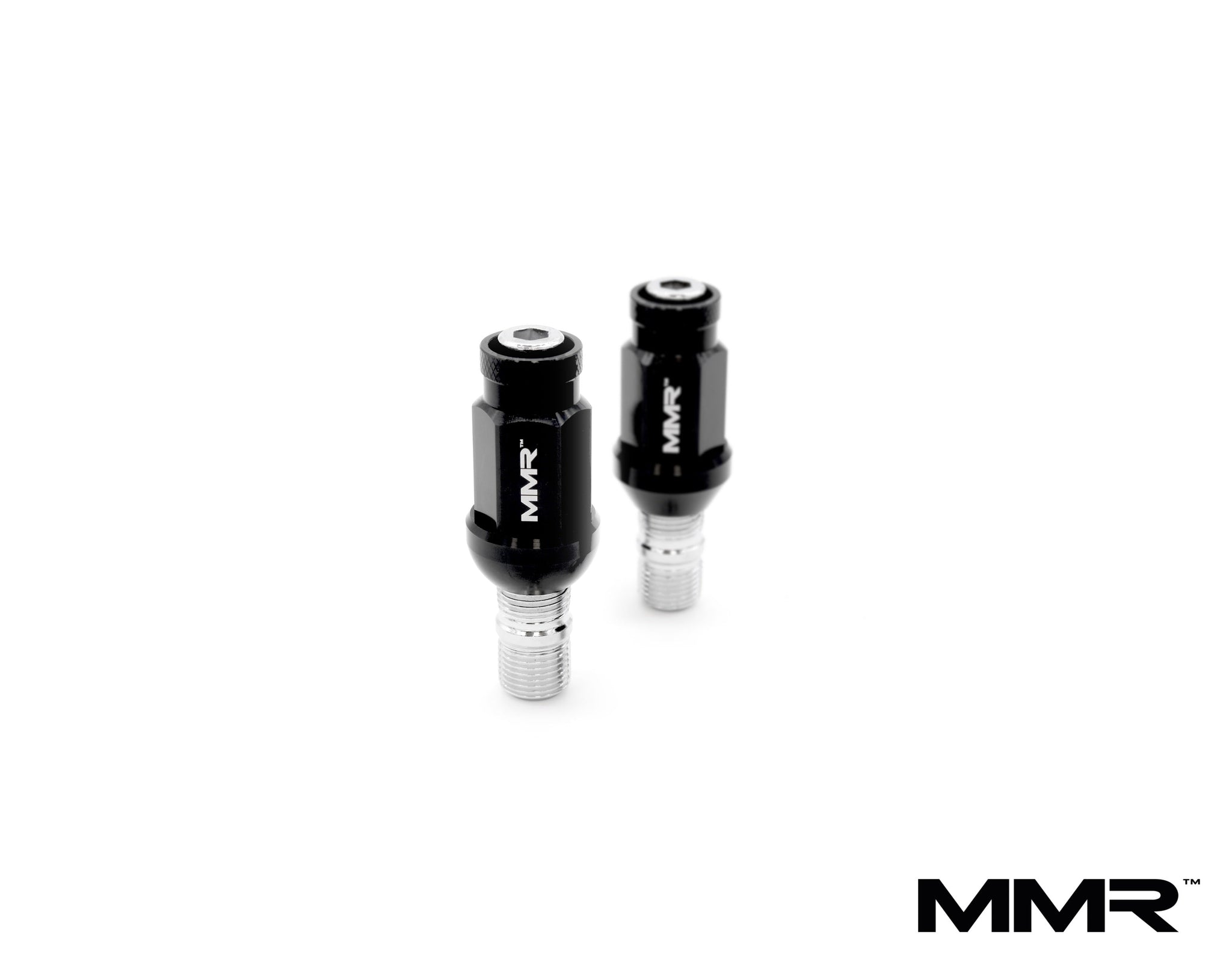

- Lightweight M14 x 1.25 7000-series aluminium open-ended wheel nuts with gloss anodised finish.

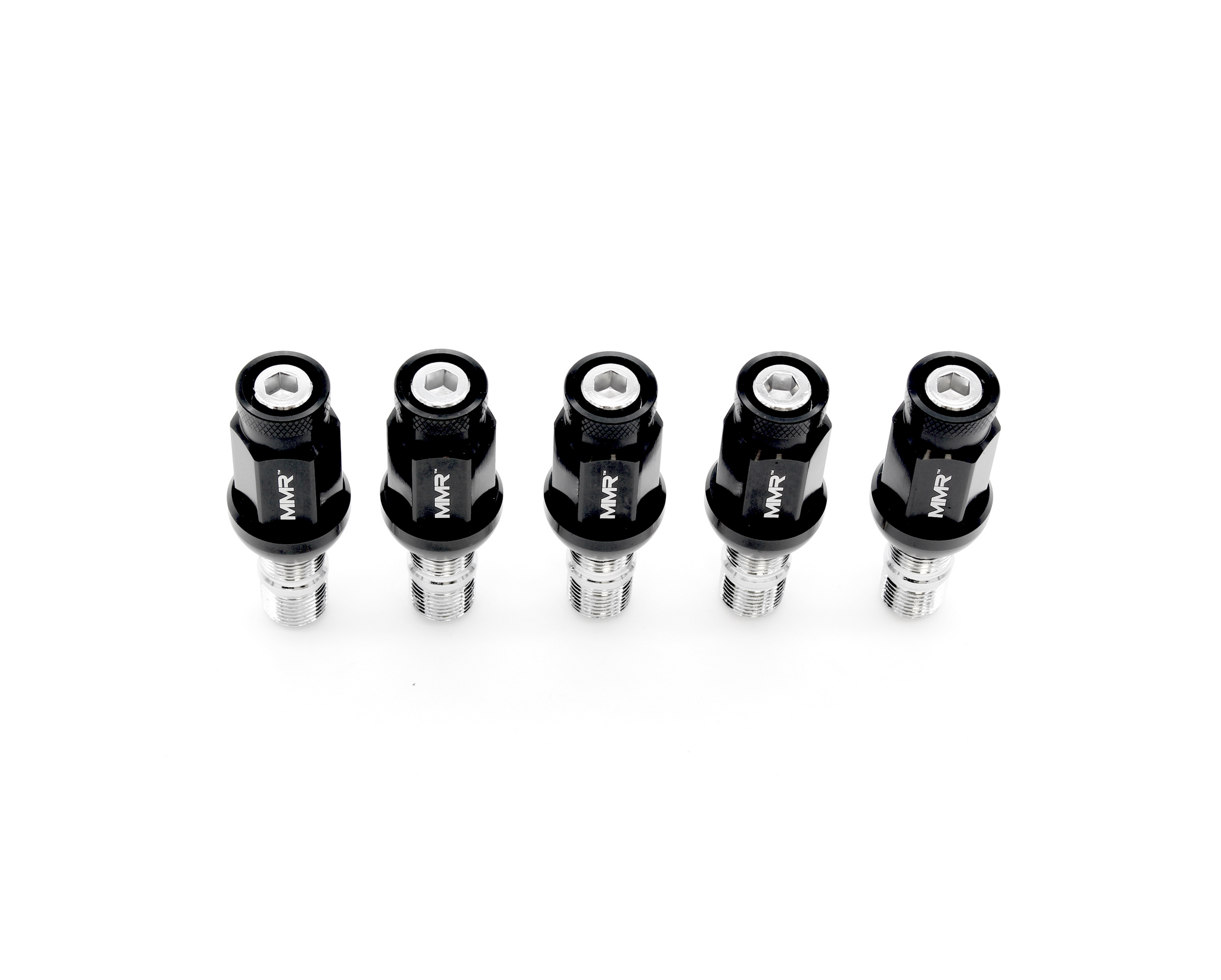

- Internal 6 mm Allen stud drive for accurate installation.
- Knurled outer collar for easier finger grip during quick changes.
- 8 mm unthreaded stud shank for brake disc clearance.
- Oversize 19 mm nuts for greater contact area and ease of use.
Dimensions
Shorter 70 mm studs
- Thread length hub side: 13 mm
- Thread length nut side: 50 mm
- Overall stud length: 70 mm
Longer 80 mm studs
- Thread length hub side: 13 mm
- Thread length nut side: 60 mm
- Overall stud length: 80 mm
Important notes
- Max vehicle weight 2500 kg.
- This is not a locking or security solution.
- Care for anodised finishes. Do not use aggressive acidic or alkaline cleaners. Use only pH balanced cleaners. Never use wheel cleaners, solvents or abrasive compounds on the nuts. Wash with water and mild soap. Avoid commercial car washes that use aggressive chemicals such as TFR.
Installation guide
These studs replace your original wheel bolts, making installation straightforward. If you prefer professional fitting, Nforcd can install this kit at our Warwickshire workshop. Request a fitting quote at Sales@nforcd.com.

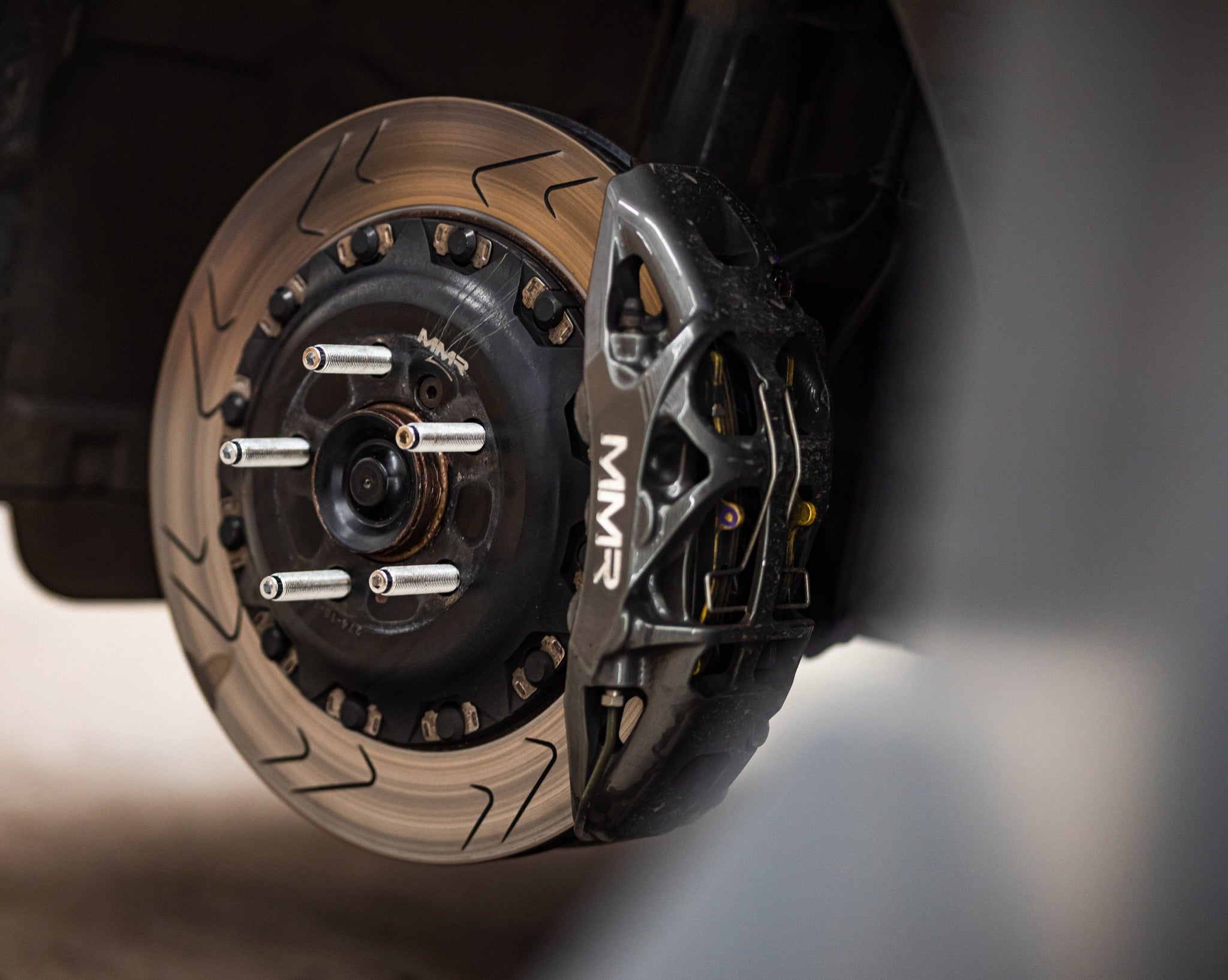

- Remove wheels. Clean hub threads and the short ends of the new studs using brake cleaner. Ensure threads are free from dirt and grease.
- Confirm the stud shank passes through the brake disc holes and does not bottom out on the disc.
- Apply a thin coat of high temperature threadlocker such as Loctite Blue 2422 to the short end of the stud.
- Using a 6 mm Allen key, screw the short end of the stud into the hub until you reach the shank.
- Do not overtighten. Tighten to around 30 ft-lb or 40 Nm.
- Allow approximately three hours for the threadlocker to cure. Refit wheels with the new 19 mm nuts and torque to the factory wheel bolt specification.
- Recheck nut torque after around 30 minutes of driving once the assembly has warmed through.
Why buy your BMW and MINI wheel studs from Nforcd
- Trusted performance parts specialist for BMW and MINI.
- Proven on our own cars and loved by our customers for faster, safer wheel changes.
- Expert advice on nut seat type, stud length and spacer compatibility.
- Professional fitting available in Warwickshire. Email Sales@nforcd.com to book.
